Land Rover Defender: Quilted Loadspace Liner - 110

QUILTED LOADSPACE LINER - 110, PART NUMBER: VPLES0568

REMOVAL AND INSTALLATION

WARNING: Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

NOTES:

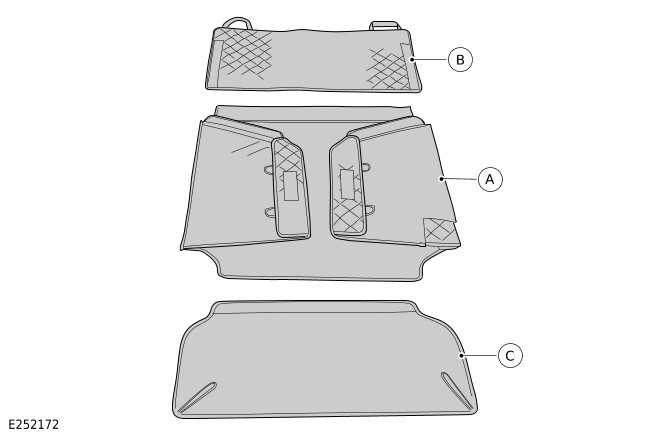

Quilted Loadspace Liner - 110

INSTALLATION

1. Open the tailgate.

2.

Quilted Loadspace Liner - 110

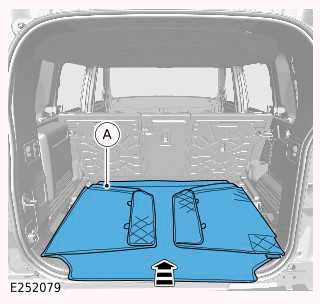

Place the quilted loadspace liner base (A) into the loadspace.

3.

Quilted Loadspace Liner - 110

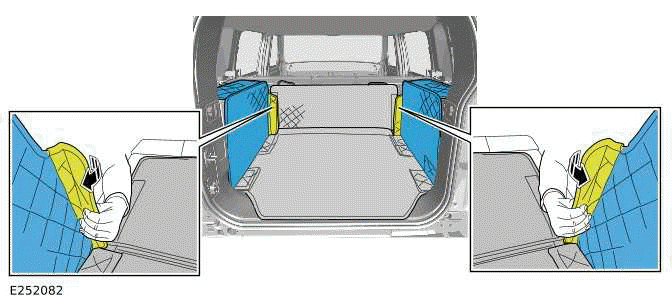

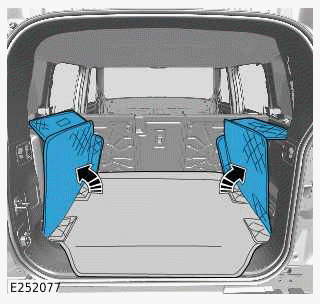

Raise the sides of the quilted loadspace liner base.

4.

NOTE: Repeat step on both sides of the loadspace.

Quilted Loadspace Liner - 110

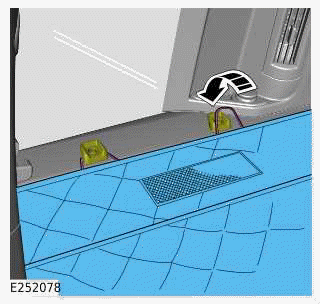

Loop the elastic straps on the top flaps over the 2 interior hooks.

5.

Quilted Loadspace Liner - 110

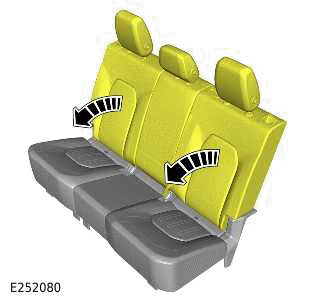

Lower the second row seats. Refer to owner's handbook for operation.

6.

Quilted Loadspace Liner - 110

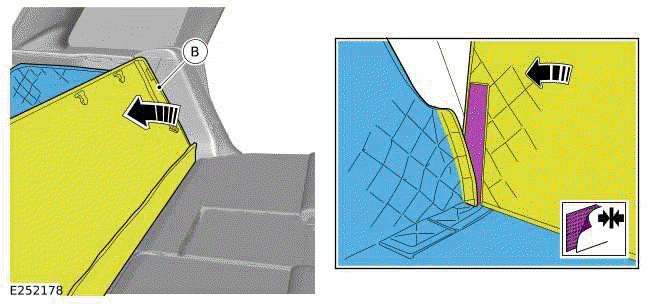

Install the quilted loadspace liner backrest panel (B) as illustrated.

7.

Quilted Loadspace Liner - 110

Fold inwards the rear flaps on the quilted loadspace liner side panels.

8.

Quilted Loadspace Liner - 110

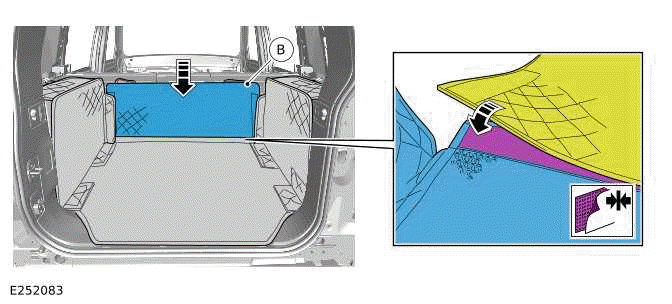

Raise the rear panel. Make sure the velcro strips on the rear panel align with the rear flaps. Attach the velcro strips to the rear flaps.

9.

Quilted Loadspace Liner - 110

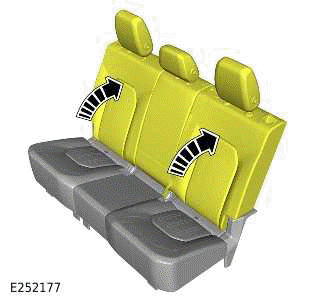

Raise the second row seats. Refer to owner's handbook for operation.

10.

Quilted Loadspace Liner - 110

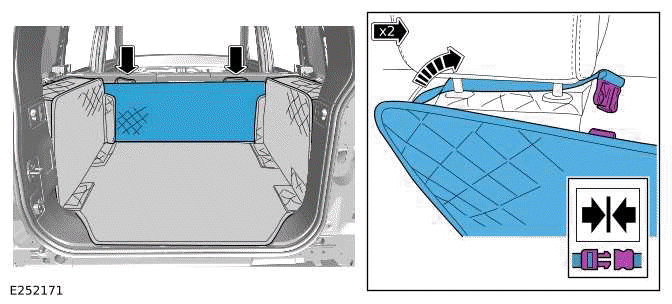

Loop the elastic strap around the metal headrest pillars. Clip to the housing on the rear panel.

11.

Quilted Loadspace Liner - 110

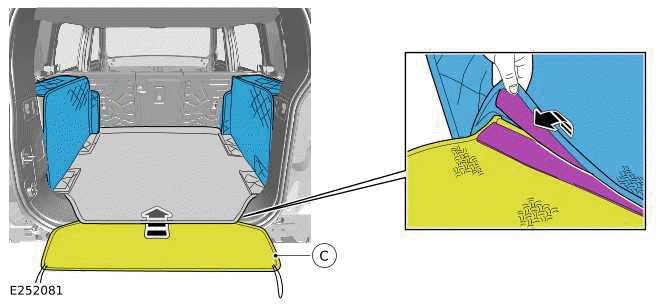

Align and slide the front panel (C) under the quilted loadspace liner base (A). Align the velcro and then attach the front panel to the underside of the quilted loadspace liner base.

12.

Quilted Loadspace Liner - 110

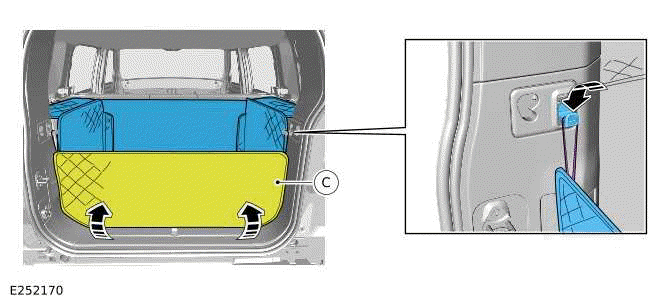

Lift the front panel (C) and loop the straps on both sides of the front panel over the rear loadspace hooks.
