Land Rover Defender: Technical specifications

TECHNICAL SPECIFICATIONS

Some technical specification information in the Owner's Handbook is not available at the time of print, or is subject to updates after printing. Please visit the online Owner's Handbook at: www.ownerinfo.landrover.com, or contact a retailer/authorized repairer, for the latest data.

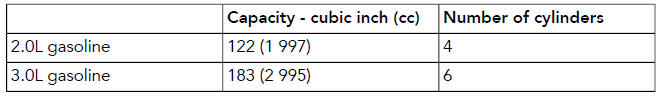

ENGINE SPECIFICATIONS

Note: For further information, contact a retailer/authorized repairer and quote the Vehicle Identification Number (VIN).

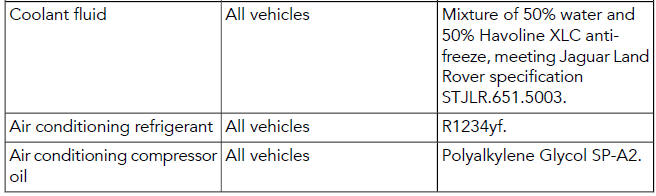

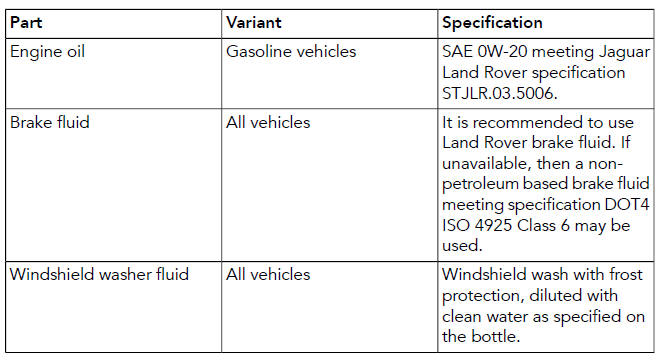

LUBRICANTS AND FLUIDS

If in doubt about the required specification of a lubricant or fluid, seek advice from a retailer/authorized repairer.

Castrol EDGE Professional exclusively recommended by Land Rover.

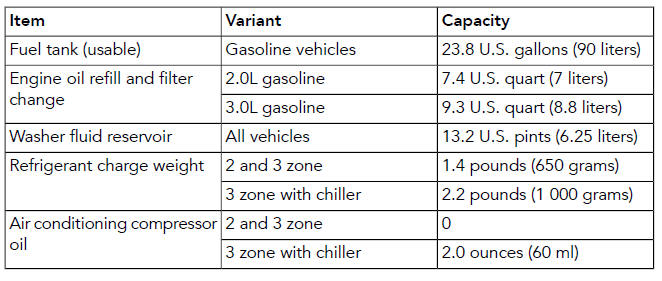

CAPACITIES

The quoted capacities are approximate and provided as a guide only. All levels must be checked using the level marks or information displayed on the vehicle, as applicable.

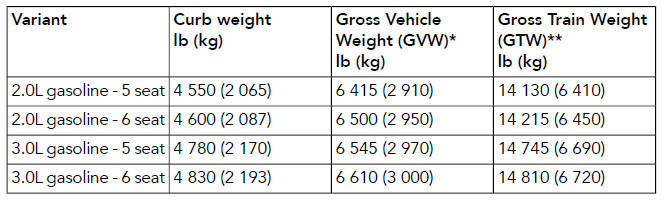

WEIGHTS

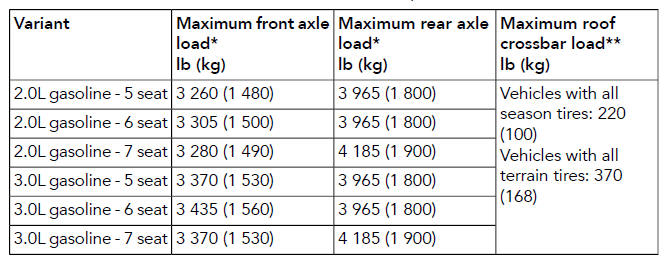

110

* The maximum permissible weight of the vehicle, including passengers and load.
** The maximum permissible weight of the vehicle and braked trailer, including their respective loads.

* The front and rear axle maximum loads cannot be reached simultaneously as this will exceed the GVW limit.
** This figure includes the weight of the roof rails and crossbars.

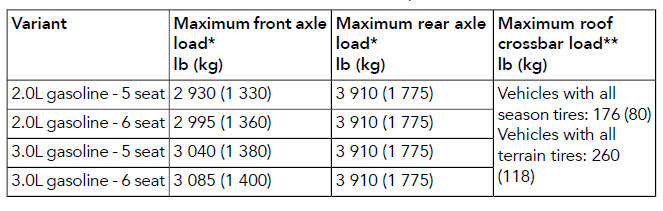

90

* The maximum permissible weight of the vehicle, including passengers and load.
** The maximum permissible weight of the vehicle and braked trailer, including their respective loads.

* The front and rear axle maximum loads cannot be reached simultaneously as this will exceed the GVW limit.
** This figure includes the weight of the roof rails and crossbars.

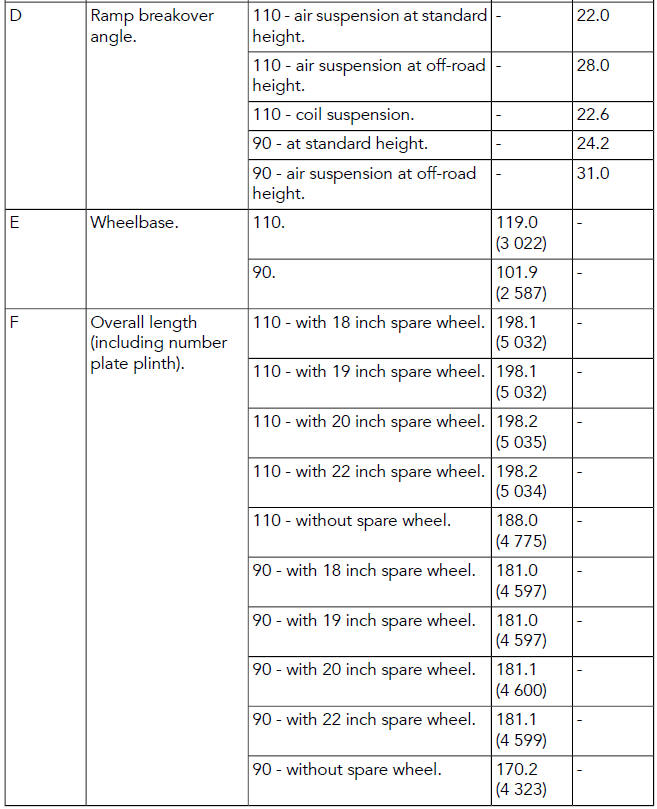

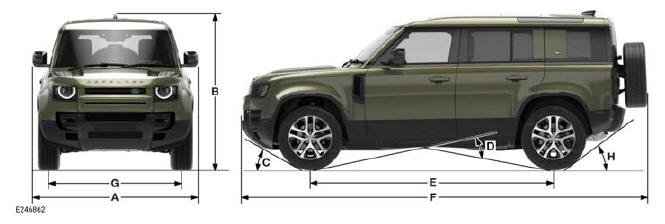

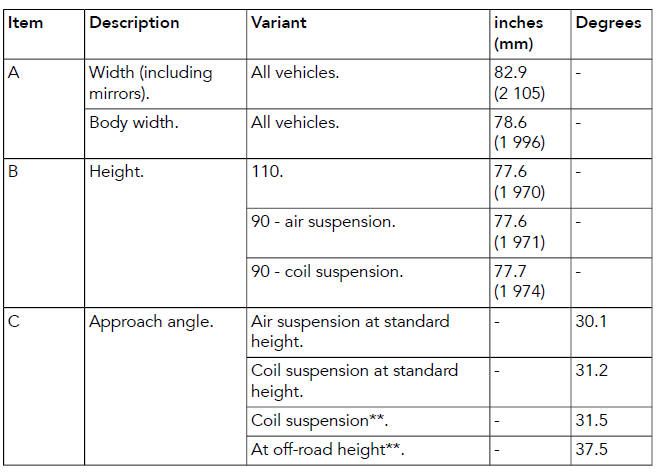

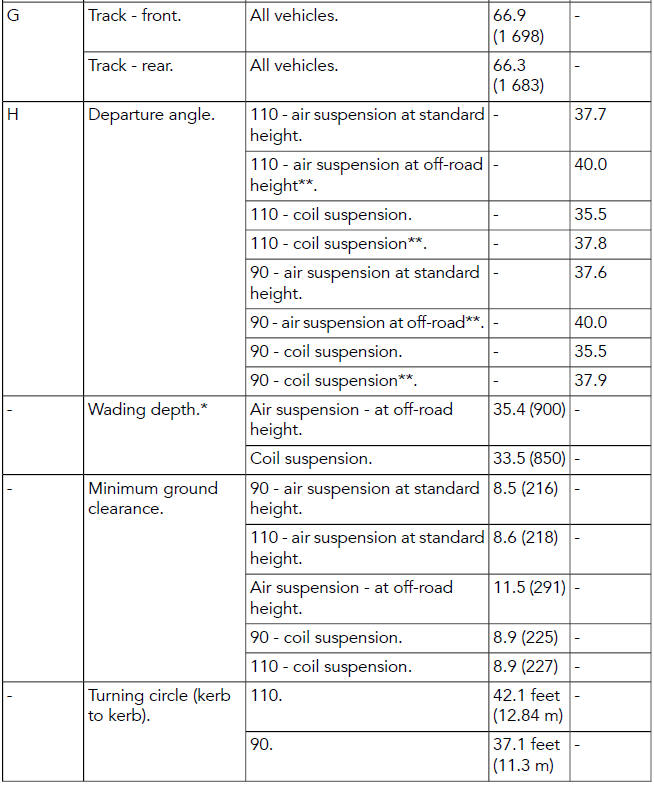

DIMENSIONS

*Maximum wading speed is 4 mph (7 km/h).
**With towing eye cover removed.

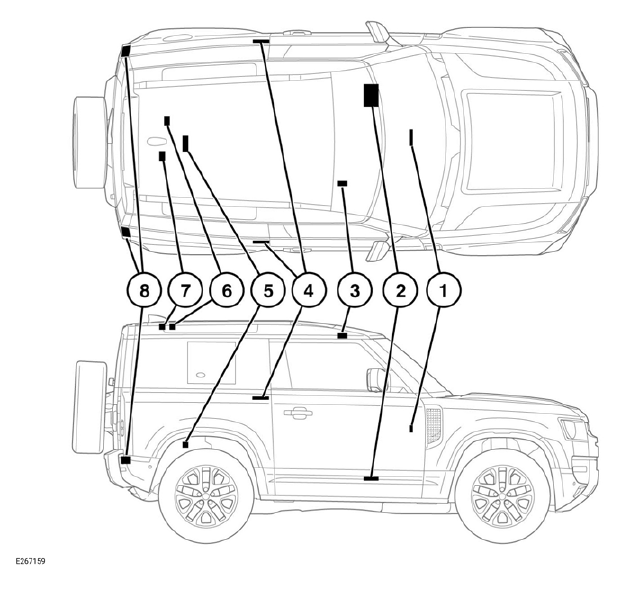

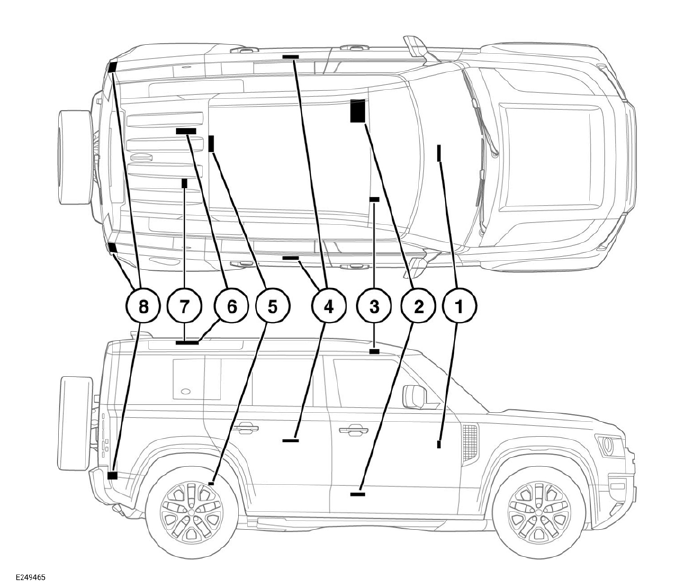

SMART KEY TRANSMITTER LOCATIONS

90

110

1. Cabin front transmitter.
2. Keyless vehicle module.
3. Satellite transceiver¹.
4. Door transmitters¹.
5. Rear transmitter².
6. Satellite transceiver¹.
7. Keyless vehicle module.
8. Rear transmitter¹.

¹ Vehicles with keyless entry.
² Vehicles without keyless entry.

Any person fitted with an implanted medical device should make sure the device is kept at a distance of at least 8.7 inches (22 cm) away from any transmitter mounted in the vehicle. This is to avoid any possibility of interference between the system and the device.

RADIO FREQUENCY SPECTRUM REGULATION STATEMENTS

USA

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

Canada

This device complies with Industry Canada Standard IC - RSS-210: Operation is subject to the following two conditions:

1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired operation of the device.

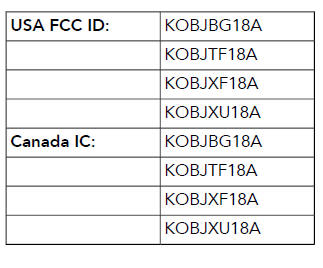

The key system transmitter radio frequency approval numbers for the USA and Canada are shown below:

Note: The manufacturer is not responsible for any radio interference or TV interference caused by unauthorized modifications to this equipment. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

The Smart key may suffer interference from other legal users of this radio frequency band, such as radio amateurs, medical equipment, remote controls or alarm systems. To lock or unlock the vehicle in such a situation, either use a key or operate the key transmitter as close to the security antenna as possible.
