Land Rover Defender: Telematics

DIAGNOSIS AND TESTING

The complexities of the electronics involved with the telematics system, of which the GPS antenna and navigation display are parts, and the multiplexed communication network which are connected to it preclude the use of workshop general electrical test equipment. Therefore, reference should be made to the approved Jaguar Land Rover diagnostic system for detailed instructions on testing the telematics system unit.

The approved Jaguar Land Rover diagnostic system tests and analyses all functions of the vehicle telematics system and the various systems affected by it.

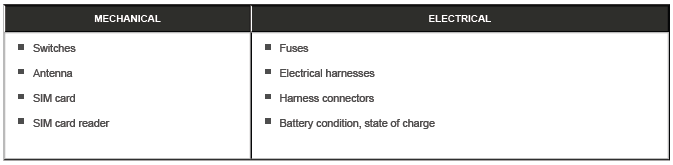

Where a fault is indicated, some basic diagnostic methods may be necessary to confirm that connections are good and that wiring is not damaged before installing a new component.

PRINCIPLE OF OPERATION

For a detailed description of the telematics system, refer to the relevant description and operation sections in the workshop manual.REFER to: Telematics (Information and Entertainment System, Description and Operation).

INSPECTION AND VERIFICATION

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does not guarantee confirmation of a fault, and may also cause additional faults in the vehicle being tested and/or the donor vehicle

1. Verify customer concern.

2. Visually inspect for obvious signs of damage and system integrity.

Visual Inspection

Telematics

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.

4. If the cause is not visually evident check the system for any set diagnostic trouble codes (DTCs) and proceed to the DTC index.

5. Check let JLR claims submission system for open campaigns. Refer to the corresponding bulletins and SSMs which may be valid for the specific customer complaint and complete the recommendations as required.

Telematics system diagnosis Do's and Do not's

Below are a list of DO's and DO NOT's, which should be adhered to in conjunction with any workshop literature or manuals.

DO:

DO NOT:

Telematic control module replacement

A telematic control module replacement should only be completed after all other troubleshooting and diagnosis steps have been taken (including raising a TA for further assistance) AND has been approved by Retailer Technical Services. You should not perform a telematic control module replacement in the hope it will resolve a concern that you cannot diagnose. During the "TCU Replacement Routine", essential information relating to the new unit is sent to the Jaguar Land Rover off-board database, therefore it is crucial that the telematic control module replacement routine is ran in full.

  1. Physically fit the telematic control module as instructed in the Workshop Manual.
  2. Make sure the Jaguar Land Rover approved diagnostic equipment has been updated to the latest version.
  3. Do not use a "dongle" or an older version of the Jaguar Land Rover approved diagnostic equipment.
  4. Run the "TCU Replacement Routine" through the Jaguar Land Rover approved diagnostic equipment in an area with good signal.

Raising a telematics related Technical Assistance (TA) - Minimum standards

When raising a Technical Assistance (TA), it is essential that as much information as possible is captured and documented on the TA. This will save valuable time when the relevant teams investigate. You should aim to provide:

SYMTOM CHART

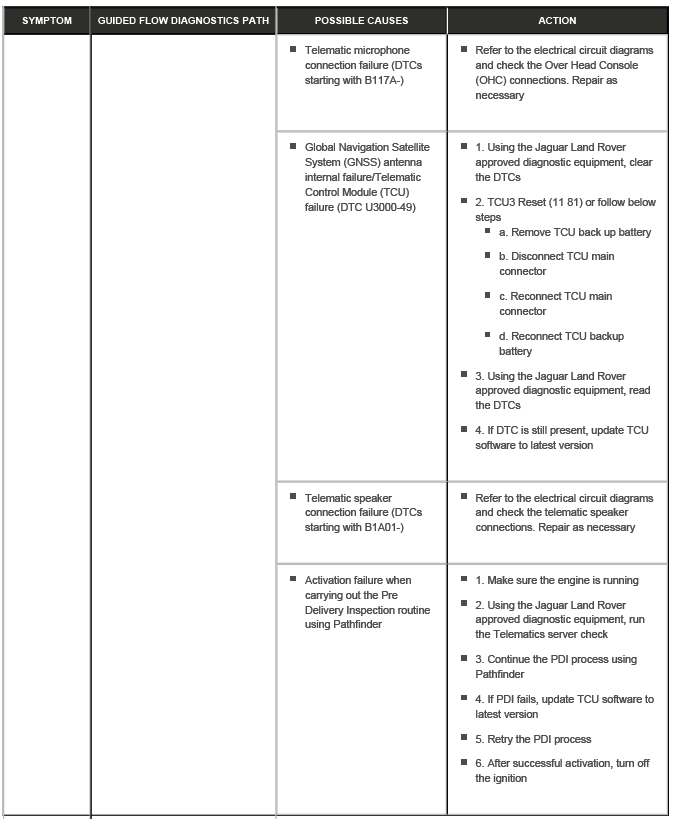

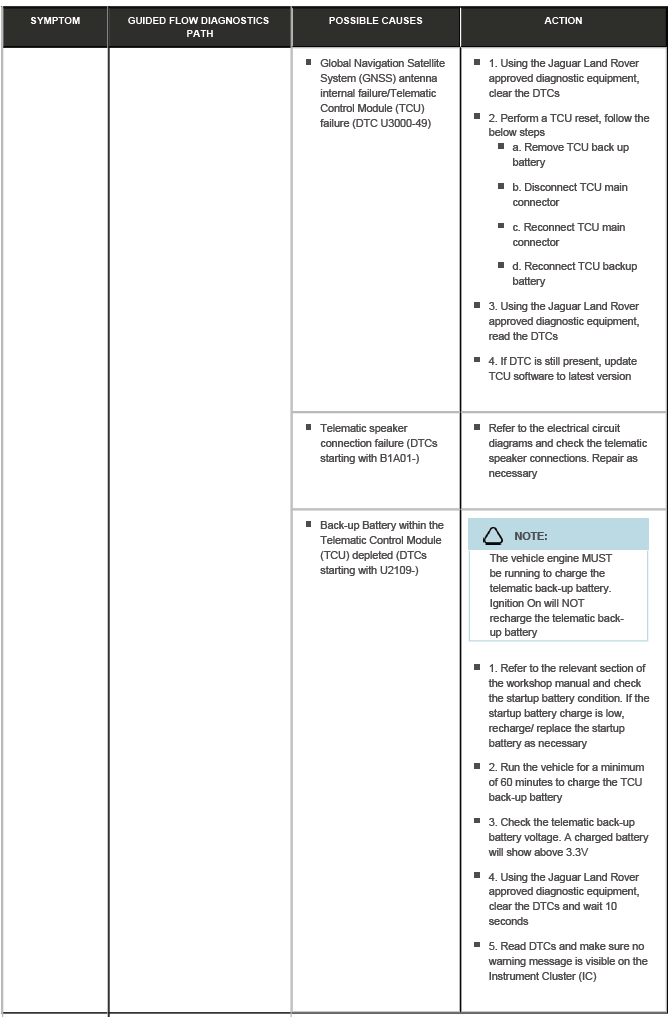

Telematic Error Meassages shown within the Instrument Cluster (IC)

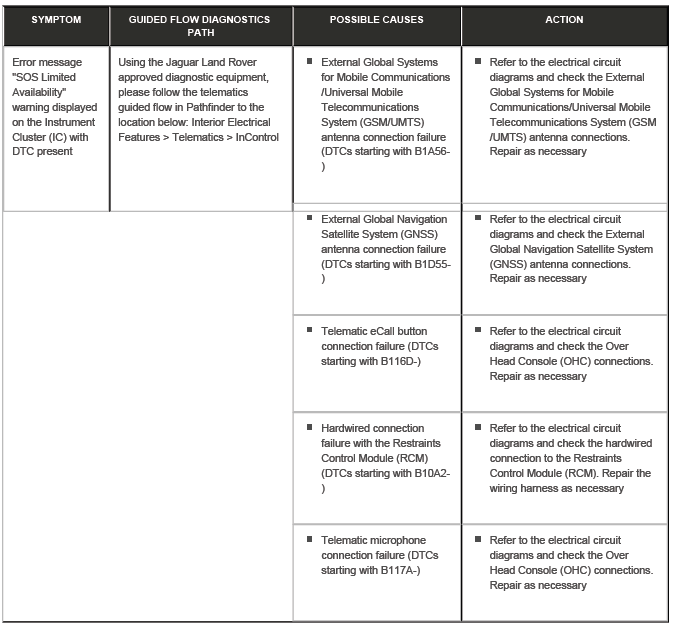

Error Message "SOS Limited Functionality" Shown Within The Instrument Cluster (IC)

NOTE: The clearing of this message can only be achieved by resolving a hardware issue.

Telematics

Telematics

Telematics

Symptom Chart

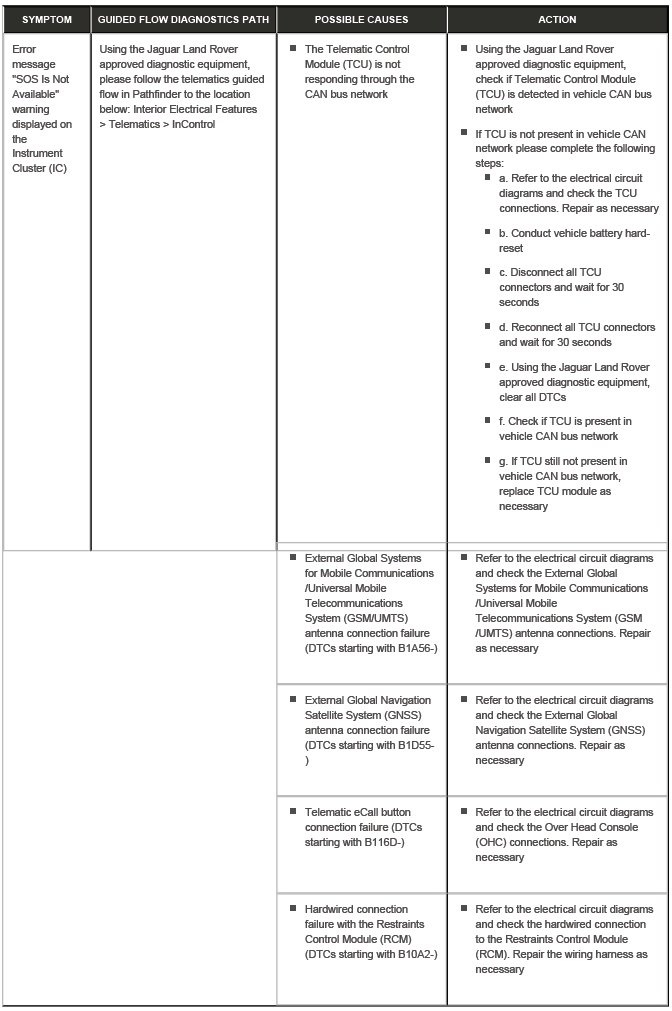

Error Message "SOS not available" Shown Within The Instrument Cluster (IC)

Telematics

Telematics

Telematics

Please note that this list is not extensive and full diagnosis should always be completed as per the workshop literature.

Symptom Chart

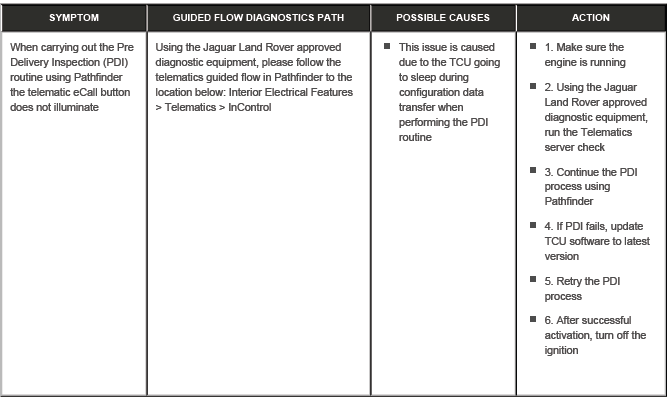

Pre Delivery Inspection (PDI) eCall Button Illumination Issues

Telematics

Telematics

Symptom Chart

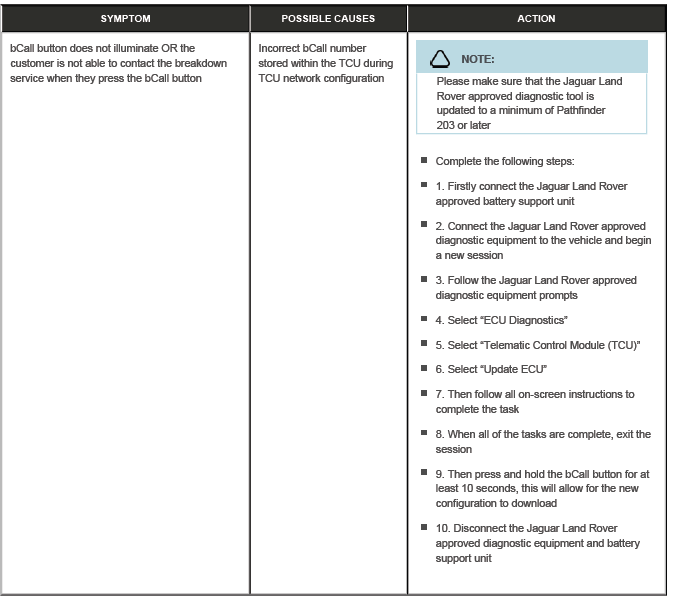

bCall Button Illumination Issues

Telematics

Symptom Chart

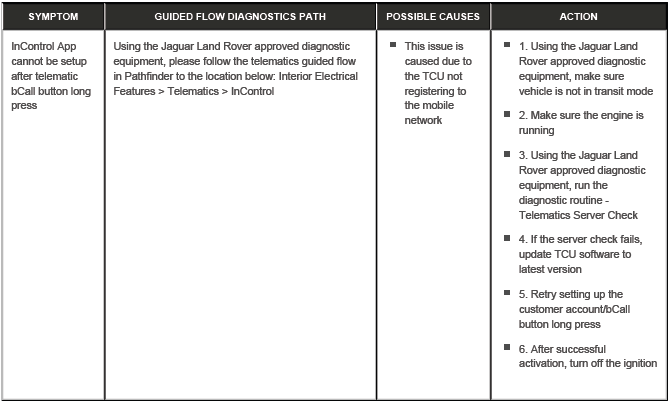

InControl App Setup Issues

Telematics

Symptom Chart

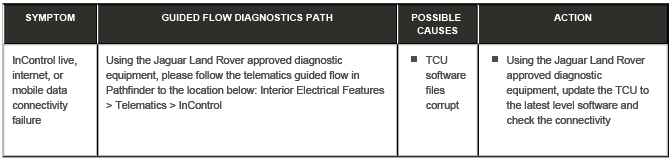

Conectivity Issues

Telematics

Symptom Chart

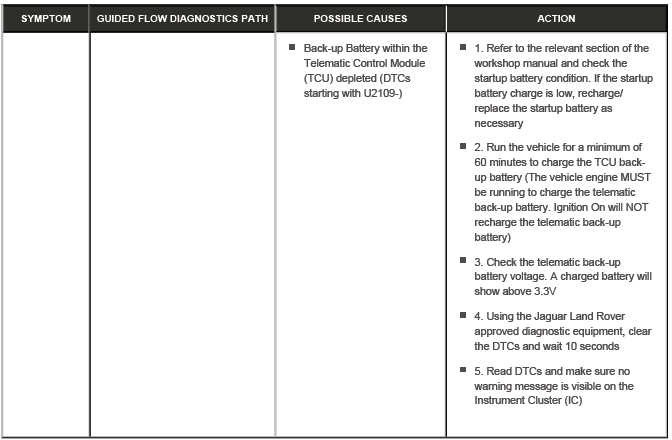

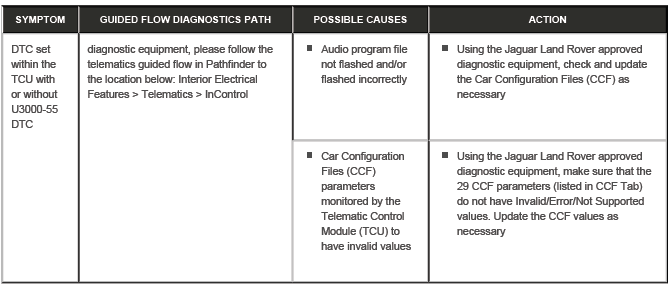

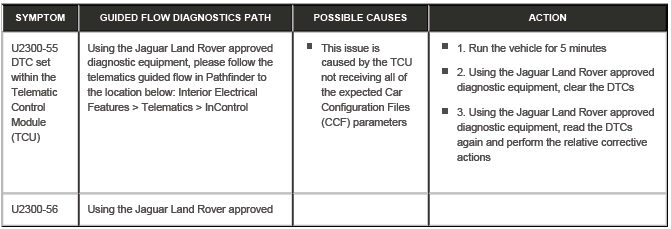

U2300 Diagnostic Trouble Code (DTC) Raised

Telematics

Telematics

Symptom Chart

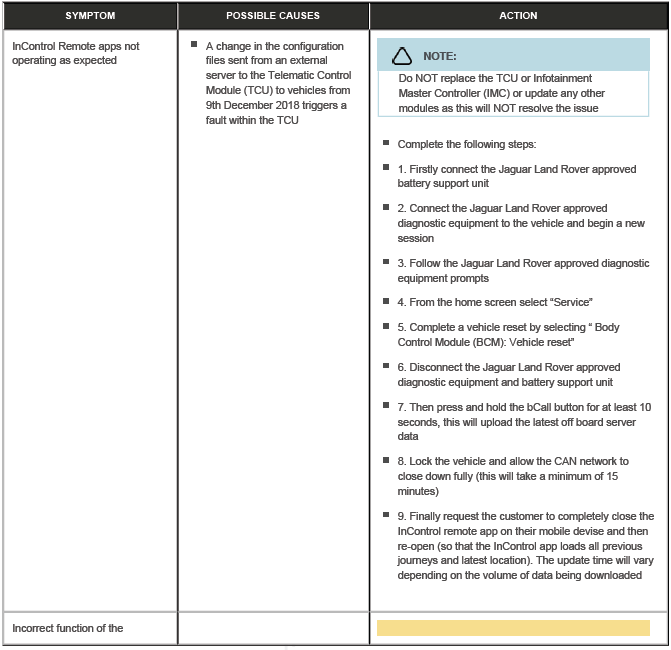

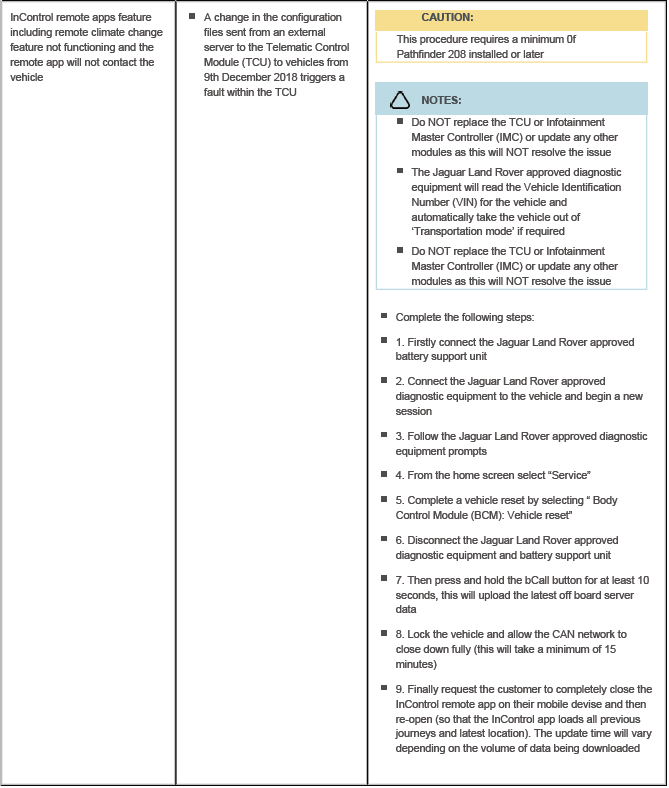

In Control Remote Apps Operation Issues

Telematics

Telematics

Symptom Chart

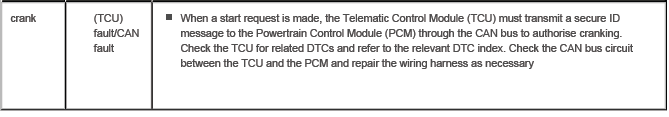

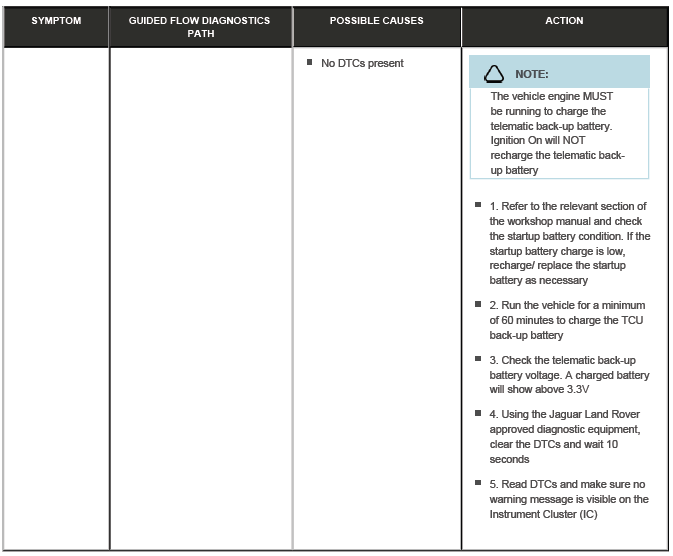

Engine Crank Inhibited

Telematics

Telematics

PINPOINT TESTS

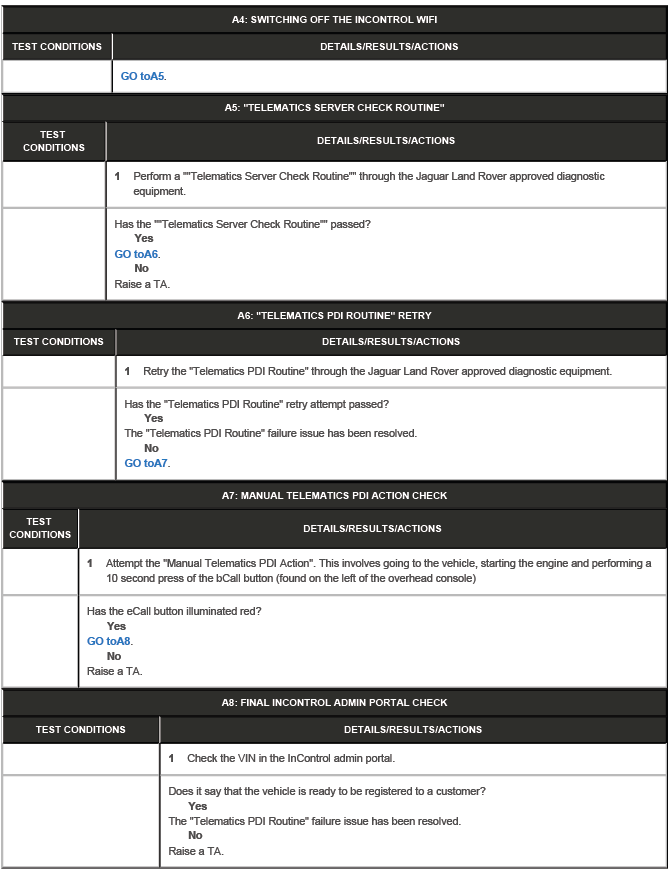

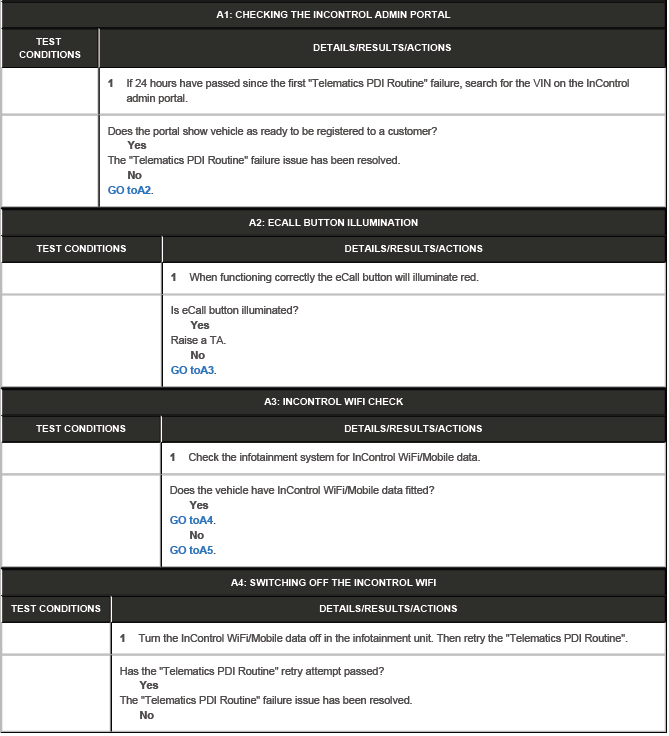

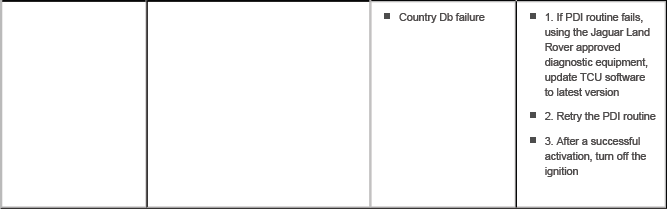

PINPOINT TEST A : ERRORS IN THE RETAILER ACTION/PROCESS - TELEMATICS PDI ROUTINE FAILS AS STATED BY THE JAGUAR LAND ROVER APPROVED DIAGNOSTIC EQUIPMENT

Telematics

Telematics

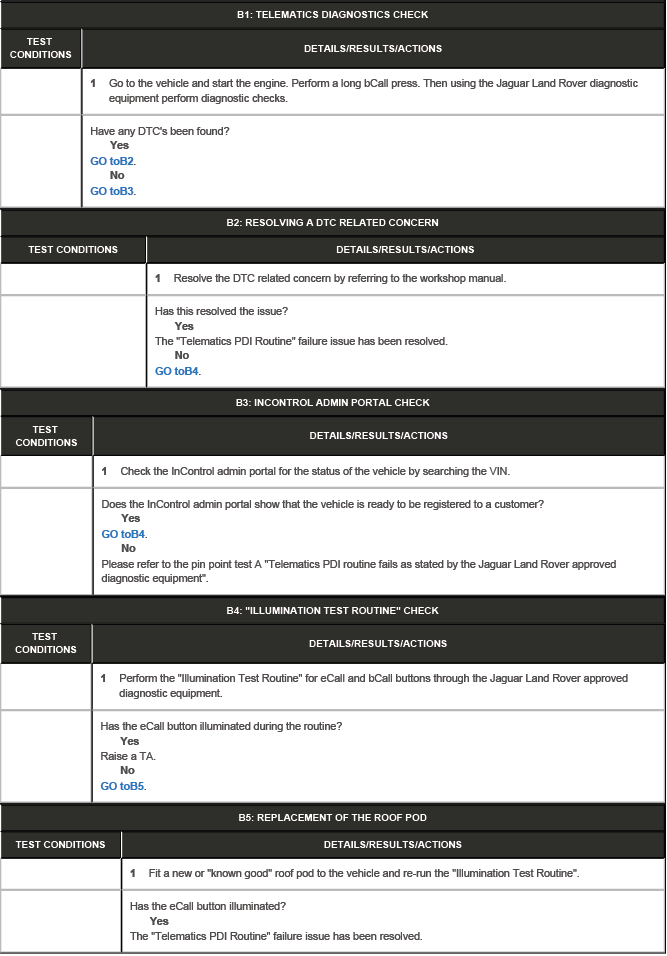

PINPOINT TEST B : ERRORS IN THE RETAILER ACTION/PROCESS - JAGUAR LAND ROVER APPROVED DIAGNOSTIC EQUIPMENT DOES NOT REPORT THAT THE "TELEMATICS PDI ROUTINE" HAS BEEN UNSUCCESSFUL HOWEVER THE ECALL/SOS BUTTON DOES NOT ILLUMINATE RED

Telematics

Telematics

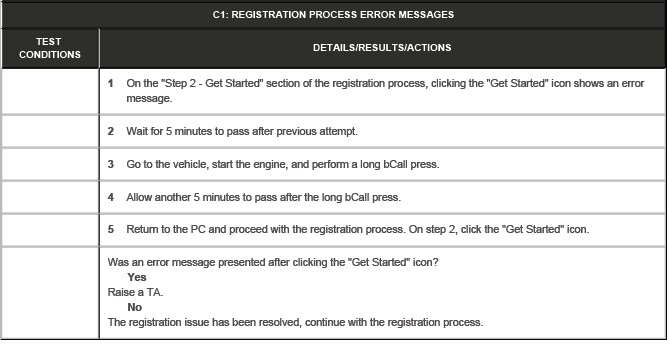

PINPOINT TEST C : ERRORS IN THE RETAILER ACTION/PROCESS - "OPEN SERVICE" ERROR MESSAGE IS PRESENTED WHEN CLICKING "GET STARTED"

Telematics

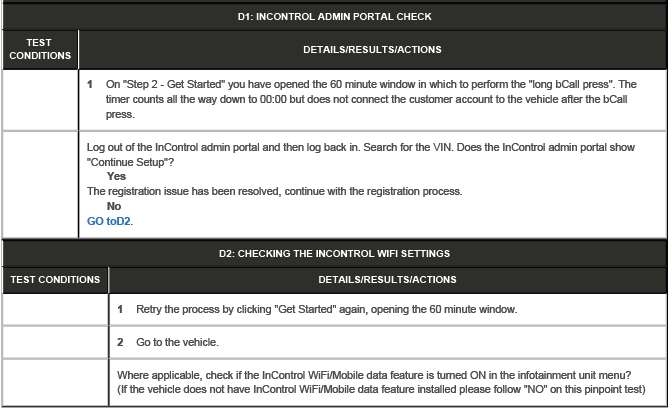

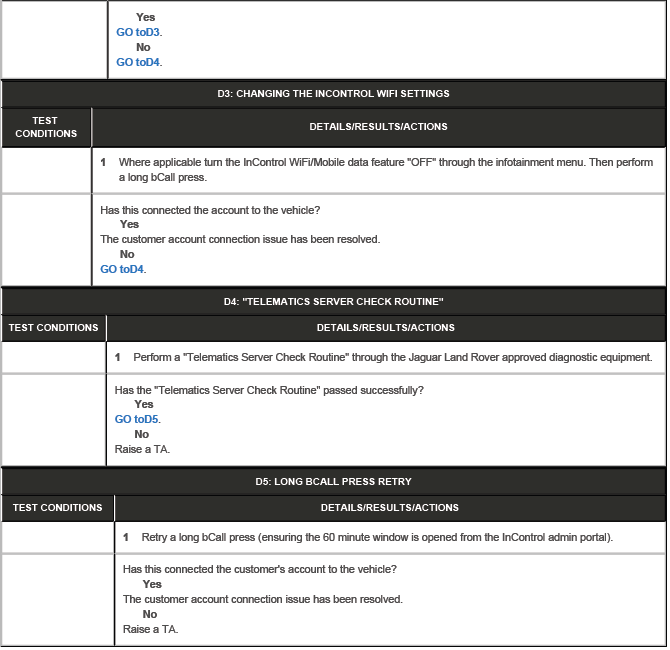

PINPOINT TEST D : ERRORS IN THE RETAILER ACTION/PROCESS - CONNECTING THE USER DOES NOT WORK WITHIN THE 60 MINUTE WINDOW

Telematics

Telematics

NOTES:

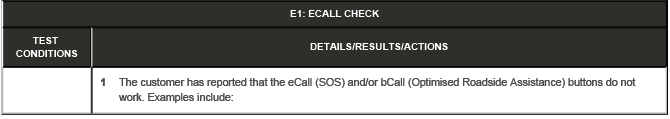

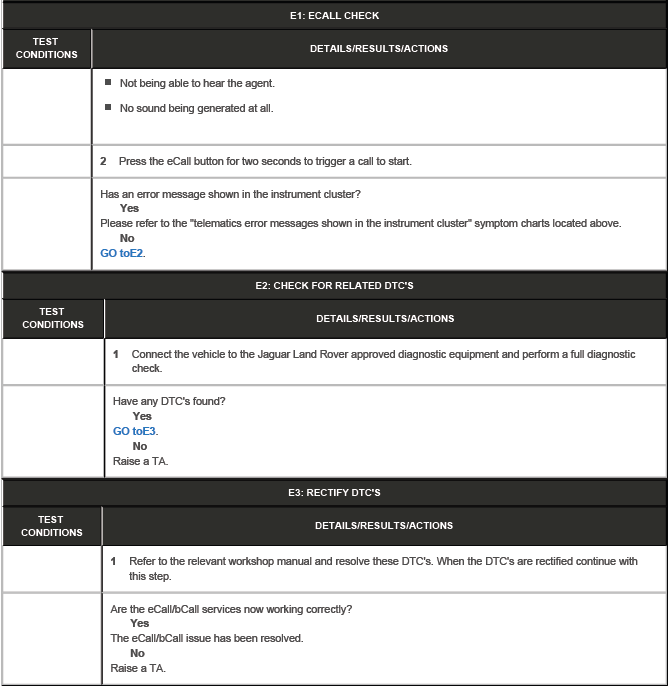

PINPOINT TEST E : ERRORS REPORTED BY THE USER - ECALL/BCALL SERVICES DO NOT WORK

Telematics

Telematics

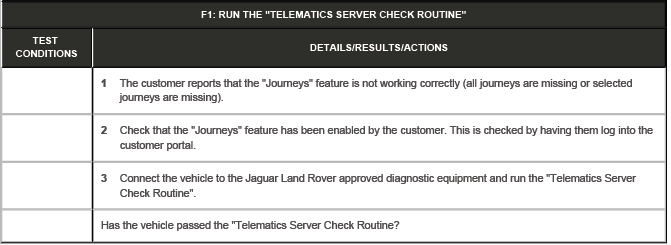

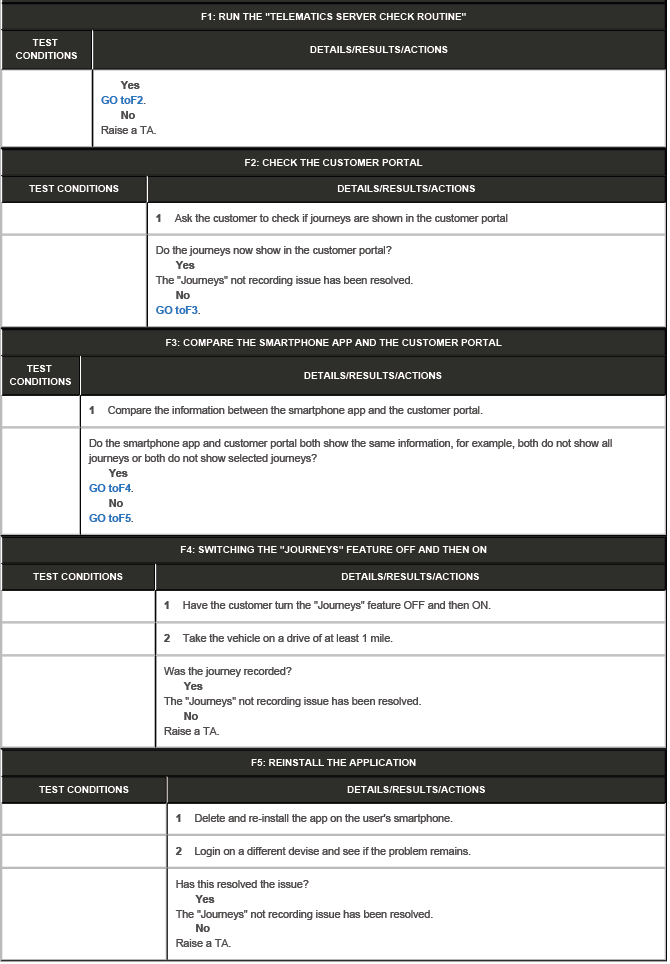

PINPOINT TEST F : ERRORS REPORTED BY THE USER - JOURNEYS ARE NOT RECORDED

Telematics

Telematics

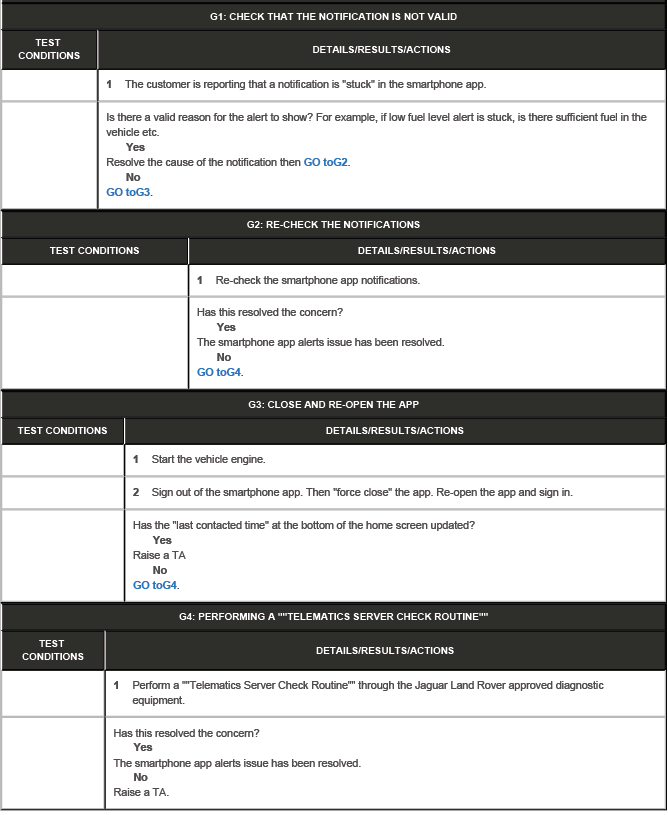

PINPOINT TEST G : ERRORS REPORTED BY THE USER - SERVICE ALERTS ARE "STUCK" IN THE SMARTPHONE APPLICATION

Telematics

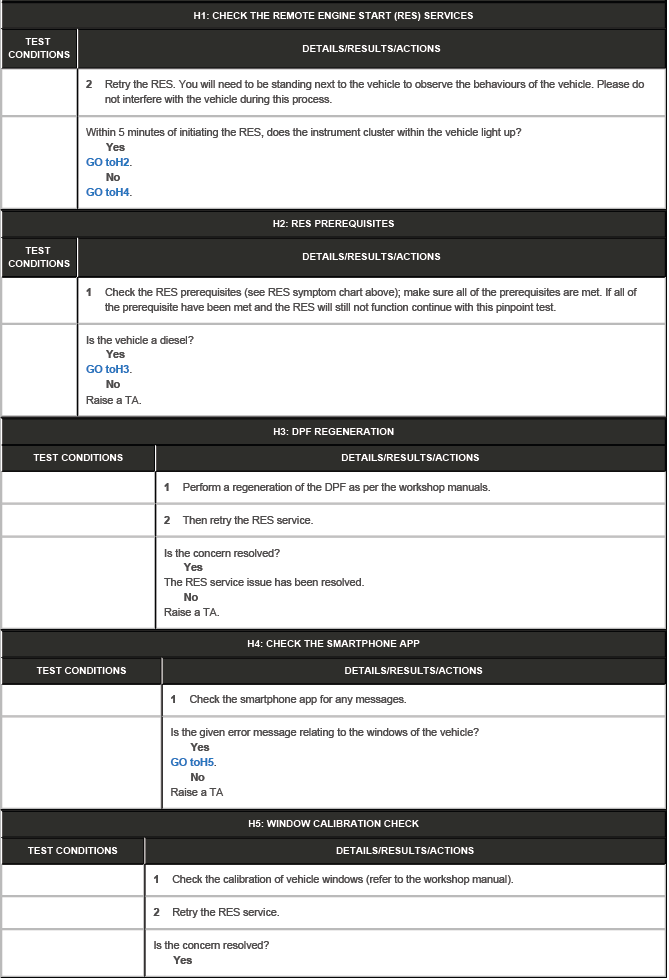

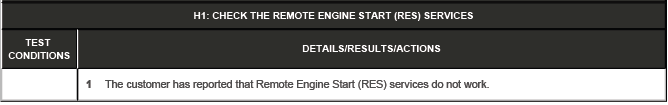

PINPOINT TEST H : ERRORS REPORTED BY THE USER - REMOTE ENGINE START (RES) SERVICES DO NOT WORK

Telematics

Telematics

Telematics

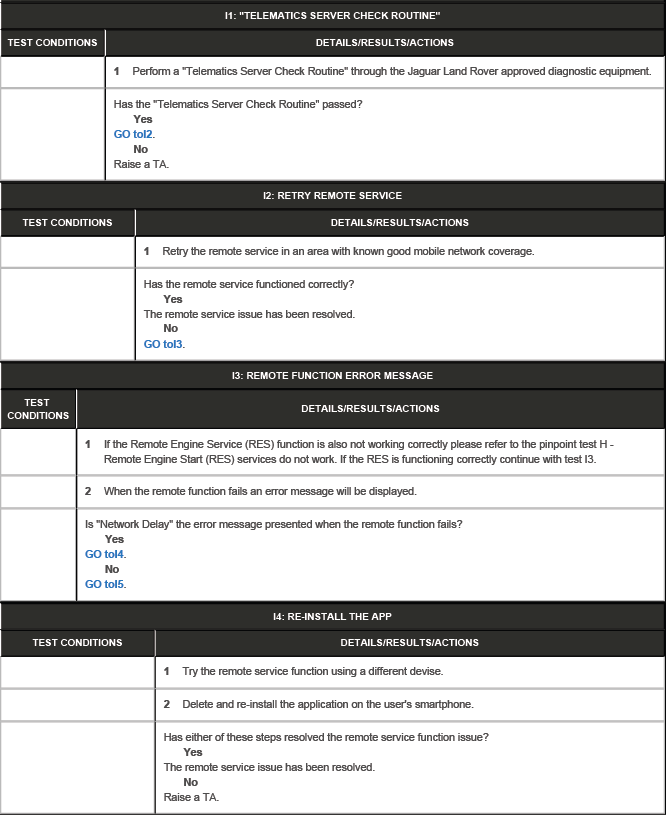

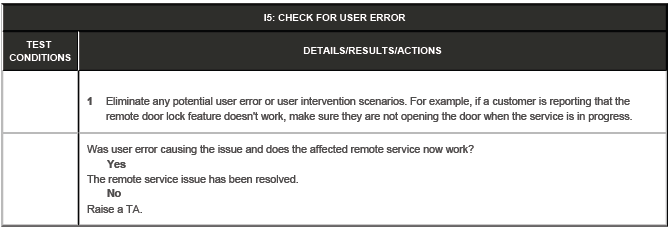

PINPOINT TEST I : ERRORS REPORTED BY THE USER - REMOTE SERVICES DO NOT WORK (REMOTE LOCK/UNLOCK, HORN BLOW, LIGHTS FLASH, ALARM OFF)

Telematics

Telematics
