Land Rover Defender: Vehicle Dynamic Suspension - Diagnosis and Testing

Land Rover Defender 2020-2024 Service Manual / Chassis / Vehicle Dynamic Suspension / Vehicle Dynamic Suspension - Diagnosis and Testing

PRINCIPLES OF OPERATION

For additional information on the operation of the air suspension system, refer to the relevant section of the workshop manual.

INSPECTION AND VERIFICATION

WARNING: Before carrying out a road test, make sure the vehicle is safe to do so. Failure to follow this instruction may result in personal injury

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does not guarantee confirmation of a fault and may also cause additional faults in the vehicle being checked and/or the donor vehicle

NOTE: Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests

1. Verify the customer concern

2. Visually inspect for obvious signs of mechanical or electrical damage

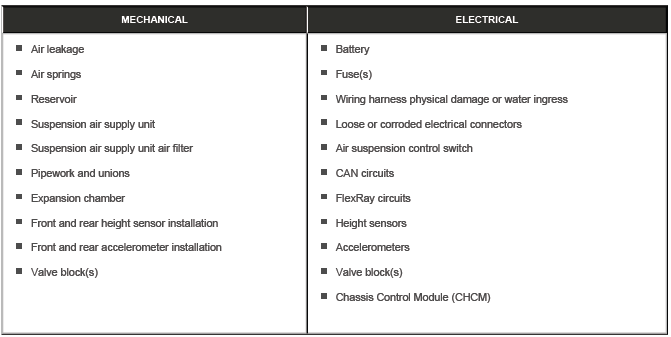

Visual Inspection

Diagnosis and Testing

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step

4. Use the approved diagnostic system or a scan tool to retrieve any diagnostic trouble codes (DTCs) before moving onto the symptom chart or DTC index

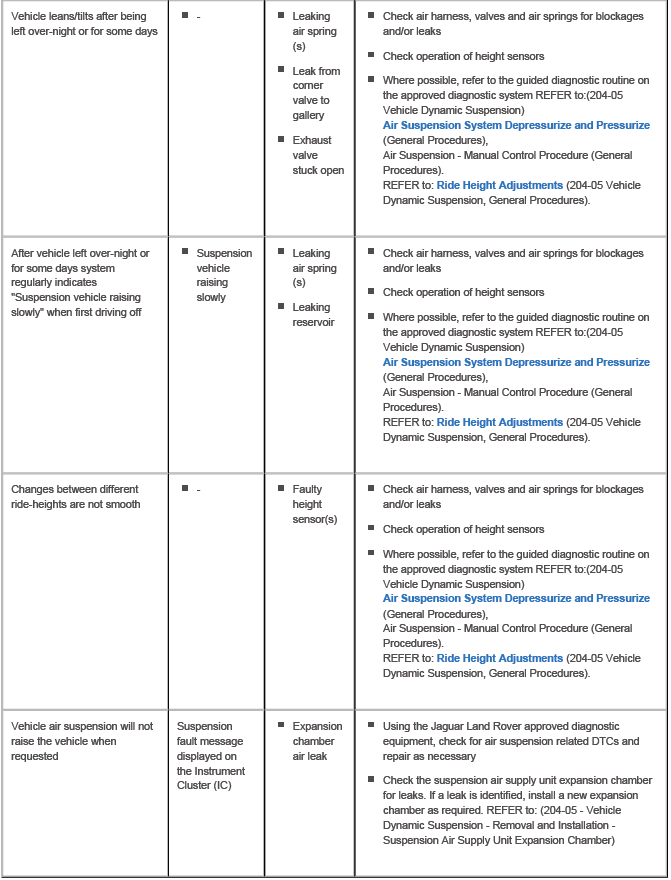

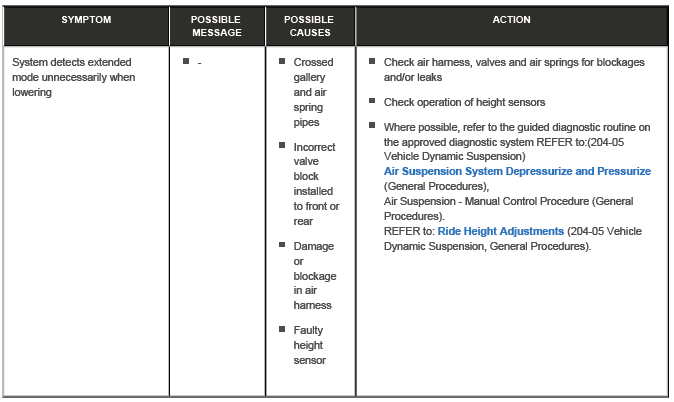

SYMPTOM CHART

Diagnosis and Testing

Diagnosis and Testing
