Land Rover Defender: Vehicle Identification Number (VIN)

NOTES:

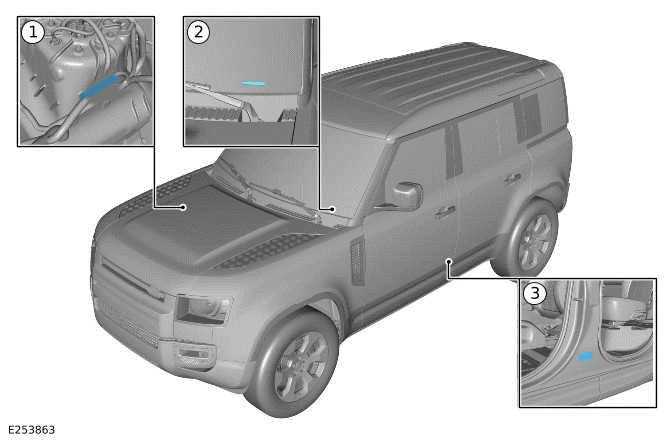

Identification Codes

  1. VIN, stamped location
  2. VIN, windshield label
  3. VIN label

NOTE: UK, Europe and Rest Of World (ROW) Tire Data/Specification label is located on the inside of the drivers door.

Identification Codes

  1. VIN, stamped location
  2. VIN, windshield label
  3. Tire Data/Specification label

UK, Europe and Rest Of World (ROW)

Identification Codes

Identification Codes

NAS

Identification Codes

NOTE: # Active belts with driver and passenger frontal airbags and side inflatable restraint (first and second row) and driver knee airbag.

Identification Codes

Identification Codes

VIN
LABEL

UK, Europe and Rest Of World (ROW)

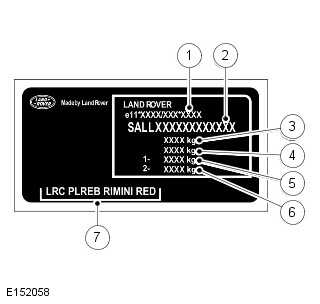

Identification Codes

  1. Type/Approval Number - If shown
  2. VIN Number
  3. Gross Vehicle Weight
  4. Gross Towing Weight
  5. Front Axle Weight
  6. Rear Axle Weight
  7. Color Code Group
