Land Rover Defender: Wheels and Tires - Diagnosis and Testing
DIAGNOSIS AND TESTING
PRINCIPLES OF OPERATION
For a detailed description of the Wheels and Tires refer to the relevant
description and operation section in the
workshop manual.
INSPECTION AND VERIFICATION
CAUTION:
Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution
of control modules does not
guarantee confirmation of a fault, and may also cause additional faults in the
vehicle being tested and/or the
donor vehicle.
NOTES:
- Check the JLR claims submission system for open campaigns. Refer to
the corresponding bulletins and
SSMs which may be valid for the specific customer complaint and complete the
recommendations as
required.
- When performing voltage or resistance tests, always use a digital
multimeter that has the resolution ability
to view 3 decimal places. For example, on the 2 volts range can measure 1mV
or 2 K Ohm range can
measure 1 Ohm. When testing resistance always take the resistance of the
digital multimeter leads into
account.
- Check and rectify basic faults before beginning diagnostic routines
involving pinpoint tests.
1. Verify the customer concern
2. Visually inspect for obvious signs of damage and system integrity
3. If an obvious cause for an observed or reported concern is found, correct
the cause (if possible) before
proceeding to the next step
4. If the cause is not visually evident, verify the symptom and refer to the
Symptom Chart, alternatively check for
Diagnostic Trouble Codes (DTCs) and refer to the DTC Index
TIRE CHIP AND CHUNK
NOTE:
If the level of chip and chunking is excessive or overall tire condition is poor
the tire should be treated as any
damaged/punctured tire. Where detrimental damage to the tire is evident, it must
be reported to the customer
with recommendations to accordingly replace damaged tires.
Symptoms

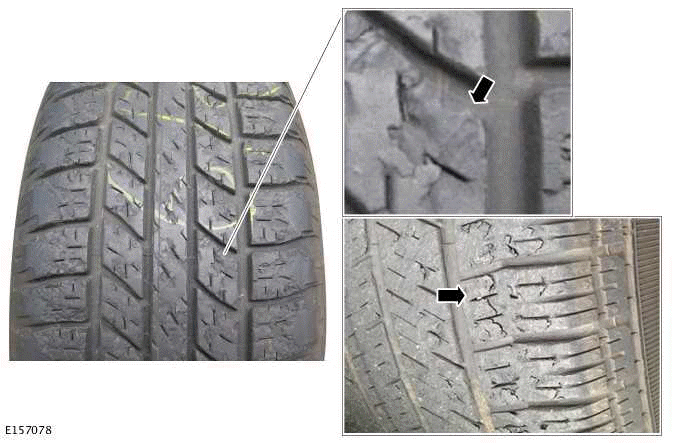

Typical example of a serviceable tire exhibiting chip and chunk phenomenon
Possible Causes:
Tire Chip and Chunk is a phenomenon that may develop on the tire tread when
vehicles are driven on rough gravel or
aggressive road surfaces. Typically the tread may lose small pieces of tread
rubber within and around the periphery of
the tread block. This loss of rubber ultimately leads, with extended usage, to
an overall rough appearance to the tread
area of the tire
Action:
When a customer contacts a retailer concerning the chip and chunk
phenomenon, retailer/authorized repairer
must:
- Conduct a thorough evaluation of the tire condition and, where no
detrimental damage has occurred, inform the
customer that the chip and chunk condition does not affect the overall tire
integrity or significantly affect
performance
- Inform the customers of the conditions that generate chip and chunk
phenomenon
Complaints associated with this phenomenon must initially include a
thorough examination of the vehicles
tires for the following:
- Excessive chip and chunk (tread cuts or loss of tread block section,
extending deep into the tread rubber beyond
the tread wear indicators or in the shoulder area extending beyond the
groove depth)
- Cuts and bulges especially within the sidewall
- Overall tire condition including tread depth
Where the tires do not exhibit excessive chip and chunk, cuts, sidewall
bulges and are in generally good condition the
customer should be advised that the condition does not affect the overall tire
integrity or significantly affect
performance and as such are serviceable
TIRE FLAKING
NOTES:
- If the level of tire flaking is excessive or overall tire condition
is poor the tire should be treated as any
damaged/punctured tire. Where detrimental damage to the tire is evident, it
must be reported to the
customer with recommendations to accordingly replace damaged tires
- Perform a tread depth measurement to make sure the tire is within
local regulations. If specifications are
not met inform customer that they require replacement
Symptoms

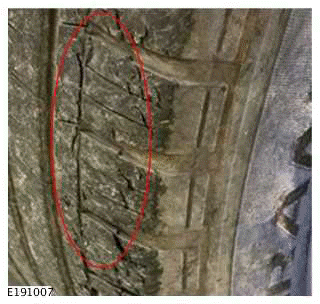

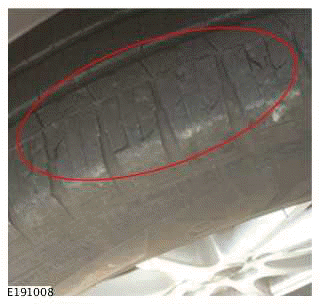

Typical example of a serviceable tire exhibiting tire flaking phenomenon
Possible Causes:
Tire Flake damage may develop on the outer sections of the tire tread when
vehicles are driven enthusiastically and
peak available grip has been surpassed. Typically the tread may lose small
pieces of tread rubber within and around
the periphery of the tread blocks on the outer sections of the tire
Action:
When a customer contacts a retailer concerning the tire flaking
phenomenon, retailer/authorized repairer
must:
- Conduct a thorough evaluation of the tire condition and determine that
they are seeing flake damage on the outer
sections of the tire. If damage is seen in the central tread, please refer
to the Tire Chip and Chunk section
- Inform the customers of the driving styles that generate tire flaking
(Mid corner understeer that generates high
pitched tire noise, and/or over application on throttle inputs when exiting
junctions that cause the traction control
light to come on)
Complaints associated with this phenomenon must initially include a
thorough examination of the vehicles
tires for the following:
- Excessive flaking (tread cuts or loss of tread block section, extending
deep into the tread rubber beyond the tread
wear indicators or in the shoulder area extending beyond the groove depth)
- Cuts and bulges especially within the sidewall
- Overall tire condition including tread depth
Where the tires do not exhibit excessive flaking, cuts, sidewall bulges and
are in generally good condition the
customer should be advised that the condition does not affect the overall tire
integrity or significantly affect
performance and as such are serviceable
