Land Rover Defender: Airbag Supplementary Restraint System
DIAGNOSIS AND TESTING
PRINCIPLE OF OPERATION
For a detailed description of the supplemental restraints system and
operation, refer to the relevant Description and
Operation section in the workshop manual. REFER to: Airbag and Safety Belt
Pretensioner Supplemental Restraint
System - [+] Vehicles with 2nd / 3rd Row Seats (Supplementary Restraint System,
Description and
Operation).
SAFETY INFORMATION
WARNINGS:
- TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY, THE
BACKUP POWER
SUPPLY MUST BE DEPLETED BEFORE REPAIRING OR REPLACING ANY AIRBAG
SUPPLEMENTAL
RESTRAINT SYSTEM (SRS) COMPONENTS. TO DEPLETE THE BACKUP POWER SUPPLY
ENERGY,
DISCONNECT THE BATTERY GROUND CABLE AND WAIT ONE MINUTE. FAILURE TO FOLLOW
THIS INSTRUCTION MAY RESULT IN PERSONAL INJURY
- Do not use a multimeter to probe the restraints control module. It is
possible for the power from the meter
battery to trigger the activation of the airbags. Failure to follow this
instruction may result in personal injury
NOTE:
It is advisable not to use a mobile phone or to have a mobile phone in close
proximity when working on the
restraints control module or associated systems
Power Supply Depletion
Before beginning any work on the restraints control module/supplemental
restraints system or related components:
- Remove the ignition key
- Disconnect the battery leads, ground first
- Wait 1minute for the power circuit to discharge
There are comprehensive instructions on the correct procedures for
supplemental restraints system repairs in the
manual. Refer to the relevant section of the workshop manual
INSPECTION AND VERIFICATION
CAUTION:
Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution
of control modules does not
guarantee confirmation of a fault, and may also cause additional faults in the
vehicle being tested and/or the
donor vehicle
NOTES:
- If the control module or a component may be at fault and the vehicle
remains under manufacturer
warranty, refer to the warranty policy and procedures manual (section B1.2),
or determine if any prior
approval program is in operation, prior to the installation of a new
module/component
- Check and rectify basic faults before beginning diagnostic routines
involving pinpoint tests
- Verify the customer concern
- Confirm the function of the warning lamp (if the warning lamp is
inoperative, system faults will be
signaled by an audible chime)

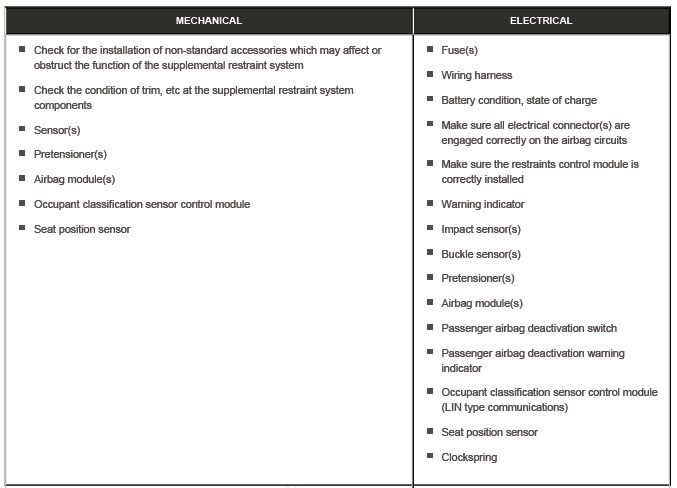

- Visually inspect for obvious signs of damage and system integrity
Visual Inspection
- If an obvious cause for an observed or reported concern is found,
correct the cause (if possible) before
proceeding to the next step. Faults in supplemental restraint system
harnesses would normally mean
replacement of the relevant harness. Supplemental restraint system harness
repairs are not
recommended

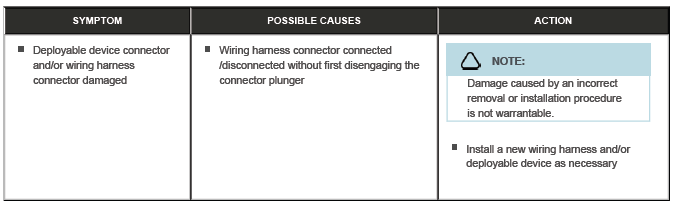

Symptom Chart
- If the cause is not visually evident, verify the symptom and refer to
the Symptom Chart, alternatively check for
Diagnostic Trouble Codes (DTCs) and refer to the DTC Index
- Check JLR claims submission system for open campaigns. Refer to the
corresponding bulletins and SSMs
which may be valid for the specific customer complaint and complete the
recommendations as required

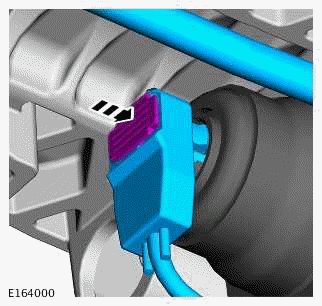

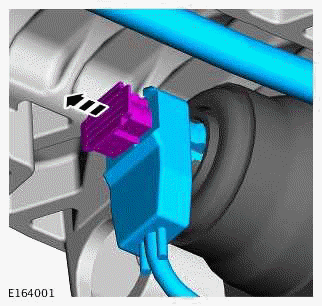

- When installing or checking the supplemental Restraints System (SRS)
with AK2 connectors the locking
plunger must be engaged
RESTRAINTS CONTROL MODULE FLEXRAY COMMUNICATION TABLE
For DTCs U0001-81, U0001-86 and U0001-87: Using the Jaguar Land Rover
approved diagnostic equipment, check
the snapshot data (0xD020) to determine the missing message source control
module. Check the relevant control
module for related DTCs and refer to the relevant DTC index. Using the Jaguar
Land Rover approved diagnostic
equipment, perform a FlexRay network integrity test. Refer to the electrical
circuit diagrams and check the Vehicle
communication bus F (FlexRay) between the relevant control module (i.e. as
indicated by the snapshot data) and the
restraints control module

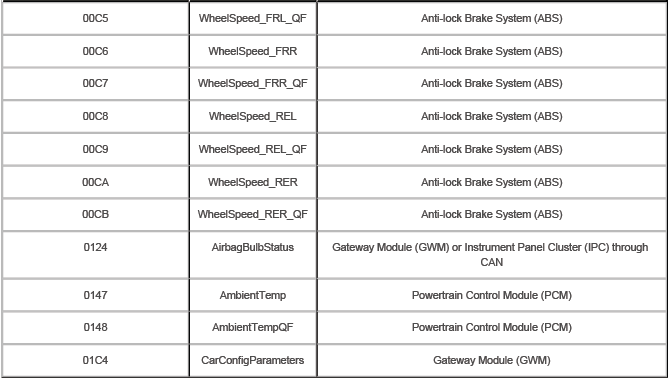

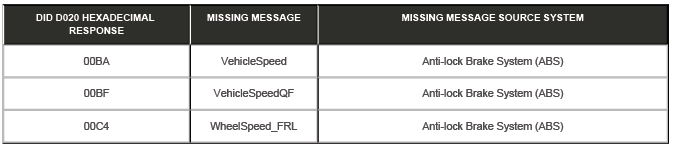

To decode the Hexadecimal response use the following table
OCCUPANT CLASSIFICATION SENSOR CONTROL MODULE (OCSCM)
NOTE:
Occupant classification sensor system for the front passenger seat - North
American Specification (NAS)
vehicles only
The Occupant Classification Sensor Control Module (OCSCM) serves as a slave
module to the Restraints Control
Module (RCM). OCSCM DTCs are stored in the RCM. Diagnostic routines are run
through the RCM. If OCSCM
replacement is necessary, install a new occupant classification sensor service
kit (Complete service kit consists of
foam, occupant classification sensor bladder mat with attached smart digital
pressure sensor as a minimum. Do not
attempt to install individual components from the service kit as they are
calibrated to function as a single assembly)
The OCSCM incorporates 3 load statuses for the seat cushion:
- When the load is less than the lower limit, the seat is classified as
unoccupied.
- When the load exceeds the lower limit, but is less than the upper limit,
the seat is classified as occupied by a small
person or a child restraint is being used.
- When the upper limit is exceeded, the seat is classified as occupied by
an adult.

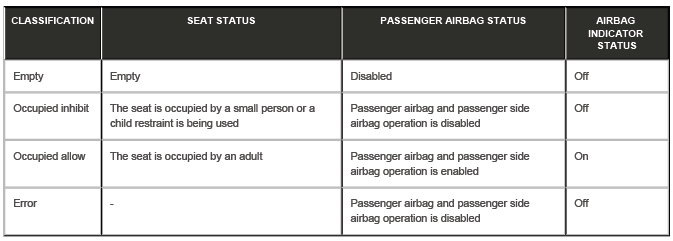

The occupant classification system has four possible states as detailed in
the following table:
OCCUPANT CLASSIFICATION SENSOR CONTROL MODULE (OCSCM) EXISTING MODULE
PROGRAMMING
NOTE:
Do not attempt to install individual components from the Occupant Classification
Sensor (OCS) service kit, as
they are calibrated to function as a single assembly. The complete service kit
consists of foam, occupant
classification sensor bladder mat with attached smart digital pressure sensor as
a minimum. The CAN type
communication and LIN type communication OCS types are NOT interchangeable. Make
sure the correct
service kit for the vehicle is being used.
- Check the seat and make sure all electrical connectors are secure. Make
sure the seat is correctly mounted
and fixings are tightened to the correct torque.
NOTE:
Make sure the vehicle is stationary and on a level surface. The seat must be
secure and in an upright
position before performing the next step. Failure to do this could induce a DTC.
- Connect the Jaguar Land Rover approved diagnostic equipment
- Set the ignition to ON and wait 10 seconds. Make sure the SRS warning
light is illuminated during the ignition
test cycle. The SRS warning light should then extinguish after the 10
seconds to confirm no SRS faults exist
NOTE:
All OCS DTCs will be set in the RCM.
- Wait 5 seconds then set the OCS control module in to security access
mode, after going in to an extended
diagnostic session
- Using the Jaguar Land Rover approved diagnostic equipment, refer to
datalogger signals ECU calibration Data
#1 Number (0xF124), ECU Delivery Assembly Number (0xF113), ECU Core Assembly
Number (0xF111), ECU
Strategy Number (0xF188). Make a note of the OCS control module part number
to make sure it is the correct
part number for the vehicle
- Using the Jaguar Land Rover approved diagnostic equipment, check and
update the OCS control module to
the latest level software. Make sure the ignition is set to OFF and wait at
least 5 seconds
- Set the ignition to ON and wait at least 125 seconds. This will allow
sufficient time for DTCs to log in the RCM if
any are present
- Using the Jaguar Land Rover approved diagnostic equipment, check for OCS
and Restraints Control Module
(RCM) DTCs stored in the RCM. If no DTCs are found and no SRS warning light
is illuminated, no further
action is necessary. If any DTCs are found and/or the SRS warning light is
illuminated, refer to the relevant
section of the workshop manual and perform the relevant repair actions as
necessary. Re-perform this
procedure to confirm the repair
OCCUPANT CLASSIFICATION SENSOR CONTROL MODULE (OCSCM) NEW MODULE
REPLACEMENT AND PROGRAMMING
NOTE:
Do not attempt to install individual components from the Occupant Classification
Sensor (OCS) service kit, as
they are calibrated to function as a single assembly. The complete service kit
consists of foam, occupant
classification sensor bladder mat with attached smart digital pressure sensor as
a minimum. They MUST
NOT be installed separately. To make sure the correct function, it is essential
to install the complete kit, as it
is a safety critical system.
- Remove the passenger seat from the vehicle.
- Install a new OCS service kit to the seat.
- Re-install the seat and make sure all electrical connectors are secure.
NOTE:
Make sure the vehicle is stationary and on a level surface. The seat must be
secure and in an upright
position before performing the next step. Failure to do this could induce a DTC.
- Connect the Jaguar Land Rover approved diagnostic equipment, set the
ignition to ON and wait 5 seconds for
the module to wake up
- Using the Jaguar Land Rover approved diagnostic equipment, refer to
datalogger signals ECU calibration Data
#1 Number (0xF124), ECU Delivery Assembly Number (0xF113), ECU Core Assembly
Number (0xF111), ECU
Strategy Number (0xF188). Make a note of the OCS control module part number
to make sure it is the correct
part number for the vehicle
- Using the Jaguar Land Rover approved diagnostic equipment, check and
update the OCS control module to
the latest level software. Make sure the ignition is set to OFF and wait at
least 7 seconds
- Set the OCS control module in to security access mode, after going in to
an extended diagnostic session.
Using the Jaguar Land Rover approved diagnostic equipment, check for any OCS
control module or Restraints
Control Module (RCM) related DTCs. If any DTCs are found, perform a software
update
NOTE:
All OCS DTCs will be set in the RCM.
- Set the ignition to OFF and wait 10 seconds
- Set ignition to ON and wait 10 seconds
- Set the OCS control module in to security access mode, after going in to
an extended diagnostic session
- Using the Jaguar Land Rover approved diagnostic equipment, perform
routine - Learn Seat Occupant
Classification Zero Position (0x5007) This will re-calibrate the new OCS
control module
- Set the ignition to OFF and wait at least 10 seconds
- Set the ignition to ON and wait 10 seconds. Make sure the SRS warning
light is illuminated during the ignition
test cycle. The SRS warning light should then extinguish after the 10
seconds to confirm no SRS faults exist
- If the Learn Seat Occupant Classification Zero Position (0x5007) routine
passes (09) and no SRS warning light
is illuminated, no further action is necessary. If the Learn Seat Occupant
Classification Zero Position (0x5007)
routine fails and/or the SRS warning light is illuminated, note which
process of the routine failed from the
routine parameters described below and proceed to step 15
- 02 - Process Failed - Seat Not Calibrated. The Learn Zero position
cannot be calibrated if the seat has
not been correctly calibrated at the seat manufacturing plant. Install a
new service kit as necessary and
re perform Learn Seat Occupant Classification Zero Position routine
(0x5007)
- 03 - Process Failed - Wait 10 Seconds To Re Zero. Wait 10 seconds
after ignition ON and re perform
Learn Seat Occupant Classification Zero Position routine (0x5007)
- 04 - Re Zero Failure - DTCs Set. A fault is preventing the Learn
Seat Occupant Classification Zero
Position routine (0x5007) from completing correctly. Check for DTCs and
repair as necessary, then re
perform Learn Seat Occupant Classification Zero Position routine
(0x5007)
- 06 - Process Failed - OCS Pressure Out Of Range. The seat must be
empty to perform the Learn Seat
Occupant Classification Zero Position routine (0x5007) correctly. Make
sure the seat is empty and re
perform Learn Seat Occupant Classification Zero Position routine
(0x5007)
- 07 - Process Failed - OCS Pressure Fluctuation. Check to make sure
the OCS hose is correctly routed
and clipped in position, as this could prevent the Learn Seat Occupant
Classification Zero Position
routine (0x5007) from completing correctly. Any vibrations or variations
within the passenger
compartment, for example doors opening / closing will prevent the Learn
Seat Occupant Classification
Zero Position routine (0x5007) from completing correctly. Make sure the
passenger compartment
environment is stable and re perform Learn Seat Occupant Classification
Zero Position routine (0x5007)
- 08 - Process Failed - Temperature Out Of Range. Make sure the
workshop temperature is within normal
acceptable working range and re perform Learn Seat Occupant
Classification Zero Position routine
(0x5007)
- 09 - Process Completed - Re Zero Success. Routine has passed, no
further actions necessary
- Using the Jaguar Land Rover approved diagnostic equipment, check for any
OCS control module or RCM
related DTCs. If any DTCs are found, refer to the relevant section of the
workshop manual and perform the
relevant repair actions as necessary. Re-perform this procedure to
re-calibrate the OCS control module
SEAT POSITION SENSOR - NOTES ON REMOVAL/REPLACEMENT
NOTE:
NAS vehicles have a seat position sensor installed to both the driver and
passenger-side seats.
The seat position sensor, a hall-effect sensor, is installed to the underside
of both the driver and passenger-side seats
on NAS vehicles. It should be noted that these sensors cannot be re-installed
when removed. If any work is
undertaken that requires removal of the seat position sensor, a NEW sensor MUST
be installed. Note that different
sensors are installed to left and right seats, so care should be taken to make
sure the correct replacement parts are
installed
SUPPLEMENTAL RESTRAINTS SYSTEM (SRS) AK2 TYPE CONNECTORS
- Incorrect Position (Disengaged)
- Correct Position (Engaged)
Seatbelt Buckle Pre Tensioner Diagnostics
This procedure should be used to aid diagnosis of the following supplementary
restraints system (SRS) - buckle pre
tensioner (PBP) fault codes

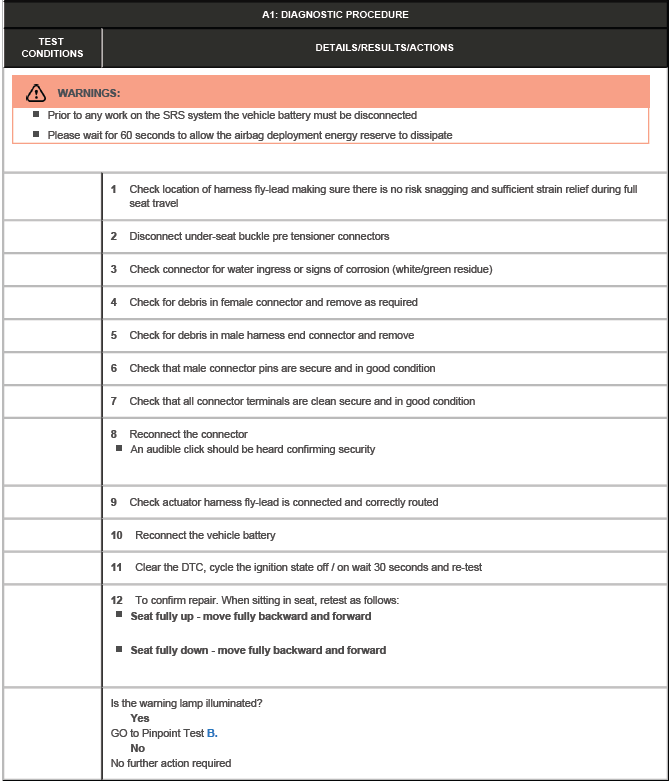

PINPOINT TEST A : BUCKLE/RETRACTOR PRE TENSIONER DIAGNOSTIC

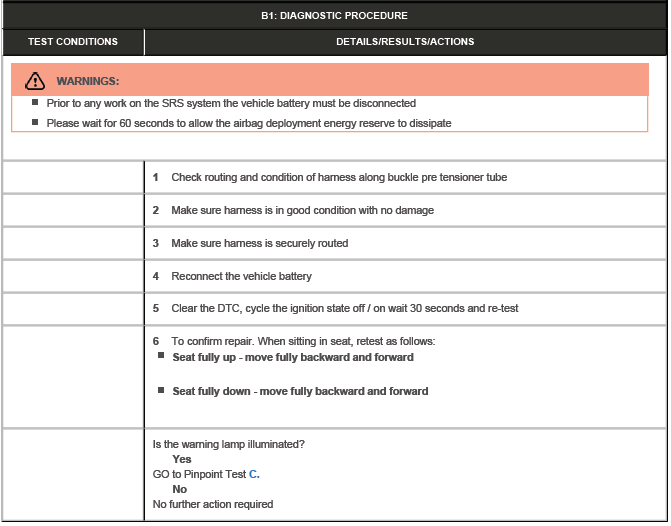

PINPOINT TEST B : BUCKLE/RETRACTOR PRE TENSIONER DIAGNOSTIC

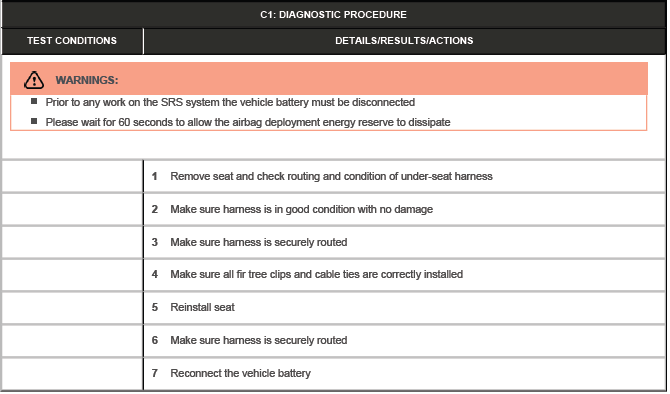

PINPOINT TEST C : BUCKLE/RETRACTOR PRETENSIONER DIAGNOSTIC

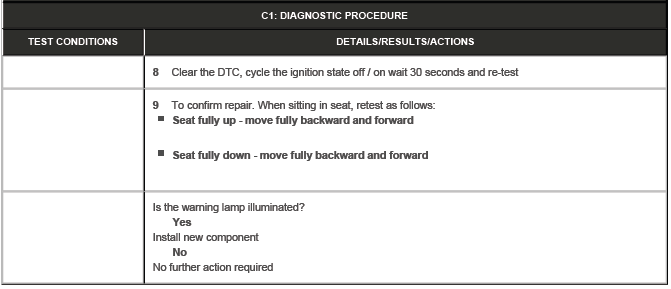

PINPOINT TEST C : BUCKLE/RETRACTOR PRETENSIONER DIAGNOSTIC
READ NEXT:
GENERAL PROCEDURES
DEPLOYED AIRBAG
1.
WARNING:
Always wear safety glasses when repairing an airbag supplemental restraint
system (SRS) vehicle
and when handling an airbag module. Failure to follow t
REMOVAL AND INSTALLATION
REMOVAL
WARNING:
To prevent accidental deployment, you must power down the Restraints
Control Module (RCM). Wait at
least 1 minute after you disconnect the startup batter
REMOVAL AND INSTALLATION
REMOVAL
WARNINGS:
To prevent accidental deployment, you must power down the Restraints
Control Module (RCM). Wait at
least 1 minute after you disconnect the startup batte
SEE MORE:
Many 'O' rings, seals, hoses, flexible pipes and other similar which appear
to be manufactured from natural rubber are,
in fact, made of synthetic materials called Fluoroelastomers.
Under normal operating conditions, these materials are safe and do not
constitute a health hazard. However, if the
Make sure to read and fully understand
the relevant warnings before using any
of the features in this section.
Never obstruct the operation of the air
bags by placing any part of the body or
any objects in contact with, or close to,
an air bag module.
Note: Unauthorized modifications of the
vehicl
