Land Rover Defender: Auxiliary Blower
Land Rover Defender 2020-2024 Service Manual / Electrical / Climate Control System / Auxiliary Climate Control / Auxiliary Blower
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2. Remove the auxiliary climate control assembly.
3.
.png)

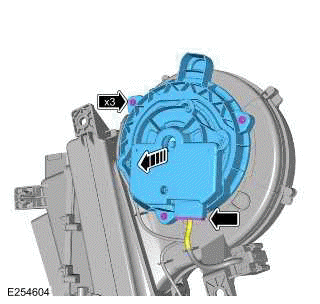

- Disconnect the electrical connector from the auxiliary blower.
- Remove the 3 screws.
- Remove the auxiliary blower.
INSTALLATION
1.
- Install the auxiliary blower.
- Install and tighten the 3 screws.
Torque: 1.5Nm
- Connect the electrical connector to the auxiliary blower.
2. Install the auxiliary climate control assembly.
3. Connect the startup battery ground cable.
