Land Rover Defender: Brake Disc 4 Piston Fixed Caliper

REMOVAL AND INSTALLATION

MATERIALS

Brake Disc 4 Piston Fixed Caliper

GENERAL EQUIPMENT

Brake Disc 4 Piston Fixed Caliper

PART(S)

Brake Disc 4 Piston Fixed Caliper

REMOVAL

CAUTION: Brake discs must be renewed in axle sets.

NOTES:

1. Use the Jaguar Land Rover (JLR) approved diagnostic equipment to activate the Integrated Power Brake assembly mode.

General Equipment: Jaguar Land Rover approved diagnostic equipment

2. Raise and support the vehicle on a suitable 2 post lift.

3. Remove the wheels and tires.

4.

CAUTION: The brake pad wear indicator sensor is easily damaged. Do not use a lever to remove the sensor.

Use fingers only.

NOTE: Left side only.

Brake Disc 4 Piston Fixed Caliper

5.

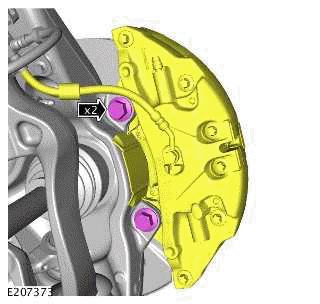

CAUTION: Do not allow the brake caliper to hang on the brake hose.

NOTE: Discard the bolts.

Brake Disc 4 Piston Fixed Caliper

6.

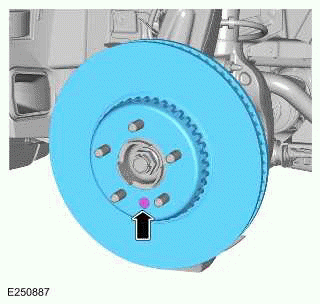

Brake Disc 4 Piston Fixed Caliper

Remove the brake disc.

INSTALLATION

1.

Brake Disc 4 Piston Fixed Caliper

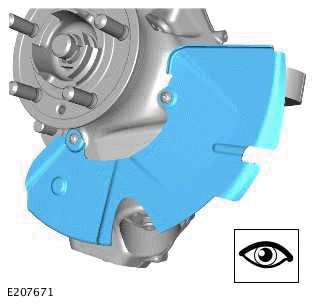

Clean and inspect the brake disc shield.

Material: Brake Cleaner (3U7J-2C410-AA)

2.

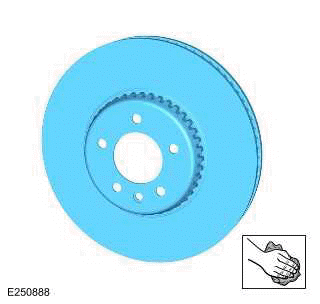

Brake Disc 4 Piston Fixed Caliper

Use brake cleaner fluid to clean the brake disc.

Material: Brake Cleaner (3U7J-2C410-AA)

3.

Brake Disc 4 Piston Fixed Caliper

4.

WARNING: Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.

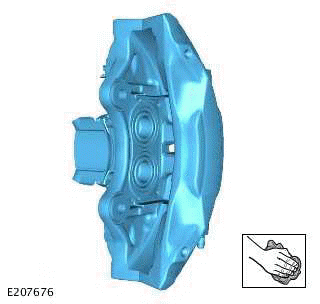

Brake Disc 4 Piston Fixed Caliper

Use brake cleaner to clean the brake caliper housing.

Material: Brake Cleaner (3U7J-2C410-AA)

5.

NOTE: This step should only be done when new brake discs are installed.

If new brake discs are installed, install new brake pads.

6.

Brake Disc 4 Piston Fixed Caliper

7.

NOTE: Left side only.

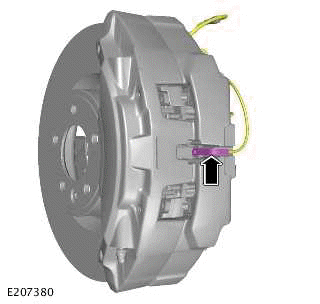

Brake Disc 4 Piston Fixed Caliper

Install the brake pad wear sensor.

8. Install the wheel and tire.

9. Use the JLR approved diagnostic equipment to deactivate the Integrated Power Brake service mode.

General Equipment: Jaguar Land Rover approved diagnostic equipment

10. Press the brake pedal several times, check the fluid level in the brake fluid reservoir and top-up with brake fluid if necessary.
