Land Rover Defender: Brake Disc 6 Piston Fixed Caliper
REMOVAL AND INSTALLATION
MATERIALS

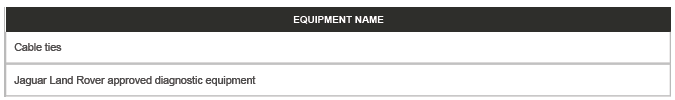

GENERAL EQUIPMENT

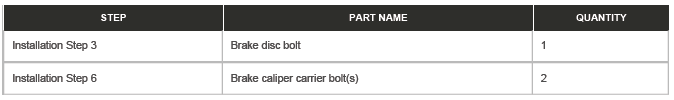

PART(S)
REMOVAL
CAUTION:
Brake discs must be renewed in axle sets.
NOTE:
- The brake pad wear warning indicator sensor must be replaced each
time the brake pads are serviced.
- This procedure contains some variation in the illustration depending
on the vehicle specification, but
essential information is always correct.
1. Use the Jaguar Land Rover (JLR) approved diagnostic equipment to activate
the Integrated Power Brake
assembly mode.
General Equipment: Jaguar Land Rover approved diagnostic equipment
2. Raise and support the vehicle on a suitable 2 post lift.
3. Remove the wheel and tire.
4.
NOTE:
Left side only.

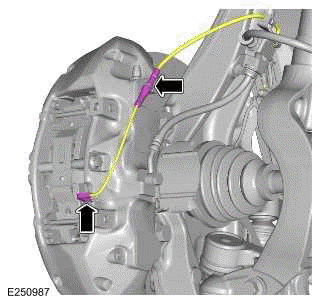

- Disconnect the brake pad wear sensor.
- Release the brake pad wear sensor grommet and position the component to
one side.
5.

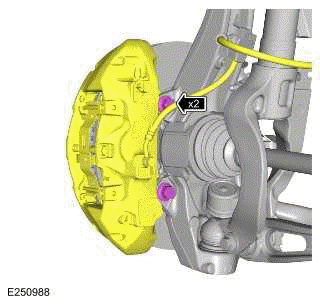

CAUTIONS:
- Do not allow the brake caliper to hang on the brake pad wear warning
sensor lead.
- Make sure that the brake hose does not support the full weight of the
brake caliper assembly.
6.

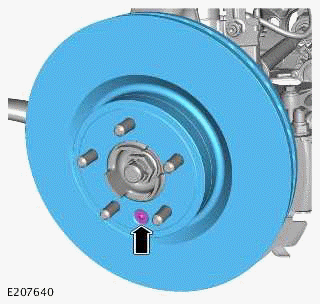

- Remove and discard the brake disc bolt.
- Remove the brake disc.
INSTALLATION
1.

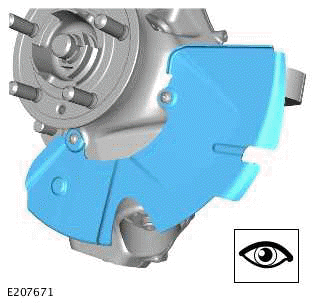

Clean and inspect the brake disc shield.
Material: Brake Cleaner (3U7J-2C410-AA)
2.

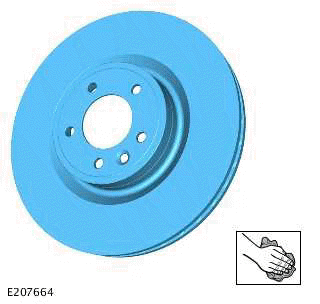

Use brake cleaner fluid to clean the brake disc.
Material: Brake Cleaner (3U7J-2C410-AA)
3.
4.
WARNING:
Do not use compressed air to clean brake components. Dust from friction
materials can be harmful
if inhaled.

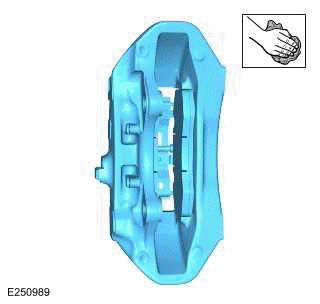

Use brake cleaning fluid to clean the brake caliper housing.
Material: Brake Cleaner (3U7J-2C410-AA)
5.
NOTE:
This step should only be performed when installing new brake discs.
If new discs are installed, install new brake pads.
6.
CAUTIONS:
- Make sure that the brake hose is not twisted and is correctly
located.
- Make sure that new bolts are installed.
NOTE:
Make sure the cooling scoop is aligned and installed in the correct orientation.
7.
NOTE:
Left side only.
- Connect the brake pad wear sensor.
8. Install the wheel and tire.
9. Use the JLR approved diagnostic equipment to deactivate the Integrated
Power Brake service mode.
General Equipment: Jaguar Land Rover approved diagnostic equipment
10. Press the brake pedal several times, check the fluid level in the brake
fluid reservoir and top-up with brake
fluid if necessary.
