Land Rover Defender: Brake System Bleed With Diagnostic Equipment
GENERAL PROCEDURES
MATERIALS

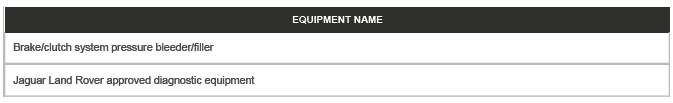

GENERAL EQUIPMENT
CHECK
CAUTION:
Brake fluid will damage paint finished surfaces. If spilled, immediately remove
the fluid and clean the area
with water.
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- The assistance of another technician will be required during the
bleed procedure.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Check that the brake fluid lines are secure and that there are no signs of
a brake fluid leak. If a brake fluid
leak is detected, investigate and rectify the cause of the leak before bleeding
the brakes.
3. Remove the brake fluid reservoir cover from the cowl panel.
4.
ADJUSTMENT
CAUTION:
Brake fluid will damage paint finished surfaces. If spilled, immediately remove
the fluid and clean the area
with water.
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- The assistance of another technician will be required during the
bleed procedure.
1.
CAUTION:
- Make sure that the operating pressure of the equipment does not
exceed 3 Bar (43.5 psi).
- It is imperative that the brake fluid level does not drop below the
minimum mark on the brake
fluid reservoir during the bleed procedure.
Install the pressure bleed equipment to the brake fluid reservoir.
General Equipment: Brake/clutch system pressure bleeder/filler
2. Connect the Jaguar Land Rover (JLR) approved diagnostic equipment to the
vehicle and begin a new
diagnostic session.
General Equipment: Jaguar Land Rover approved diagnostic equipment
3.
- Remove all the brake caliper bleed screw caps and clean the surrounding
area.
- Use the JLR approved diagnostic equipment to put the Integrated Power
Brake module into 'Assembly
Mode' mode.
- Select 'ECU Diagnostics'.
- Select ' Anti-Lock Brake System Control Module (ABS) Diagnostics'.
- Select 'ECU Functions'.
- Select 'Activate Control Module Assembly Mode'.
4.
WARNINGS:
- Braking efficiency may be seriously impaired if an incorrect
bleed sequence is used.
- High performance brake calipers have 2 bleed screws, in this
instance the inner bleed screw
should always be bled first.
- Use the JLR approved diagnostic equipment to complete the Integrated
Power Brake module 'Brake
Bleed' process.
- Select 'ECU Diagnostics'.
- Select ' ABS Diagnostics'.
- Select 'ECU Functions'.
- Select 'Brake Bleed'.

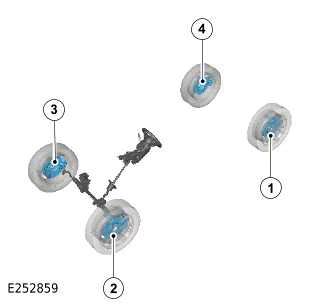

5.
WARNING:
Braking efficiency may be seriously impaired if an incorrect bleed sequence is
used.
Follow the on-screen prompts to bleed the brake system.
6.
- Tighten all the bleed screws.
Torque: 15Nm
- Install all the bleed screw caps.
7.
- On completion of the brake bleed procedure, exit the 'Brake Bleed'
application.
- Select 'ECU Diagnostics'.
- Select ' ABS Diagnostics'.
- Select 'ECU Functions'.
- Select 'Exit Brake Bleed'.
8. Use the JLR approved diagnostic equipment and complete the 'Leakage And
Air Monitoring' procedure.
General Equipment: Jaguar Land Rover approved diagnostic equipment
9.
- Take the Integrated Power Brake out of 'Manufacturing Service Mode'.
- Select 'ECU Diagnostics'.
- Select ' ABS Diagnostics'.
- Select 'ECU Functions'.
- Select 'Exit Control Module Assembly Mode'
- Follow the on-screen prompts.
10.
- Read and clear any diagnostic trouble codes.
- Disconnect the JLR approved diagnostic equipment.
11.
- Remove the pressure bleed equipment from the brake fluid reservoir.
- Top up the fluid as required and install the brake fluid reservoir cap.
12.
- Close the hood and all the doors and lock the vehicle.
- Wait for the hazard warning lamp switch back light to extinguish.
- Wait a further 20 seconds.
13.
14. Install the brake fluid reservoir cover to the cowl panel.
