Land Rover Defender: Brake System - General Information
Land Rover Defender 2020-2025 Service Manual / Chassis / Brake System / Brake System - General Information
SPECIFICATIONS

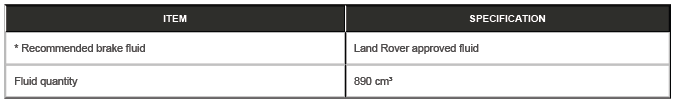

Brake Fluid
NOTE:
* If the below fluid is not available, use a low viscosity DOT 4 brake fluid meeting ISO 4925 Class 6 and Land Rover LRES22BF03 requirements.
.png)

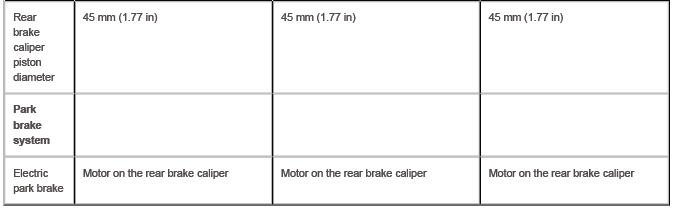

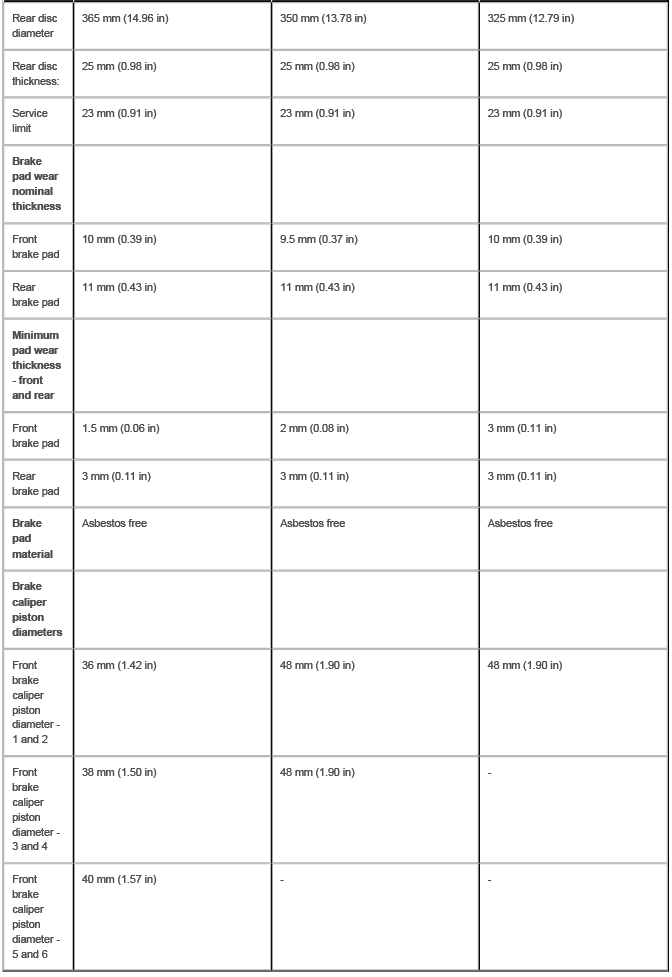

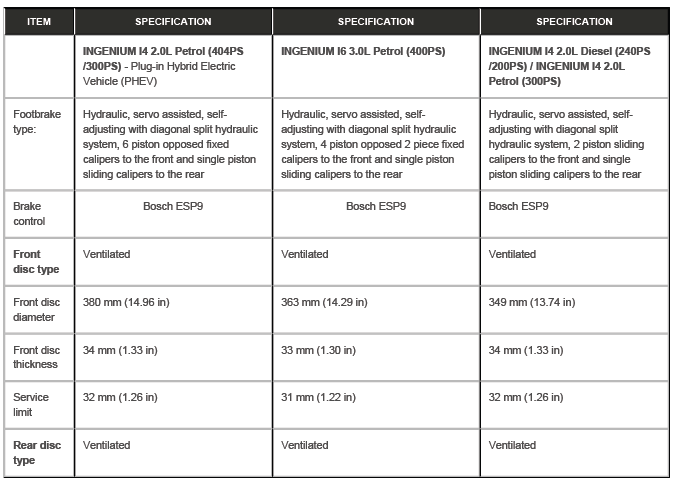

General Specifications
.png)
.png)
.png)

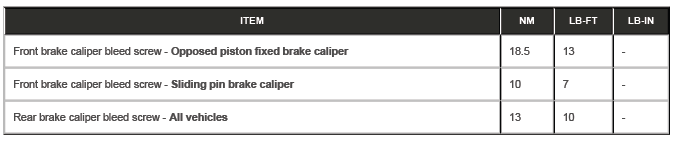

Torque Specifications
.png)
- Brake System - Diagnosis and Testing
- Brake System Bleeding Fixed Caliper
- Brake System Bleeding Floating Caliper
- Brake System Bleed With Diagnostic Equipment
- Integrated Power Brake Assembly Mode
