Land Rover Defender: Click & Hang Universal Hook
CLICK & HANG UNIVERSAL HOOK - PART NUMBER:
VPLRS0389
REMOVAL AND INSTALLATION
WARNINGS:
- Accessories which are not correctly installed can be dangerous. Read
the instructions carefully prior to
installation. Comply with instructions at all times. If in doubt, contact
your nearest approved retailer.
- The click & hang universal hook and click and go system base unit
must be installed to point rearward in
the vehicle.
- The click and hang universal hook does not restrain items placed on
it. Items may come lose if the vehicle
abruptly changes direction and may cause injury to the vehicle occupants.
- Vehicle occupants are not permitted to sit behind the seat that the
click and hang universal hook is
installed to.
CAUTIONS:
- Do not exceed 1.5 kg load on the click and hang universal hook.
- Take suitable care not to damage the click and hang universal hook if
the second row seats are folded
down.
- When not in use the click and hang universal hook should be stored in
the loadspace compartment.
NOTE:

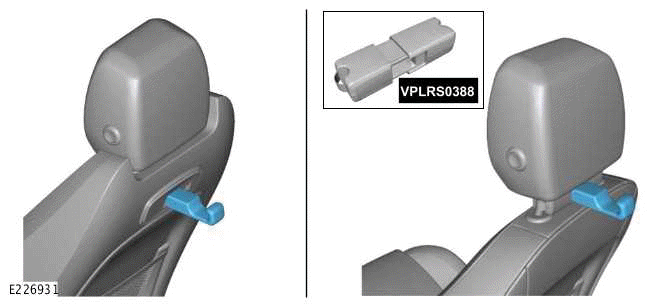

If your vehicle seats are fitted with an integrated backrest base unit as
illustrated, you do not need the click &
go system base unit, item VPLRS0388.
INSTALLATION
1.

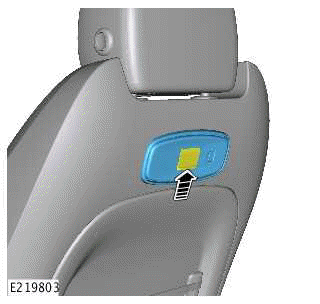

If your vehicle seats are installed with an integrated backrest base unit,
raise and hold open the flap while
installing the click and hang universal hook.
2.
NOTE:

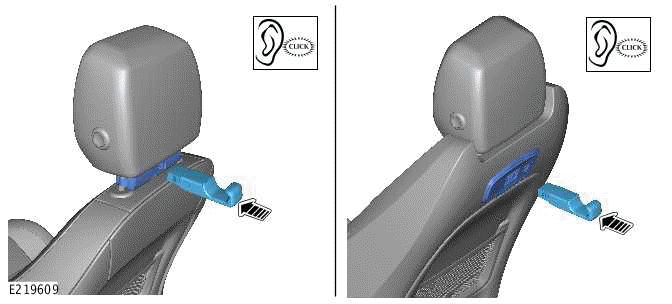

Listen for an audible click to confirm that the click and hang universal hook is
securely installed to the
base unit.
Push the click and hang universal hook fully into position.
REMOVAL
1.

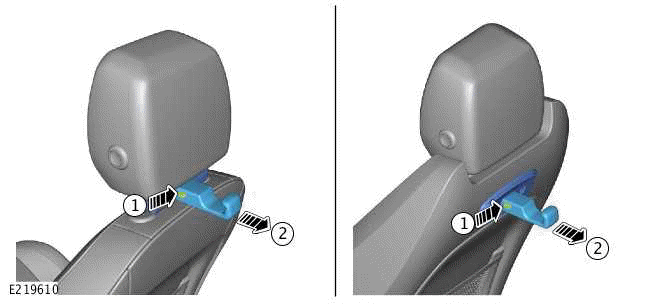

Remove the click and hang universal hook.
- Depress the buttons.
- Pull out the click and hang universal hook.
