Land Rover Defender: Click & Play Tablet Holder - Ipad Mini

CLICK & PLAY TABLET HOLDER - IPAD MINI - PART NUMBER: VPLRS0393

REMOVAL AND INSTALLATION

WARNING: Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

CAUTIONS:

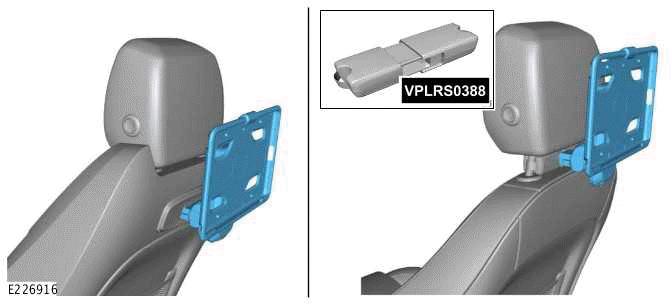

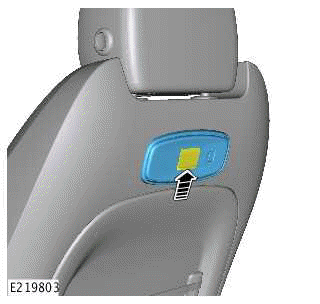

NOTE: If your vehicle seats are fitted with an integrated backrest base unit as illustrated, you do not need the click & go system base unit, item VPLRS0388.

Click & Play Tablet Holder - Ipad Mini

INSTALLATION

1.

Click & Play Tablet Holder - Ipad Mini

If your vehicle seats are fitted with an integrated backrest base unit, raise and hold open the flap while installing the click & play tablet holder.

2.

NOTES:

Click & Play Tablet Holder - Ipad Mini

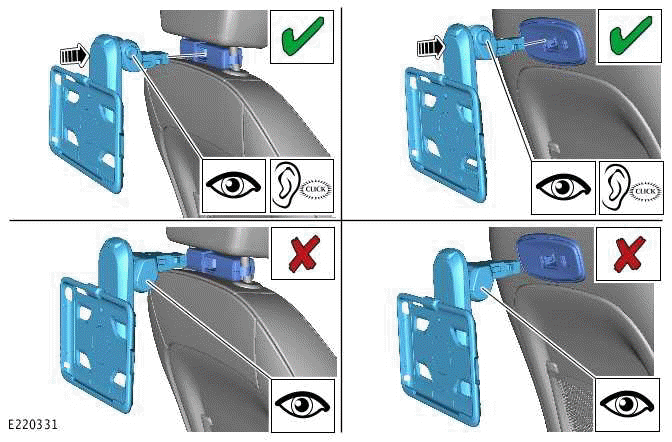

Push the click & play tablet holder fully into position.

3.

Click & Play Tablet Holder - Ipad Mini

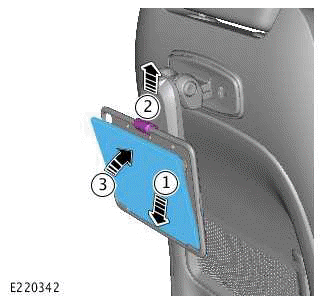

Installing the tablet on to the click & play tablet holder.

  1. Position the tablet.
  2. Lift the securing clip.
  3. Lock the tablet into position.

4.

Click & Play Tablet Holder - Ipad Mini

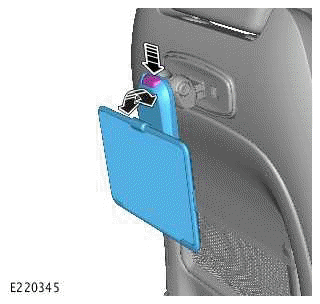

Depress the button to pivot the tablet forwards and backwards.

5.

Click & Play Tablet Holder - Ipad Mini

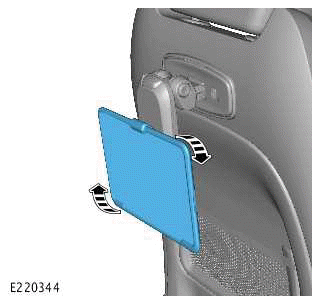

Rotate the tablet if necessary.

6.

Click & Play Tablet Holder - Ipad Mini

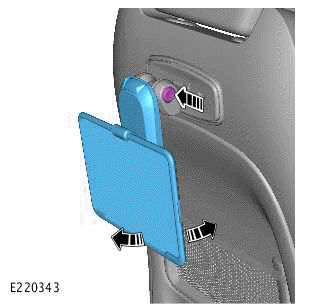

Depress the button to pivot the arm as necessary.

REMOVAL

1.

Click & Play Tablet Holder - Ipad Mini

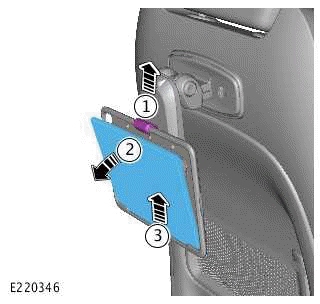

Removing the tablet from the click & play tablet holder.

  1. Lift the securing clip.
  2. Pull tablet forward.
  3. Remove the tablet.

2.

Click & Play Tablet Holder - Ipad Mini

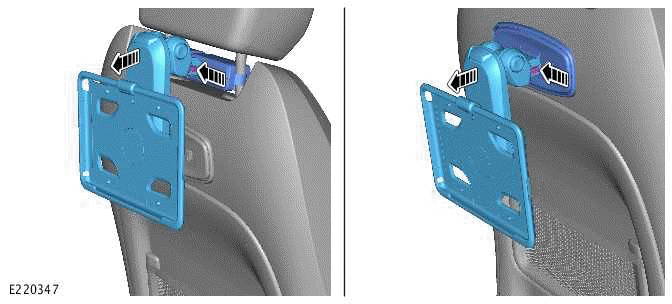

Removing the click & play tablet holder from the base unit.

  1. Depress the buttons.
  2. Pull out the click & play tablet holder.
