Land Rover Defender: Closing vehicle sensing
Make sure the relevant safety warnings
have been read and understood before
driving the vehicle.
The closing vehicle sensing system
monitors an area adjacent to, and up to
approximately 230 ft (70 m) behind, the
vehicle. Closing vehicle sensing is
automatically switched on when the blind
spot monitor system is on.

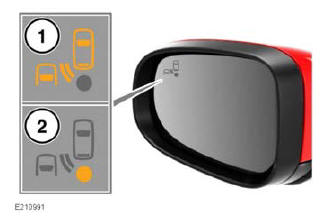

An amber warning icon (1) is located in
each door mirror. The icon:
- Illuminates continuously if the detected
vehicle enters the area monitored by
the closing vehicle sensing system, and
the relevant turn signal is not being
used.
- Flashes if the detected vehicle enters
the area monitored by the closing
vehicle sensing system, and the
relevant turn signal is being used.
A warning indicator (2) illuminates in the
door mirrors when the closing vehicle
sensing system is disabled, not active, or
there is a system fault.
CLOSING VEHICLE SENSING
LIMITATIONS
The closing vehicle sensing system does
not operate when:
- Reverse (R) or Park (P) is selected.
- The vehicle's speed is below 6 mph
(10 km/h).
- The sensors become blocked.
- The blind spot monitor system is not
operating.
- The vehicle is traveling around a tight
bend.
- An electrical connector is connected
to a Jaguar Land Rover approved
trailer socket.
Note: The closing vehicle sensing system
remains disabled if a trailer is
disconnected from the trailer socket while
the vehicle is still running. Switch the
vehicle's electrical system off, then back
on again, to enable the closing vehicle
sensing system.
The closing vehicle sensing system:
- Works most effectively on multi-lane
highways.
- Monitors an area of approximately 11
ft (3.3 m) from the side of the vehicle,
and approximately 230 ft (70 m)
behind the vehicle.
- May register false targets if traveling
along a narrow lane.
- Does not work accurately if the sensors
are misaligned due to bumper
modifications or impact damage.
The instrument panel display messages to
inform the driver of any performance or
system issues.
