Land Rover Defender: Continuous Variable Valve Lift
REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
JLR-303-1639
CVVL brake unit reset tool
JLR-303-1647
CVVL Locating Pins
GENERAL EQUIPMENT
PART(S)
REMOVAL
CAUTION:
Before disconnecting any components, make sure the area is clean and free from
foreign material. When
disconnected all openings must be sealed.
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2. Remove the fuel injectors.
3.

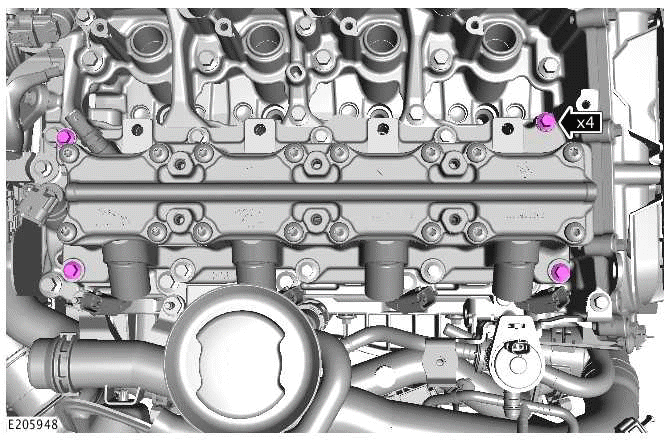

Loosen, but do not fully remove the 4 bolts.
4.

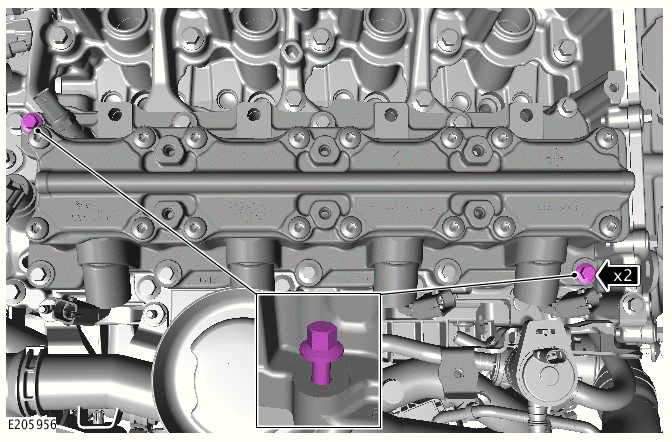

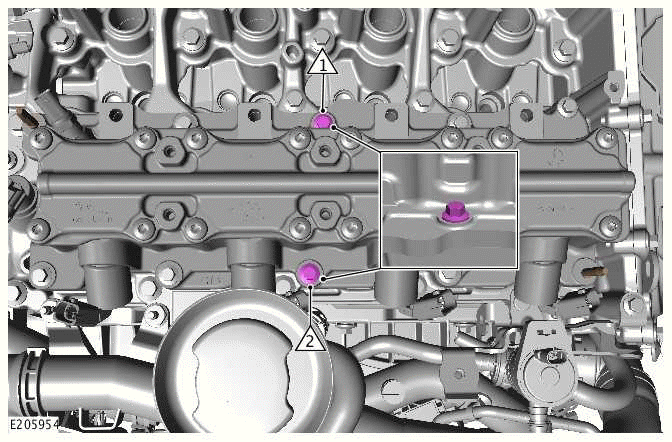

Remove the 2 bolts.
5.

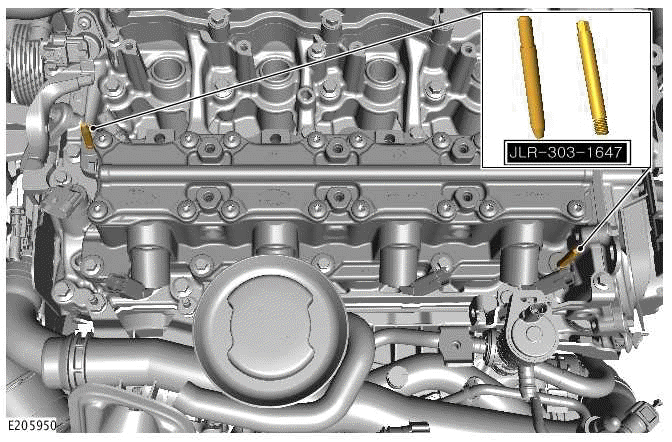

Install the special tools as illustrated.
Special Tool(s): JLR-303-1647
6.
WARNING:
Be prepared to collect escaping fluid.
CAUTION:
- Make sure the CVVL solenoids do not support the weight of the CVVL
assembly.
- Do not invert the Continuous Variable Valve Lift (CVVL) assembly.
Failure to follow this
instruction may result in damage to the CVVL assembly.

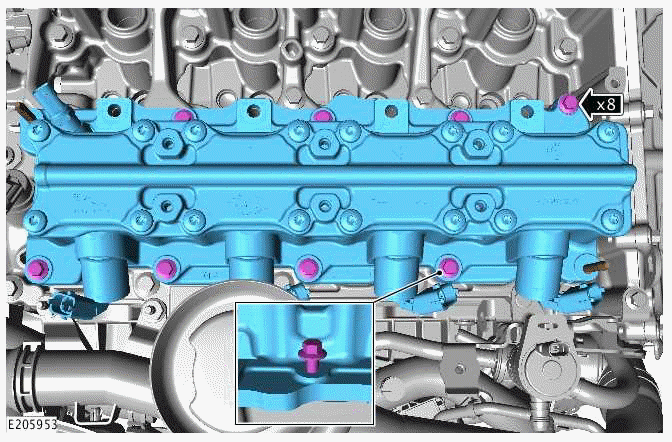

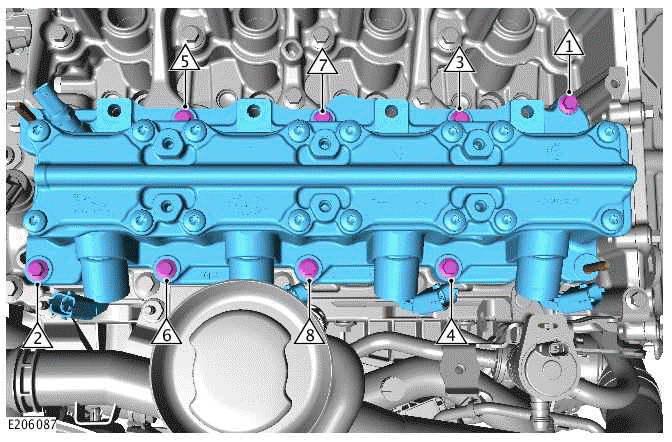

- Remove the 8 bolts in the illustrated sequence.
- Remove the Continuous Variable Valve Lift (CVVL) assembly.
- If the CVVL assembly is being replaced under warranty, make sure that an
engine oil sample is taken
and the data sheet is completed and sent back with the returned CVVL
assembly.
7.
NOTE:
- This step is only required if the CVVL is removed for access, and not
being replaced with a
new CVVL assembly.
- Do not disassemble further if the component is removed for access
only.
- Components shown inverted for clarity.

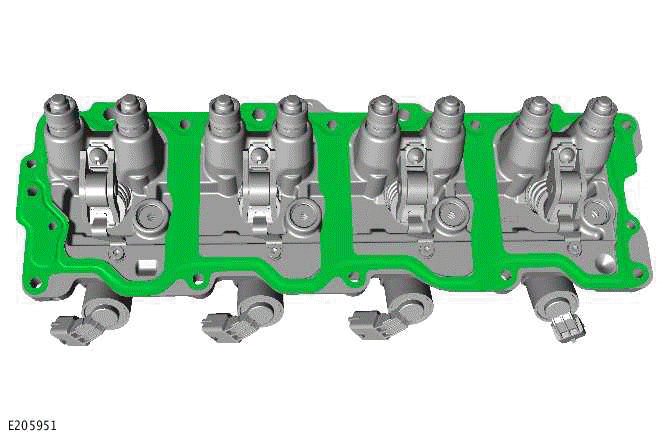

Remove and discard the gasket.
8.
CAUTION:
Take extra care when handling the component.
NOTE:
This step is only required if the CVVL is removed for access, and not being
replaced with a new
CVVL assembly.

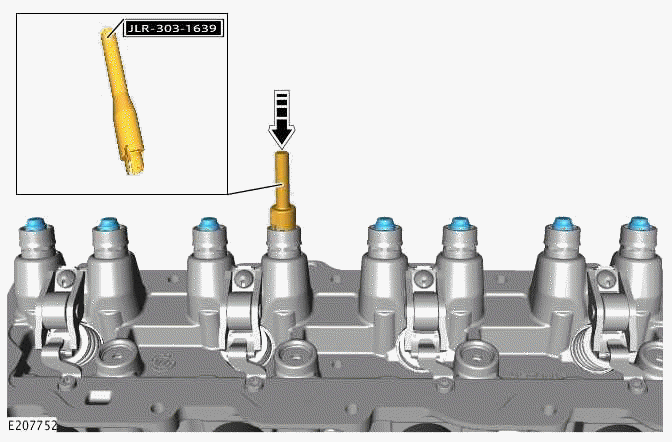

Use the special tool to reset the 8 CVVL brakes.
Special Tool(s): JLR-303-1639
INSTALLATION
1.
CAUTION:
Make sure the CVVL assembly is not inverted.
NOTE:
Components shown inverted for clarity.
Install a new gasket.
Renew Part: Continuous Variable Valve Lift (CVVL) Assembly Gasket Quantity: 1.
2.
CAUTION:
Make sure that the mating surfaces are clean and free from debris and foreign
material.
- Inspect the Continuous Variable Valve Lift (CVVL) brake units and make
sure they are in the reset
position.
- Install the Continuous Variable Valve Lift (CVVL) assembly.
- Install, but do not fully tighten the 8 bolts.
3.

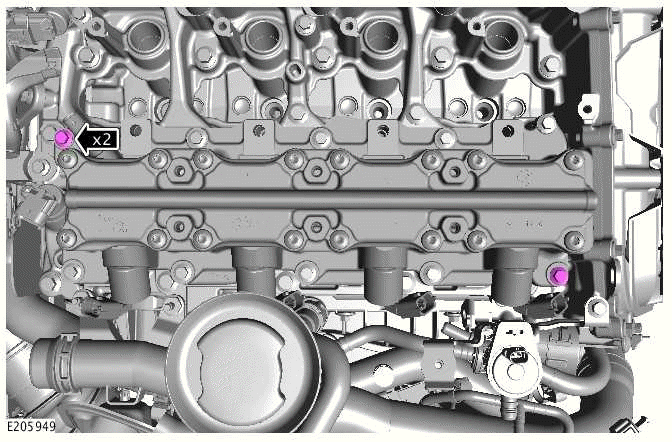

Tighten the 2 bolts in the illustrated sequence until contact between the
bolt head and the CVVL assembly
has been made, and then further tighten the 2 bolts 2 full revolutions.
4.
Tighten the 2 bolts in the illustrated sequence.
Torque: 6Nm
5.
Remove the special tools.
Special Tool(s): JLR-303-1647
6.
Install, but do not fully tighten the 2 bolts.
7.

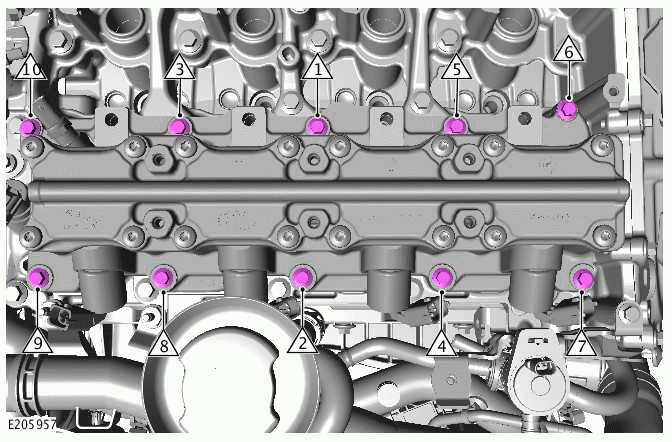

Tighten the 10 bolts in the illustrated sequence.
Torque: 12Nm
8. Install the fuel injectors.
9. Connect the startup battery ground cable.
10. Use the approved Jaguar Land Rover diagnostic equipment to complete the
CVVL software calibration.
General Equipment: Jaguar Land Rover approved diagnostic equipment
11.

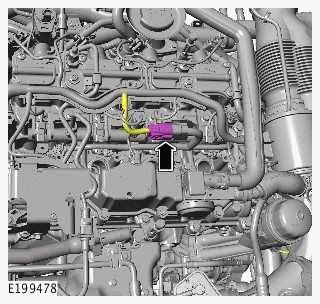

Disconnect the electrical connector from the fuel injector wiring harness.
12.
- Crank the engine for a 10 seconds.
- Allow the starter motor to cool for 5 seconds.
- Repeat this step 4 times until suitable oil pressure is obtained within
the CVVL assembly to allow the
vehicle to start.
13. Connect the electrical connector to the fuel injector wiring harness.
14. Use the approved Jaguar Land Rover (JLR) diagnostic equipment to read and
clear any Diagnostic Trouble
Codes (DTCs).
General Equipment: Jaguar Land Rover approved diagnostic equipment
15.
CAUTION:
Failure to follow this instruction may result in damage to the vehicle.
Run the engine at idle for 1 minute to allow the correct oil pressure to be
obtained within the CVVL
assembly.
