Land Rover Defender: Variable Camshaft Timing Actuator
REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
.png)
JLR-303-1630
Locking Tool, Crankshaft Pulley
.png)
JLR-303-1635
Camshaft Setting Tool
.png)
JLR-303-1636
Locking Tool, Variable Camshaft Timing Actuator / Unit
.png)
JLR-303-1656
Crank Rotation Tool

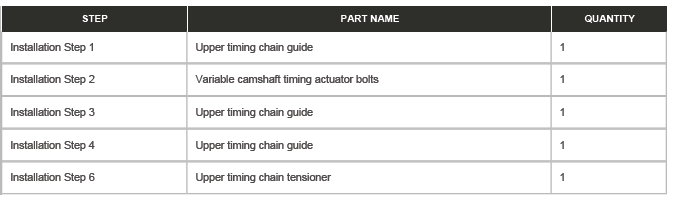

PART(S)
.png)
REMOVAL
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Disconnect the startup battery ground cable.
3. Remove the hood.
4. Remove the upper timing cover.
5. Remove the charge air cooler.
6.
.png)

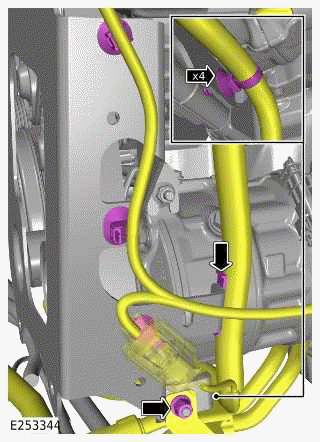

- Release the 4 clips.
- Reposition the wiring harness away form the charge air cooler bracket.
- Remove the nut.
- Repostion the 2 coolant pipes away from the charge air cooler bracket.
7.
.png)
- Remove the nut.
- Remove the 2 bolts.
- Remove the charge air cooler bracket.
8.
.png)

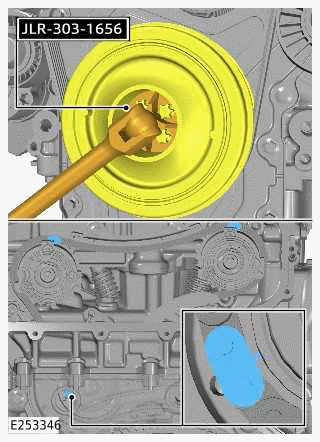

- Install the special tool.
Special Tool(s): JLR-303-1656
- Use the special tool to rotate the crankshaft clockwise until the timing marks align as illustrated.
9.

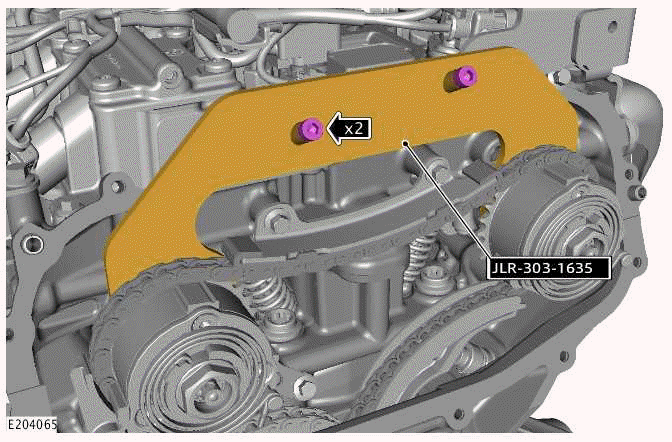

.png)
- Install the special tool.
Special Tool(s): JLR-303-1635
- Install and tighten the 2 bolts.
Torque: 13Nm
10.
.png)
- Install the special tool.
Special Tool(s): JLR-303-1636
- Install and tighten the 2 bolts.
Torque: 13Nm
11.
.png)

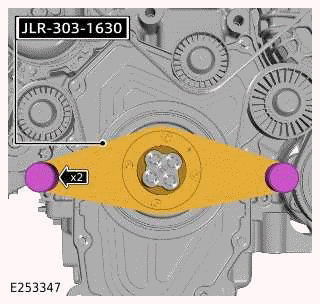

- Install the special tool.
Special Tool(s): JLR-303-1630
- Install and tighten the 2 bolts.
12.

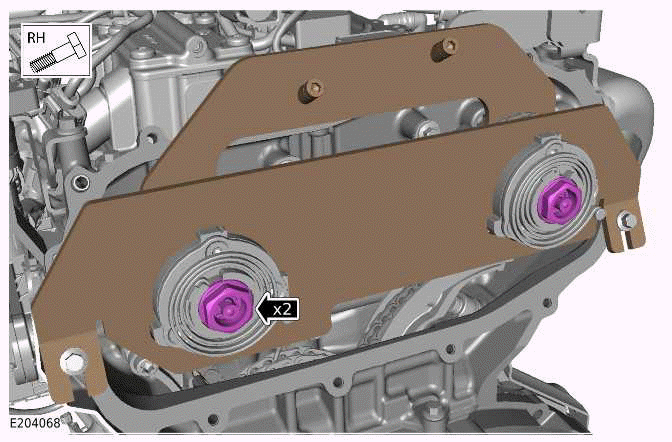

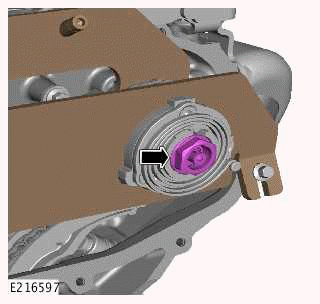

.png)
Loosen, but do not fully remove the bolt.
13.
.png)
Remove and discard the upper timing chain tensioner.
14.
.png)
- Remove the 2 bolts.
- Remove the special tool.
Special Tool(s): JLR-303-1636
15.
CAUTION: Note the location of the Variable Camshaft Timing (VCT) units prior to removal. Each VCT unit is matched to a specific camshaft.

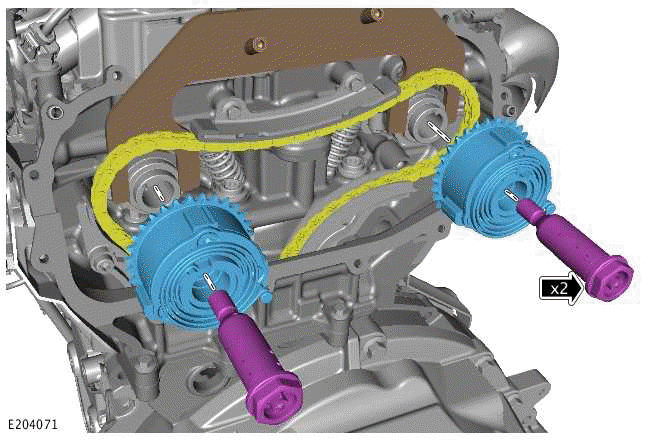

.png)
- Remove and discard the bolt.
- Remove the Variable Camshaft Timing (VCT) actuator.
16.

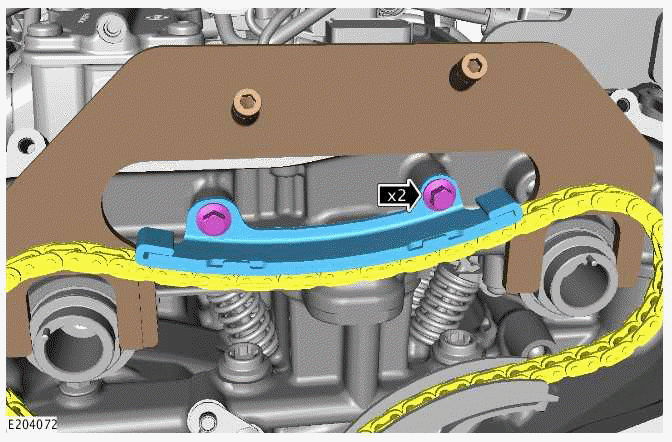

.png)
- Remove the 2 bolts.
- Remove and discard the upper timing chain guide.
17.
.png)

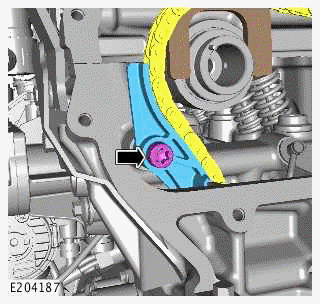

- Remove the bolt.
- Remove and discard the upper timing chain guide.
18.
.png)
Remove and discard the upper timing chain guide.
INSTALLATION
1.
NOTE: Maintain tension on the chain to prevent the coloured link from disengaging with its sprocket position.
.png)
- Install a new upper timing chain guide.
Renew Part: Upper timing chain guide Quantity: 1.
- Install and tighten the bolt.
Torque: 25Nm
2.
CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.
.png)

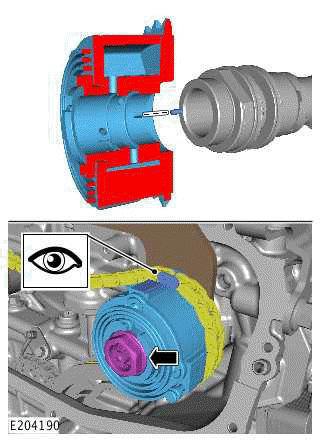

- Install the Variable Camshaft Timing (VCT) actuator. Make sure that the correct VCT actuator is installed as noted in the removal steps.
- Make sure the dowel is correctly installed to the VCT actuator as illustrated.
- Install and tighten the new bolt.
Renew Part: Variable camshaft timing actuator bolts Quantity: 1.
Torque
- Stage1: 10Nm
- Stage2: Loosen 90º
- Make sure the timing mark is aligned with the center of the colored link.
3.
NOTE: Maintain tension on the chain to prevent the coloured link from disengaging with its sprocket position.
.png)
Install a new upper timing chain guide.
Renew Part: Upper timing chain guide Quantity: 1.
4.
CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

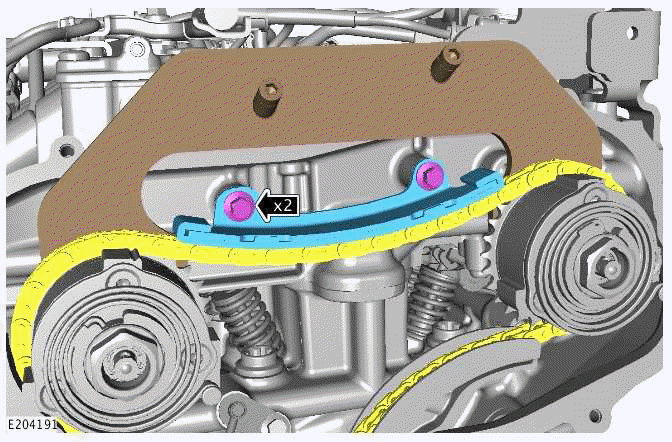

.png)
- Install a new upper timing chain guide.
Renew Part: Upper timing chain guide Quantity: 1.
- Install and tighten the 2 bolts.
Torque: 11Nm
5.

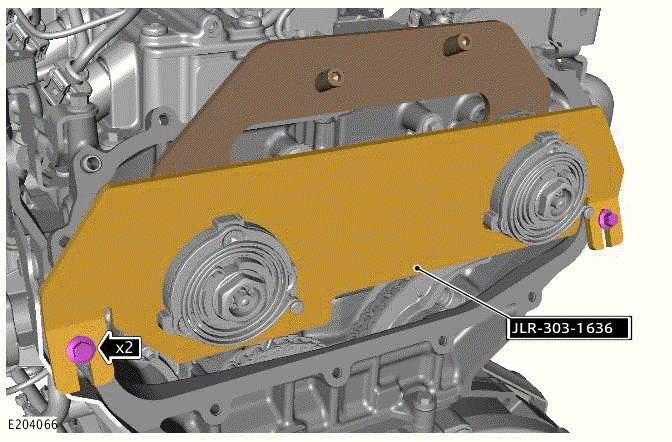

.png)
- Install the special tool.
Special Tool(s): JLR-303-1636
- Install and tighten the 2 bolts.
Torque: 13Nm
6.
.png)

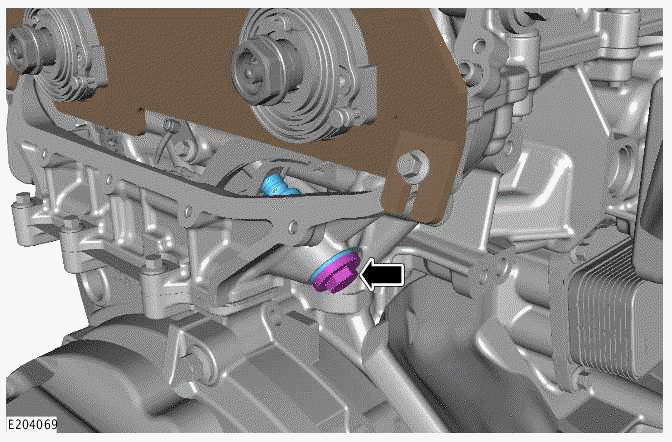

Install and tighten a new upper timing chain tensioner.
Renew Part: Upper timing chain tensioner Quantity: 1.
Torque: 55Nm
7.
CAUTION: Do not directly touch the timing chain tensioner at this stage.

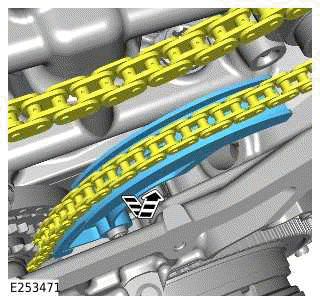

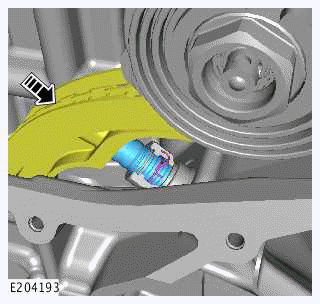

.png)

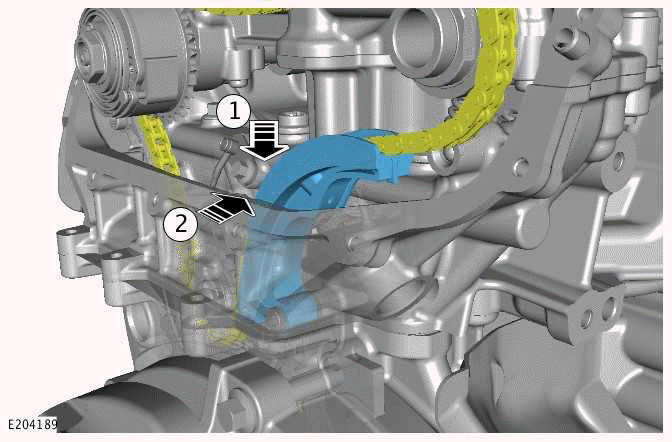

- Push and release the upper timing chain guide to release the upper timing chain tensioner.
- Make sure the upper timing chain is correctly released.
8.
.png)
Tighten the bolt.
Torque
- Stage1: 25Nm
- Stage2: 60º
9.

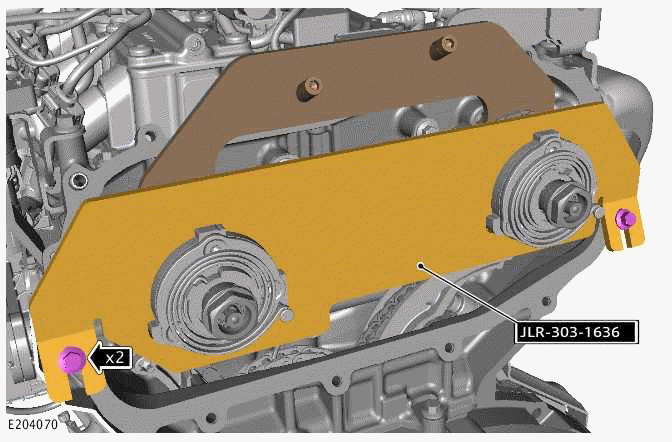

.png)
- Remove the 2 bolts.
- Remove the special tool.
Special Tool(s): JLR-303-1636
10.
.png)
- Remove the 2 bolts.
- Remove the special tool.
11. Install the upper timing cover.
12.
.png)
- Remove the 2 bolts.
- Remove the special tool.
Special Tool(s): JLR-303-1630
13.

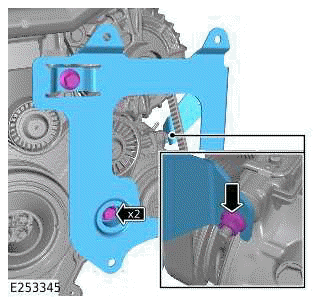

.png)
- Install the charge air cooler bracket.
- Install and tighten the 2 bolts.
Torque: 47Nm
- Install and tighten the nut.
Torque: 9Nm
14.
.png)
- Reposition the 2 coolant pipes in the correct location.
- Install and tighten the nut.
Torque: 9Nm
- Install the 4 clips.
15. Install the charge air cooler.
16. Install the hood.
17. Connect the startup battery ground cable.
