Land Rover Defender: Continuous Variable Valve Lift Oil Temperature Sensor
Land Rover Defender 2020-2024 Service Manual / Powertrain / Engine / Continuous Variable Valve Lift Oil Temperature Sensor
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Remove the engine cover.
2.
.png)

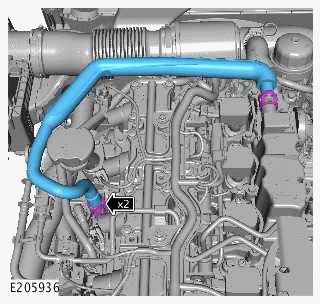

- Disconnect the breather pipe.
- Remove the breather pipe.
3.
.png)

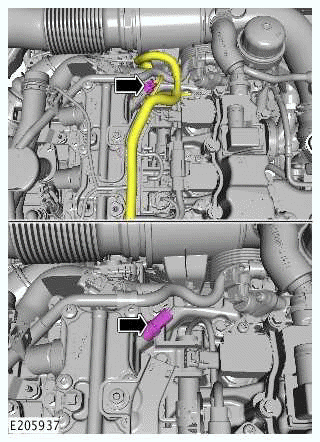

- Disconnect the electrical connector from the Continuous Variable Valve Lift (CVVL) oil temperature sensor.
- Remove the CVVL oil temperature sensor.
INSTALLATION
1.
CAUTION:
- Do not touch the tip of the Continuous Variable Valve Lift (CVVL) oil temperature sensor.
- Lubricate the threaded section of the Continuous Variable Valve Lift (CVVL) oil temperature sensor with clean engine oil.
- Install and tighten the CVVL oil temperature sensor.
Torque: 18Nm
- Connect the electrical connector to the CVVL oil temperature sensor.
2.
- Install the breather pipe.
- Connect the breather pipe.
3. Install the engine cover.
