Land Rover Defender: Cooler and Warmer Box

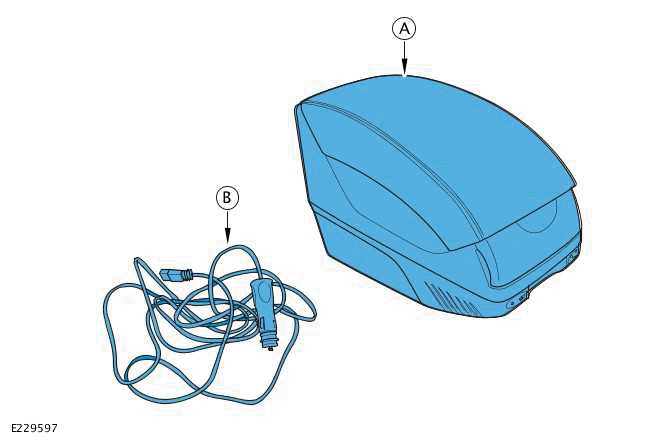

COOLER AND WARMER BOX - PART NUMBER:
VPLVS0176
REMOVAL AND INSTALLATION
WARNING:
Accessories which are not correctly installed can be dangerous. Read the
instructions carefully prior to
installation. Comply with instructions at all times. If in doubt, contact your
nearest approved retailer.
INSTALLATION
1.

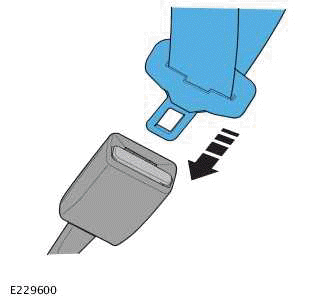

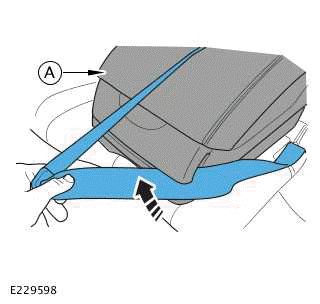

Pull the seatbelt across the cooler and warmer box. Make sure the lower part
of the seatbelt engages into the
slot at the front of the cooler and warmer box.
2.

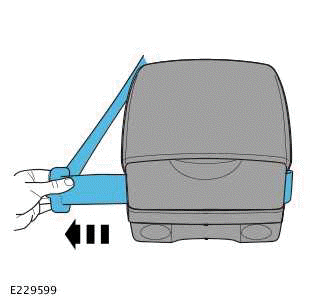

Pull the seatbelt across to the other side of the cooler and warmer box. Make
sure the lower part of the seatbelt
is fully engaged in the slot, across the width of the cooler and warmer box, as
illustrated.
3.
Fasten the seatbelt.
4.

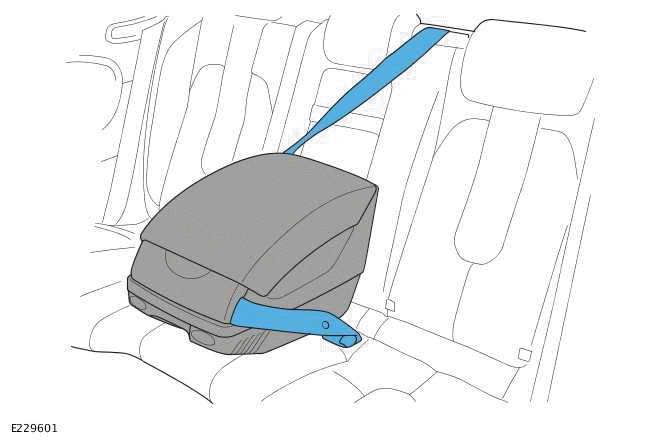

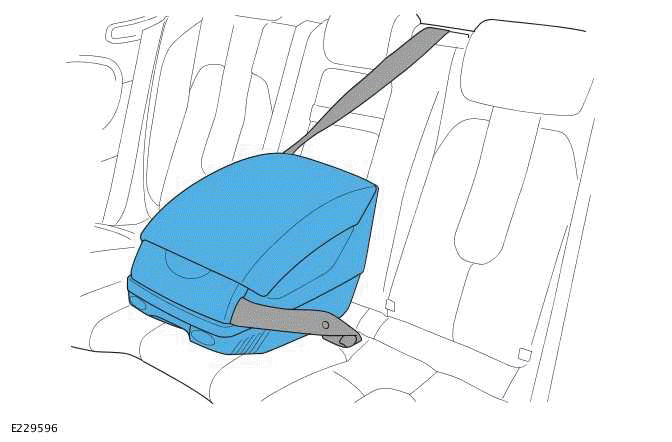

The cooler and warmer box, secured with the seatbelt, should appear as
illustrated.
5.

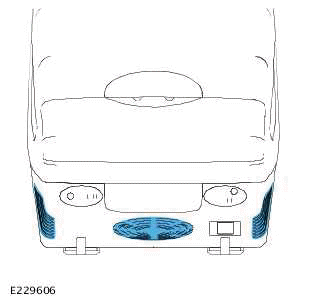

Make sure the vents on the front underside of the cooler and warmer box are
not obstructed.
6.

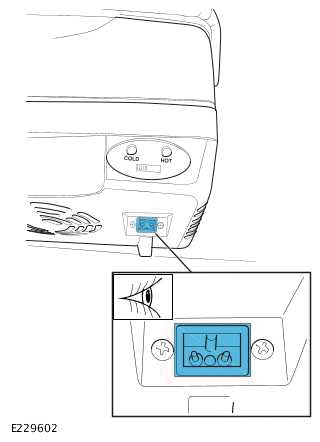

Locate the power socket on the front underside of the cooler and warmer box.
7.

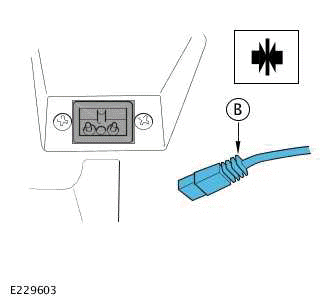

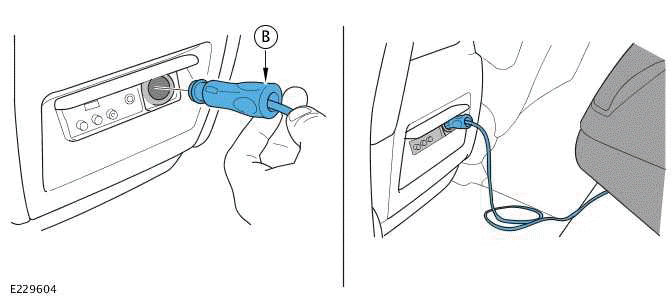

Engage the plug into the power socket on the cooler and warmer box, as
illustrated.
8.
Engage the plug into the 12 volts accessory socket, as illustrated.
9.
CAUTION:
Do not use abrasive or solvent based products when cleaning the cooler and
warmer box. The best
method of cleaning the cooler and warmer box is using a damp cloth and washing
up liquid. If the
cooler and warmer box is not going to be used for a long period of time it
should be dried out first.
NOTES:
- The cooler and warmer box is designed to maintain the warmth in food
and drink that is already
warm. The purpose of the cooler and warmer box is not to warm up cold food
and drinks. Keep the
lid of the cooler and warmer box closed to help maintain the warmth in food
and drinks.
- In cooler mode, the best results are achieved when food and drink
items placed into the cooler and
warmer box are already refrigerated.
- Avoid direct sunlight on the cooler and warmer box.
The cooler and warmer box can be used to keep food and drink items cool or
warm. The cooler and warmer
box has a battery monitor that prevents your primary battery from being
discharged too heavily.

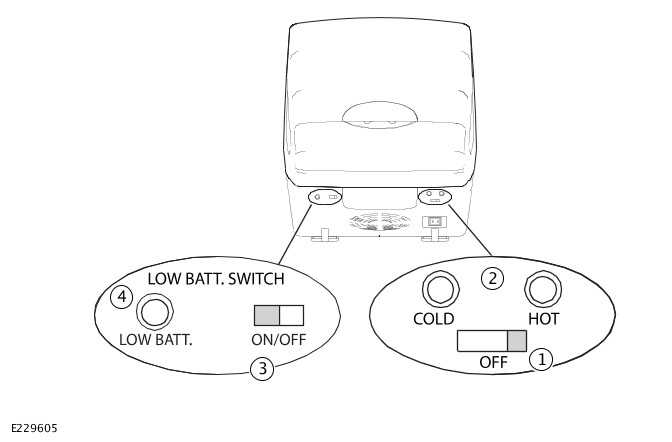

- Use the sliding switch to change between the three modes of operation:
off, cooler or warmer.
- The operating mode is indicated by the light-emitting diodes (LEDs) on
the front of the cooler and warmer
box. The green LED shows the cooler and warmer box is cooling and the red
LED shows the cooler and
warmer box is warming.
- Use the sliding switch to enable or disable the battery monitoring
function. Because this accessory is
being used within a vehicle, the battery monitoring should be left enabled.
- If the primary battery is at undervoltage, the red LED will flash and
the cooler and warmer box will not
operate. When the operating voltage is reached, the red LED will stay on and
the cooler and warmer box
will operate.
10.
WARNINGS:
- Never touch uninsulated cables with bare hands.
- Do not touch the inside of the cooler and warmer box during operation
in warmer mode and for 30
minutes after use when it may still be hot. There is a risk that touching
the cooler and warmer box
may cause burns.
CAUTIONS:
- Dispose of the cooler and warmer box at an appropriate waste facility
to make sure it does not
harm the environment.
- Do not obstruct the vents to the compressor on the front underside of
the cooler and warmer box.
- Do not place the cooler and warmer box in a sealed vehicle or in the
luggage compartment. Do not
obstruct the air flow to the fan.
- Do not disassemble the cooler and warmer box as there are no
serviceable parts inside.
- Always use the cable provided. If the cable becomes damaged it must
be replaced.
- Keep the cooler and warmer box free from frost.
- Do not use hard or sharp tools to remove ice from the cooler and
warmer box.
- Do not use ice or ice packs in the cooler and warmer box.
- Do not use household chemicals to clean the unit, for example bleach.
- Children should be supervised to make sure that they do not play with
the cooler and warmer box.
- Children should not be left unattended in a vehicle where the cooler
and warmer box has recently
been in use. The surfaces of the unit may still be hot or cold and there is
a risk that touching the
unit may cause injury.
- Make sure that the cooler and warmer box is disconnected from the 12
volts accessory socket
before using a high speed battery charger.
11.
Technical Data:
- Application: 12 volts
- Power input: 40 watts
- Battery charge monitor: Cut-off at 11.7 volts, cut-in at 13.1 volts
- Capacity: 15 litres
- Weight: 5.2 kg
- Cooling capacity: Maximum 20ºC below ambient temperature
- Heating capacity: 65ºC (set-point by chamber)
- Insulation: Solid polyurethane foam
- Cooling unit: Thermoelectric elements
- Climatic class: Temperate climate (N) or tropical climate (T)
