Land Rover Defender: Mirror Proximity Camera
Land Rover Defender 2020-2024 Service Manual / Electrical / Instrumentation and Warning Systems / Parking Aid / Mirror Proximity Camera
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left side components, right side components are similar.
1. Remove the door mirror cover.
2.
.png)

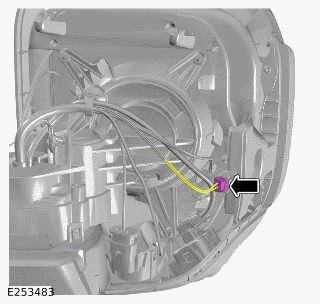

Disconnect the electrical connector from the turn signal indicator.
3.
.png)

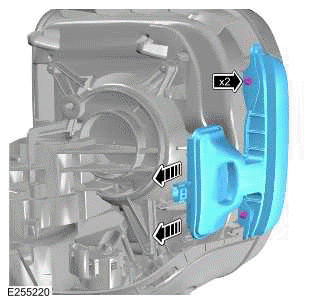

- Remove the 2 screws.
- Remove the turn signal indicator.
4.
.png)

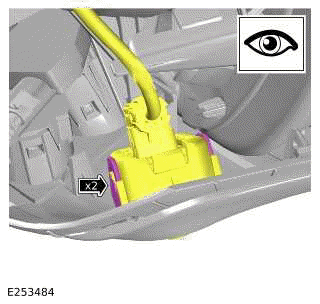

- Carefully release the 2 clips.
- Release the mirror proximity camera.
5.
.png)

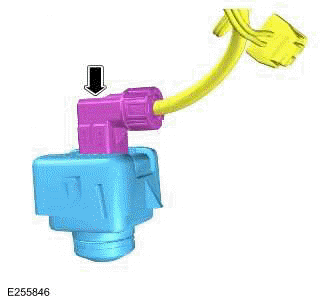

- Disconnect the electrical connector.
- Remove the mirror proximity camera.
INSTALLATION
1.
NOTE: Make sure that all the clips are correctly installed.
- Connect the electrical connector to the mirror proximity camera.
- Install the mirror proximity camera.
2.
- Install the turn signal indicator.
- Install and tighten the 2 screws.
3. Connect the electrical connector to the turn signal indicator.
4. Install the door mirror cover.
5. Use the Jaguar Land Rover (JLR) approved diagnostic equipment to configure the new mirror proximity camera.
General Equipment: Jaguar Land Rover approved diagnostic equipment
