SPECIFICATIONS

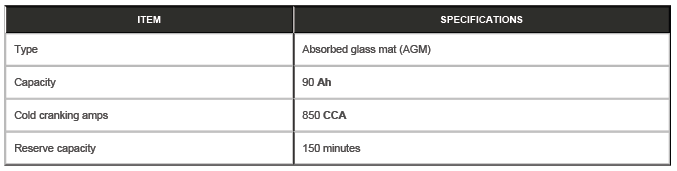

Startup battery

Battery and Charging System - General Information

Startup battery disconnect/connect

CAUTIONS:

NOTES:

Battery and Charging System - General Information

Battery and Charging System - General Information

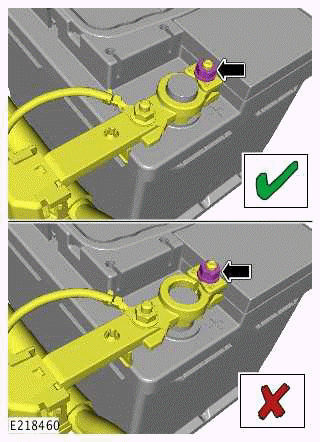

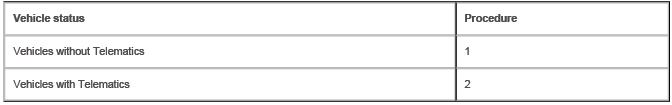

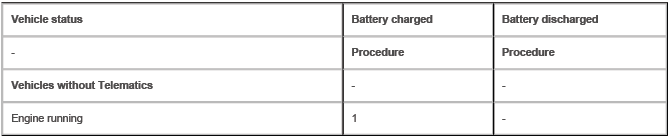

CONNECTING THE STARTUP BATTERY POSITIVE CABLE

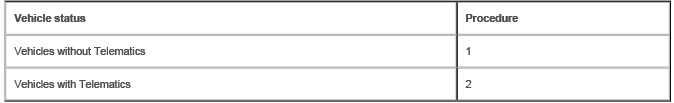

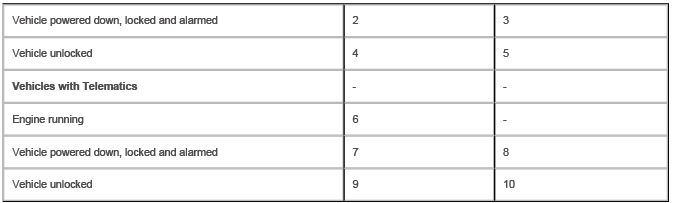

Battery and Charging System - General Information

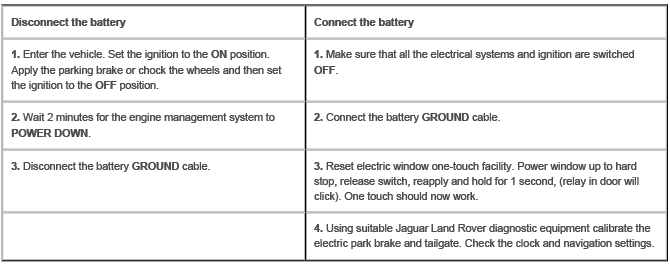

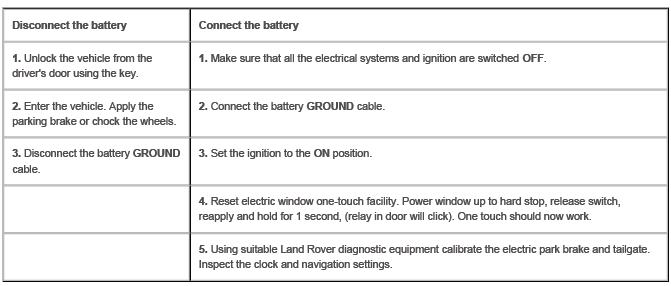

Procedure 1

Battery and Charging System - General Information

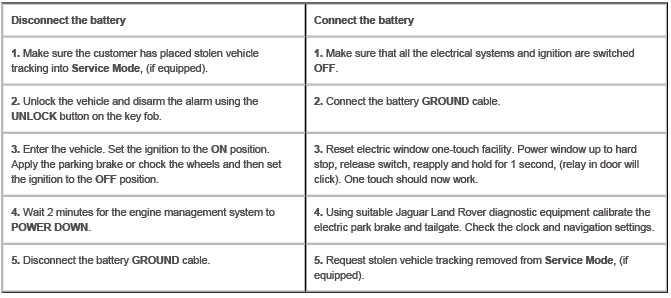

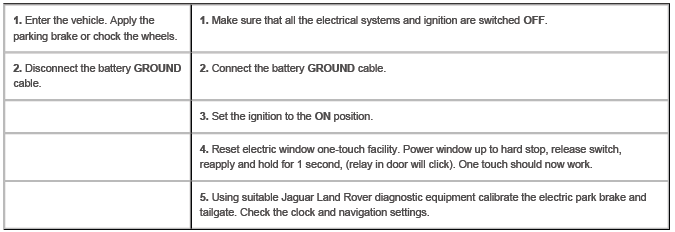

Procedure 2

Battery and Charging System - General Information

Battery and Charging System - General Information

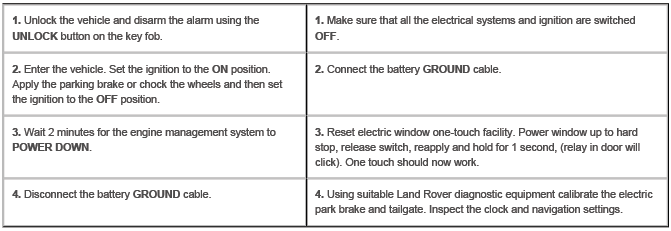

Procedure 3

Battery and Charging System - General Information

Procedure 4

Battery and Charging System - General Information

Procedure 5

Battery and Charging System - General Information

Battery and Charging System - General Information

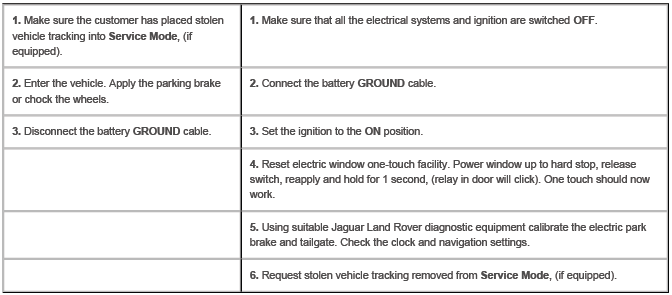

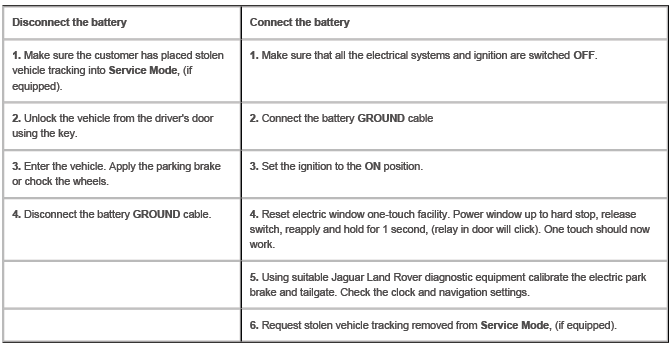

Procedure 6

Battery and Charging System - General Information

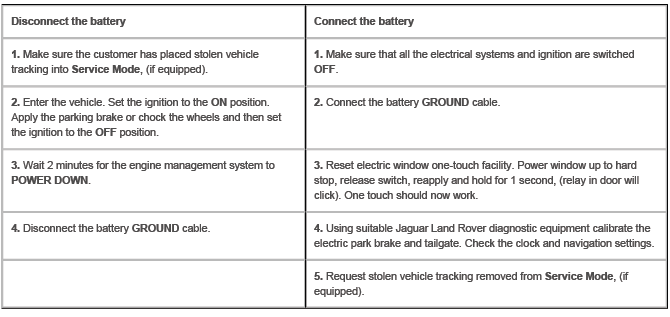

Procedure 7

Battery and Charging System - General Information

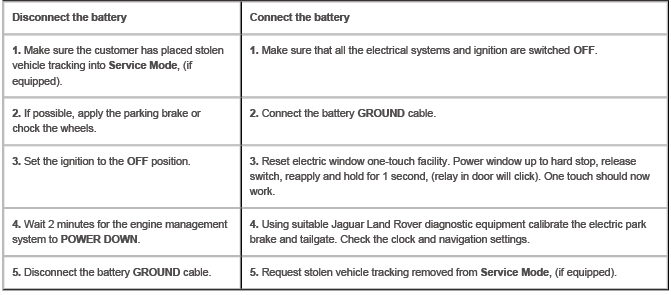

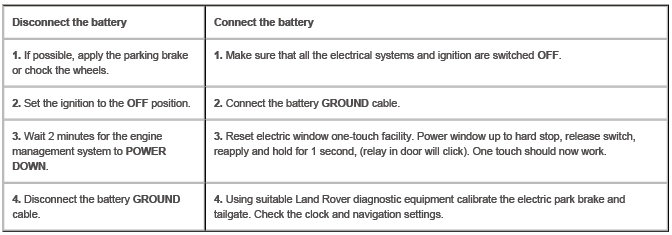

Procedure 8

CAUTION: Battery discharge may have activated the stolen vehicle tracking, check with customer if equipped.

Battery and Charging System - General Information

Procedure 9

Battery and Charging System - General Information

Procedure 10

CAUTION: Battery discharge may have activated the stolen vehicle tracking, check with customer if equipped.

Battery and Charging System - General Information

Battery and Charging System - General Information

Vehicle Jump (Emergency) Starting - Using Another Vehicle

WARNINGS:

CAUTIONS:

Battery and Charging System - General Information

Procedure 1

COMPLETE THE FOLLOWING OPERATIONS IN THE SEQUENCE GIVEN

  1. Connect one end of the RED (+) booster cable to the POSITIVE (+) jump start terminal of the DONOR vehicle
  2. Connect the other end of the RED (+) booster cable to the POSITIVE (+) jump start terminal of the DISABLED vehicle
  3. Connect one end of the BLACK (-) booster cable to the GROUND (-) jump start terminal of the DONOR vehicle
  4. Connect the other end of the BLACK (-) booster cable to the GROUND (-) jump start terminal on the DISABLED vehicle
  5. Start the engine of the DONOR vehicle and allow it to idle for a few minutes
  6. Start the engine of the DISABLED vehicle
  7. Allow the engines of both vehicles to idle for a few minutes, then switch off the engine of the DONOR vehicle
  8. Disconnect the BLACK (-) booster cable from the jump start terminal of the PREVIOUSLY DISABLED vehicle
  9. Disconnect the BLACK (-) booster cable from the jump start terminal of the DONOR vehicle
  10. Disconnect the RED (+) booster cable from the jump start terminal of the PREVIOUSLY DISABLED vehicle
  11. Disconnect the RED (+) booster cable from the jump start terminal of the DONOR vehicle

Procedure 2

COMPLETE THE FOLLOWING OPERATIONS IN THE SEQUENCE GIVEN

   1.  Make sure the customer has placed stolen vehicle tracking into Service Mode, (if. equipped).

  1. Connect one end of the RED (+) booster cable to the POSITIVE (+) jump start terminal of the DONOR vehicle
  2. Connect the other end of the RED (+) booster cable to the POSITIVE (+) jump start terminal of the DISABLED vehicle
  3. Connect one end of the BLACK (-) booster cable to the GROUND (-) jump start terminal of the DONOR vehicle
  4. Connect the other end of the BLACK (-) booster cable to the GROUND (-) jump start terminal on the DISABLED vehicle
  5. Start the engine of the DONOR vehicle and allow it to idle for a few minutes
  6. Start the engine of the DISABLED vehicle
  7. Allow the engines of both vehicles to idle for a few minutes, then switch off the engine of the DONOR vehicle
  8. Disconnect the BLACK (-) booster cable from the GROUND (-) jump start terminal of the PREVIOUSLY DISABLED vehicle
  9. Disconnect the BLACK (-) booster cable from the jump start terminal of the DONOR vehicle
  10. Disconnect the RED (+) booster cable from the POSITIVE (+) jump start terminal of the PREVIOUSLY DISABLED vehicle
  11. Disconnect the RED (+) booster cable from the jump start terminal of the DONOR vehicle
  12. Request stolen vehicle tracking removed from Service Mode, (if equipped).

Vehicle Jump (Emergency) Starting - Using a Slave Battery/Starting Aid

Battery and Charging System - General Information

Procedure 1

COMPLETE THE FOLLOWING OPERATIONS IN THE SEQUENCE GIVEN

  1. Connect the end of the RED (+) booster cable to the POSITIVE (+) jump start terminal of the vehicle.
  2. Connect the end of the BLACK (-) booster cable to the GROUND (-) jump start terminal of the vehicle.
  3. Start the engine of the vehicle and allow it to idle.
  4. Disconnect the BLACK (-) booster cable from the GROUND (-) jump start terminal of the vehicle.
  5. Disconnect the RED (+) booster cable from the POSITIVE (+) jump start terminal of the vehicle.

Procedure 2

COMPLETE THE FOLLOWING OPERATIONS IN THE SEQUENCE GIVEN

  1. Make sure the customer has placed stolen vehicle tracking into Service Mode, (if equipped).
  2. Connect the end of the RED (+) booster cable to the POSITIVE (+) jump start terminal of the vehicle.
  3. Connect the end of the BLACK (-) booster cable to the GROUND (-) jump start terminal of the vehicle.
  4. Start the engine of the vehicle and allow it to idle.
  5. Disconnect the BLACK (-) booster cable from the GROUND (-) jump start terminal of the vehicle.
  6. Disconnect the RED (+) booster cable from the POSITIVE (+) jump start terminal of the vehicle.
  7. Request stolen vehicle tracking removed from Service Mode, (if equipped).
