Land Rover Defender: DAB3 Antenna Amplifier - 90
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains illustrations for right side components, left
side components are similar.
1. Disconnect the startup battery ground cable.
2. Remove the LH B-pillar upper trim panel.

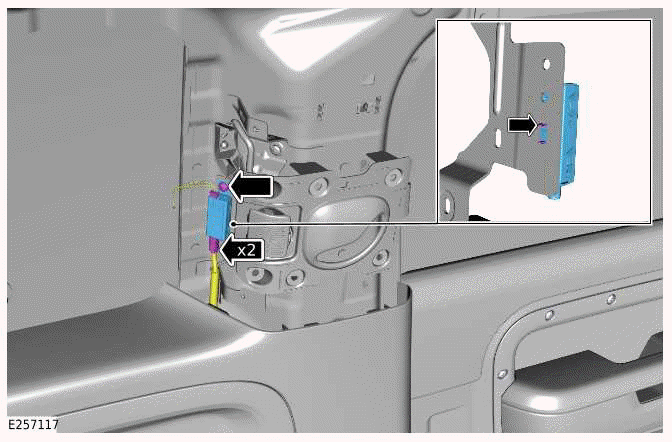

3.
- Disconnect the 2 electrical connectors.
- Remove the bolt.
- Release the clip from the bracket.
- Remove the antenna.
INSTALLATION
1.
NOTE:
Make sure that the component is correctly located.
- Install the clip.
- Install the antenna.
- Install and tighten the bolt.
Torque: 3Nm
- Connect the 2 electrical connectors.
2. Remove the LH B-pillar upper trim panel.
3. Connect the startup battery ground cable.
