Land Rover Defender: Differential Front Bush
Land Rover Defender 2020-2024 Service Manual / Chassis / Driveline / Rear Drive Axle/Differential / Differential Front Bush
REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
.png)
204-598
Hydraulic Cylinder 10t
.png)
JLR-205-991
Support, Bush
.png)
JLR-502-013
Remover, Bush
REMOVAL
NOTES:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
1.
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
2. Remove the rear differential.
3.
NOTE: Note the orientation of the bush before removal.
.png)
Using a suitable tool, remove the bush.
INSTALLATION
1.

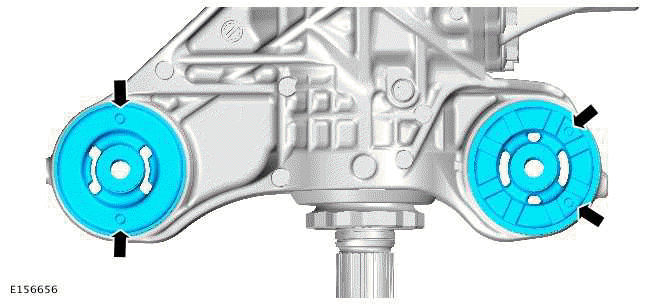

NOTE: Make sure the new bushes are installed in the correct orientation.
.png)
2.

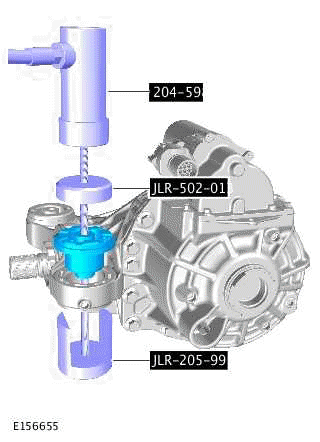

CAUTION: Make sure that the special tool is correctly located.
NOTE: Make sure the bush is correctly oriented.
.png)
- Special Tool(s): 204-598, JLR-502-013, JLR-205-991
3. Install the rear differential.
