Land Rover Defender: Differential Rear Bush
REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
.png)
204-598-01
Remover/Installer, Subframe Bushing Guide
.png)
JLR-502-014
Remover/Installer Support, Bush
.png)
JLR-502-015
Installer, Bush
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Remove the rear differential.
3.
CAUTION: Make sure that the special tool is correctly located.
NOTE: Note the orientation of the bush before removal.
.png)

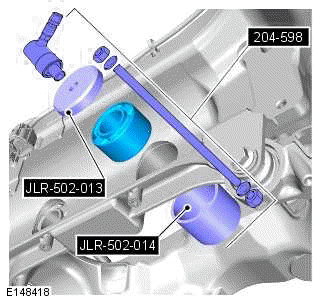

Use the special tools to remove the differential rear bush.
Install the Special Tool(s): JLR-502-015, 204-598-01, JLR-502-014
INSTALLATION
1.
.png)

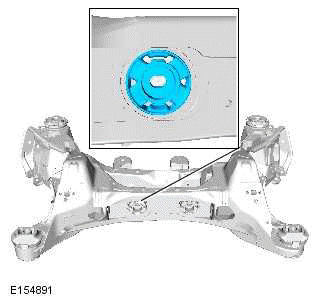

Make sure the new bush is installed in the correct orientation.
2.
CAUTION:
- Make sure that the special tool is correctly located.
- Make sure the correct special tool is used to install the bush to the correct depth.
.png)

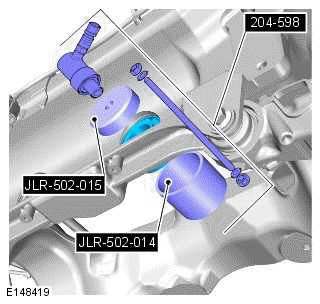

Use the special tools to install the differential rear bush.
Install the Special Tool(s): JLR-502-015, 204-598-01, JLR-502-014
3. Install the rear differential.
