Land Rover Defender: Electric Booster Heater

DESCRIPTION AND OPERATION

COMPONENT LOCATION

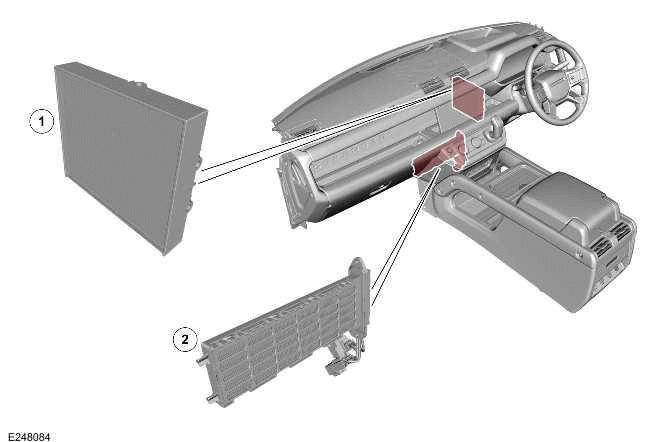

COMPONENT LOCATION - 1 OF 1

NOTE: Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD) vehicle is similar.

Electric Booster Heater

  1. Heating, ventilation, and air conditioning (HVAC) control module
  2. Electric booster heater

OVERVIEW

Due to the slower warm up time of the engine coolant, the vehicle is equipped with an electric booster heater to heat the air. The heated air lets the climate control assembly increase the heater performance faster than when it used the engine coolant only. The electric booster heater comprises ceramic coated heater elements. The request to operate the electric boost heater originates in the HVAC control module. To operate the electric booster heater, the HVAC control module energizes relays in the Passenger Junction Box (PJB). The relays send voltage to the 2 sections of the electric booster heater, related to the demand for heat.

The amount of heating requested by the HVAC control module is based on:

DESCRIPTION

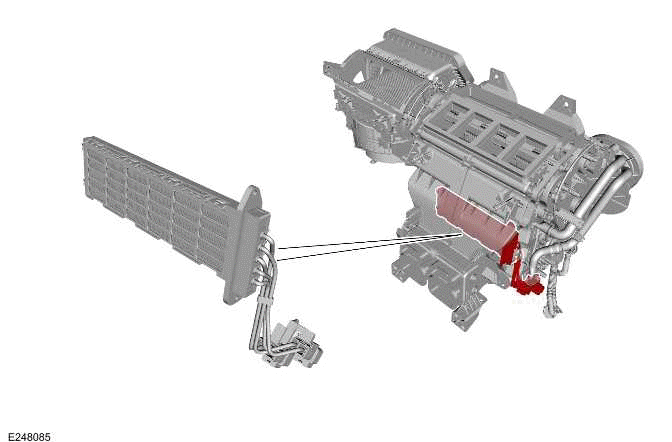

ELECTRIC BOOSTER HEATER

NOTE: RHD vehicle is shown, LHD vehicle is similar.

Electric Booster Heater

The electric booster heater is installed in the climate control assembly, on the downstream of the heater core. The electric booster heater consists of ceramic coated Positive Temperature Coefficient (PTC) elements, rated at 600W.

Electrical power for the electric booster heater is supplied through 2 40A fuses in the PJB. Operation of the electric booster heater is controlled by the HVAC control module.

OPERATION

The HVAC control module uses the following inputs, to control operation of the electric booster heater:

The HVAC control module requests operation of the electric booster heater in these circumstances:

The electric booster heater elements are activated by the HVAC control module which is proportional to the amount of heating required. The electric booster heater is limited to 600W. When the electrical load management is in force, the electric booster heater performance is reduced.

DIAGNOSTICS

The HVAC control module records any Diagnostic Trouble Code(s) (DTC)s and related data. Read the DTCs and related data with the Jaguar Land Rover (JLR) approved diagnostic equipment.

The JLR approved diagnostic equipment can read live data and activate certain components.

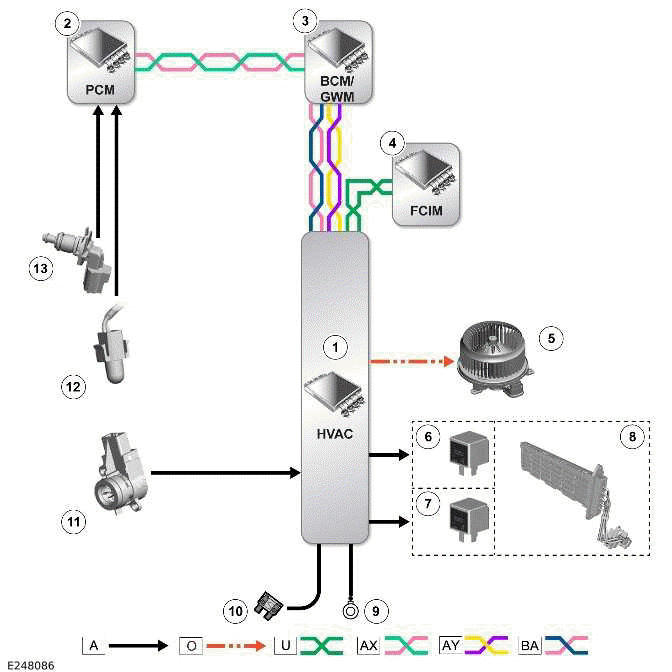

CONTROL DIAGRAM

CONTROL DIAGRAM - 1 OF 1

Electric Booster Heater

A = HARDWIRED: O = LIN: U = PRIVATE CAN BUS: AX = FLEXRAY: AY = HS CAN POWER MODE ZERO SYSTEMS BUS: BA = HS CAN HMI SYSTEMS BUS.

  1. HVAC control module
  2. PCM
  3. BCM/ GWM
  4. FCIM
  5. Blower
  6. Relay 1 - Electric booster heater in the PJB
  7. Relay 2 - Electric booster heater in the PJB
  8. Electric booster heater
  9. Ground
  10. Power supply
  11. In-vehicle temperature sensor
  12. AAT sensor
  13. Engine coolant temperature sensor
