Land Rover Defender: Electric Booster Heater - Right Hand Drive
Land Rover Defender 2020-2024 Service Manual / Electrical / Climate Control System / Auxiliary Climate Control / Electric Booster Heater - Right Hand Drive
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2. Remove the climate control assembly.
3.
.png)

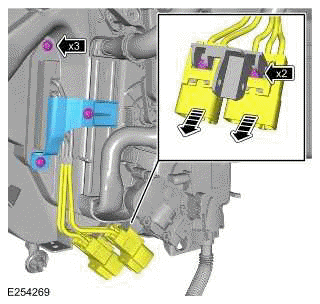

- Release the 2 electrical connectors from the climate control assembly.
- Remove the 3 screws.
- Remove the wiring harness cover.
4.
CAUTION: Take extra care not to damage the component.
.png)

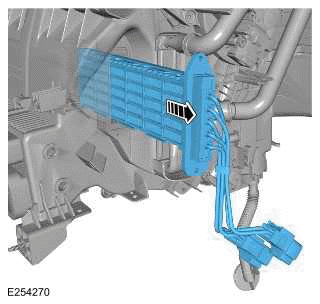

Remove the electric booster heater.
INSTALLATION
1.
CAUTION: Take extra care not to damage the component.
- Install the electric booster heater.
- Install the wiring harness cover to the climate control assembly.
- Install and tighten the 3 screws.
Torque: 1.2Nm
- Install the 2 electrical connectors to the climate control assembly.
2. Install the climate control assembly.
3. Connect the startup battery ground cable.
