Land Rover Defender: Rear Treadplate
Land Rover Defender 2020-2024 Service Manual / Body and Paint / Interior Trim and Ornamentation / Rear Treadplate
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains illustrations for the left side components, right side components are similar.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
1. Remove the loadspace trim panel.
2. Remove the B-pillar lower trim panel.
3. Remove the front treadplate.
4.
CAUTION: Use a suitable trim tool.

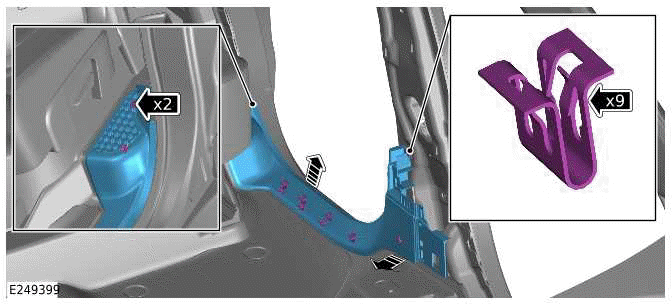

.png)
- Release the 11 clips.
- Remove the rear treadplate.
INSTALLATION
1.
- Install the 11 clips.
- Install the rear treadplate.
2. Install the front treadplate.
3. Install the B-pillar lower trim panel.
4. Install the loadspace trim panel.
