Land Rover Defender: Electric Power Steering Gear Inspection - With Heavy/Notchy Steering Gear

Land Rover Defender 2020-2024 Service Manual / Chassis / Steering System / Steering System - General Information / Electric Power Steering Gear Inspection - With Heavy/Notchy Steering Gear

ELECTRIC POWER STEERING GEAR INSPECTION - WITH HEAVY/NOTCHY STEERING GEAR

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Electric Power Steering Gear Damage Assessment Checklist

  1. Log Vehicle Identification Number (VIN)
  2. Confirm noise, is it repeatable on the vehicle?
  3. Has vehicle previously had accident damage repairs?
  4. Are there any signs of impact damage to the wheels/tires?
  5. Is the steering free to turn lock to lock on a wheel free ramp?
  6. Is front steering alignment correct?
  7. Does the noise occur on all surfaces?
  8. Does the noise occur in all temperatures?

ELECTRIC POWER STEERING GEAR ACCIDENT DAMAGE CHECK

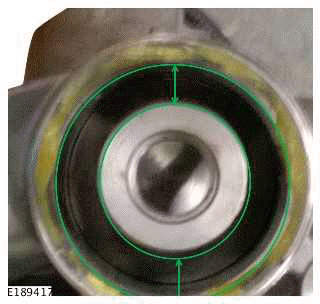

The example below shows a good steering gear in central position.

Steering System - General Information

Bent Steering Gear

Below are some examples of damage that would not be accepted under the terms of the Jaguar Land Rover warranty agreement. Please note: these are examples only and do not represent all warrantable/non warrantable customer concerns.

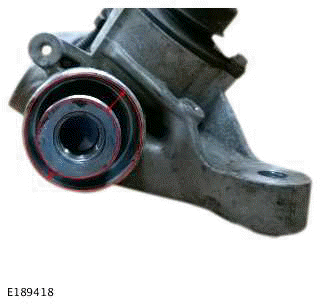

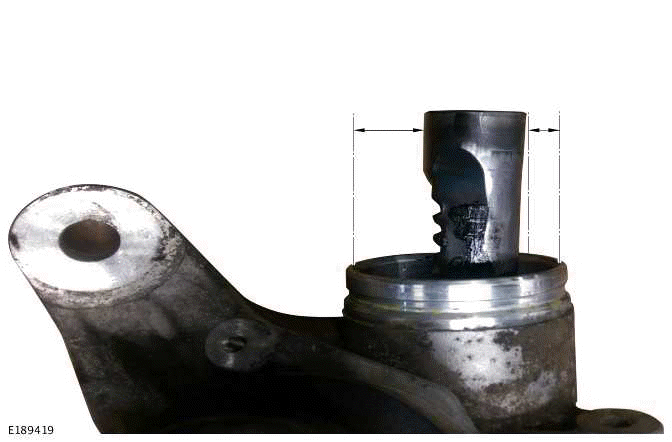

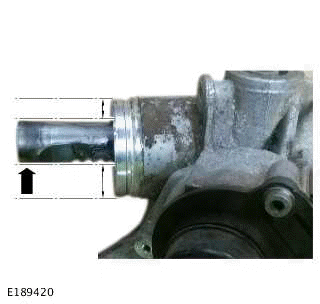

Check the differences between the distances at point A and B. Check if the rack is central and not rubbing on the end stop damper.

Steering System - General Information

The rack clearly shows that it is not centralized meaning it is a bent steering gear issue.

Steering System - General Information

Steering System - General Information

The rack is not centralized to the gear housing meaning it is a bent steering gear issue.

Sign of Recent Repair

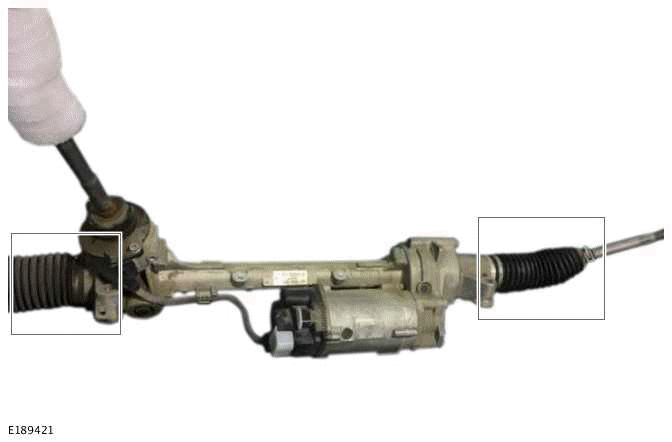

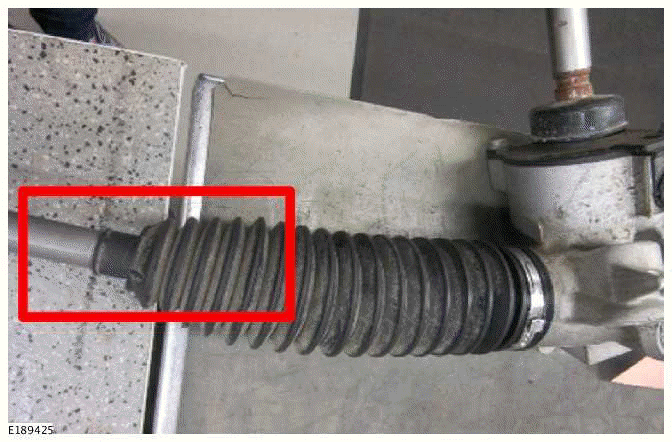

Check if the tie rod ends were recently changed. Visually inspect if the conditions of the boot are the same (dirty or clean).

Steering System - General Information

See the difference between the boots highlighted in yellow and in red. This will tell you if a tie rod has been replaced before in which case you can assume accident damage.

Water/Debris Damage

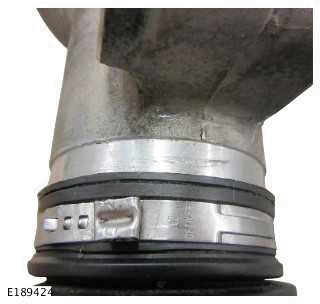

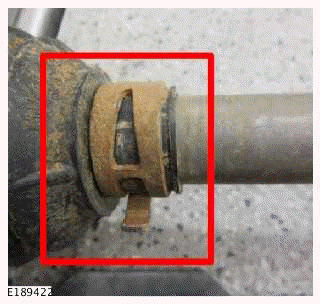

Check if boot clips are in position and they were not recently disturbed or moved. Check if clips are the correct type.

Steering System - General Information

Steering System - General Information

Steering System - General Information

Steering System - General Information

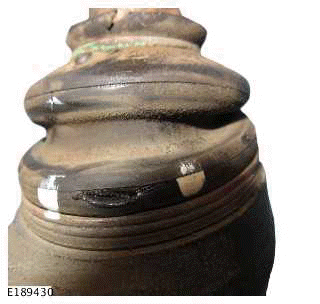

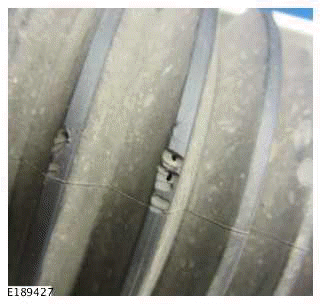

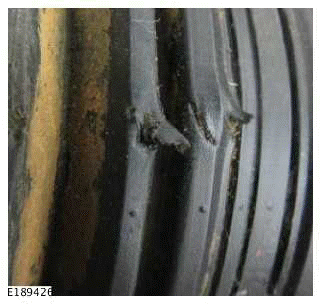

Check for damages and pin holes on the boots.

Steering System - General Information

Steering System - General Information

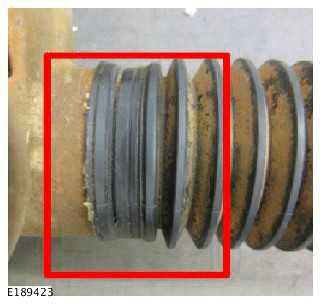

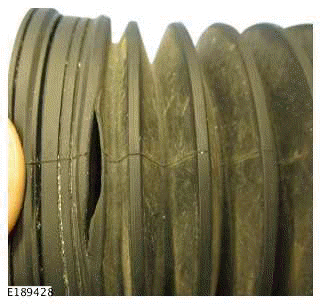

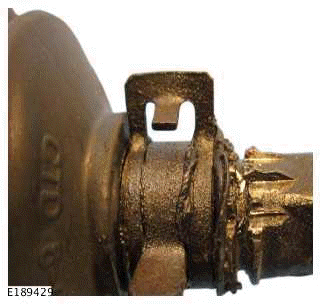

Check for split boots. Check for repair marks on tie rods.

Steering System - General Information

Steering System - General Information

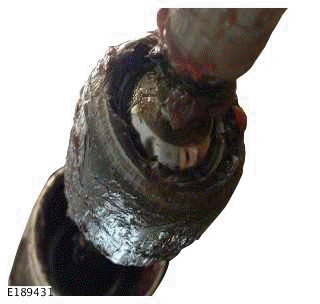

Is there evidence of water/debris into steering gear.

Steering System - General Information

Steering System - General Information

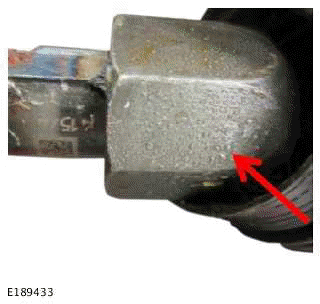

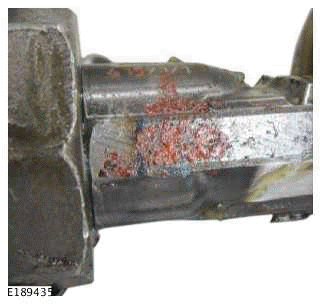

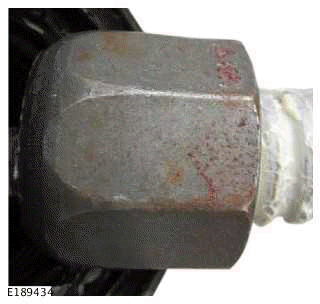

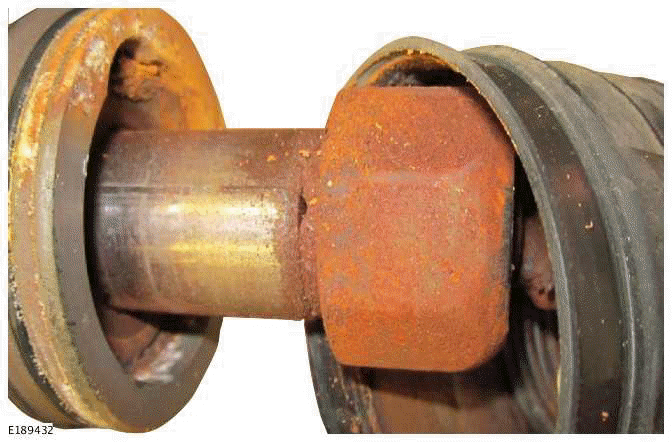

Check for Rust, condensation, and water deposits.

Steering System - General Information

Steering System - General Information

Steering System - General Information

ECU Damages

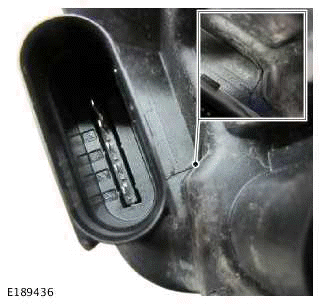

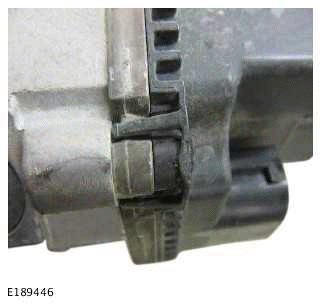

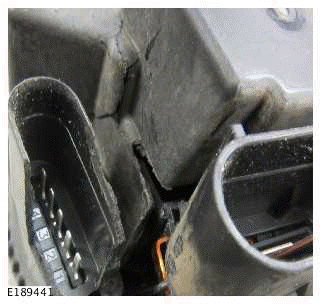

Check for cracks on PSCM housing.

Steering System - General Information

Steering System - General Information

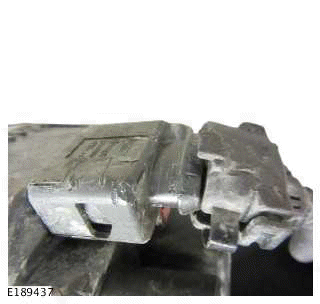

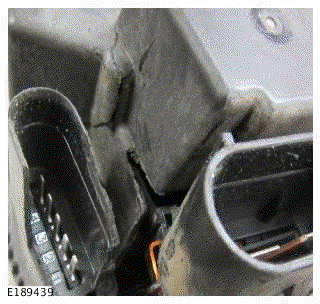

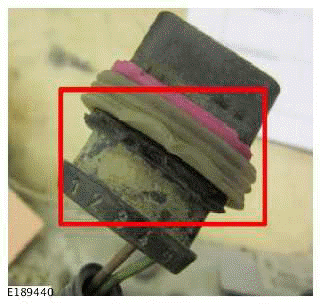

Check for scratches and damages on PSCM connectors and the steering gear.

Steering System - General Information

Steering System - General Information

Damage to Connector, Seals or Wiring

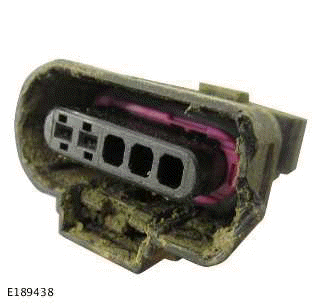

Is there evidence of damage to connector clips.

Check for removed/damaged connectors.

Steering System - General Information

Check for Harness damage between ECU and Torque sensor.

Steering System - General Information

Impact Damage to Motor/Gear Housing

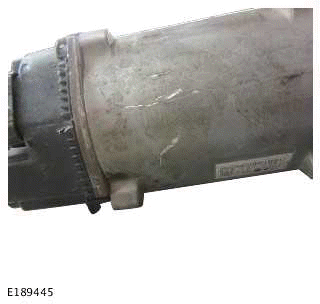

Check for evidence of impact on the motor/gear housing.

Steering System - General Information

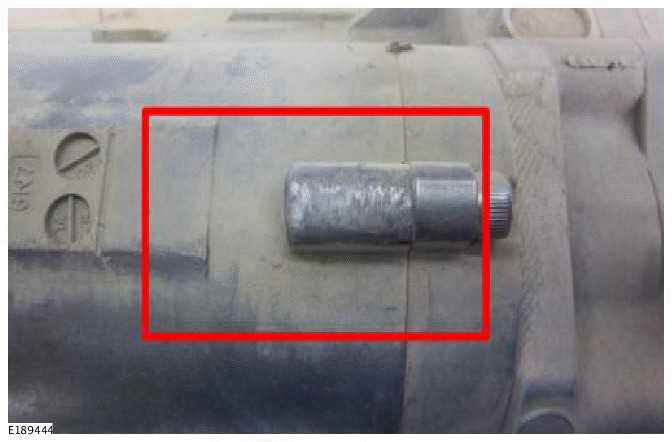

Check the alignment of the bolt between the housing and the motor and external damages on the motor housing that can alter belt tension.

Steering System - General Information

Steering System - General Information

Damage of Seat Material

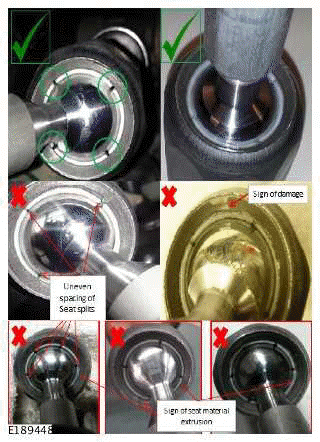

Is there evidence of damage to seat material?

Steering System - General Information

Damage to Tie Rod

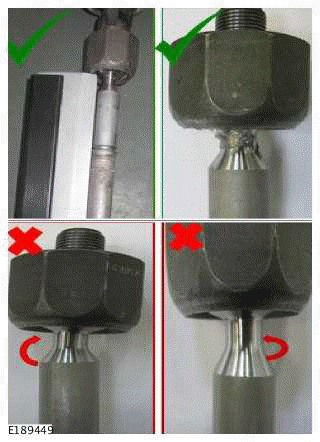

Is there evidence of tie rod bending?

Steering System - General Information

If there is heavy steering and bent tie rod there is a clear indication that the vehicle was subjected to heavy impacts.

Damage to Ball Joint

Is there evidence of damage to ball joints?

Steering System - General Information
