Land Rover Defender: Fixed Window Glass
DIAGNOSIS AND TESTING
PRINCIPLES OF OPERATION
For a detailed description of the Glass, Frames and Mechanisms, refer to the
relevant Description and Operation
section in the workshop manual. REFER to: Glass, Frames and Mechanisms (Glass,
Frames and Mechanisms,
Description and Operation).
INSPECTION AND VERIFICATION
CAUTION:
Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution
of control modules does not
guarantee confirmation of a fault, and may also cause additional faults in the
vehicle being tested and/or the
donor vehicle.
NOTES:
- If a control module or a component is at fault and the vehicle
remains under manufacturer warranty, refer
to the Warranty Policy and Procedures manual, or determine if any prior
approval program is in operation,
prior to the installation of a new module/component.
- When performing voltage or resistance tests, always use a digital
multimeter that has the resolution ability
to view 3 decimal places. For example, on the 2 volts range can measure 1mV
or 2 K Ohm range can
measure 1 Ohm. When testing resistance always take the resistance of the
digital multimeter leads into
account.
- Check and rectify basic faults before beginning diagnostic routines
involving pinpoint tests.
- Verify the customer concern
- Visually inspect for obvious signs of damage and system integrity
Visual Inspection
MECHANICAL
- Physical damage to the windshield
- If an obvious cause for an observed or reported concern is found,
correct the cause (if possible) before
proceeding to the next step
- If the cause is not visually evident, verify the symptom and refer to
the Symptom Chart, alternatively check for
Diagnostic Trouble Codes ( Diagnostic Trouble Code(s) (DTC)s) and refer to
the DTC Index
- Check JLR claims submission system for open campaigns. Refer to the
corresponding bulletins and SSMs
which may be valid for the specific customer complaint and complete the
recommendations as required.
WARRANTY REPAIRS
NOTES:
- The warranty period for the windshield is twelve months with the
exception of delamination and electrical
faults.
- Warranty repairs should be completed using genuine parts, in
accordance with the Warranty Policy and
Procedures Manual.
- Draw a line around the windshield damage using a marker pen.
- Photograph the entire windshield. If the damage extends behind any trim,
remove the trim and take further
photographs.
- Photograph the trademark logo and code to validate the windshield as
factory installed.

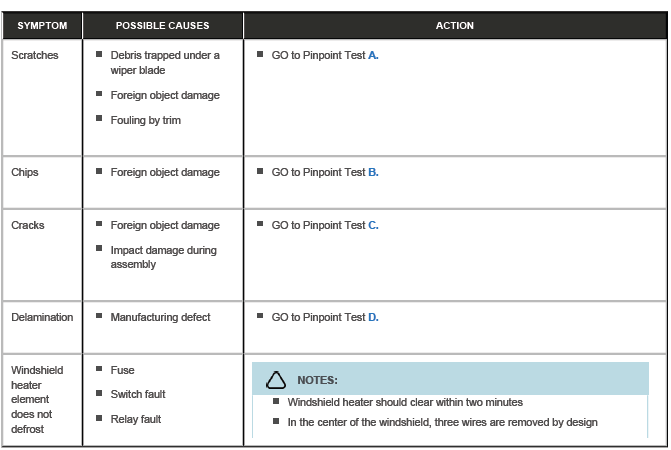

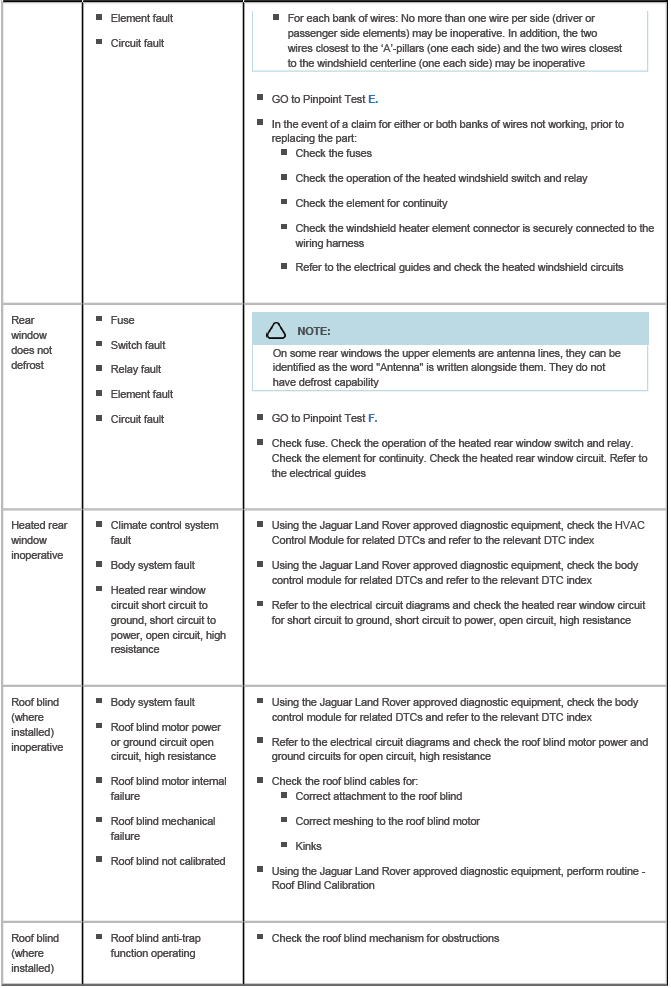

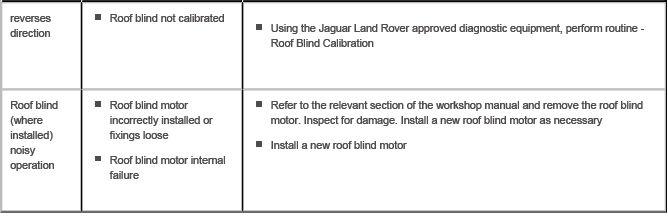

SYMPTOM CHART
PANORAMIC ROOF GLASS DAMAGE INSPECTION PROCEDURE
NOTES:
- Photographic evidence of the origin of the glass damage concern must
be retained (and available on
request) to support both customer conversations and Warranty claims. For
further guidance, refer to
section A1.20 of the Global Warranty Manual in relation to Glass.
- Damage from an external influence must not be claimed under Warranty.
All Warranty claims are subject
to audit.
Where customers present vehicles with damage/cracks in the panoramic roof
glass, the following guidance is
designed to help retailers/authorized repairers determine if cracks in the
panoramic roof glass are the result of a
manufacturing defect in the glass substrate or, as is more likely, as a result
of impact damage, such as a stone chip.
The procedures outlined below should always be completed whenever a vehicle is
presented with reports of
damage/cracks in the panoramic roof glass. Regardless of if the repair is to be
claimed under Warranty or not,
the procedures for gathering and recording evidence of the nature of the cause
of the damage should be
followed.
Preparation
Use a suitable glass cleaner to thoroughly clean the inside and outside of
the glass panel. Be careful not to apply
excess pressure to the glass panel as this may result in further damage.
Equipment Required
- Paint Marker or China Graph pencil
- Pencil with a sharp point
- Magnifying glass or equivalent
Optimal Viewing Conditions
The inspection should ideally be completed in a well-lit workshop, with the
vehicle placed so as to minimize any
reflections on the roof glass. To confirm the precise location and root cause of
the concern, it may be necessary to
survey BOTH the interior and exterior surfaces of the panoramic roof glass panel
for signs of cracks/damage.
Damage Inspection Procedure

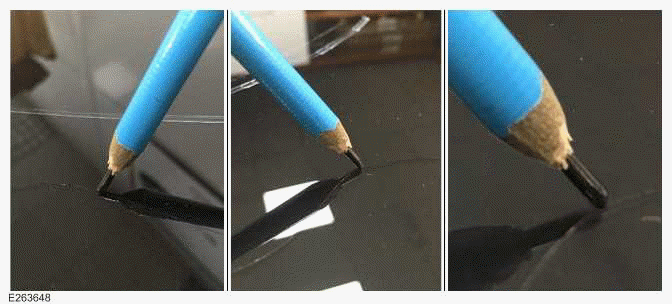

- As shown below, use the point of a sharpened pencil to feel for the
profile of the crack/breach in the glass (as
indicated by a step or rough area on the otherwise smooth surface of the
glass). NOTE: this should be done on
both the interior and exterior surfaces of the roof glass.
- Feeling for any step or rough area on the glass, follow the path of the
crack with the tip of a sharp pencil. Using
a magnifying glass, follow the path of the crack and identify any visual
signs of impact damage on the glass
surface. If a breach in the glass surface is evident, then the damage to the
glass will NOT be covered by the
vehicle warranty and the cost of repairs will need to be covered by the
customer (or the customer's insurance
policy). NOTE: not all cracks will necessarily run through the centre
of the discernible impact point. See
examples of impact points/impact damage shown in the section below.

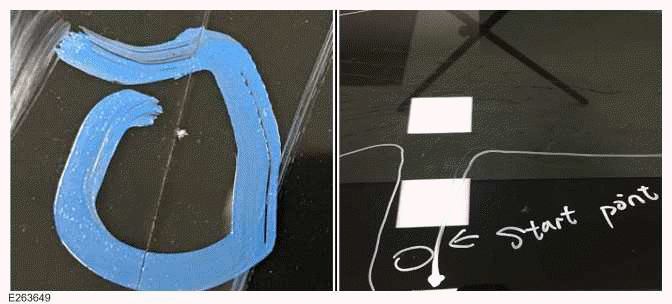

- Using a paint marker or chinagraph pencil, circle the origin of the
crack/damage identified during the inspection
of the glass panel (as shown below). Care should be taken to avoid any
further damage when marking-up the
glass.

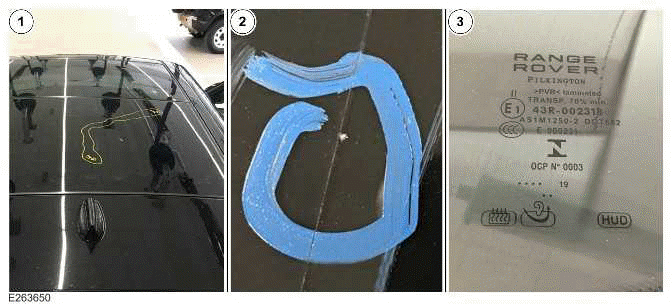

- Capture the following set of images (see examples below) as supporting
evidence that the faulty glass is still
installed on the vehicle. Make sure the images are unobstructed, in focus
and plainly show the damage to the
glass. If necessary. carefully remove any obstructing trims to gain clear
access to the damaged portions of the
roof glass before capturing the following images:
- An image showing an overview of the entire glass panel
- A close-up image of the root cause (impact point) of the
crack/damage
- A close-up image of the glass ID mark/trademark logo
These images should be retained in case they are requested for Warranty audit
purposes or to facilitate discussions
with the customer regarding retail or insurance repairs.

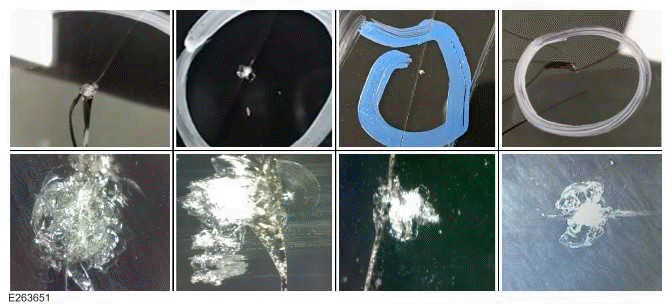

Example Of Damage To Roof Glass
Shown below are examples of cracked/damage roof glass. The top row photos
show the original impact points that
caused the cracks and other damage to the roof glass. NOTE: not all
cracks will necessarily run through the centre of
the discernible impact point. The bottom row shows the magnified images of the
impact points.
NOTE:
All of the examples below show damage to the roof glass that has been caused by
some foreign objects that
have impacted on the glass. Therefore, none of these instances of damage would
be suitable for a Warranty
claim. Repairs for these kinds of concerns would need to be undertaken as a
retail or insurance repair.
PINPOINT TESTS

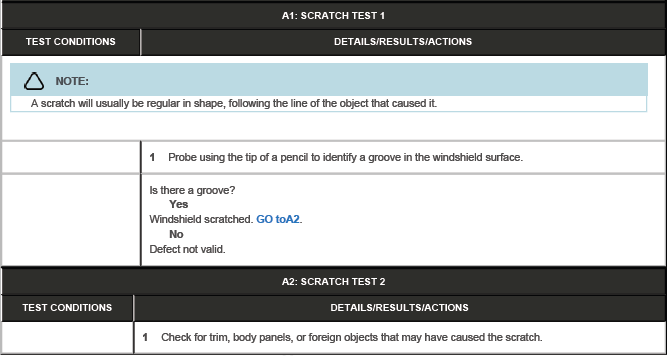

PINPOINT TEST A : SCRATCH TESTS

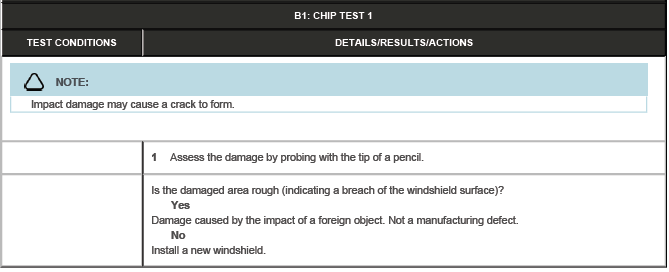

PINPOINT TEST B : CHIP TESTS

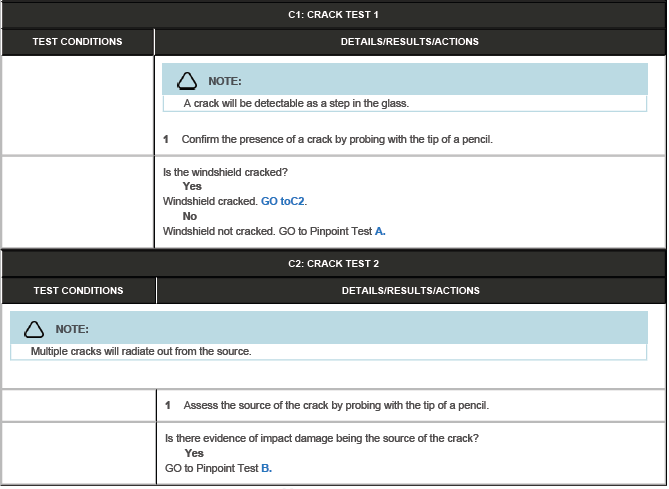

PINPOINT TEST C : CRACK TESTS

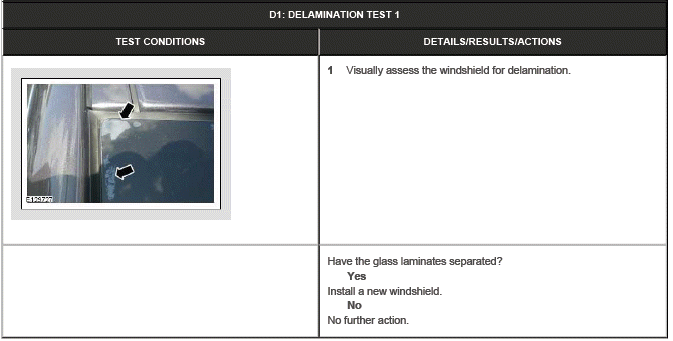

PINPOINT TEST D : DELAMINATION TESTS

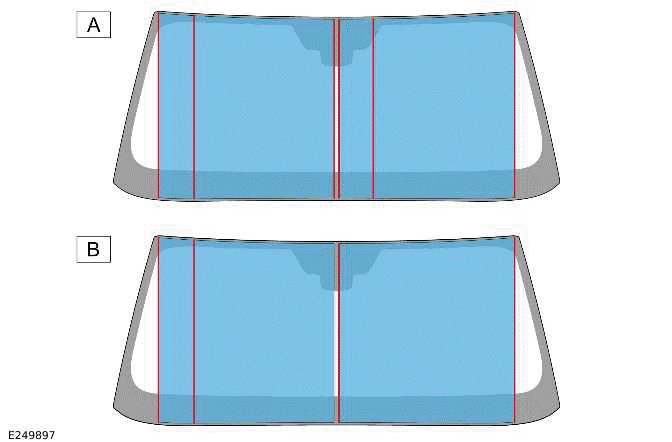

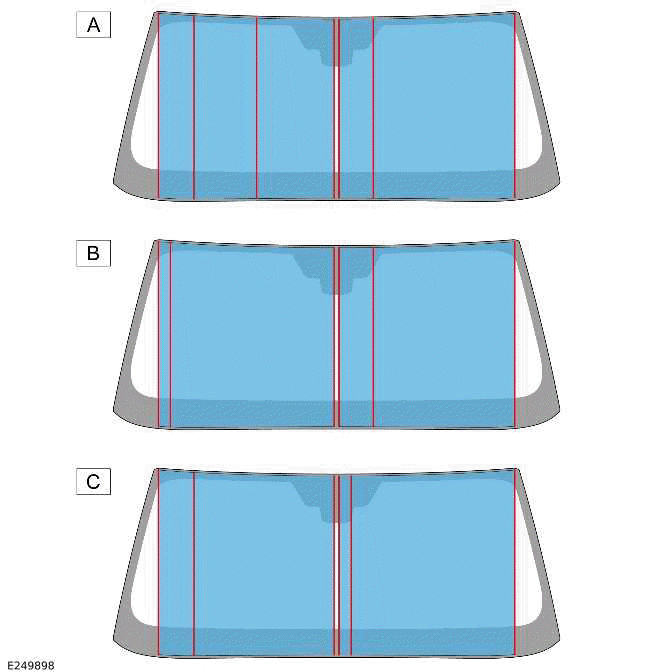

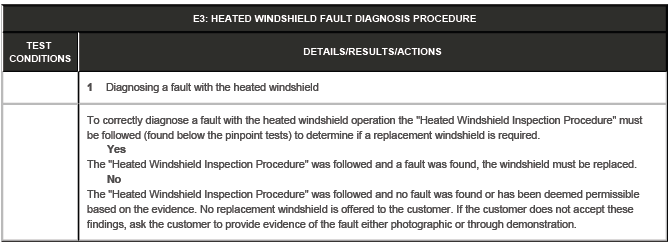

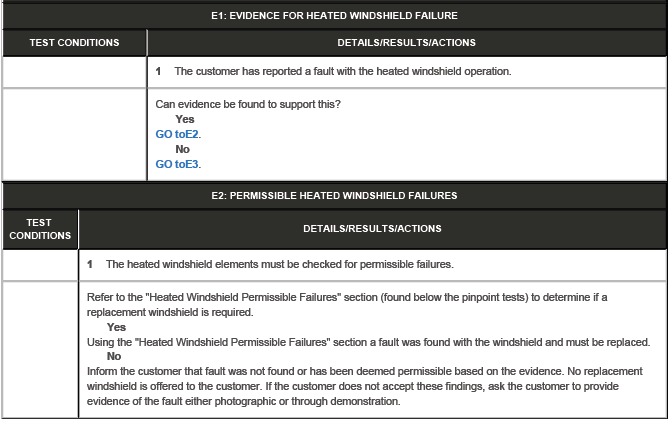

PINPOINT TEST E : HEATED WINDSHIELD FAULT DIAGNOSIS

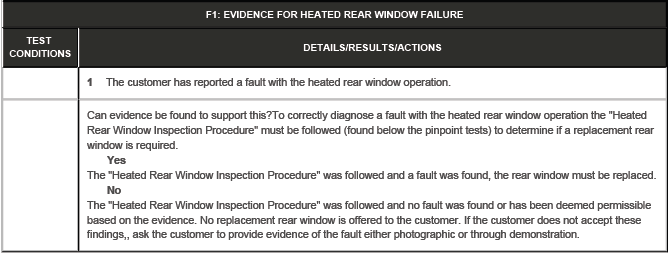

PINPOINT TEST F : HEATED REAR WINDOW FAULT DIAGNOSIS

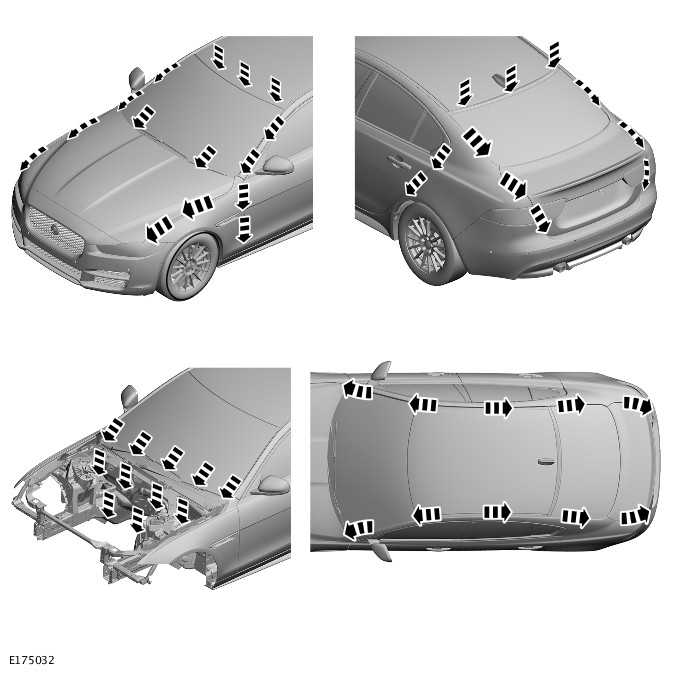

FIXED WINDOW GLASS WIND NOISE AND WATER LEAKS
GENERAL
NOTE:
If wind noise is evident at varying vehicle speeds, or water ingress is evident,
perform the following
procedure below.
- If wind noise or water leaks occur after bodywork repairs, the cause can
be established using the checks
described below. A systematic and logical procedure is required to locate
wind noise or water leaks. Before
beginning extensive checks, a thorough visual inspection must be completed.
- Visual Inspection
- The following characteristics may indicate existing water leaks:
- Check the clearance and accurate fit of ancillary components such as
the hood, tailgate, doors, and so on.
- Check for correct fit and possible damage to sealing elements such
as blanking plugs, rubber door weather
strips, and so on.
- Check water drain holes for unhindered flow.
- Various tests can be used to provide further information on possible
leaks:
- Water test
- Washer test
- Road test
- Chalk (powder) test
PRACTICAL EXECUTION OF TESTS AND CHECKS
Water test
NOTE:
Never aim a jet of water directly at a door weather strip or rubber seals.
- Complete the water test with a second person present (in the passenger
compartment).
- Use variable washer nozzles (concentrated water jet to fine spray mist).
- Start in the lower section and spray the whole area, working upwards in
stages.
Washer test
- Further tests can be completed in the washer system.
- Some leaks originate here, or only occur here.
- The relevant passenger compartment should be checked using a flashlight
during the wash procedure.
Road test
- If no leaks are located during the tests above, road tests should be
completed on wet roads.
- Road tests under various conditions:
- At various speeds.
- On various road surfaces (asphalt to cobbles).
- With loaded or unloaded vehicle.
- Driving through puddles (splash water).
Chalk test (powder test)
- In this test, the clamping load and the bearing surface of the seal are
checked.
- Performing the test:
- Dust the door seal with powder or coat with chalk.
- Coat the bearing surface of the seal with a thin film of petroleum
jelly.
- Slowly close the door and open it again.
- Check the width and continuity of the imprint on the door seal.
Other test equipment
- Other equipment such as stethoscopes, ultraviolet (UV) lamps, special
mirrors or ultrasound measuring
instruments can be used to locate leaks.
RECTIFYING THE LEAK USING RECOMMENDED TOOLS, AUXILIARY EQUIPMENT AND
MATERIALS
- Tools and auxiliary equipment:
- Dry, absorbent cloths
- Variable washer nozzle
- Flashlight, fluorescent tube
- Mirror
- Compressed air
- Seal lip installer
- Wet/dry vacuum cleaner
- Sealing compound compressor
- Remover for interior trim
- Cutter blade or pocket knife
- Wedge (wood or plastic)
- Hot air blower
- Special mirror for concealed leaks
- Air flow checker
- Sealing compound (tape and plastic compound)
- Multi-purpose sticker
- Clinched flange sealer
- Window sealing compound
- Water shield polyvinyl chloride (PVC)
- Double-sided adhesive tape for water shield
- Methylated spirit (available from trade outlets)
- polyurethane (PU) adhesive
- Silicone remover
- Tar remover
WATER LEAKS ACCORDING TO MILEAGE OR RUNNING TIME
Increasing mileage has an effect on the problem of leaks in a vehicle.
Possible influencing factors are:
- Servicing and maintenance of seals:
- No maintenance, lack of maintenance or incorrect maintenance
- Using an incorrect agent
- Damaged seals:
- As a result of aging, wear or incorrect handling/assembly.
- Heavy soiling of the vehicle:
- Heavy soiling of a vehicle can seriously impair the function of
water drainage channels in particular, and also
of rubber seals.
- Age-related factors:
- Environmental factors
- UV sunload
- Extreme climatic conditions
- Corrosion can have a serious impact on bodywork, in particular as a
result of:
- Lightly or heavily rusted seal carriers
- Rusted body seal welds
- Perforation corrosion
WIND NOISE OR WATER LEAKS AFTER BODY REPAIRS
If a vehicle develops wind noise or a water leak after body repairs, the
following points must be taken into
consideration in particular:
- The correct seating of ancillary components and their seals must be
checked.
- The correct alignment of doors/tailgate and tailgate must be checked.
The associated seals must not be damaged
and must be installed correctly.
- Check that panel seams are correctly sealed.
- The correct seating of rubber grommets must be checked.
- Directly-glazed windows must have correct and complete bonding.
WATER DRAINAGE SYSTEM
If a vehicle develops water leaks, then areas into which water is routed or
drained should be checked first.
Water drainage system (illustration for reference only)
- Water drainage, front
- Water drainage, side and rear
- Engine compartment drainage
- Roof drainage
WIND NOISE OR WATER LEAKS, DIAGNOSIS AND CORRECTIVE ACTION: FRONT
PASSENGER COMPARTMENT
Windshield
- Diagnosis:
- Wind noise at varying road speeds and/or ingress of water into
A-pillar area or instrument cluster area and
rocker panel area.
- Cause:
- Breaks in adhesive beads.
- The breaks in adhesive beads can be located from inside by using
compressed air. The leak can be identified
from outside by the escaping air.
- The second test method is by means of a water test. The outer trims
must be raised carefully using a plastic
wedge. The leak should be located from inside by a second assistant.
- Corrective action:
- Remove the windshield. Remove the existing adhesive bead and reapply
using the correct bonding procedure.
Side windows
In the case of side windows, the same problems can arise as for a windshield.
The same corrective actions must
therefore be used.
Door seal
- Diagnosis:
- Water ingress in the lower part of the interior door trim or in the
rocker panel area.
- Cause:
Door seals
- Diagnosis:
- Ingress of water into the rocker panel area
- Cause:
- Insufficient clamping load between seal and door.
- Corrective action:
When adjusting the clamping load, the profile alignment of the relevant
components must always be taken into
consideration.
Do not realign the flange too far in the direction of the door, as this
can reduce the bearing surface of the seal to
the door.
- Check clamping load:
- The easiest way to check the clamping load of a seal to the
respective bearing surface is by means of a paper
strip test. This consists of trapping strips of paper at various points
between the door and the seal, and fully
closing the door. If it is possible to pull out the paper with no great
resistance, then the clamping load is too low.
- Adjust the clamping load:
- The clamping load is normally adjusted using the striker. When doing
so, the edge alignment from the door to
the side panel, or from the front door to the rear door must be taken
into account.
- Another setting method is to realign the panel flange for the seal
mounting. The clamping load is increased by
moving the flange towards the door.
- Check the bearing surface:
- Apply chalk evenly to the surface of the seal. Evenly coat the
bearing surface of the door with petroleum jelly.
- Close the door fully, the lock must engage. Open the door. The
imprint of the chalk (bearing surface) can be
identified in the film of petroleum jelly.
- The bearing surface should be at least 5mm across at all points.
- Other causes:
- The door seal must completely seal the door where it meets the
bodywork.
- Water can ingress directly or indirectly into the interior of the
vehicle if the seal is damaged at any point.
- Corrective action:
- A damaged or worn door seal must always be installed in full.
- When installing the seal, the following must be taken into account:
- Always fit the seal first in the area of the narrow radii (corner
points).
- Next, secure the seal to the flange evenly by tapping lightly with a
rubber hammer. The installed seal must not
be kinked at any point.
NOTE:
The prescribed length of a seal must not be shortened.
- Other cause:
- The door seal is attached to the welded flange all the way round. If
this welded flange is uneven or damaged
at any point (usually in areas with small radii) then this point could
be subject to leaks.
- A stretched seal carrier can also cause a leak.
- In both cases, water gets into the vehicle interior under the seal
carrier.
- Corrective action:
- Align the deformed welded flange using a hammer and anvil block,
prevent and, if necessary, repair any paint
damage.
Roof opening panel - front and rear fixed glass panels
In the case of the roof opening panel - front and rear fixed glass panels,
the same problems can arise as for a
windshield. The same corrective actions must therefore be used.
Roof opening panel - sliding central glass panel
NOTE:
In the case of the sliding central glass panel, the rubber seals and the lock
actuator or latch mechanism must
be checked first of all.
- Diagnosis:
- Wind noise at varying road speeds and/or ingress of water at the
roof opening panel.
- Cause:
- The roof opening panel frame incorporates drain holes in each front
corner allowing water to drain through the
A-pillars and each rear corner allowing water to drain through the roof
panel channels.
- Damaged, worn, or incorrectly installed seals on the sliding central
glass panel.
- Incorrect alignment of the sliding central glass panel.
- Damaged, worn, or incorrectly installed seals on the roof opening
panel frame.
- Water drain channels or water drain holes blocked.
- Corrective action:
- Check the seals on the sliding central glass panel, install as
necessary.
- Check the correct adjustment of the sliding central glass panel,
adjust as necessary, replace any worn or
damaged components as necessary.
- Check the internal seal of the roof opening panel frame, realign or
install as necessary.
- Check the water drain channels and holes for blockages, clear
blockages as necessary.
- Check the drainage system for unhindered flow.
Luggage compartment lid
- Diagnosis:
- Ingress of water into the luggage area.
- Cause:
- The leak problems of the luggage compartment lid correspond to those
of the doors.
- In addition to this, the area to be sealed is much bigger. The
routing holes for cables and hoses must also be
sealed.
- The rubber grommets for the routing holes must be checked for damage
and correct seating (fully unhooked).
- The grommets around the luggage compartment lid hinges may leak.
- Corrective action:
- Check the rubber grommets and re-position, reseal or install new, if
necessary.
Forced air extraction
- Diagnosis:
- Ingress of water into side luggage compartment area
- Cause:
- The forced air extraction for the vehicle interior is located in the
quarter panel lower extension.
- The rubber flap of the forced air extraction must be able to move
freely.
- Corrective action:
- Remove the forced air extraction.
- Check the seal area between the bodywork and housing, as well as the
rubber flap.
- Install a new seal if necessary.
Rear window
- Diagnosis:
- Wind noise at varying road speeds and/or ingress of water into the
passenger compartment area.
- Cause:
- Rear window leaking through breaks in the adhesive bead.
- Check for leaks in the same way as for a leaking windshield.
- Corrective action:
- In the case of the rear window, the same problems can arise as for a
windshield. The same corrective actions
must therefore be used.
HEATED WINDSHIELD INSPECTION PROCEDURE
NOTE:
It is possible to repair the rear window silver print heater element without a
full screen replacement. The
retailer must source 'Electro Connector Repair Paint' (follow the instructions
and guidelines supplied by the
material provider). Assess the scope for heated screen element repair and action
accordingly. Record the
findings in the vehicle diagnosis notes
Initial Checks:
- Make sure vehicle battery is sufficiently charged and fusing for heated
windshield is correct and present.
- Check that all electrical connections at screen terminals (four of) are
in position and connected.
If initial checks are completed and the fault is still present, proceed with
the following root cause investigation
/troubleshooting steps:
- Consult the workshop manual and select the appropriate removal and
installation procedure to remove vehicle
interior trim.
- Remove the relevant interior 'A' pillar trim. Both 'A' pillar trims will
need to be removed if the issue is reported for
the whole screen.
- Vehicle diagnostics (harness, power supply, fusing faults).
- Working on one side of the vehicle at a time, locate the screen
terminals (two per heater bank) and
disconnect the power feed (upper connection) and ground connection
(lower connection).
- Connect a volt meter to the separated vehicle harness connection
points.
- Turn the vehicle on and make sure that the 'Heated Windshield'
function has been activated.
- Record the voltage observed. If the display reads between 9V - 16V,
the vehicle harness, power and fusing
are all functioning correctly.
- If the fault has been recorded for the whole full screen, repeat the
above checks for the opposite heater
bank.
- Component diagnostics (wiggle wire faults)
- Working on one side of the vehicle at a time, locate the screen
terminals (two per heater bank) and
disconnect the power feed (upper connection) and ground connection
(lower connection).
- Connect multi-meter probes to the upper and lower screen terminals.
- Check for continuity and resistance across each heater bank.
- The multi-meter should show continuity across the heating bank and a
resistance reading should be
displayed.
NOTE:
If there is any visible evidence that there are more than three damaged elements
on one heating bank (see
visuals for heated windshield permissible failures below), then the windshield
can be replaced without
following the fault diagnosis procedure.
Heated Rear Window Inspection Procedure
Initial checks:
- Make sure vehicle battery is sufficiently charged and fusing for heated
windshield is correct and present.
- Check that all electrical connections at screen terminals (two of) are
in position and connected.
If initial checks are completed and the fault is still present, proceed with
the following root cause investigation
/troubleshooting steps:
- Consult the workshop manual and select the appropriate removal and
installation procedure to remove vehicle
interior trim.
- Remove the interior trim from both sides of the vehicle.
- Vehicle diagnostics (harness, power supply, fusing faults).
- Locate the screen terminals (two of) and disconnect the power feed
and ground connection.
- Connect a volt meter to the separated vehicle harness connection
points.
- Turn the vehicle on and make sure that the 'Heated Rear Screen'
function has been activated.
- Record the voltage observed. If the display reads between 9V - 16V,
the vehicle harness, power and fusing
are all functioning correctly.
- Component diagnostics (silver print faults)
- Locate the screen terminals (two of) and disconnect the power feed
and ground connection.
- Connect multi-meter probes to the screen terminals.
- Check for continuity and resistance across the heater bank.
- The multi-meter should show continuity across the heating bank and a
resistance reading should be
displayed.
NOTE: It is possible to repair the rear window silver print heater element
without a full screen replacement. The
retailer must source 'Electro Connector Repair Paint' (Follow the instructions
and guidelines supplied by the
material provider). Assess the scope for heated screen element repair and action
accordingly. Record the
findings in the vehicle diagnosis notes.
Heated Windshield Permissible Failures
Permissible Failures
NOTE:
Failed elements shown in red
There can be up to 3 defective elements in each heater bank at any one time:
- The element closest to the A pillar
- The element closest to the windshield centre-line
- AND a single element in the main body of the heater bank
NON Permissible Failures
No more than three elements per heater bank can be defective at any one time.
No more than one defective elements per heater bank (not including A pillar or
windshield centre-line elements).
No two adjacent elements in one heater bank can be defective.
ROOF BLIND CALIBRATION
NOTE:
Roof blind calibration will be lost if the battery is disconnected, or the roof
blind motor power supply is
interrupted when the roof blind is in motion.
Calibrate the roof blind as follows:
- Start the engine and leave running during the calibration process
- Make sure that the blind is in the fully closed position - press the
close switch to achieve this
- Press and hold the close switch again and wait for the cables to double
click (it should take approximately 30
seconds), and release the switch
- Within 3 seconds, press and hold the close switch. The roof blind will
automatically travel toward the open
position and then to the fully closed position. Release the switch when
movement is complete
READ NEXT:
DIAGNOSIS AND TESTING
PRINCIPLES OF OPERATION
For a detailed description of the Glass, Frames and Mechanisms, refer to the
relevant Description and Operation
section in the workshop manual.
INSPECTIO
GENERAL PROCEDURES
NOTES:
Make sure that the vehicle battery is fully charged before carrying
out this procedure.
After the battery has been disconnected or a new window regulator and
motor or
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
This
SEE MORE:
TRANSMISSION
The transmission comprises the main casing which houses all of the
transmission components. The main casing also
incorporates an integral torque converter housing.
A fluid pan is attached to the lower face of the main housing and is secured
with bolts. The fluid pan is sealed to the
m
REMOVAL AND INSTALLATION
REMOVAL
CAUTION:
Protect the surrounding paintwork to avoid damage.
NOTES:
This procedure contains illustrations for left side components, right
side components are similar.
This procedure contains illustrations showing certain components
removed to provide extra clar
