Land Rover Defender: Windshield Water Ingress Diagnostics
DIAGNOSIS AND TESTING
PRINCIPLES OF OPERATION
For a detailed description of the Glass, Frames and Mechanisms, refer to the
relevant Description and Operation
section in the workshop manual.
INSPECTION AND VERIFICATION
CAUTION:
Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution
of control modules does not
guarantee confirmation of a fault, and may also cause additional faults in the
vehicle being tested and/or the
donor vehicle.
NOTES:
- If a control module or a component is at fault and the vehicle
remains under manufacturer warranty, refer
to the Warranty Policy and Procedures manual, or determine if any prior
approval program is in operation,
prior to the installation of a new module/component.
- When performing voltage or resistance tests, always use a digital
multimeter that has the resolution ability
to view 3 decimal places. For example, on the 2 volts range can measure 1mV
or 2 K Ohm range can
measure 1 Ohm. When testing resistance always take the resistance of the
digital multimeter leads into
account.
- Check and rectify basic faults before beginning diagnostic routines
involving pinpoint tests.
- Refer to Section 100-00 General Information for window glass health
and safety precautions.
- Verify the customer concern
- Visually inspect for obvious signs of damage and system integrity
Visual Inspection
MECHANICAL
- Deterioration of window seals
- If an obvious cause for an observed or reported concern is found,
correct the cause (if possible) before
proceeding to the next step
- If the cause is not visually evident, verify the symptom and refer to
the Symptom Chart, alternatively check for
Diagnostic Trouble Code(s) (DTC) and refer to the DTC Index
- Check JLR claims submission system for open campaigns. Refer to the
corresponding bulletins and SSMs
which may be valid for the specific customer complaint and complete the
recommendations as required.

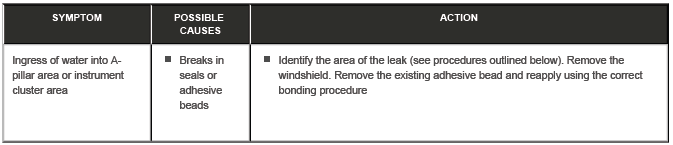

SYMPTOM CHART
WINDSHIELD WATER INGRESS
GENERAL
NOTES:
- If water leaks are noted at the front end of the headliner, this may
be as a result of windshield water
ingress OR water ingress from the pano roof glass (if installed). To
correctly identify the point of water
ingress, lower the headliner and look for evidence of water ingress both
from the windshield and the pano
roof glass BEFORE continuing with the diagnostics described below. For
guidance on diagnosis of pano
roof glass (if installed) water ingress, see separate section in this
manual.
- If water ingress is evident, perform the following procedures below.
If water leaks occur, the cause can be established using the checks described
below. A systematic and logical
procedure is required to locate water leaks. Before beginning extensive checks,
a thorough visual inspection must be
completed.
- Visual Inspection
- The following characteristics may indicate existing water leaks:
- Check the clearance and accurate fit of ancillary components such as
the hood, tailgate, doors, and so on.
- Check for correct fit and possible damage to sealing elements such
as blanking plugs, rubber door weather
strips, and so on.
- Check water drain holes for unhindered flow.
- Various tests can be used to provide further information on possible
leaks:
- The breaks in adhesive beads can be located by using compressed air
from inside the vehicle. The leak
location can be identified from outside by the escaping air.
- Water test
- Washer test
- Road test
PRACTICAL EXECUTION OF TESTS AND CHECKS
Compressed air test
NOTE:
Complete the compressed air test with a second person present (in the passenger
compartment).
- Lower the headliner at the front of the vehicle to give clear access to
the upper section of the windshield inside the
vehicle.
- The leak may be located behind the exterior A-pillar windshield
mouldings (if installed), so these should be
removed before commencing testing Make sure the windshield moulding carrier
remains installed as this may
be a source of the water leak and should be in situ for the tests as
described below.

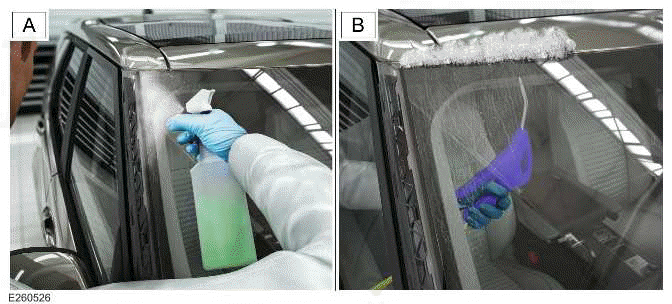

- On the outside of the vehicle, use a hand-held spray-bottle to apply a
fine mist of soapy water to the areas all
around the exterior windshield edge joints (see image A above - NOTE: image
is NOT vehicle specific).
From the inside of the vehicle, use an air hose to blow a jet of compressed
air around the interior windshield edge
joints.
- The leak should be located from outside by a second assistant. Bubbles
will form in the affected area and
escaping air may be audible (see image B above - NOTE: image is NOT vehicle
specific).
- Take a photograph of the vehicle showing the location of the water
ingress point(s) before proceeding. Make sure
that an image is attached to an Electronic Product Quality Report (EPQR)
before proceeding with any windshield
removals.
- When the leak point(s) have been noted, remove the windshield. NOTE:
Depending on the nature of the leak point,
it may be possible to reuse the windshield. Consequently, make sure the
correct equipment and procedures are
utilized during removal of the windshield.
- When the windshield has been removed from the vehicle, it is important
to confirm the specific nature of the leak.

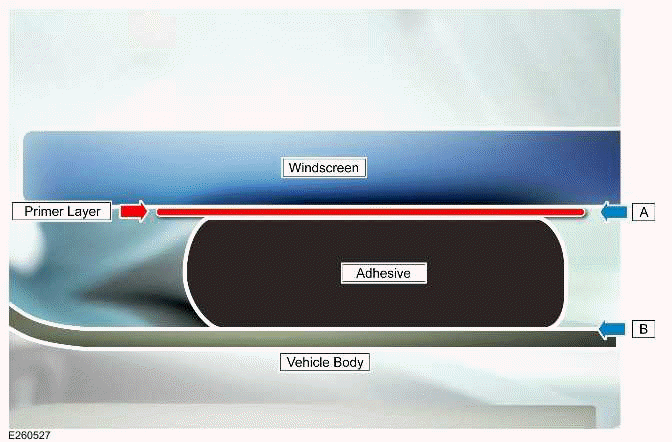

The image below shows a representation (not to scale) of the materials
involved when a windshield is installed. A
layer of primer is applied to the windshield glass; a layer of adhesive is
applied; finally, the windshield is mounted
into the frame. Consequently, there are two possible entry points for water
ingress:
- Water ingress between the windshield adhesive layer and the
windshield glass (see arrow A, below)
- Water ingress between the vehicle body and the windshield adhesive
layer (see arrow B, below)
- Where possible, note the specific nature of the water ingress (as
specified above). Photograph the leak point and
attach both the photo and a written description of the location and nature
of the water ingress/leak point to the
EPQR.
- If the leak point is identified as being between the vehicle body and
the windshield adhesive layer, the
existing windshield may be re-used. Thoroughly remove all traces of adhesive
and primer from the existing
windshield, clean the windshield and refit.
- If the leak point is identified as being between the windshield adhesive
layer and the windshield glass, the existing
windshield should be replaced and a new windshield installed.
Water test
NOTES:
- Never aim a jet of water directly at a weather strip or rubber
seals.
- DO NOT use a high pressure water hose for water testing.
- Complete the water test with a second person present (in the passenger
compartment).
- Use variable washer nozzles (concentrated water jet to fine spray mist).
- Lower the headliner at the front of the vehicle to give clear access to
the upper section of the windshield inside the
vehicle.
- The outer trims must be raised carefully using a plastic wedge.
- Start in the lower section and spray the whole area, working upwards in
stages.
- The leak should be located from inside by a second assistant.
Washer test
- Further tests can be completed in the washer system.
- Some leaks originate here, or only occur here.
- The relevant passenger compartment should be checked using a flashlight
during the wash procedure.
Road test
- If no leaks are located during the tests above, road tests should be
completed on wet roads.
- Road tests under various conditions:
- At various speeds.
- On various road surfaces (asphalt to cobbles).
- With loaded or unloaded vehicle.
- Driving through puddles (splash water).
Other test equipment
- Other equipment such as stethoscopes, ultraviolet (UV) lamps, special
mirrors or ultrasound measuring
instruments can be used to locate leaks.
