Land Rover Defender: Flat Battery Diagnostics

DIAGNOSIS AND TESTING

PRINCIPLES OF OPERATION

For a detailed description of the Charging System, refer to the relevant Description and Operation section in the workshop manual.

INSPECTION AND VERIFICATION

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does not guarantee confirmation of a fault, and may also cause additional faults in the vehicle being tested and/or the donor vehicle.

NOTES:

  1. Verify the customer concern
  2. Visually inspect for obvious signs of damage and system integrity

Visual Inspection

Flat Battery Diagnostics

Flat Battery Diagnostics

  1. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step
  2. If the cause is not visually evident, verify the symptom and refer to the Symptom Chart, alternatively check for Diagnostic Trouble Codes (DTCs) and refer to the DTC Index
  3. Check the Jaguar Land Rover claims submission system for open campaigns. Refer to the corresponding bulletins and SSMs which may be valid for the specific customer complaint and complete the recommendations as required

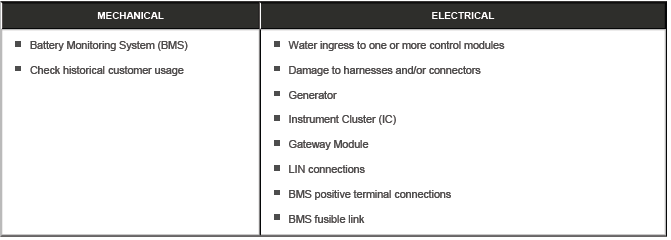

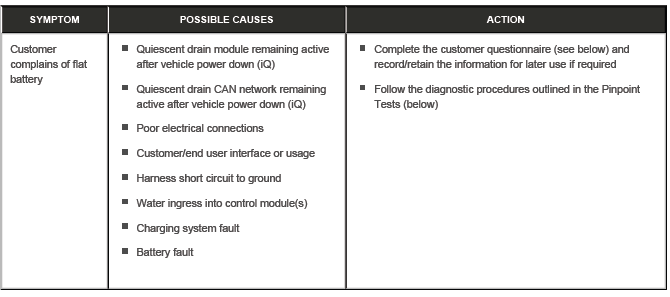

SYMPTOM CHART

Flat Battery Diagnostics

CUSTOMER QUESTIONNAIRE TO BE COMPLETED WHEN THE CUSTOMER PRESENTS A VEHICLE WITH THE COMPLAINT OF A FLAT BATTERY

The following questions should be put to the customer on arrival at the service centre. The data gathered should be recorded and retained as the information may be needed to be added to a TA request for engineering evaluation if the vehicle's battery system fault. Select and record the appropriate response to each of the questions listed below:

DIAGNOSTICS AND REPAIR ACTIONS IF A FLAT BATTERY IS SUSPECTED

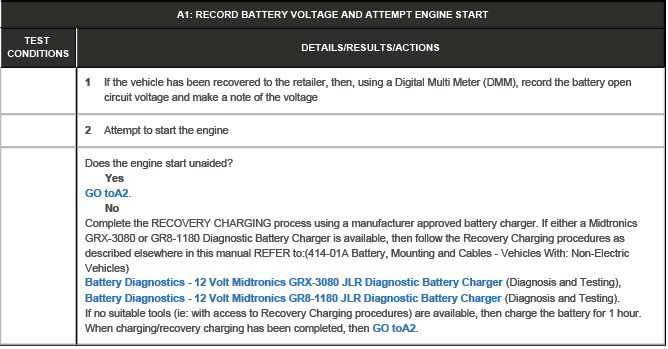

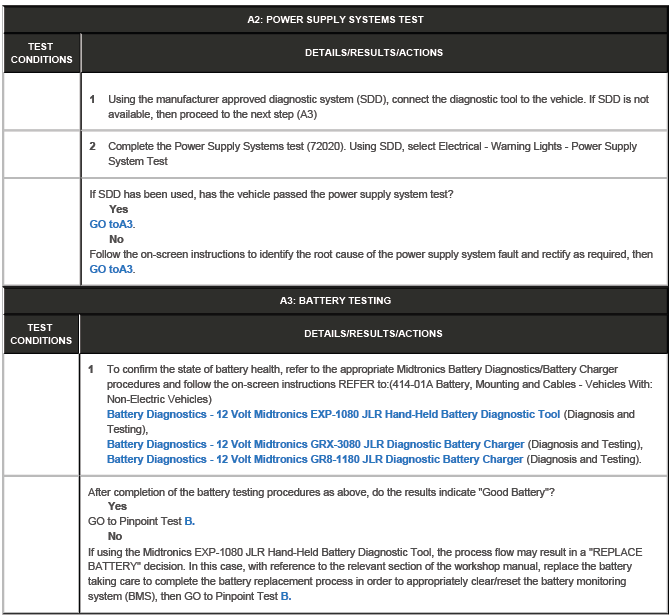

PINPOINT TEST A :

Flat Battery Diagnostics

Flat Battery Diagnostics

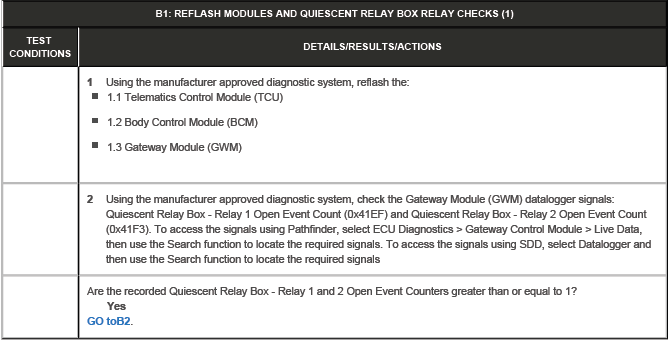

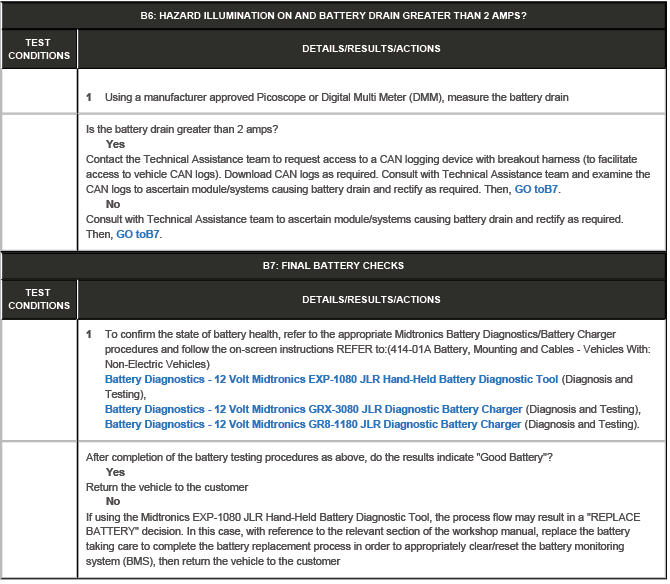

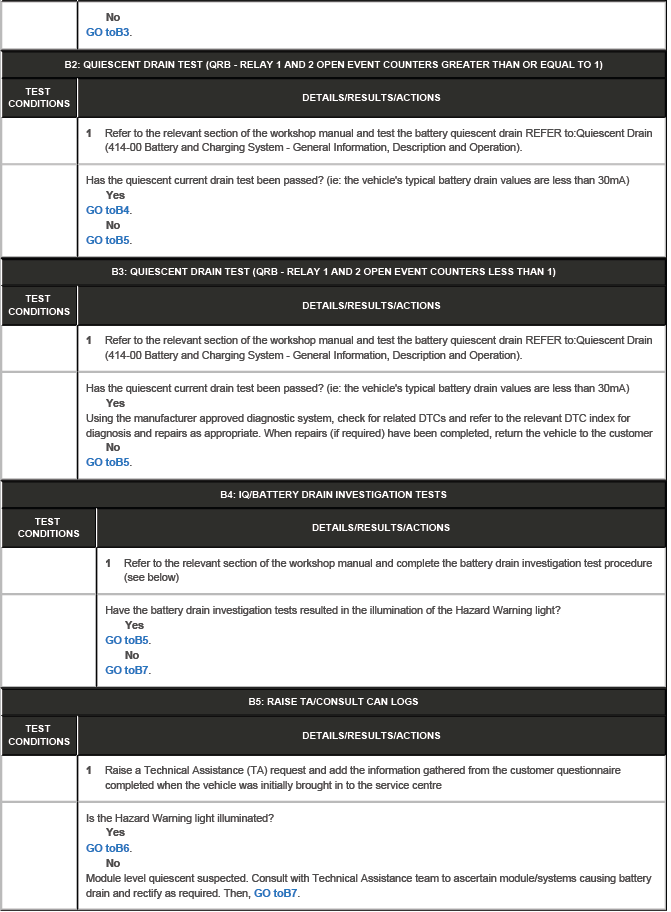

PINPOINT TEST B : REFLASH MODULES

Flat Battery Diagnostics

Flat Battery Diagnostics

Flat Battery Diagnostics

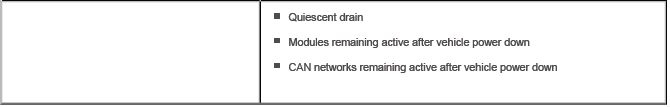

IQ/BATTERY DRAIN INVESTIGATION TESTS

In cases where the customer reports a flat battery and where the battery drain has NOT been detected by the quiescent drain test REFER to:Quiescent Drain (414-00 Battery and Charging System - General Information, Description and Operation)., a more thorough investigation may be required to identify the root cause of the battery drain Print out the test plan and user guide form (below) and follow the battery drain investigation procedures. There are seven sets of tests, each set comprises three task lists. Not all seven sets of tests needs to be completed on every vehicle, this is a list of actions designed to prompt a vehicle failure. If a failure is detected, do not continue with the remaining sets, connect a manufacturer approved battery support unit to prevent the battery going flat and raise a Technical Assistance (TA) request immediately. If the vehicle is only available for a reduced amount of time, complete as many sets as possible before the return of the vehicle

Flat Battery Diagnostics
