Land Rover Defender: Front Air Reservoir Valve Block

REMOVAL AND INSTALLATION

GENERAL EQUIPMENT

Front Air Reservoir Valve Block

PART(S)

Front Air Reservoir Valve Block

REMOVAL

WARNING: Residual air pressure may be present in the system. Take care when releasing air line connectors.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

1. Use the Jaguar Land Rover (JLR) approved diagnostic equipment to depressurize the front air springs.

General Equipment: Jaguar Land Rover approved diagnostic equipment

2. Disconnect the startup battery ground cable.

3. Raise and support the vehicle on a suitable 2-post lift.

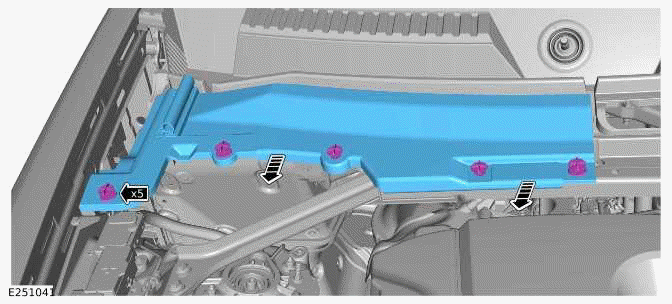

4.

Front Air Reservoir Valve Block

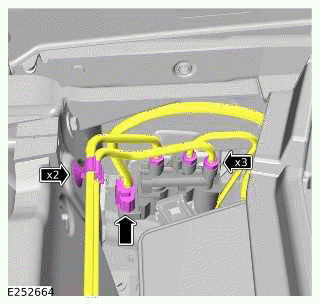

5.

CAUTION: Note the orientation of the color coded air lines prior to removal.

Front Air Reservoir Valve Block

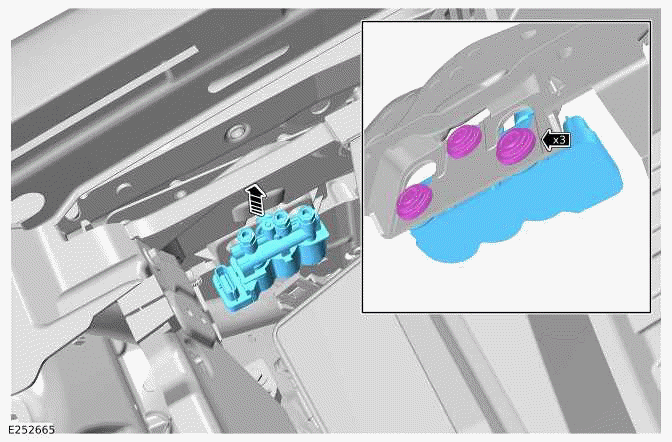

6.

Front Air Reservoir Valve Block

Remove the front air reservoir valve block.

INSTALLATION

1. Install the front air reservoir valve block.

2.

CAUTION:

Connect and tighten the 3 air lines to the front air reservoir valve block.

Renew Part: Air line connector(s) Quantity: 3.

Torque

3.

4.

5. Connect the startup battery ground cable.

6.

CAUTION: This step must be completed before the vehicle is fully lowered. Failure to follow this instruction might result in damage to the component.

Use the Jaguar Land Rover (JLR) approved diagnostic equipment to complete the air suspension manual control procedure.

General Equipment: Jaguar Land Rover approved diagnostic equipment

7.

CAUTION: This step must be completed in order to maintain the correct air suspension compressor/dryer performance.

Use the JLR approved diagnostic equipment to pressurize the front air springs.

General Equipment: Jaguar Land Rover approved diagnostic equipment
