Land Rover Defender: Windshield Washer Fluid Level Sensor
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2-post lift.
2. Remove the front right wheel arch liner.
3.

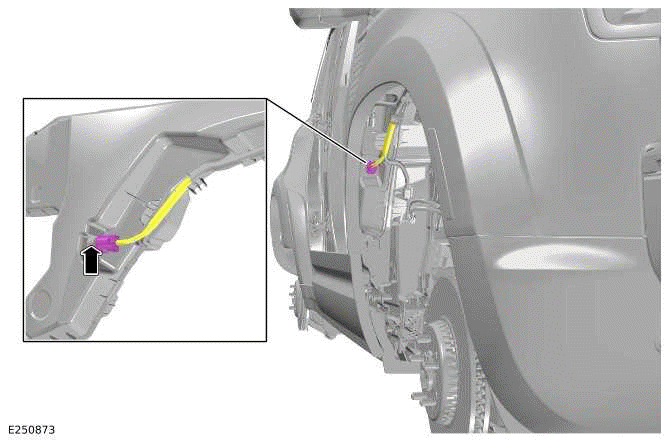

Disconnect the electrical connector from the windshield washer fluid level
sensor.
4.
NOTE:
Be prepared to collect escaping fluids.

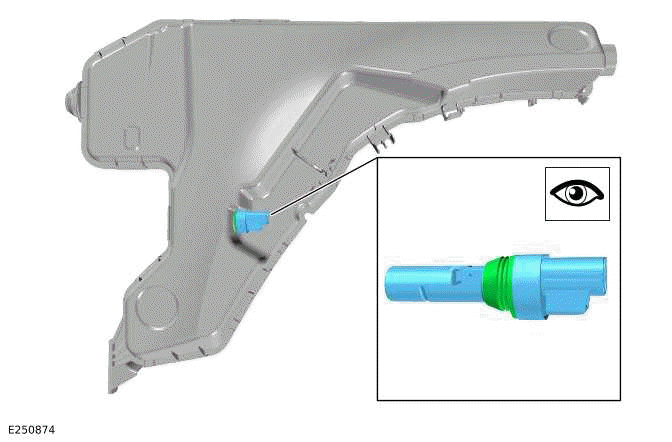

Remove the windshield washer fluid level sensor from the windshield washer
fluid reservoir.
INSTALLATION
1.
CAUTION:
The seal is to be reused unless damaged.
- Install the windshield washer fluid level sensor into the windshield
washer fluid reservoir.
- Connect the electrical connector to the windshield washer fluid level
sensor.
2. Install the front right wheel arch liner.
