Land Rover Defender: Front Left Halfshaft

REMOVAL AND INSTALLATION

SPECIAL TOOL(S)

Front Left Halfshaft

204-506/1

Remover/Installer, Halfshaft

Front Left Halfshaft

204-506/2

Remover/Installer, Halfshaft Spacer

Front Left Halfshaft

204-506/3

Remover/Installer, Halfshaft Screw Thread

Front Left Halfshaft

204-506/5

Retainers, Halfshaft tools

Front Left Halfshaft

JLR-204-793A

Ball Joint Splitter

Front Left Halfshaft

JLR-204-803

Splitter, Upper Arm

GENERAL EQUIPMENT

Front Left Halfshaft

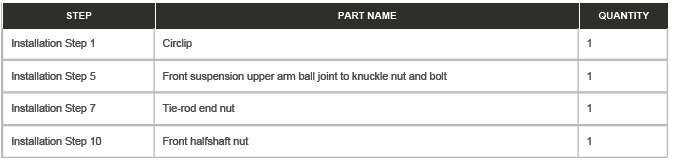

PART(S)

Front Left Halfshaft

REMOVAL

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

1.

NOTE: If equipped.

Use the Jaguar Land Rover (JLR) approved diagnostic equipment to depressurize the air suspension.

2. Raise and support the vehicle on a suitable 2 post lift.

3. Remove the wheel and tire.

4.

WARNING: This step requires the aid of another technician.

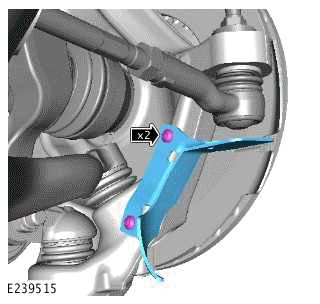

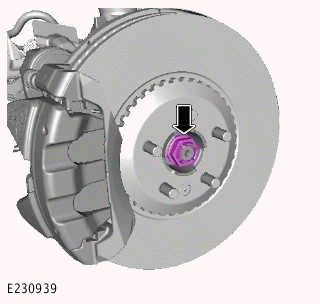

Front Left Halfshaft

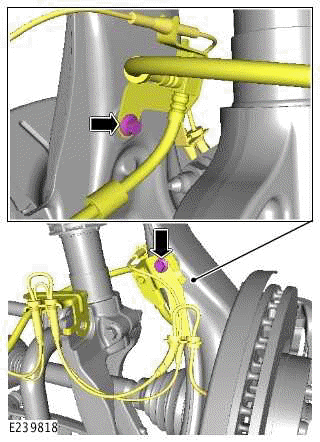

5.

Front Left Halfshaft

6.

Front Left Halfshaft

7.

Front Left Halfshaft

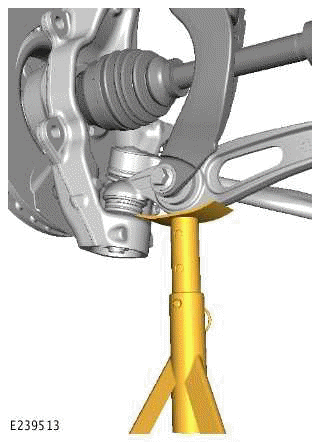

Use a suitable stand to support the lower arm.

General Equipment: Vehicle/axle stands

8.

Front Left Halfshaft

9.

Front Left Halfshaft

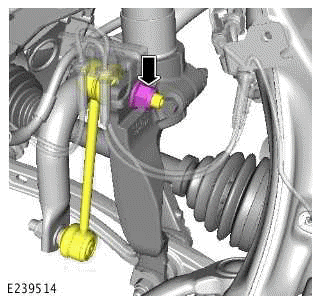

Loosen, but do not fully remove the tie-rod end nut.

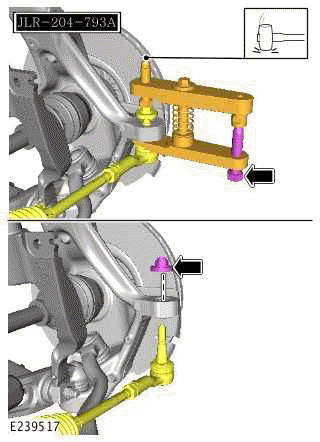

10.

Front Left Halfshaft

11.

Front Left Halfshaft

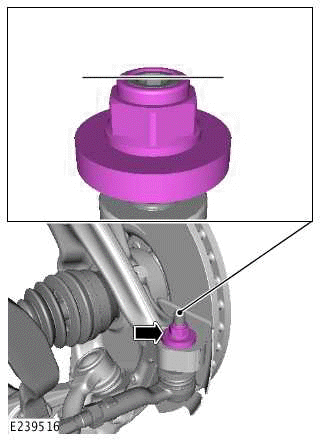

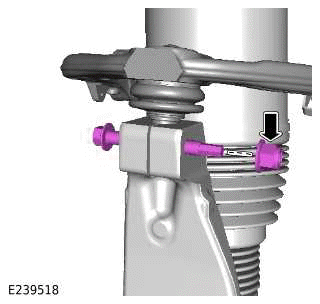

Remove and discard the upper arm ball joint nut and bolt.

12.

Front Left Halfshaft

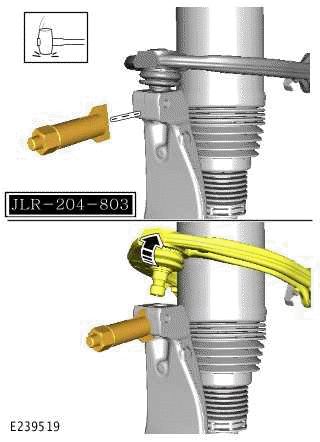

Use the special tool to release the upper arm ball joint.

Special Tool(s): JLR-204-803

13.

Front Left Halfshaft

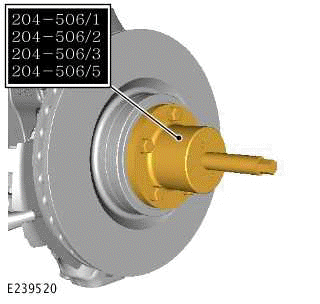

Install the special tools.

Special Tool(s): 204-506/1, 204-506/2, 204-506/3, 204-506/5

14.

Front Left Halfshaft

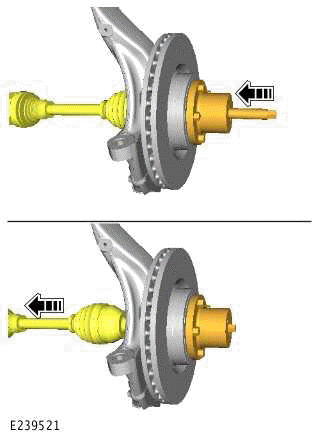

Use the special tool to release the halfshaft.

15. Remove the special tools.

Special Tool(s): 204-506/1, 204-506/2, 204-506/3, 204-506/5

16.

CAUTION:

Front Left Halfshaft

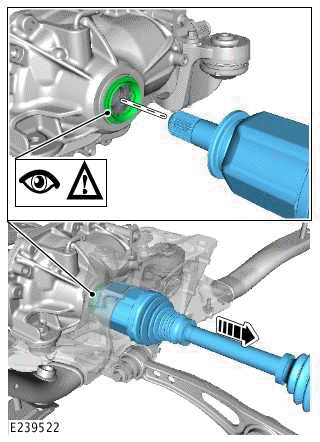

Remove the halfshaft from the differential.

17.

Front Left Halfshaft

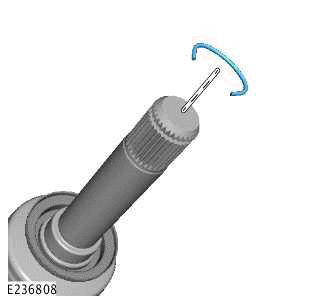

Remove and discard the halfshaft circlip.

INSTALLATION

1.

Front Left Halfshaft

Install a new circlip to the halfshaft.

Renew Part: Circlip Quantity: 1.

2. Clean and inspect the seal. Replace if damaged or worn.

3.

CAUTION: Take extra care not to damage the seal.

Install the halfshaft.

4. Install the halfshaft into the wheel knuckle.

5.

6.

Remove the supporting stand from under the lower arm.

General Equipment: Vehicle/axle stands

7.

8.

9.

10.

WARNING: This step requires the aid of another technician.

Front Left Halfshaft

11. Install the wheel and tire.

12.

NOTE: If equipped.

Use the Jaguar Land Rover (JLR) approved diagnostic equipment to pressurize the air suspension.
