Land Rover Defender: Front Right Halfshaft

REMOVAL AND INSTALLATION

SPECIAL TOOL(S)

Front Right Halfshaft

204-506/1

Remover/Installer, Halfshaft

Front Right Halfshaft

204-506/2

Remover/Installer, Halfshaft Spacer

Front Right Halfshaft

204-506/3

Remover/Installer, Halfshaft Screw Thread

Front Right Halfshaft

204-506/5

Retainers, Halfshaft tools

Front Right Halfshaft

JLR-204-793A

Ball Joint Splitter

Front Right Halfshaft

JLR-204-802

Splitter, Damper

Front Right Halfshaft

JLR-204-803

Splitter, Upper Arm

GENERAL EQUIPMENT

Front Right Halfshaft

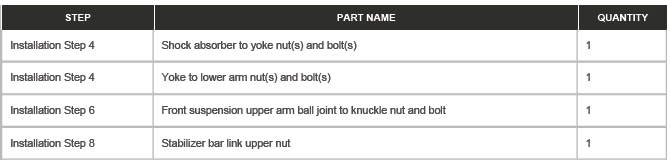

PART(S)

Front Right Halfshaft

Front Right Halfshaft

REMOVAL

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

1. Use the Jaguar Land Rover (JLR) approved diagnostic equipment to depressurize the air suspension.

General Equipment: Jaguar Land Rover approved diagnostic equipment

2. Raise and support the vehicle on a suitable 2 post lift.

3. Remove the wheel and tire.

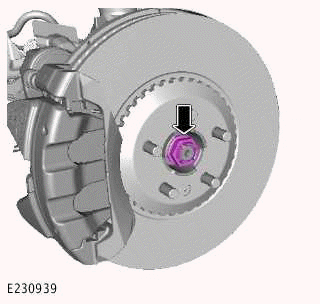

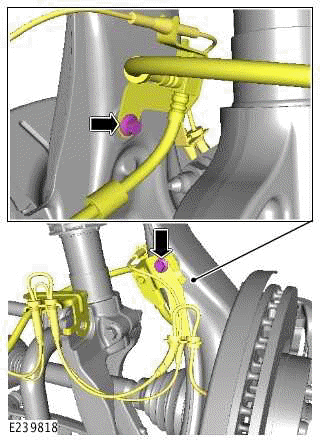

4.

Front Right Halfshaft

5.

Front Right Halfshaft

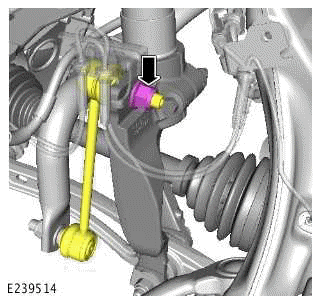

6.

Front Right Halfshaft

7.

Front Right Halfshaft

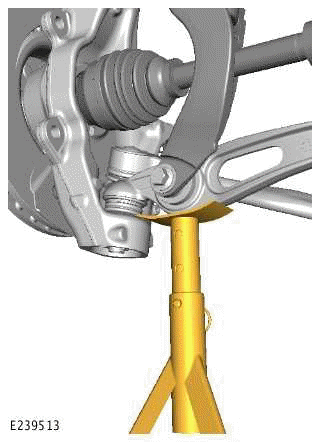

Use a suitable stand to support the lower arm.

General Equipment: Vehicle/axle stands

8.

Front Right Halfshaft

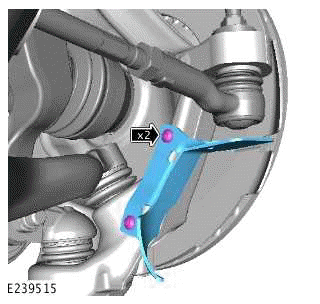

Remove the air duct.

9.

Front Right Halfshaft

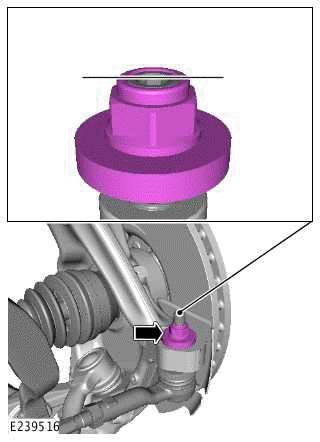

Loosen, but do not remove the tie-rod end nut.

10.

Front Right Halfshaft

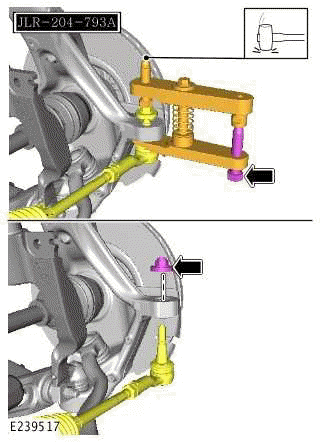

Use the special tool to release the tie-rod end from the wheel knuckle.

Special Tool(s): JLR-204-793A

11.

Front Right Halfshaft

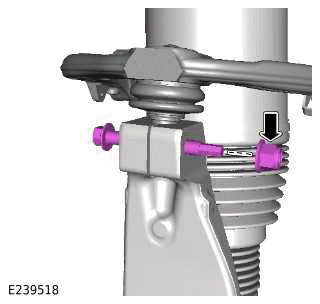

Remove and discard the upper arm ball joint nut and bolt.

12.

Front Right Halfshaft

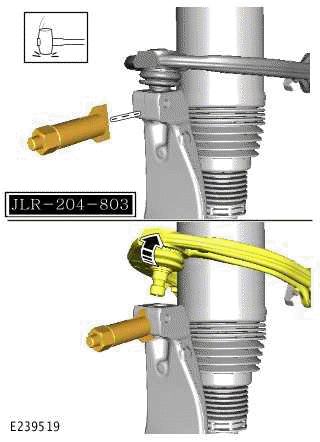

Use the special tool to release the upper arm ball joint.

Special Tool(s): JLR-204-803

13.

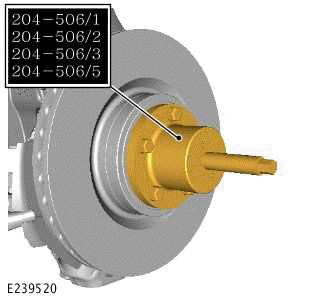

Front Right Halfshaft

Install the special tools.

Special Tool(s): 204-506/1, 204-506/2, 204-506/3, 204-506/5

14.

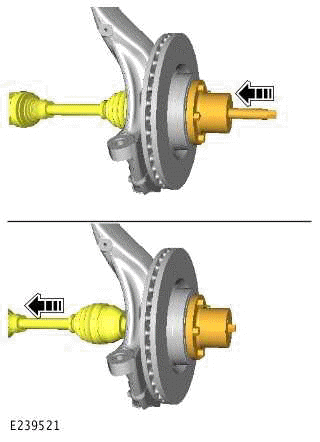

Front Right Halfshaft

Use the special tool to release the halfshaft.

15. Remove the special tools.

Special Tool(s): 204-506/1, 204-506/2, 204-506/3, 204-506/5

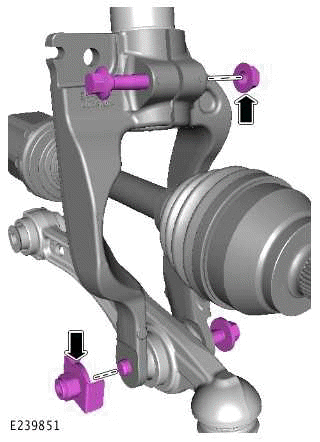

16.

Front Right Halfshaft

17.

Front Right Halfshaft

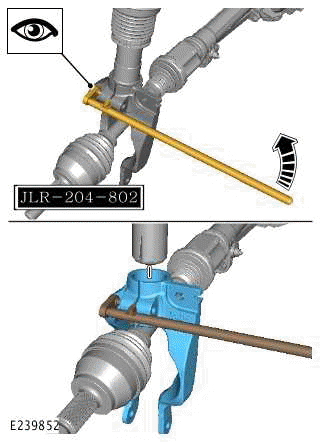

Use the special tool to remove the yoke.

Special Tool(s): JLR-204-802

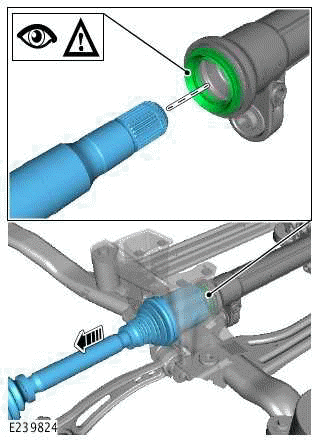

18.

CAUTION: Take care not to damage the halfshaft seal.

Front Right Halfshaft

Use a suitable to remove the halfshaft from the differential.

19.

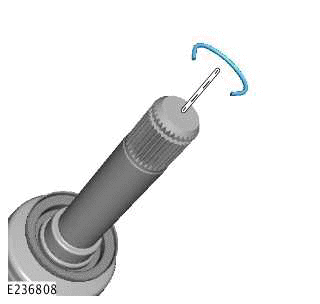

Front Right Halfshaft

Remove and discard the halfshaft circlip.

20.

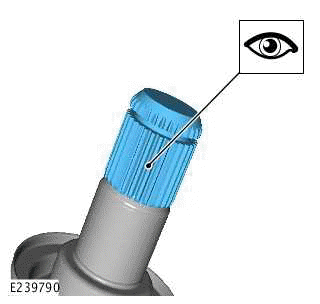

Front Right Halfshaft

Inspect the halfshaft splines for signs of damage. If damage is present, drain the front differential and refill with clean oil.

INSTALLATION

1.

Front Right Halfshaft

Install a new circlip to the halfshaft.

2. Clean and inspect the seal. Replace if damaged or worn.

3. Install the halfshaft. Make sure it is fully located in the differential.

4.

5. Install the halfshaft into the wheel knuckle. Use the original nut to aid installation.

6.

7.

8.

9. Remove the supporting stand from under the lower arm.

General Equipment: Vehicle/axle stands

10.

11.

12.

Front Right Halfshaft

13. Check and top up the front differential oil.

14. Install the wheel and tire.

15. Use the Jaguar Land Rover (JLR) approved diagnostic system to pressurize the air suspension.

General Equipment: Jaguar Land Rover approved diagnostic equipment
