COMPONENT LOCATION

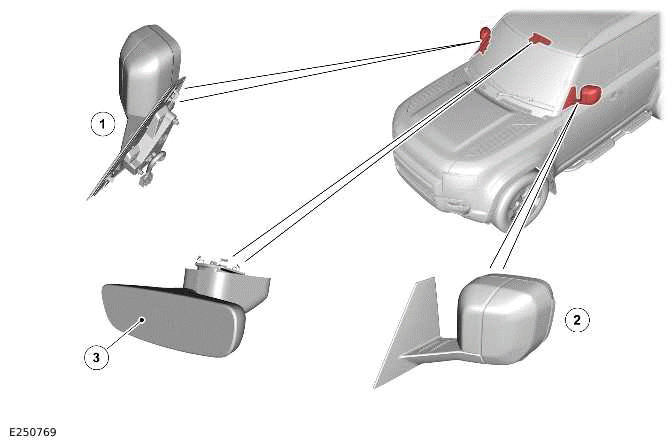

COMPONENT LOCATION - 1 OF 2

NOTES:

Rocker Panel

  1. Driver door mirror
  2. Passenger door mirror
  3. Rear View Mirror (RVM) or clear sight RVM (if equipped)

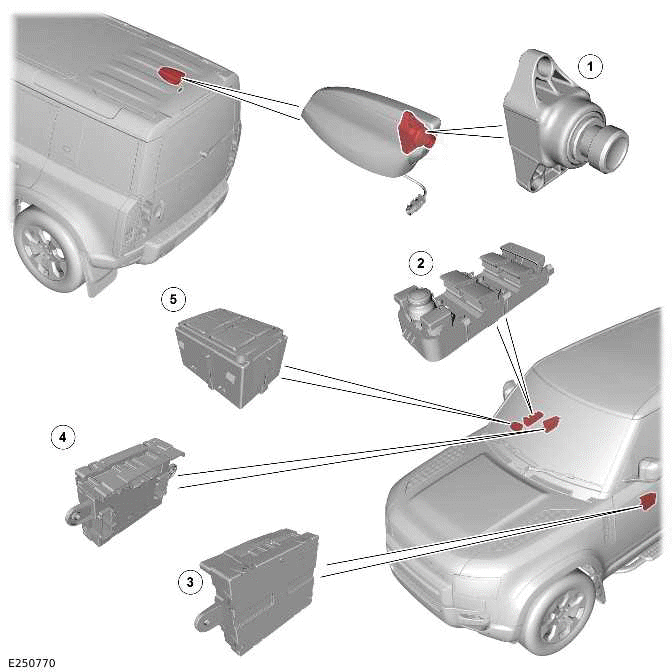

COMPONENT LOCATION - 2 OF 2

NOTES:

Rocker Panel

  1. Clear sight RVM camera (if equipped)
  2. Driver door switchpack
  3. Passenger Door Control Module (PDM)
  4. Driver Door Control Module (DDM)
  5. Driver seat memory switchpack (if equipped)

OVERVIEW

The RVMs consist of:

RVM

The RVM is available in 2 different variants, depending on vehicle specification:

NOTES:

Depending on vehicle specification, the automatic dimming RVM may also incorporate a HomeLink.

CLEAR SIGHT RVM

The clear sight RVM combines a wide angle camera with a Liquid Crystal Display (LCD) integrated into an automatic dimming RVM. The driver is able to see traffic conditions behind the vehicle through the LCD.

The clear sight RVM has 2 modes:

In either of the modes, the clear sight RVM has an automatic dimming function. Light sensors are installed on the front and rear of the RVM surround case. The sensors control the automatic dimming feature to reduce glare from the headlamps of the vehicles behind.

Depending on vehicle specification, the clear sight RVM may also incorporate a HomeLink.

DOOR MIRRORS

The door mirrors on all models comprises the following features:

The left door mirror comprises the Ambient Air Temperature (AAT) sensor.

Depending on vehicle specification the door mirrors may also include the following:
