Land Rover Defender: Exterior Trim and Ornamentation
SPECIFICATIONS

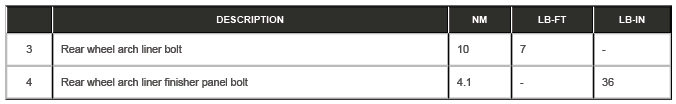

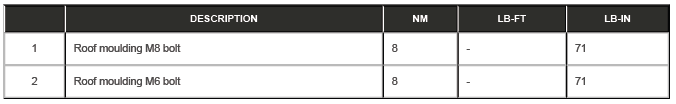

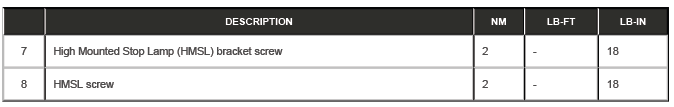

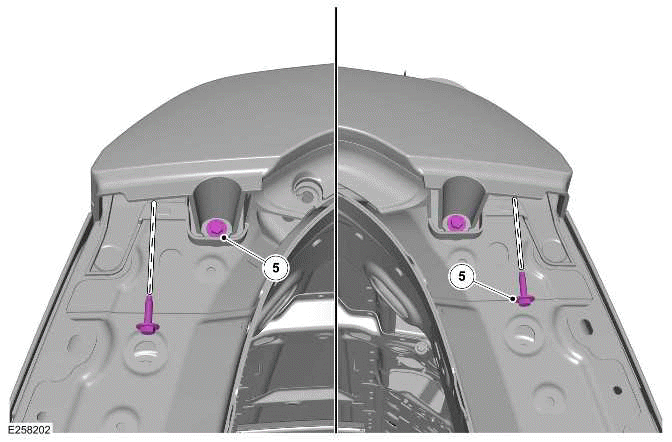

Torque Specifications

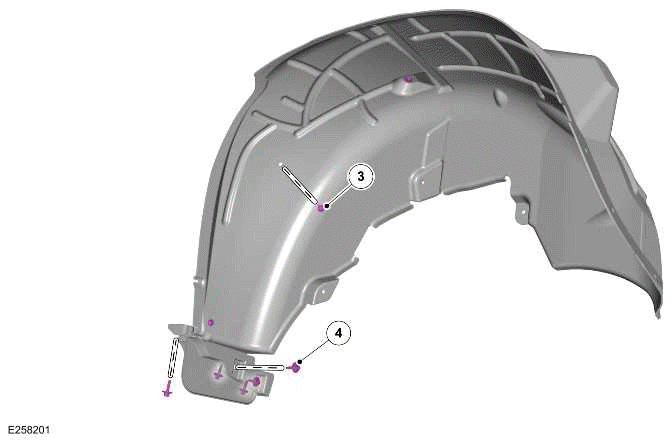

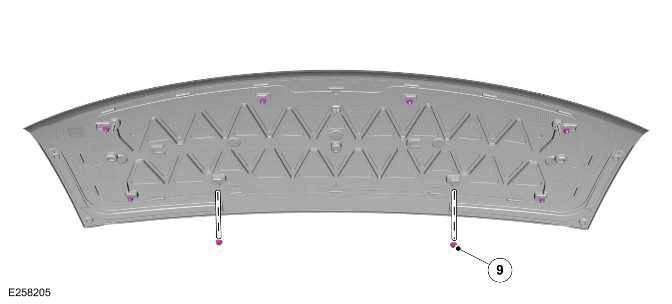

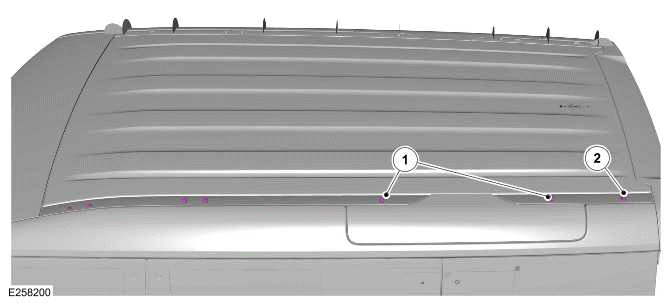

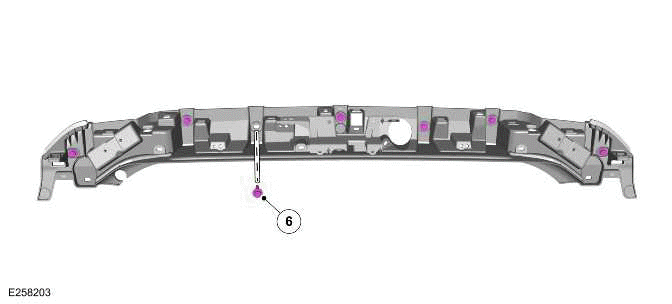

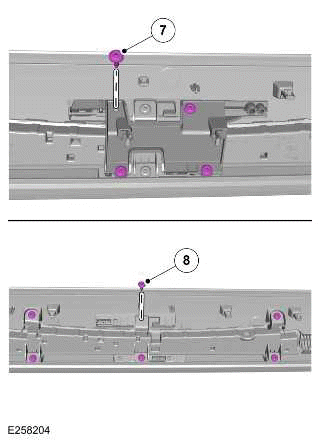

COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
