Land Rover Defender: Front Undershield

FRONT UNDERSHIELD - PART NUMBER: VPLEP0436

REMOVAL AND INSTALLATION

WARNING: Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

NOTE: This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Front Undershield

REMOVAL

1. Open the hood.

2.

Front Undershield

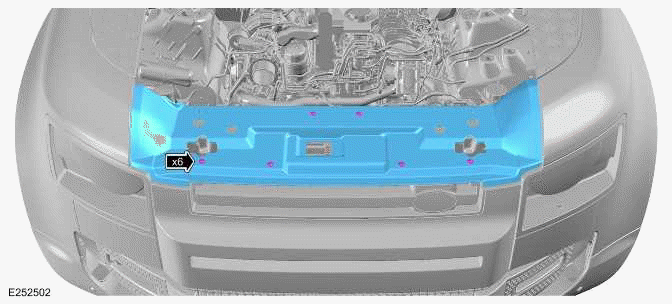

Remove the hood latch panel finisher.

3. Remove the front bumper from the vehicle.

4.

Front Undershield

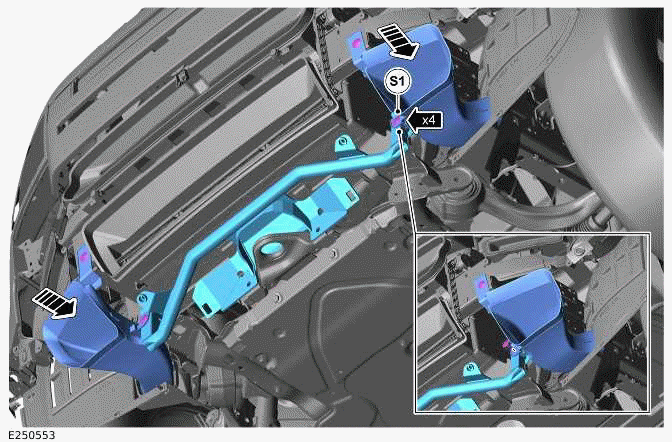

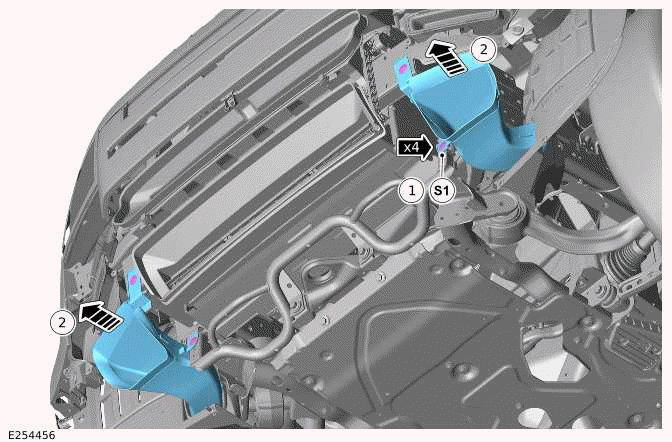

Remove the 2 brake ducts as illustrated. Retain the 4 fixings (S1) that secure the brake ducts to the cooling module protector.

  1. Remove the 4 brake duct fixings (S1) and retain.
  2. Remove the 2 brake ducts and retain.

5.

CAUTION: On P6 vehicle variants there is a cooling pipe that must be removed from the cooling module protector.

Front Undershield

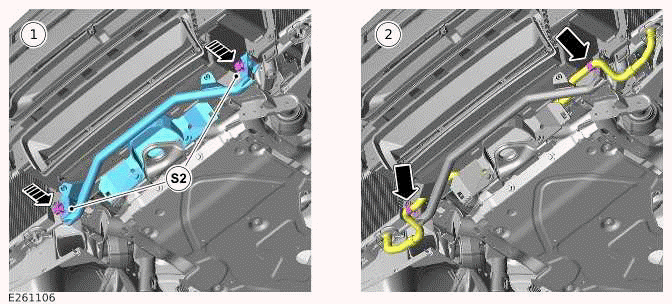

Release and aside the cooling pipe from the cooling module protector as illustrated.

  1. Release the cooling pipe from the 2 arrowed clips and aside the cooling pipe.
  2. Remove the 2 clips (S2) and retain.

6.

CAUTION: Carefully move aside the air conditioning pipes on both sides of the cooling module protector to allow access.

Front Undershield

Remove the cooling module protector as illustrated.

  1. Remove and retain the 2 cooling module protector M12 bolts (S3).
  2. Remove and discard the 2 cooling module protector bolts as illustrated. Move aside the air conditioning pipes to allow access.
  3. Remove and discard the cooling module protector.

INSTALLATION

1.

NOTE: Complete install step 2 to 5 before tightening the 8 armature bolts.

Front Undershield

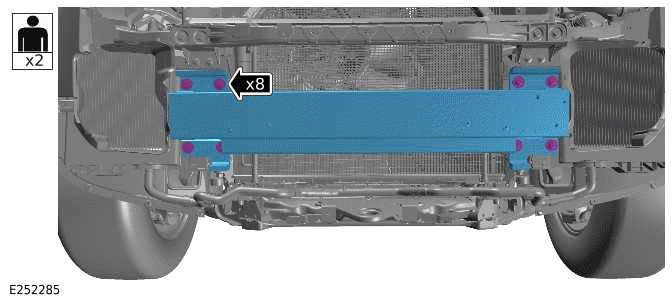

Loosen the 8 armature bolts to assist the installation of the front undershield support bar (A).

2.

NOTE: This step requires the aid of another technician.

Front Undershield

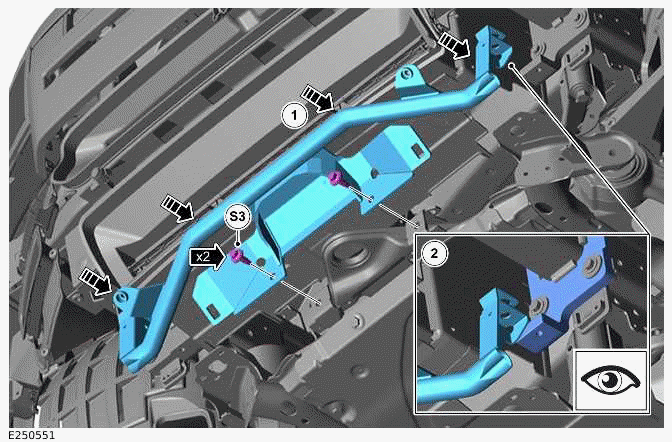

Align and install the front undershield support bar (A).

  1. Align the front undershield support bar with the vehicle.
  2. Align the ends of the front undershield support bar with the brackets as illustrated.
  3. Make sure the holes for the bolts (S3) align with the holes in the subframe. Adjust the armature position to achieve correct hole alignment.
  4. Install, but do not fully tighten the 2 M12 bolts (S3) to secure the front undershield support bar to the vehicle.

3.

CAUTION: Make sure the air conditioning pipes are positioned correctly on both sides of the front undershield support bar.

NOTE: This step requires the aid of another technician.

Front Undershield

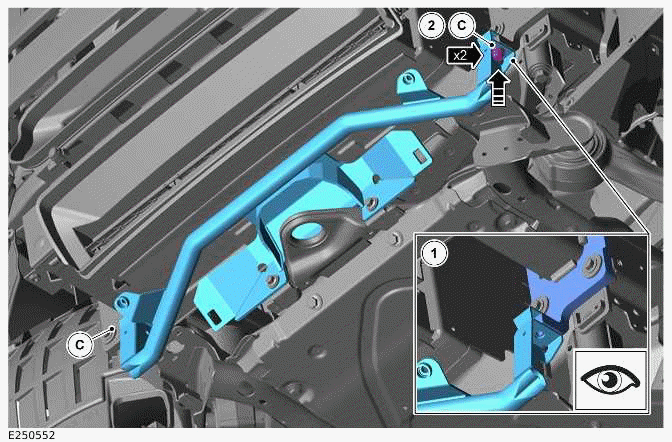

Secure the ends of the front undershield support bar.

  1. Check the alignment of the front undershield support bar with the bracket as illustrated.
  2. Install, but do not fully tighten the 2 bolts (C) to secure the front undershield support bar to the bracket.
  3. Make sure the air conditioning pipes on both sides of the front undershield support bar are installed in the correct location.

4.

CAUTION: On P6 vehicle variants there is a cooling pipe that must be installed to the front undershield support bar.

Front Undershield

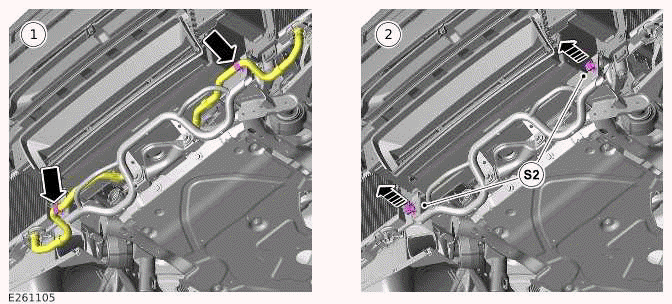

Install the clips (S2) and correctly position the cooling pipe.

  1. Install the 2 clips (S2) to the front undershield support bar.
  2. Install the cooling pipe to the 2 arrowed clips and position the cooling pipe as required.

5. Tighten the bolts (S3) and (C).

6.

CAUTION: Tighten the 8 armature bolts that were loosened during install step 1.

Front Undershield

Tighten the 8 armature bolts.

7.

Front Undershield

Install the 2 brake ducts to the front undershield support bar using the 4 fixings (S1).

8. Install the front bumper.

9.

Front Undershield

10.

Front Undershield

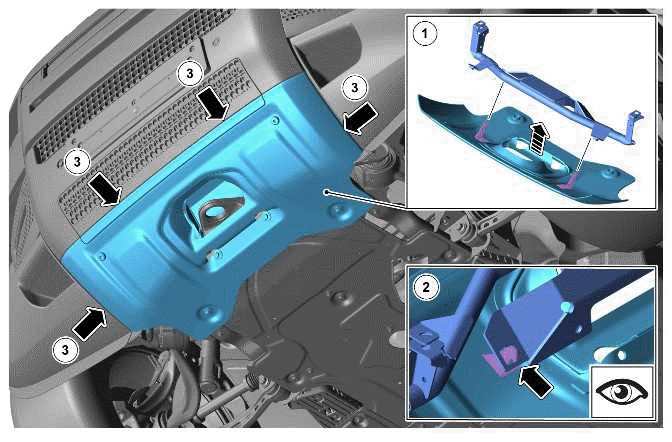

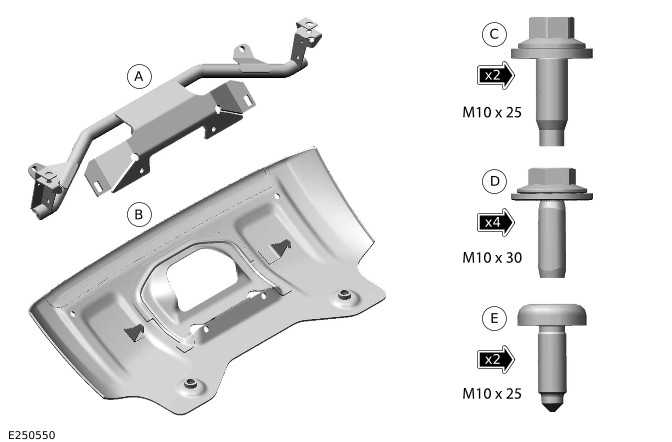

Install the front undershield (B) to the front undershield support bar (A).

  1. Align the 2 front undershield hooks with the 2 holes in the front undershield support bar.
  2. Install the 2 front undershield hooks to the 2 holes in the front undershield support bar.
  3. Make sure the front undershield is located correctly.

11.

Front Undershield

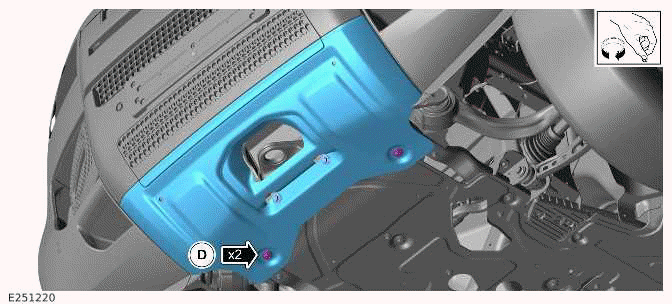

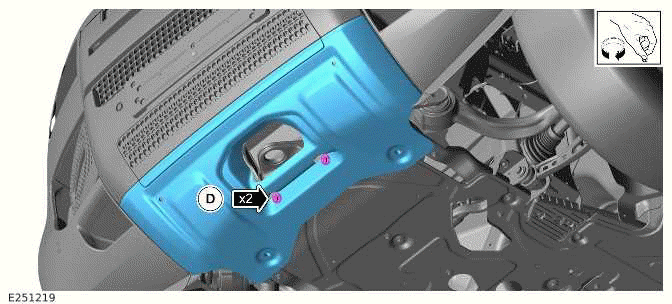

Install, but do not fully tighten the 2 bolts (D) as illustrated.

12.

Front Undershield

Install, but do not fully tighten the 2 bolts (D) as illustrated.

13.

Front Undershield

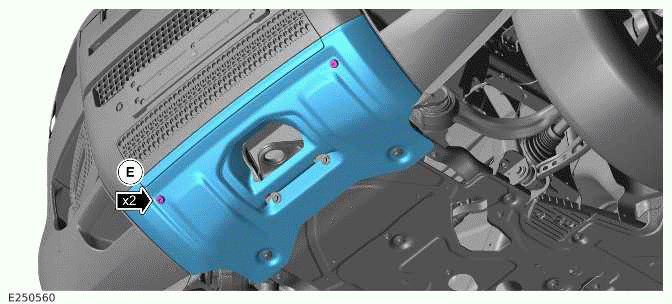

Install the 2 fixings (E) as illustrated.

14.

Front Undershield

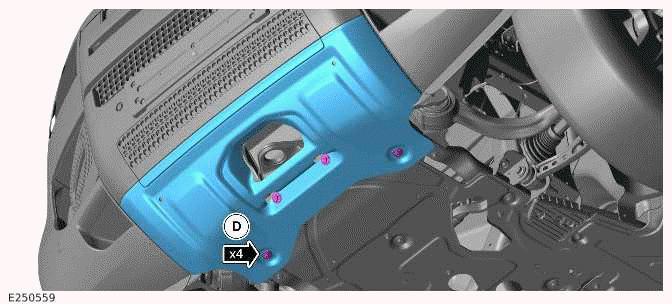

Tighten the 4 bolts (D).

15.

Front Undershield

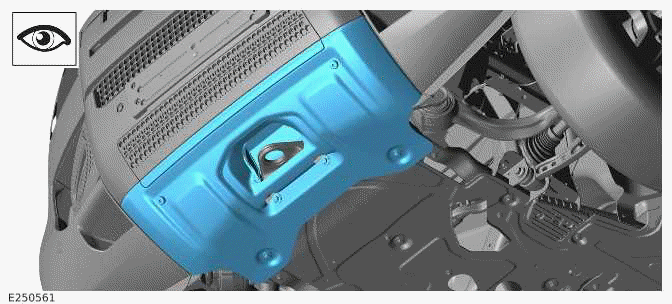

Make sure the front undershield (B) is correctly installed.
