Land Rover Defender: Fuel Tank and Lines - Diagnosis and Testing
DIAGNOSIS AND TESTING
PRINCIPLES OF OPERATION
For a detailed description of the Fuel Tank and Lines, refer to the relevant
Description and Operation section in the
workshop manual.
INSPECTION, VERIFICATION AND ADDITIONAL WARNINGS FOR ELECTRIC VEHICLES
WARNINGS:
CAUTIONS:
- Diagnosis by substitution from a donor vehicle is NOT acceptable.
Substitution of control modules does
not guarantee confirmation of a fault, and may also cause additional faults
in the vehicle being tested and
/or the donor vehicle.
- It is essential that absolute cleanliness is observed when working
with these components. Always install
blanking plugs to any open orifices or lines. Failure to follow this
instruction may result in damage to the
vehicle.
- Make sure that the workshop area in which the vehicle is being worked
on is as clean and dust-free as
possible. Areas in which work on clutches, brakes or where welding or
machining are completed are not
suitable in view of the risk of contamination to the fuel system. Failure to
follow this instruction may result
in damage to the vehicle.
- Make sure that any protective clothing worn is clean and made from
lint-free non-flocking material. Failure
to follow this instruction may result in damage to the vehicle.
- Make sure that clean, non-plated tools are used. Clean tools using a
new brush that will not lose it's
bristles and fresh cleaning fluid prior to starting work on the vehicle.
Failure to follow this instruction may
result in damage to the vehicle.
- Use a steel-topped work bench and cover it with clean, lint-free,
non-flocking material. Failure to follow this
instruction may result in damage to the vehicle.
- Before disconnecting any part of the system, it is imperative that
all dust, dirt and debris is removed from
around components to prevent ingress of foreign matter into the fuel system.
Failure to follow this
instruction may result in damage to the vehicle.
NOTES:
- If a control module or a component is at fault and the vehicle
remains under manufacturer warranty, refer
to the Warranty Policy and Procedures manual, or determine if any prior
approval program is in operation,
prior to the installation of a new module/component.
- When performing voltage or resistance tests, always use a digital
multimeter accurate to three decimal
places, and with an up-to-date calibration certificate. When testing
resistance always take the resistance
of the digital multimeter leads into account.
- Check and rectify basic faults before beginning diagnostic routines
involving pinpoint tests.
- When measuring fuel sender resistance values with a multimeter, it is
critical to use the correct multimeter
setting. The multimeter should not be on the 'Auto' setting and must be set
to 'Manual'. This will help
prevent incorrect diagnosis and unnecessary replacement of fuel senders. If
the multimeter range is set at
'Auto' then, during a sweep of the sender from 50 Ohms to 998 Ohms, the
multimeter has to change its
measurement range. For approximately 1 second, during the range switch over
point, the multimeter
display indicates an open circuit. This can lead to a mis-diagnosis of a
fuel sender fault.
- Verify the customer concern
- Visually inspect for obvious signs of damage and system integrity

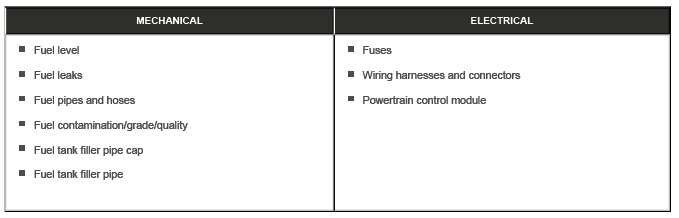

Visual Inspection
- If an obvious cause for an observed or reported concern is found,
correct the cause (if possible) before
proceeding to the next step
- If the cause is not visually evident, verify the symptom and refer to
the Symptom Chart, alternatively check for
Diagnostic Trouble Codes (DTCs) and refer to the DTC Index
- Check the JLR claims submission system for open campaigns. Refer to the
corresponding bulletins and SSMs
which may be valid for the specific customer complaint and complete the
recommendations as required

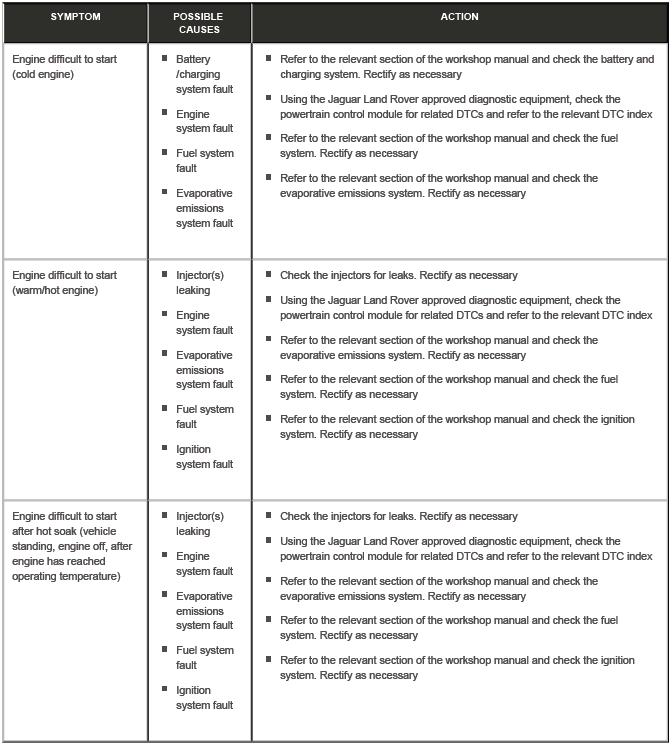

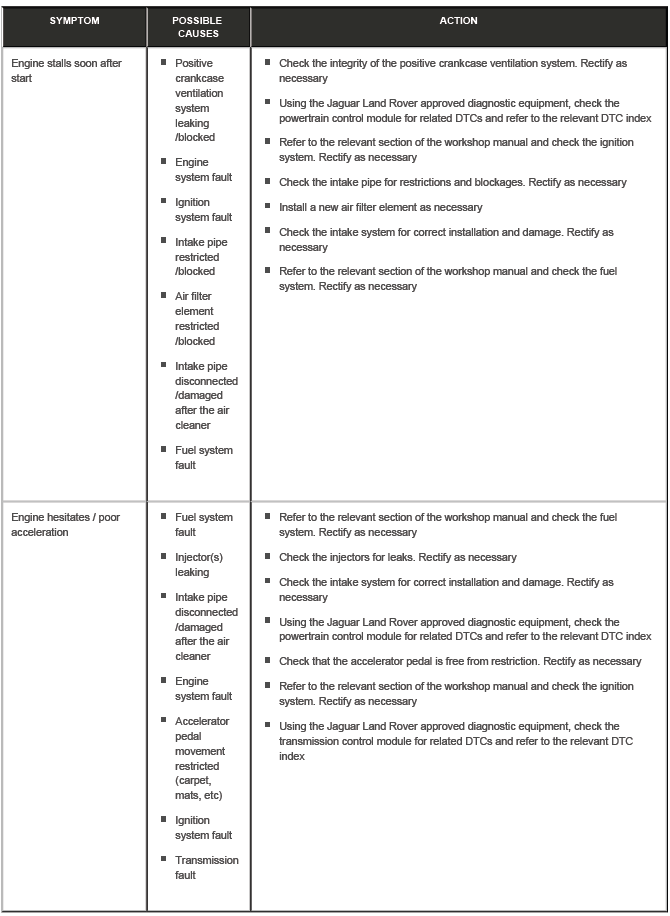

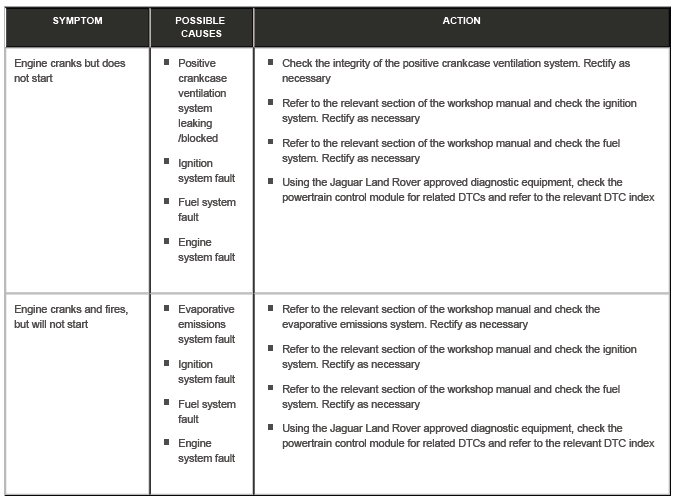

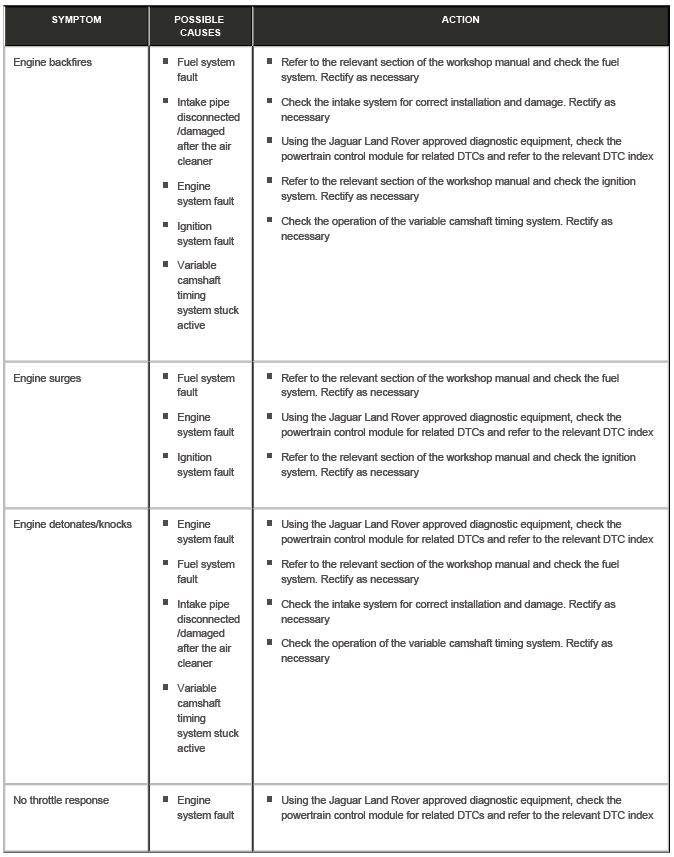

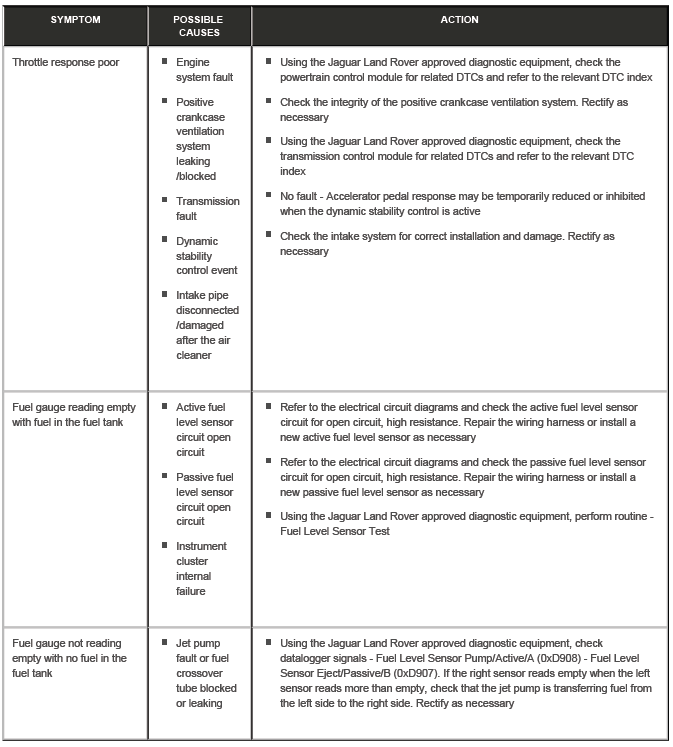

SYMPTOM CHART
