Land Rover Defender: Fuel Pump Module - 110
REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
310-123
Locking Ring, Fuel Tank
PART(S)
REMOVAL
WARNING:
Be prepared to collect escaping fluids.
CAUTION:
- Protect the surrounding paintwork to avoid damage.
- Before disconnecting any components, make sure the area is clean and
free from foreign material. When
disconnected all openings must be sealed.
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Always follow the fuel system health and safety precautions when doing any
repairs to the fuel system.
2. Disconnect the startup battery ground cable.
3. Remove the second row right seat.
4.
Reposition the carpet for access.
5.

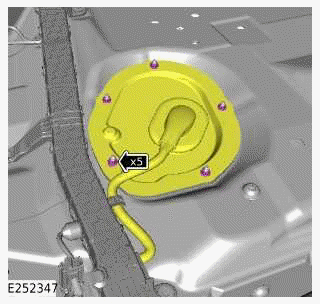

- Remove the 5 nuts.
- Reposition the wiring harness.

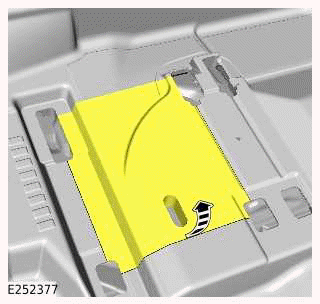

- Release the fuel tank access panel.
- Reposition the wiring harness and the access panel.
6.

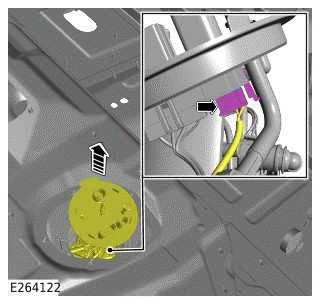

Disconnect the 2 electrical connectors from the fuel pump module.
7.
Disconnect the breather pipe.
8.

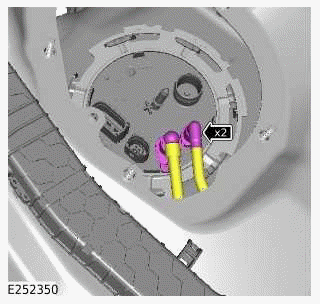

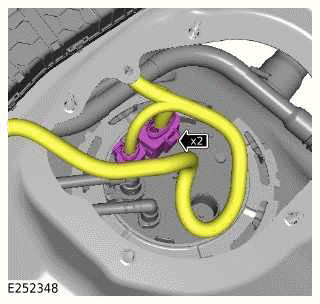

Disconnect the 2 fuel pipes.
9.

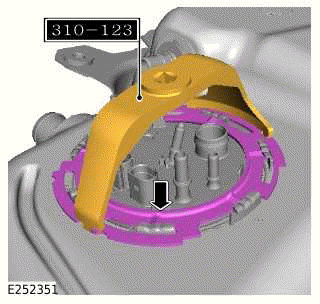

Use the special tool to remove the fuel pump module retaining ring.
Special Tool(s): 310-123
10.

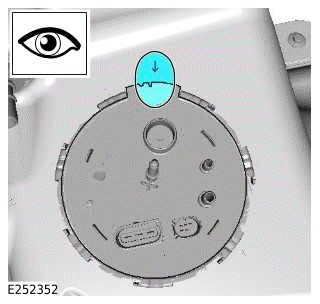

Note the position of the fuel pump module before removal.

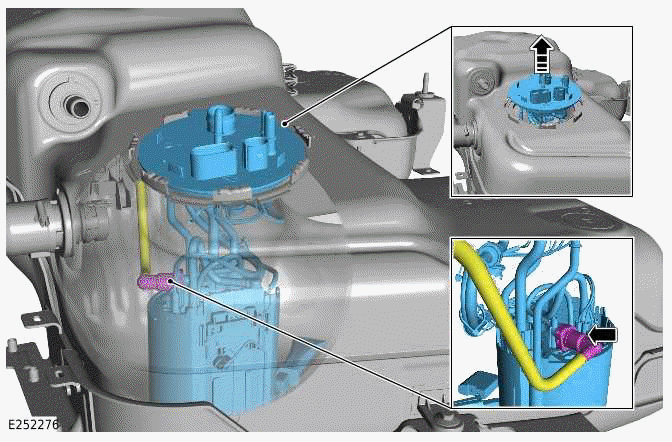

11.
- Reposition the fuel pump module to get access to the electrical
connector.
- Disconnect the electrical connector.
12.

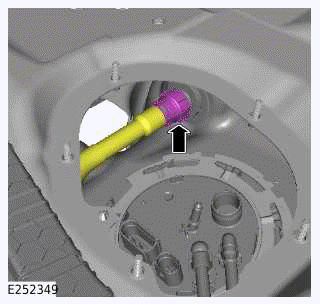

- Disconnect the fuel line from the fuel pump module.
- Remove the fuel pump module.
13.
Remove and discard the O-ring seal.
INSTALLATION
1.
CAUTION:
Make sure that the seal is correctly positioned. Failure to follow this
instruction may result in
damage to the vehicle.

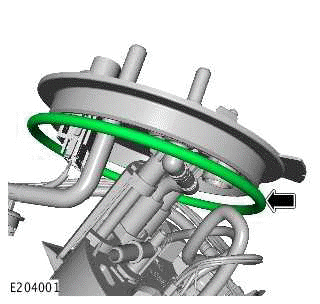

Install a new O-ring seal to the fuel pump module.
Renew Part: Fuel pump O-ring seal Quantity: 1.
2.
- Install the fuel pump module to the fuel tank.
- Connect the fuel line.
- Connect the electrical connector.
3.
- Make sure the fuel pump module is correctly aligned.
- Use the special tool 310-123 to install and tighten the fuel pump
retaining ring.
Special Tool(s): 310-123
4. Connect the 2 fuel lines.
5. Connect the breather pipe to the fuel tank.
6. Connect the 2 electrical connectors to the fuel pump module.
7.
- Reposition the fuel tank access panel and wiring harness.
- Install and tighten the 5 nuts.
Torque: 6Nm
8. Reposition the carpet.
9. Install the second row right seat.
10. Connect the startup battery ground cable.
