Land Rover Defender: Glass, Frames and Mechanisms - Diagnosis and Testing

Land Rover Defender 2020-2024 Service Manual / Body and Paint / Glass, Frames and Mechanisms / Glass, Frames and Mechanisms - Diagnosis and Testing

DIAGNOSIS AND TESTING

PRINCIPLE OF OPERATION

For a detailed description of the glass, frames and mechanisms and operation, refer to the relevant Description and Operation section of the workshop manual. REFER to: Glass, Frames and Mechanisms (Glass, Frames and Mechanisms, Description and Operation).

INSPECTION AND VERIFICATION

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does not guarantee confirmation of a fault and may also cause additional faults in the vehicle being checked and/or the donor vehicle.

NOTES:

  1. Verify the customer concern
  2. Check the JLR claims submission system for open campaigns. Refer to the corresponding bulletins and SSMs which may be valid for the specific customer complaint and complete the recommendations required.
  3. Visually inspect the moving glass system components for obvious signs of mechanical/electrical damage and system integrity.

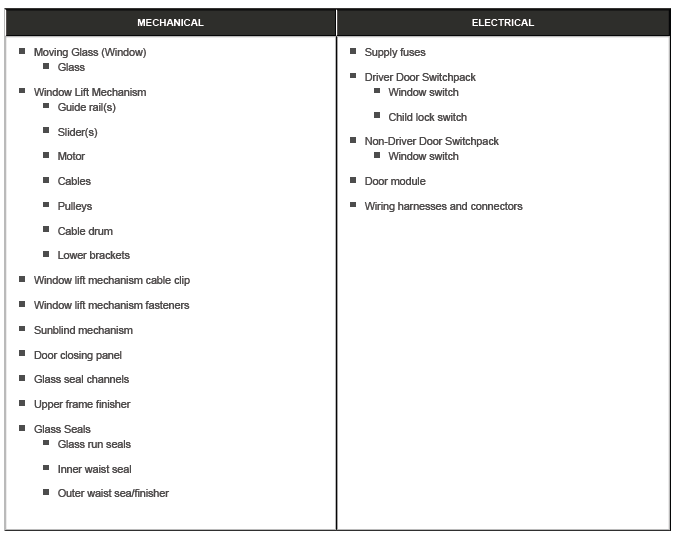

Visual Inspection - Principal Moving Glass System Components

Glass, Frames and Mechanisms

  1. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
  2. If the cause is not visually evident, verify the symptom and refer to the symptom chart, alternatively check for diagnostic trouble codes ( Diagnostic Trouble Code(s) (DTC)s) and refer to the DTC Index.

POST REPAIR ACTIVITY

Door Window Motor Initialisation Procedure

It is critical that the Door Window Motor Initialisation Procedure REFER to: Door Window Motor Initialization (501-11 Glass, Frames and Mechanisms, General Procedures). is completed to calibrate and activate the one-touch and antitrap functions correctly if, as part of the inspection, verification or repair process, any of the following procedures have been completed:

  1. Disconnection of the door module power supply (including vehicle battery disconnection, fuse removal /replacement, disconnection of and harness elements between the supply fuse and the door module).
  2. Disconnection of harness elements between the door module and the window lift mechanism motor(s).
  3. Removal, refitting or replacement of any of the following components:
    1. Window Lift Mechanism
    2. Window
    3. Glass Seals
    4. Glass Seal Channels
    5. Upper Frame Finisher

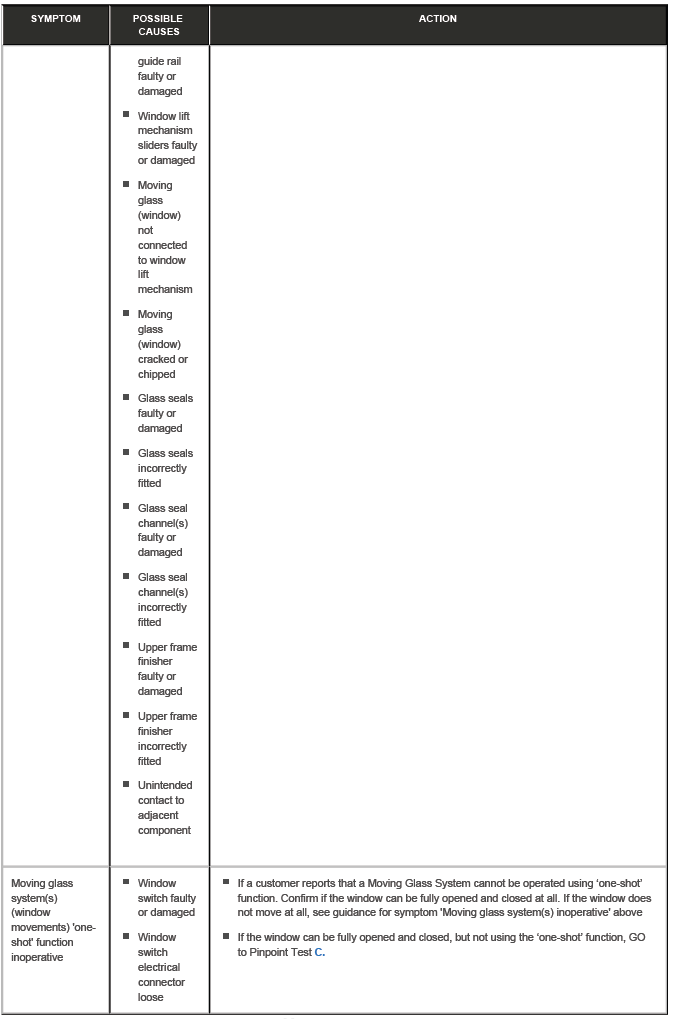

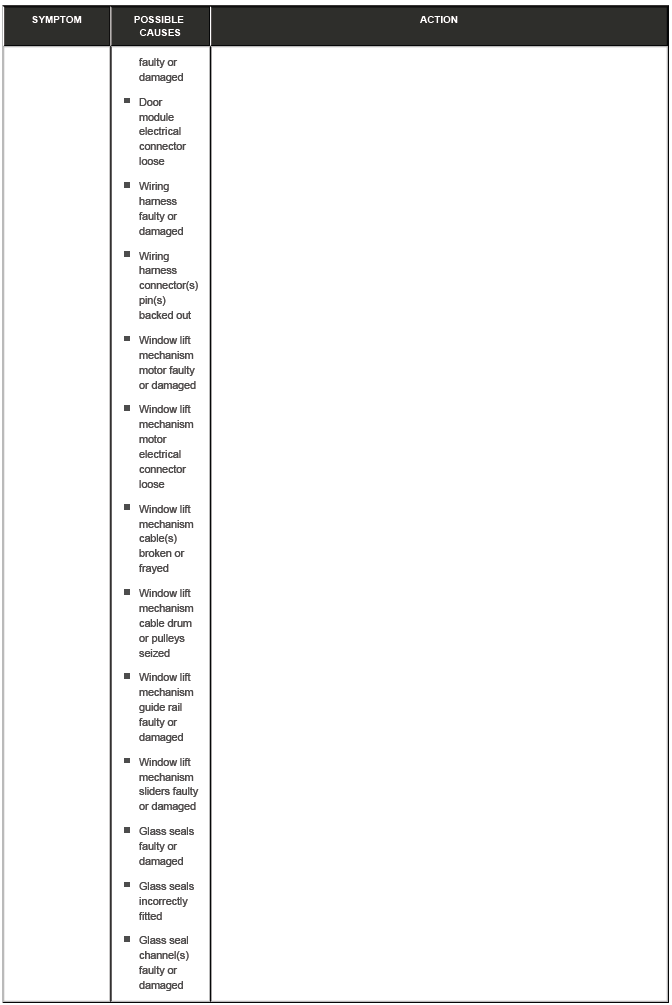

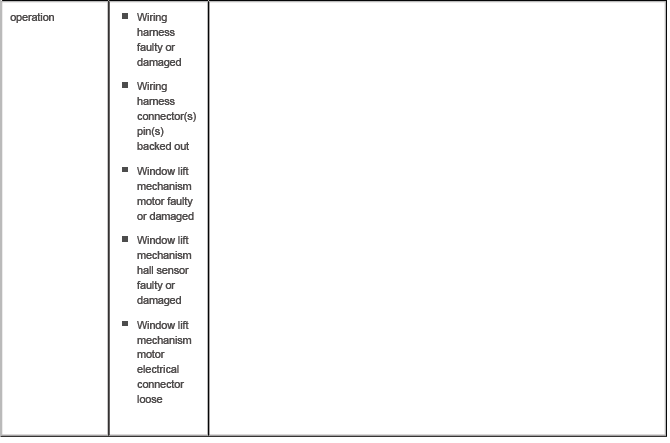

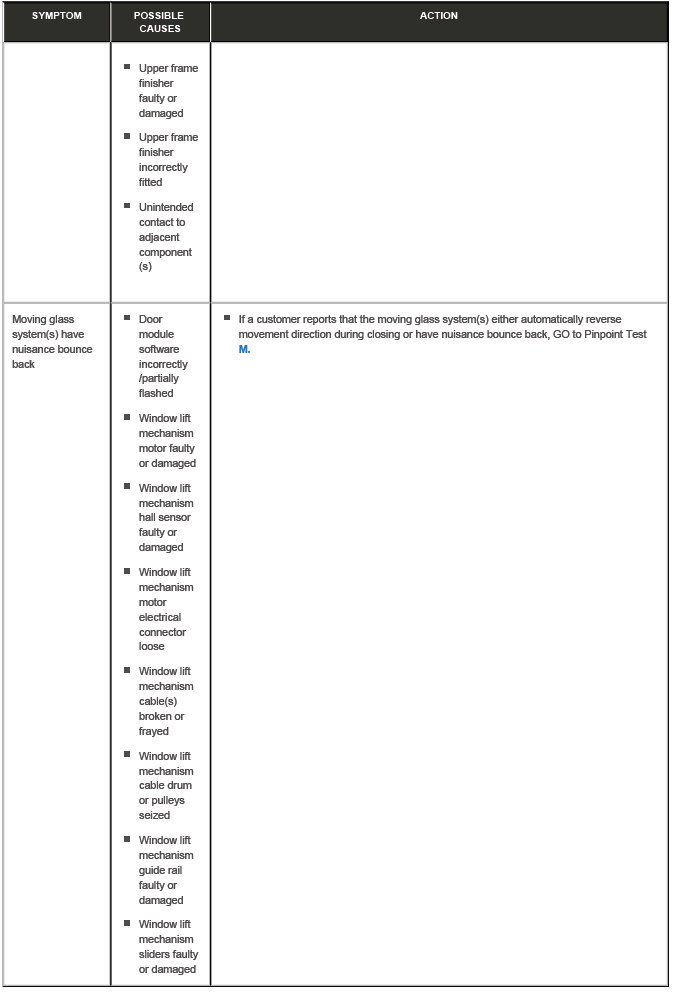

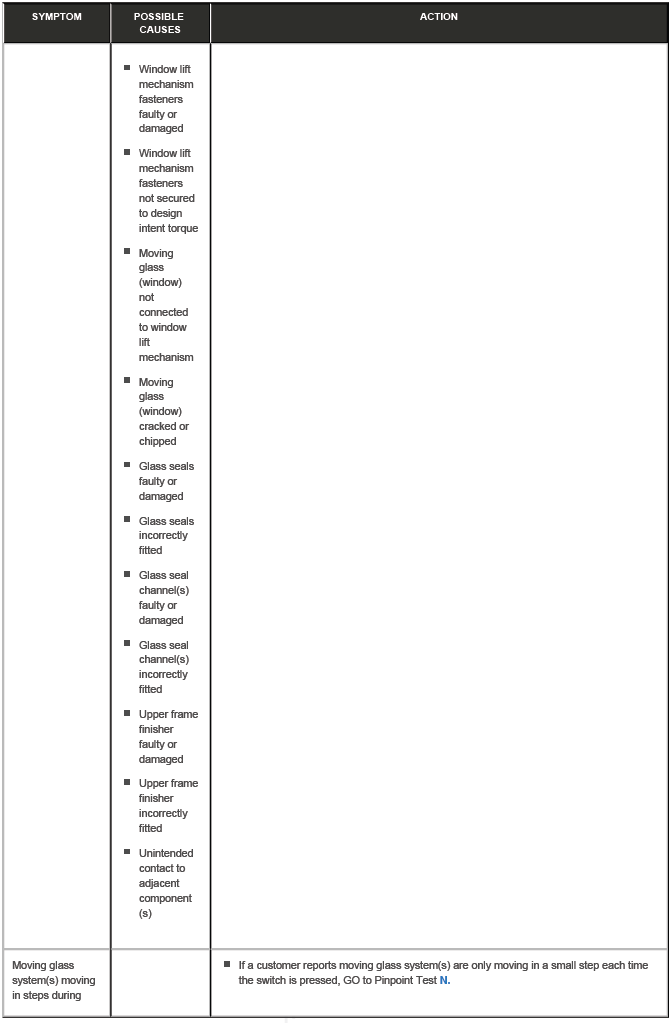

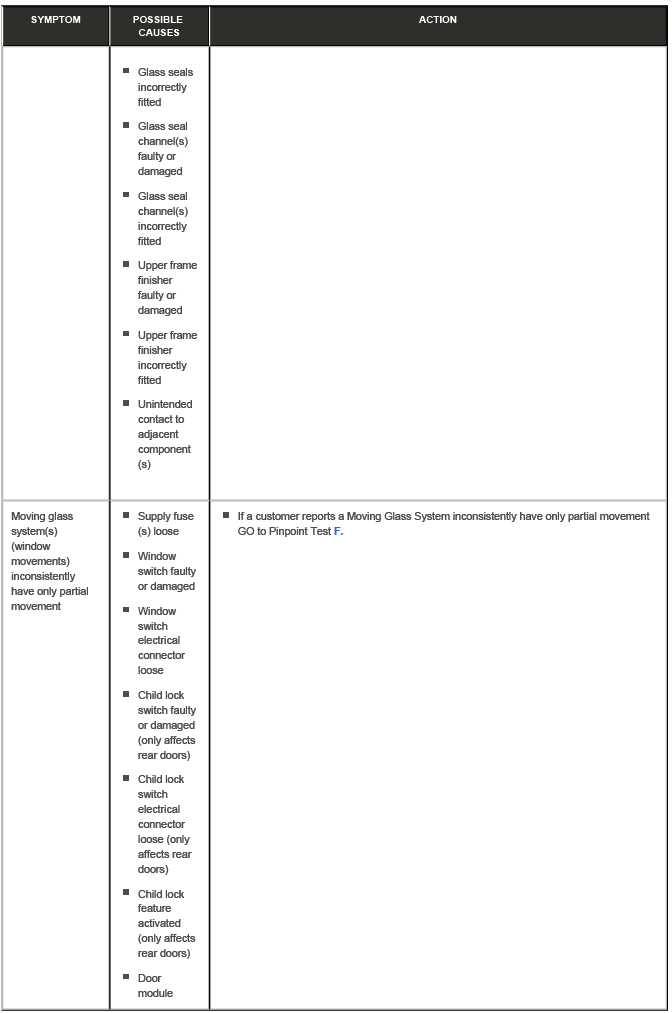

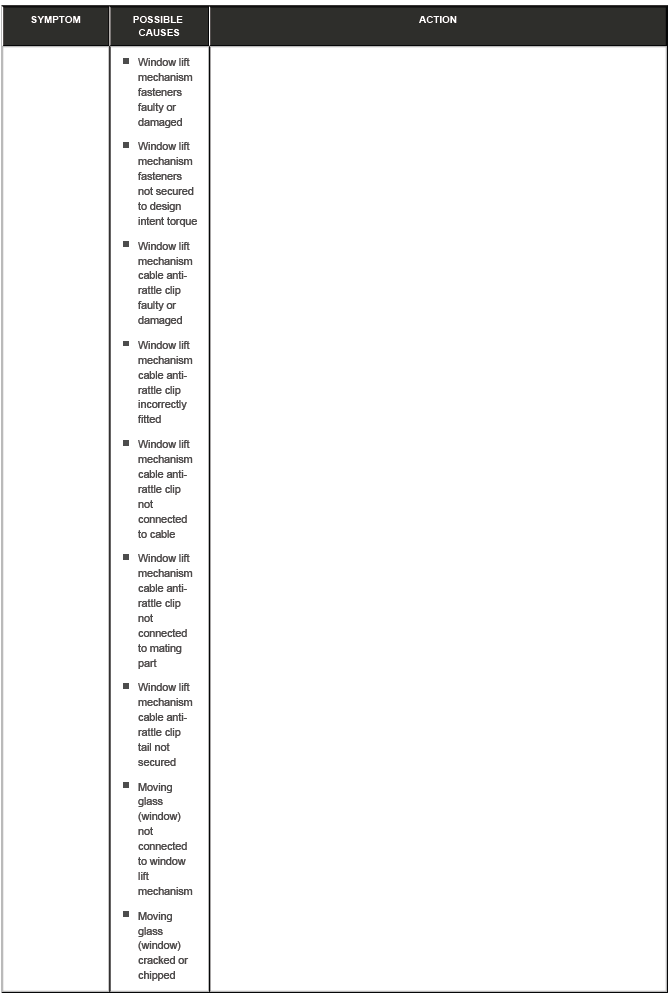

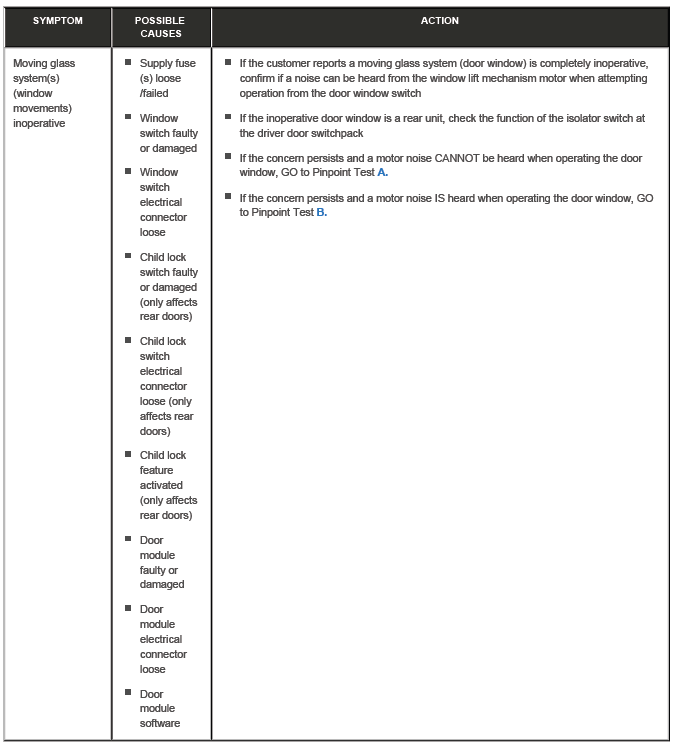

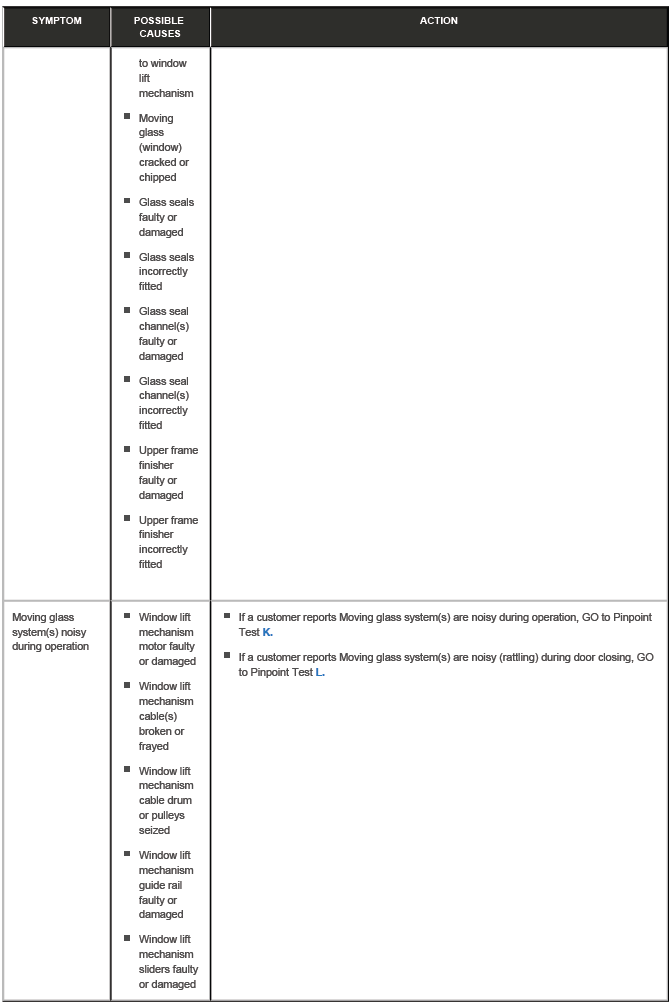

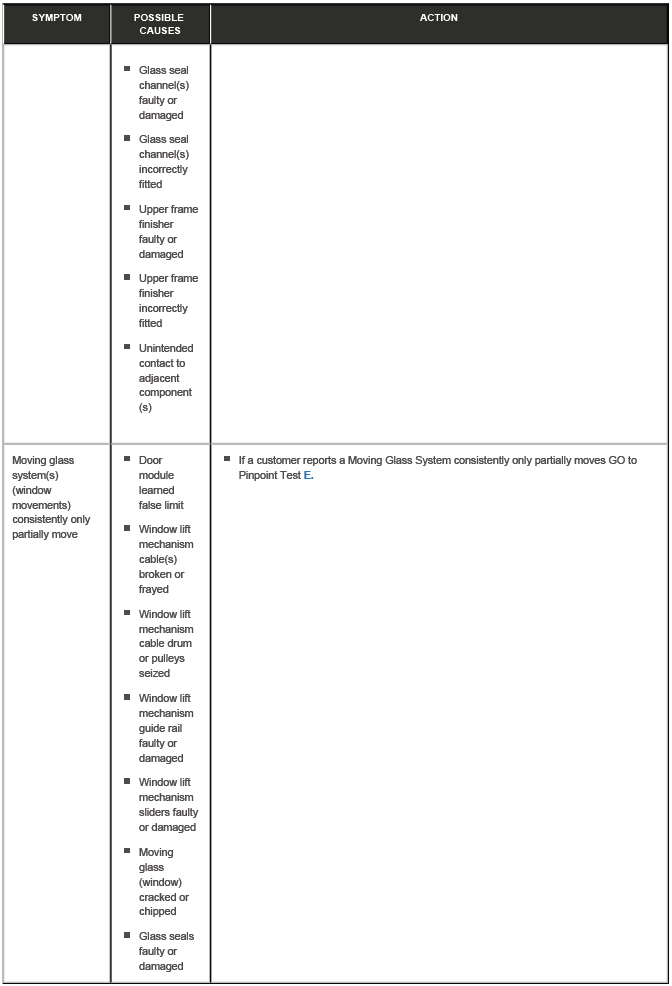

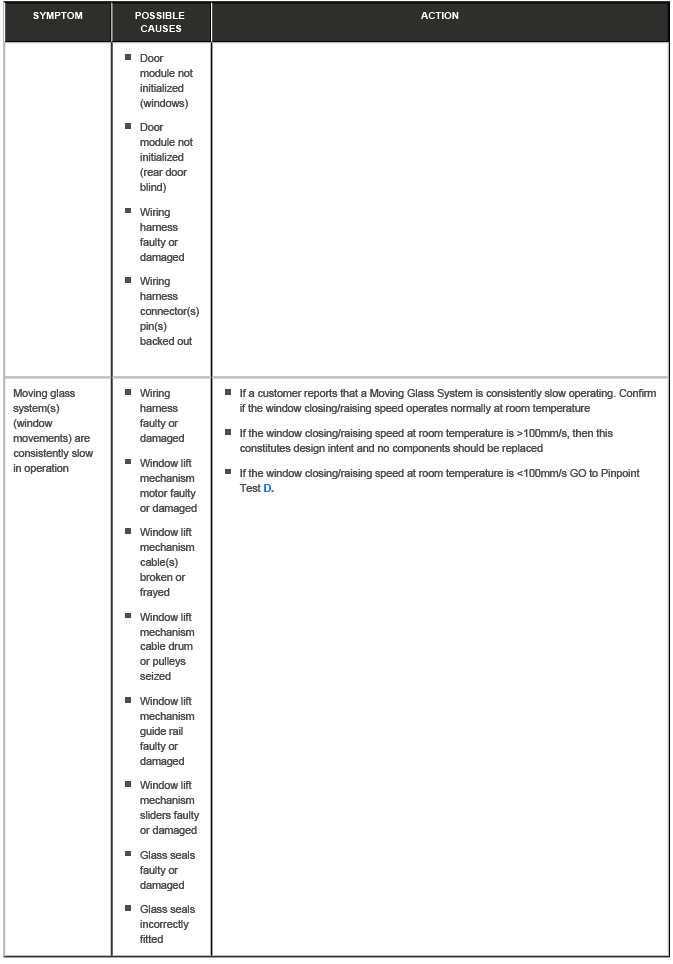

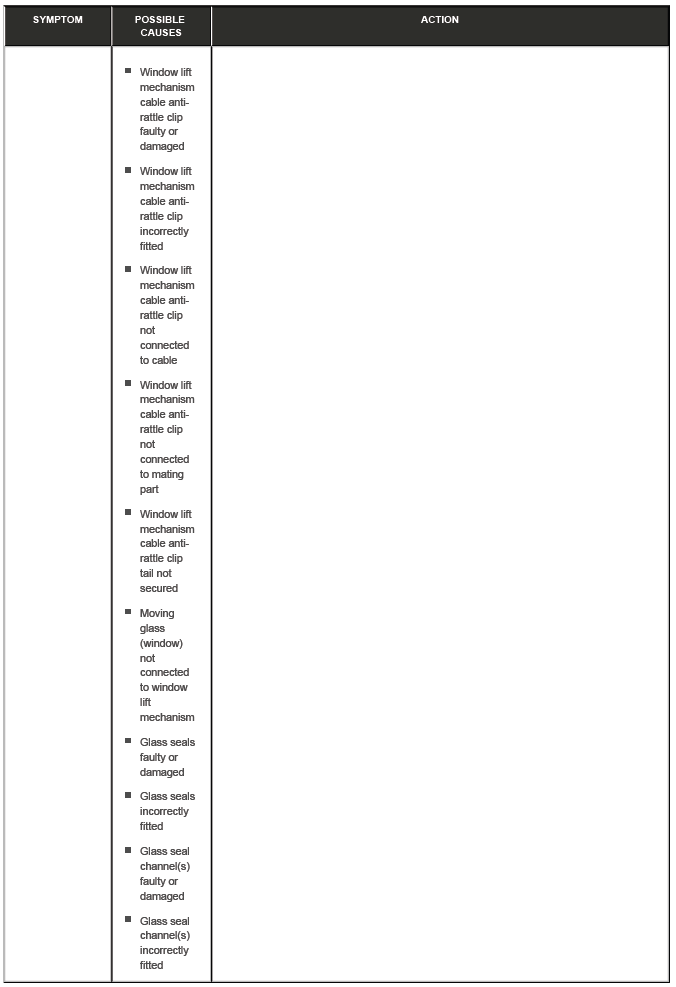

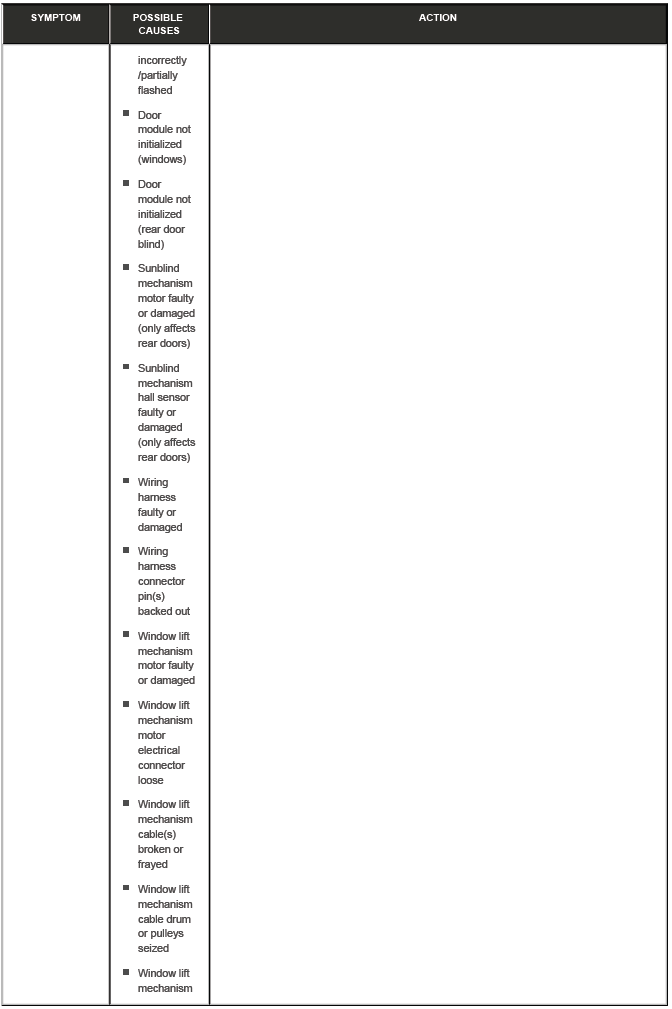

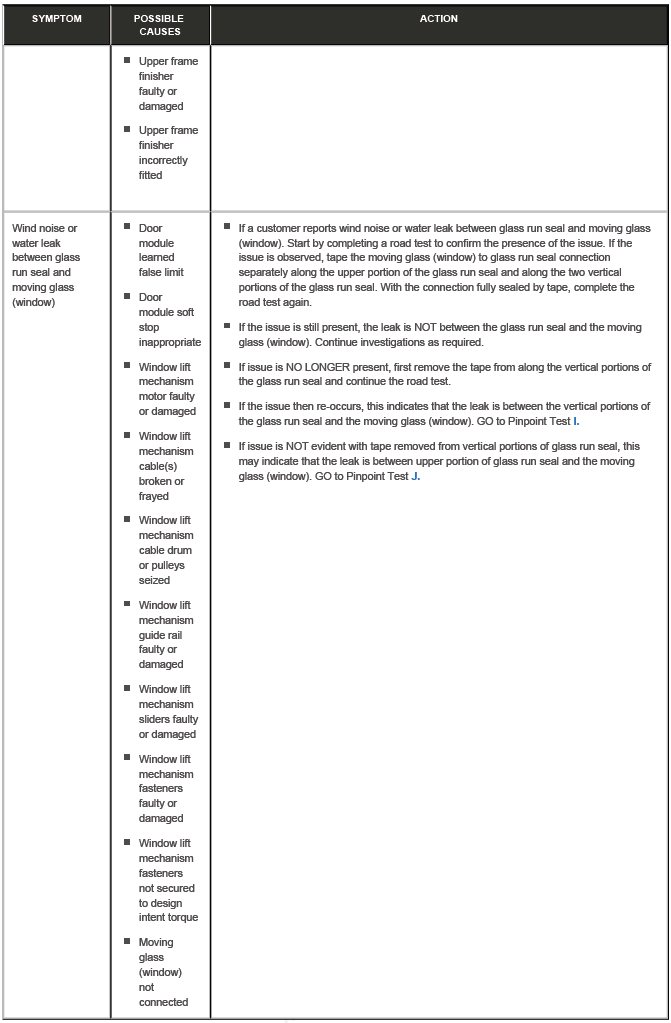

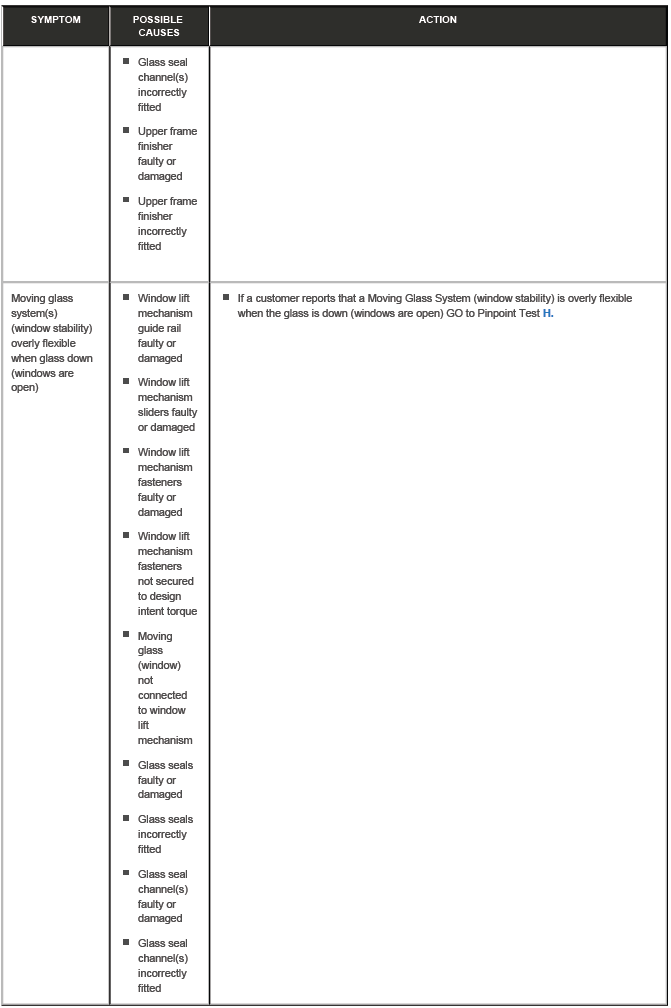

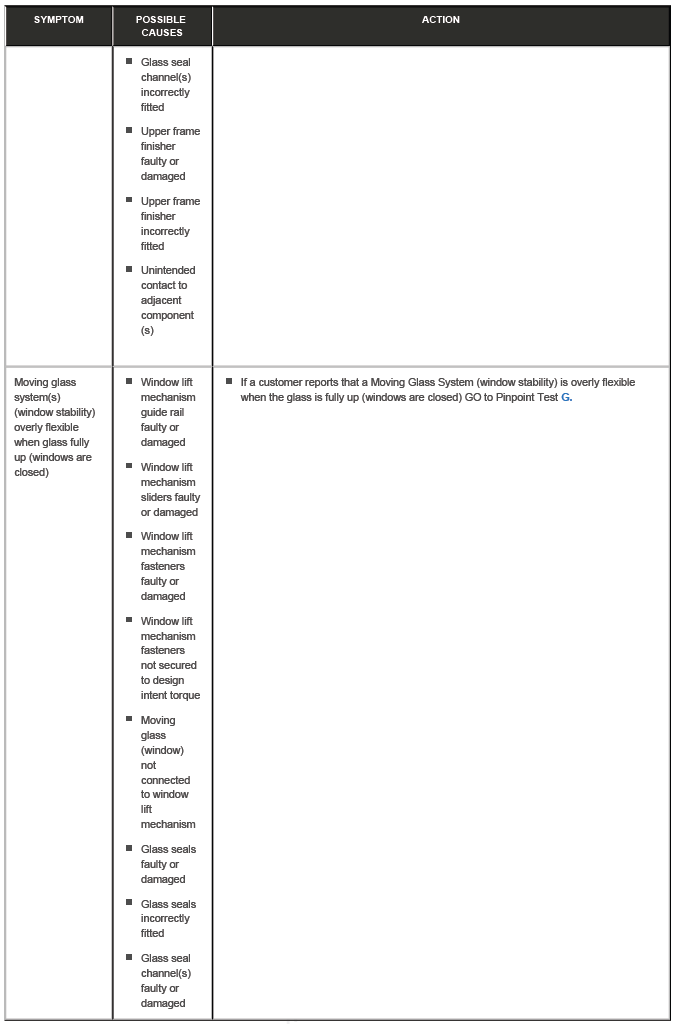

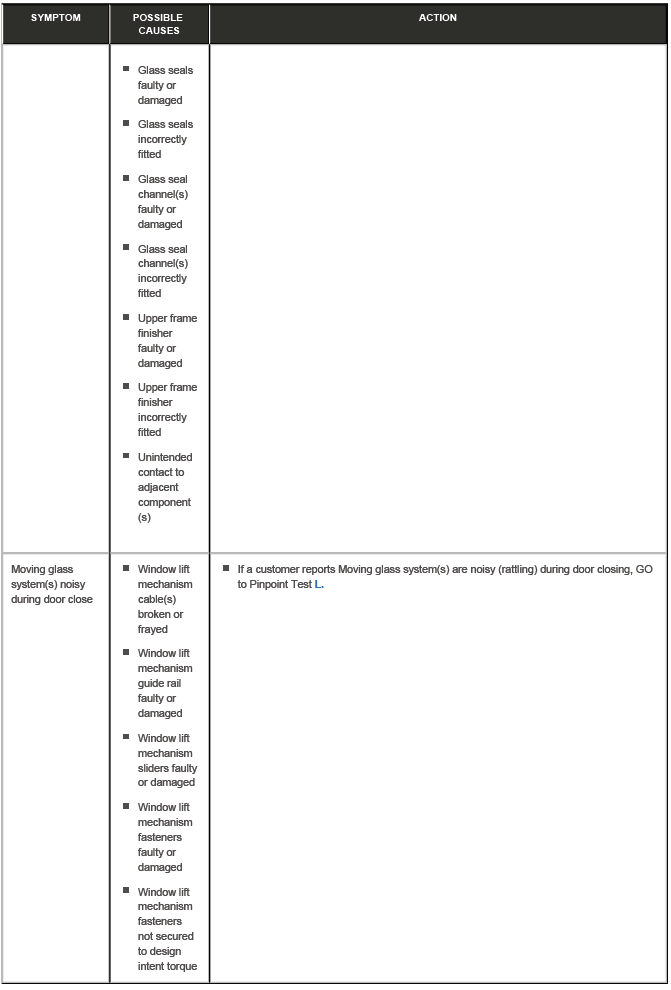

SYMPTOM CHART

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

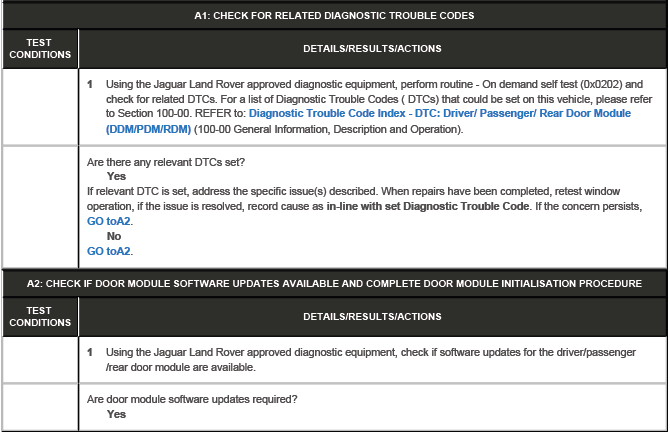

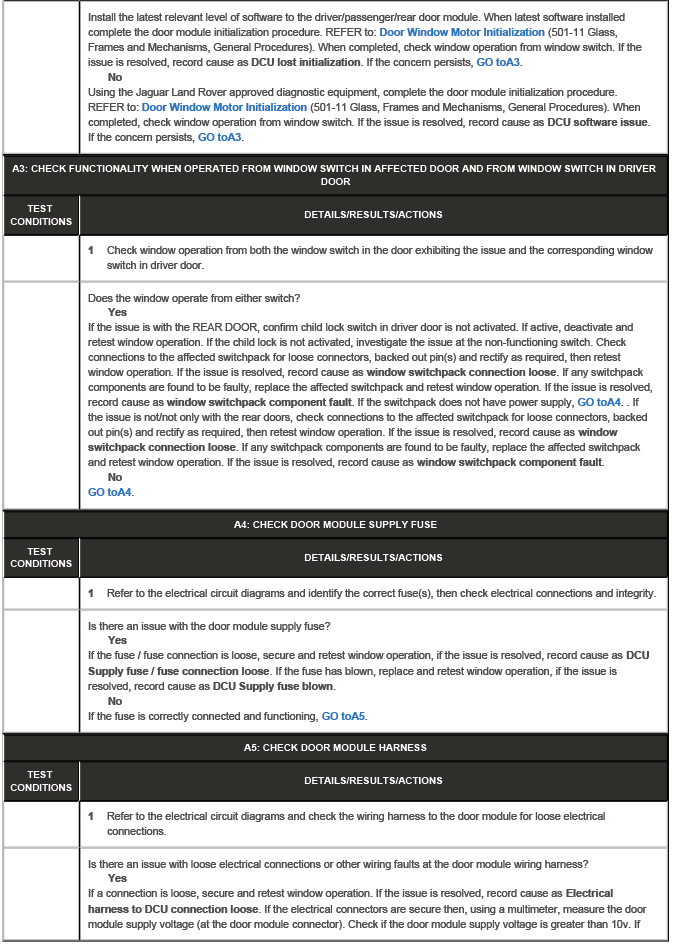

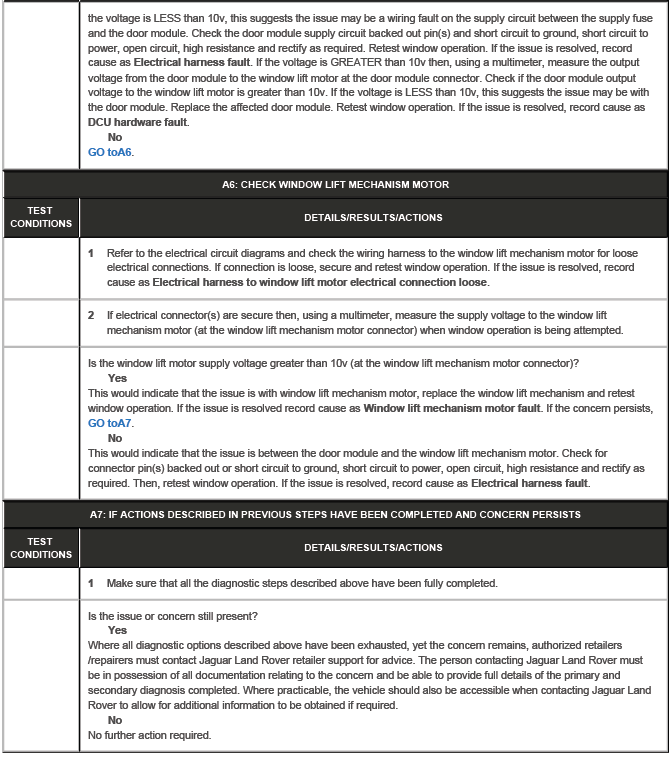

PINPOINT TEST A : MOVING GLASS SYSTEM INOPERATIVE (MOTOR NOISE CANNOT BE HEARD)

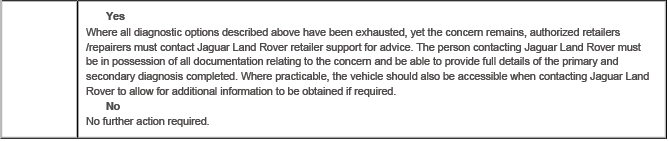

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

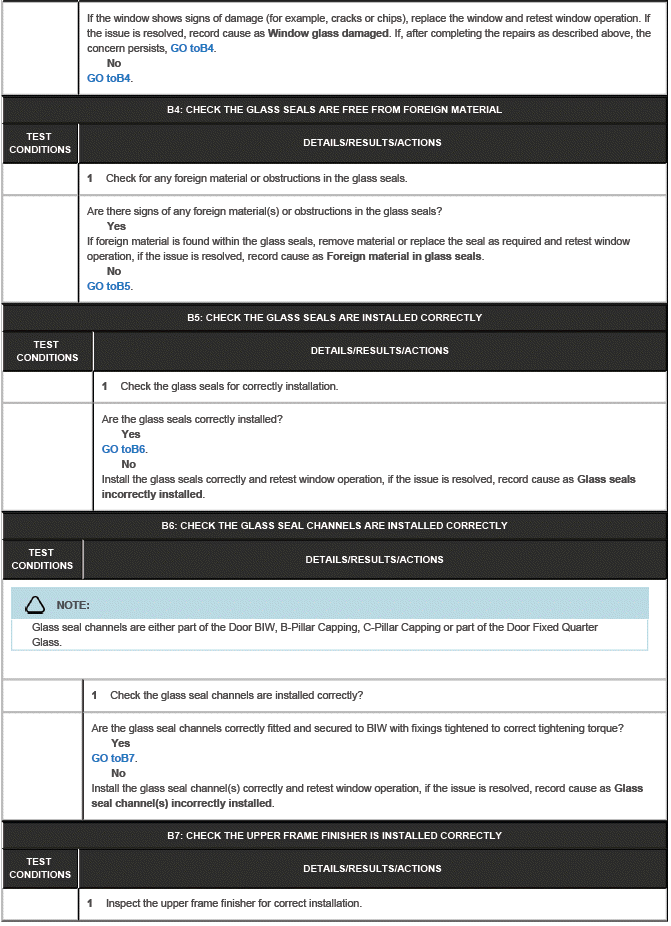

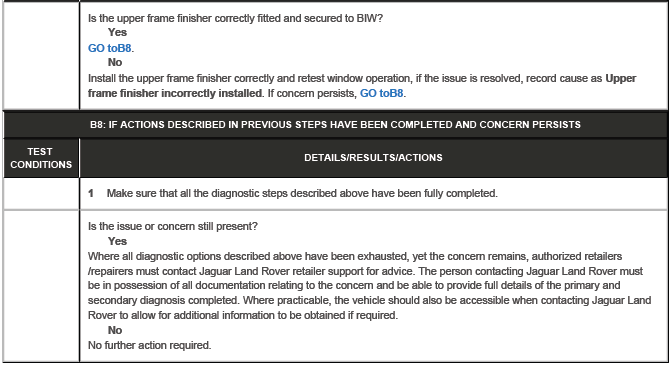

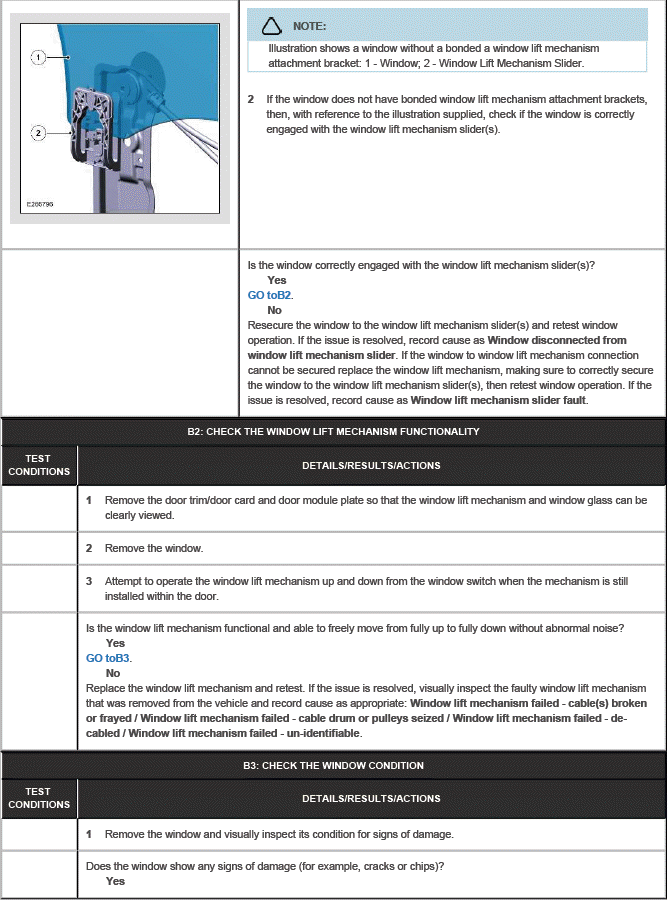

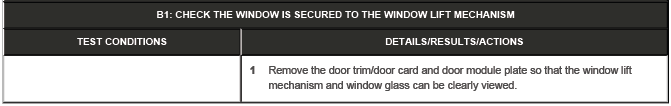

PINPOINT TEST B : MOVING GLASS SYSTEM INOPERATIVE (MOTOR NOISE IS HEARD)

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

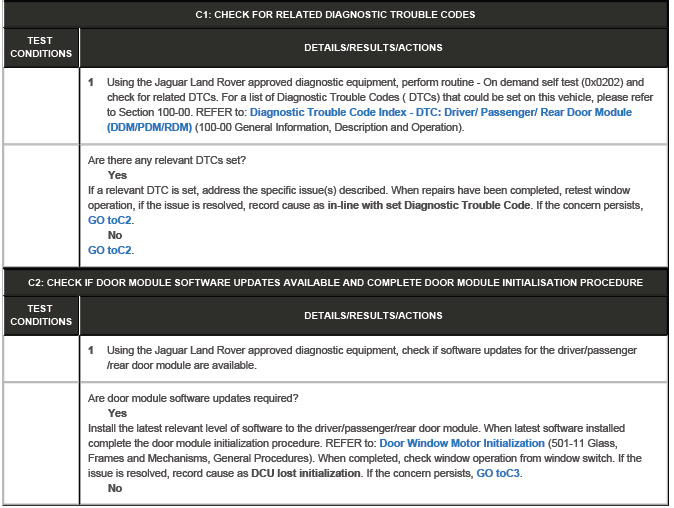

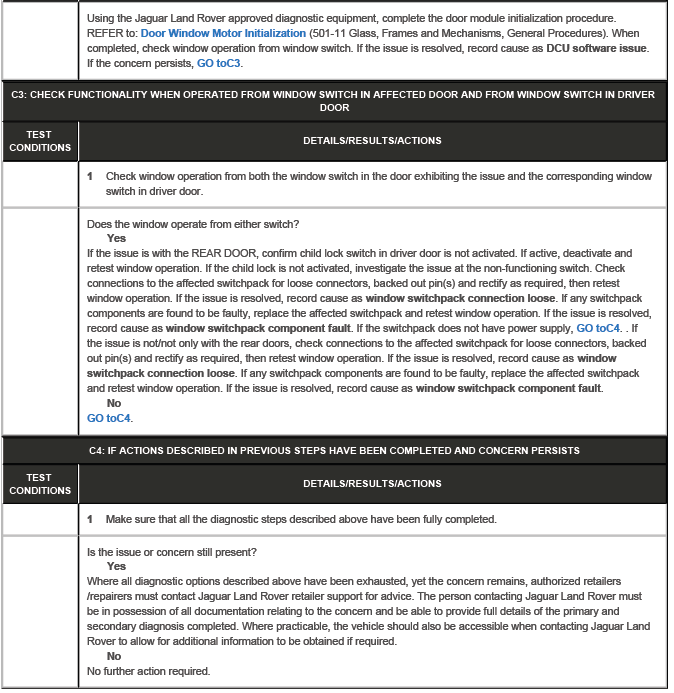

PINPOINT TEST C : MOVING GLASS SYSTEM 'ONE-SHOT' FUNCTION INOPERATIVE

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

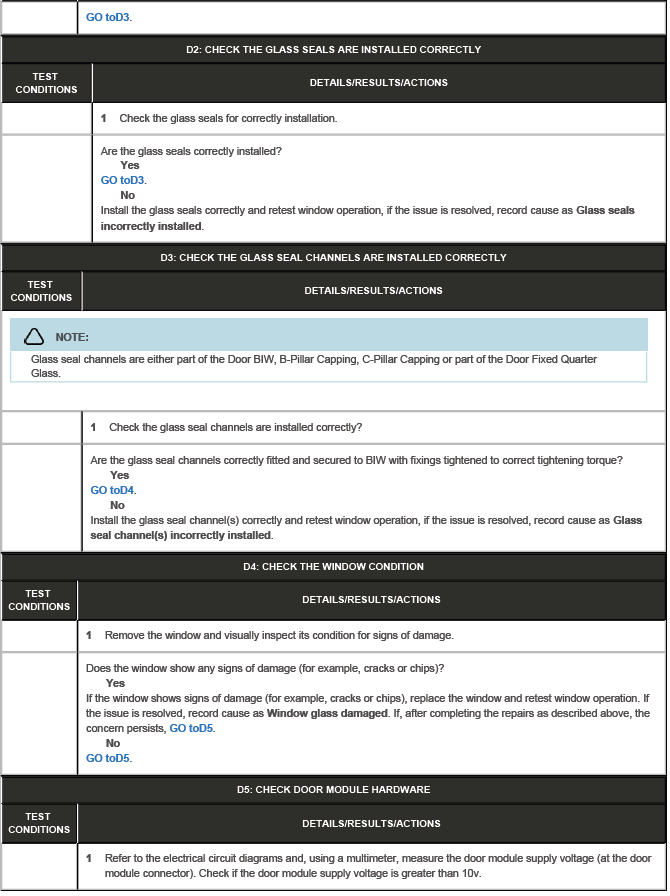

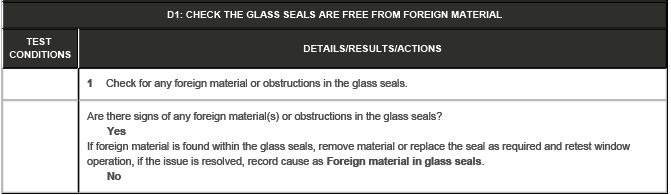

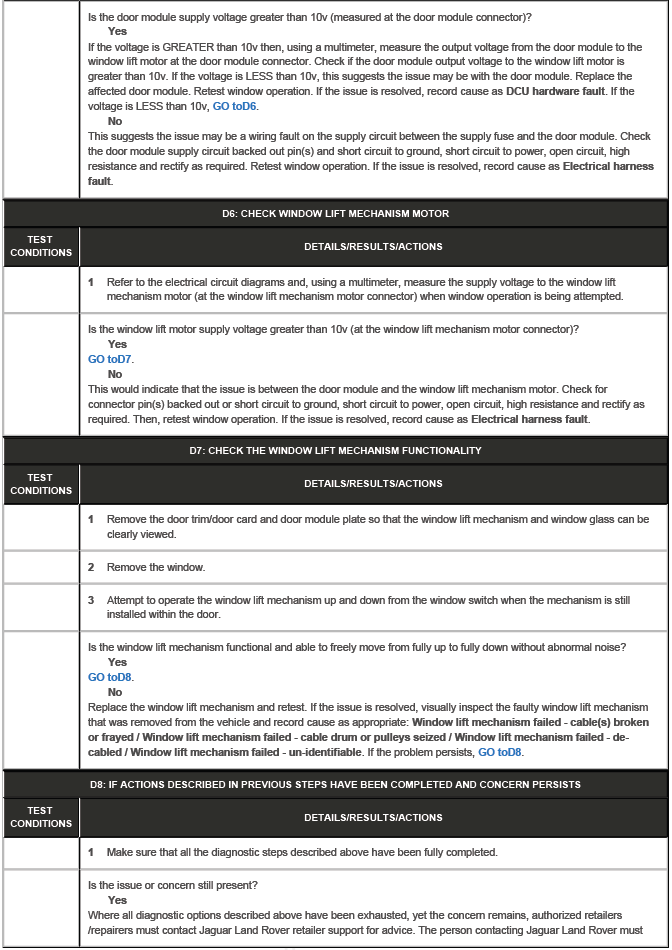

PINPOINT TEST D : MOVING GLASS SYSTEM(S) (WINDOW MOVEMENTS) ARE CONSISTENTLY SLOW OPERATING

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

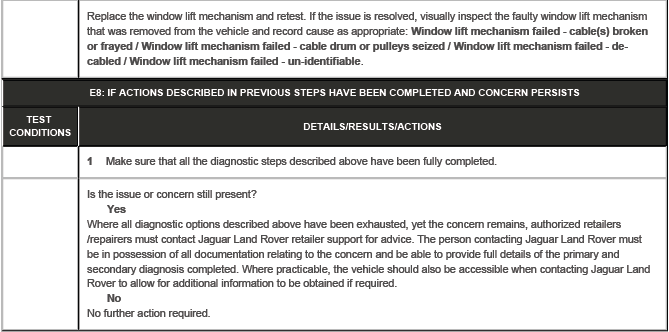

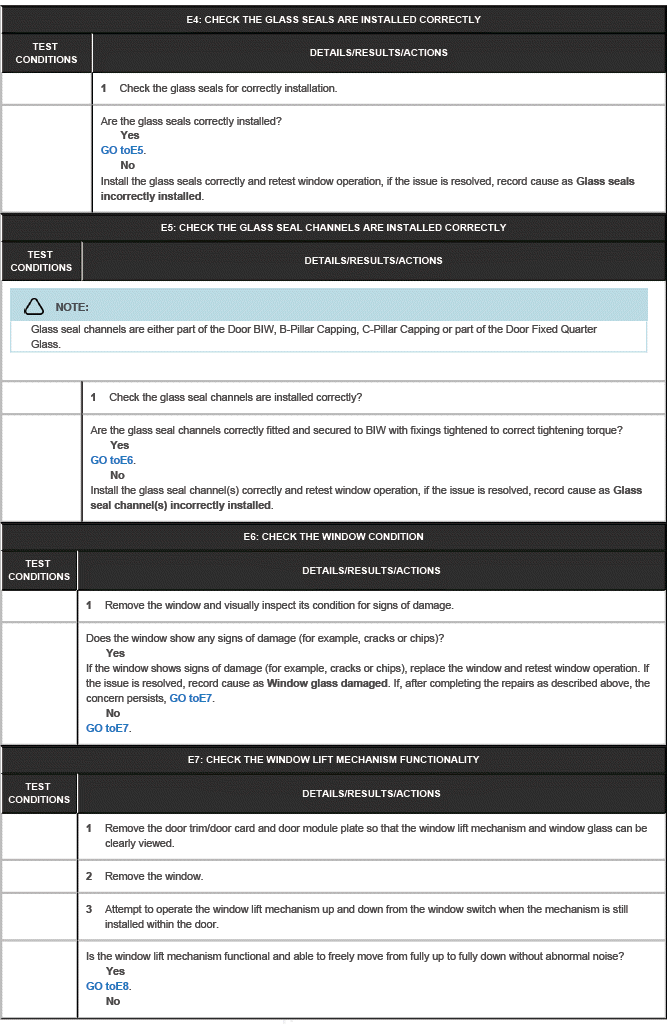

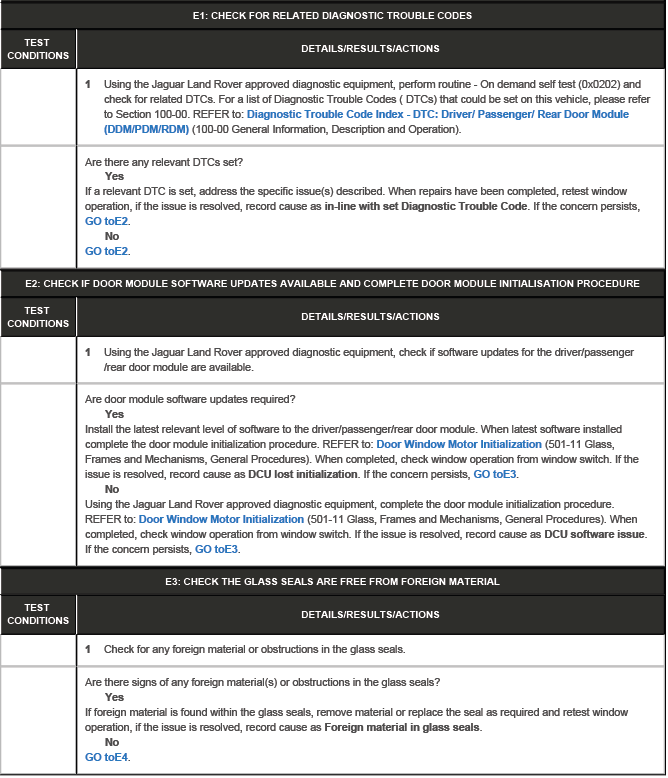

PINPOINT TEST E : MOVING GLASS SYSTEM (WINDOW MOVEMENT) CONSISTENTLY ONLY PARTIALLY MOVES

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

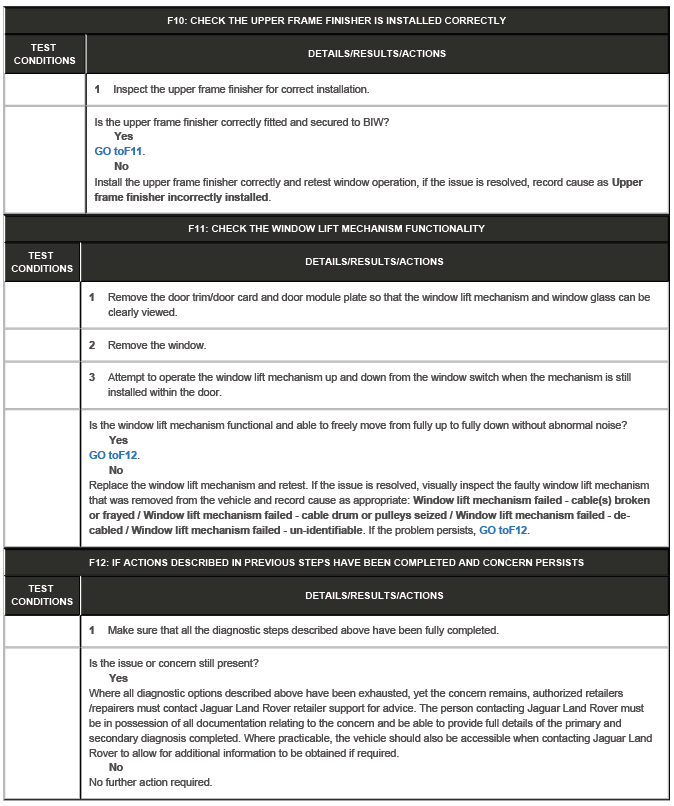

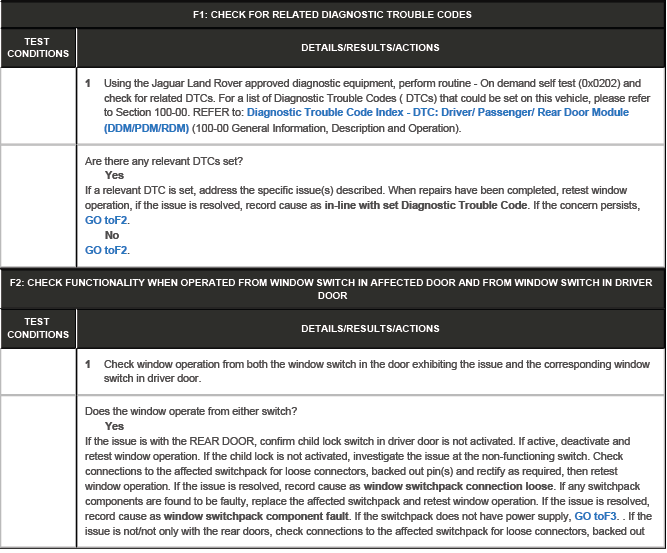

PINPOINT TEST F : MOVING GLASS SYSTEM INCONSISTENTLY ONLY PARTIALLY MOVES

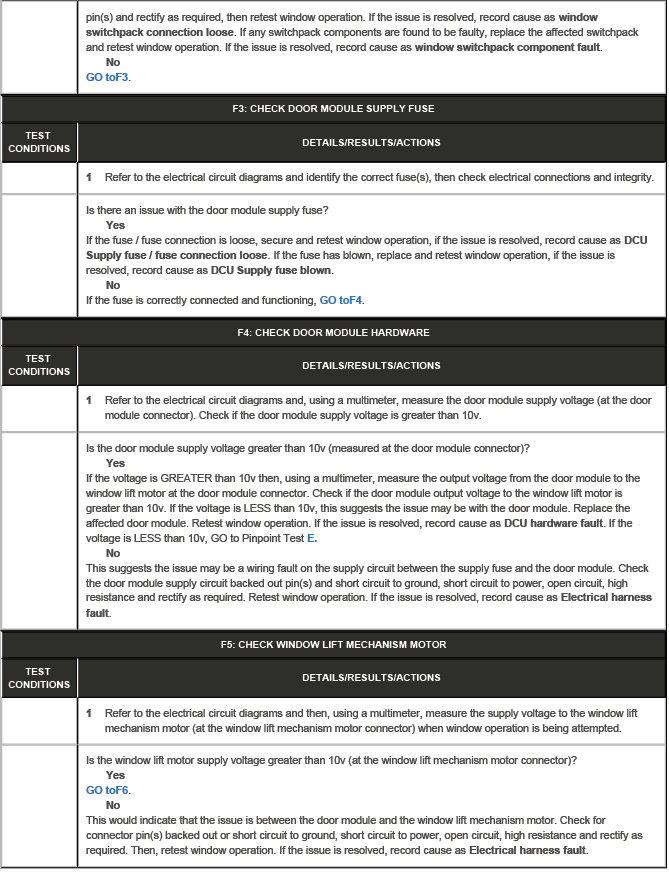

Glass, Frames and Mechanisms

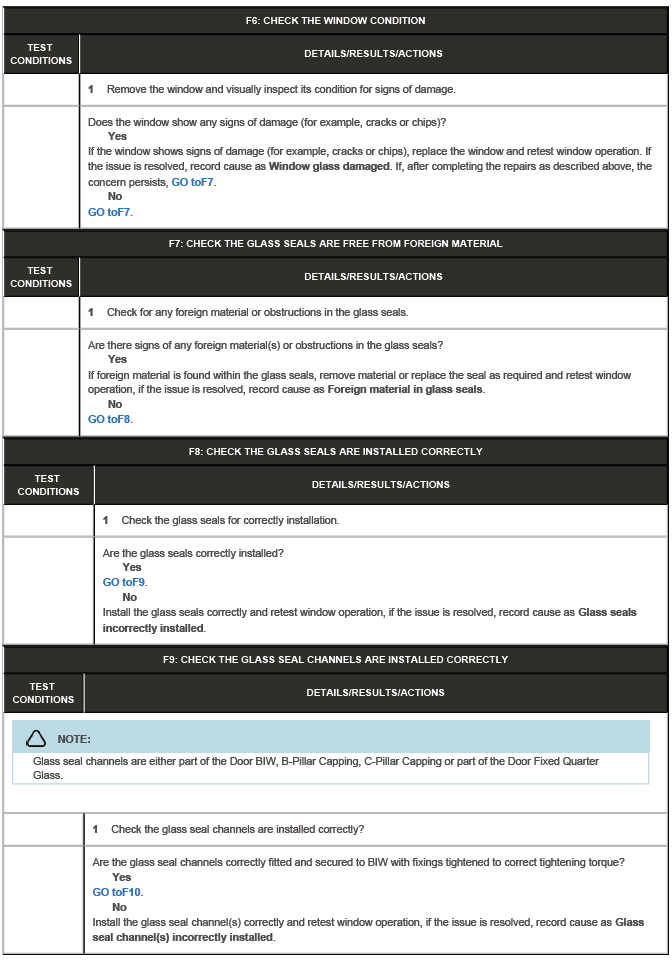

Glass, Frames and Mechanisms

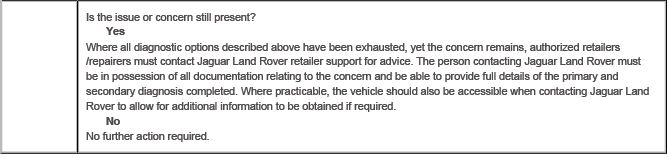

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

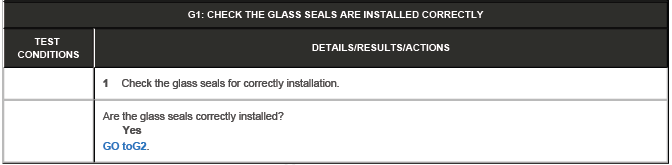

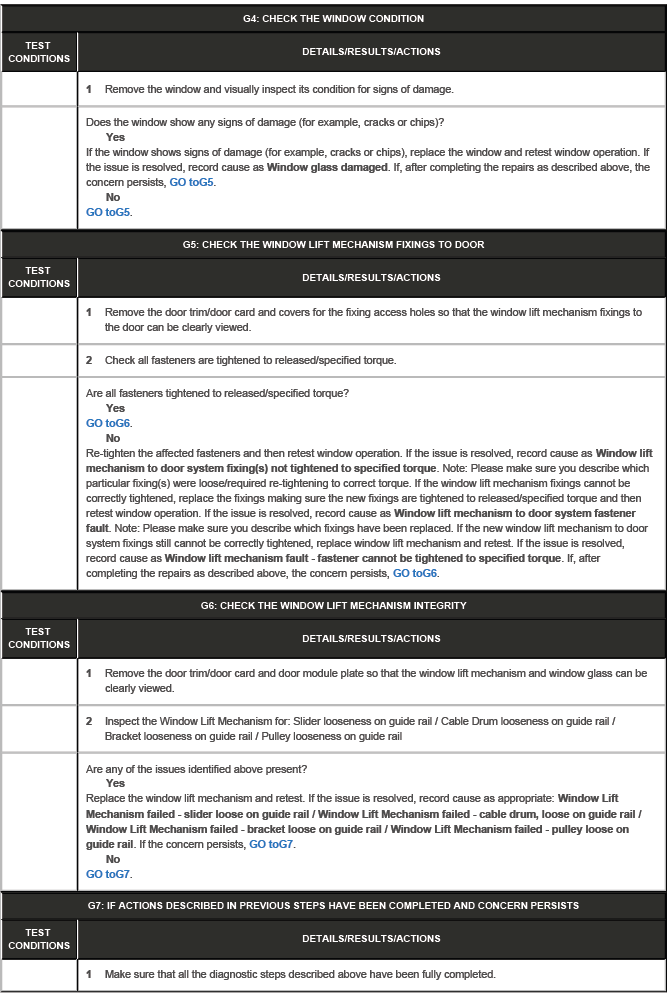

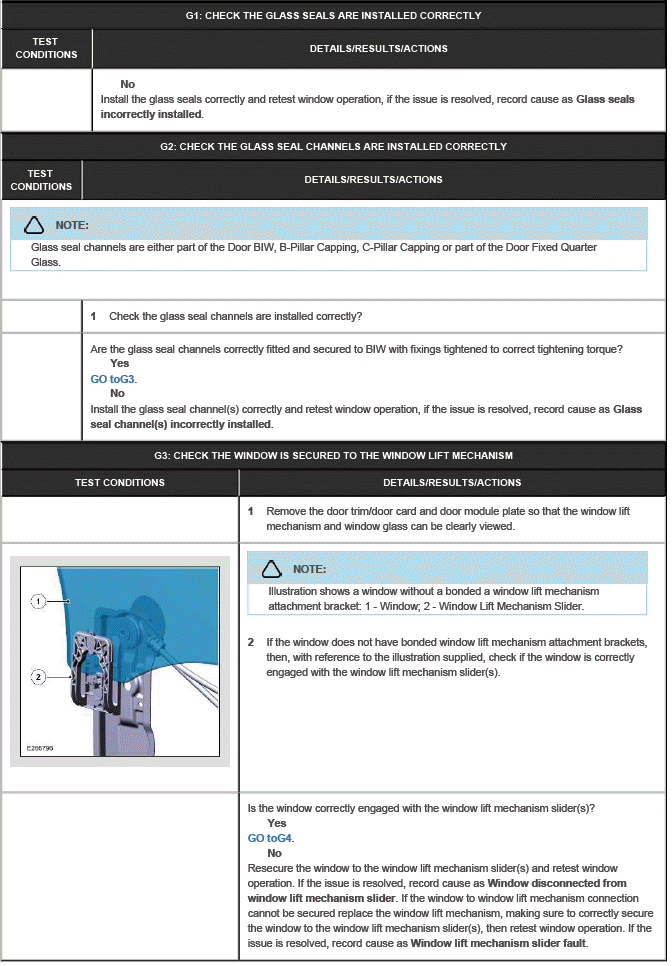

PINPOINT TEST G : MOVING GLASS SYSTEM OVERLY FLEXIBLE (WINDOW STABILITY) WHEN GLASS UP (WINDOWS ARE CLOSED)

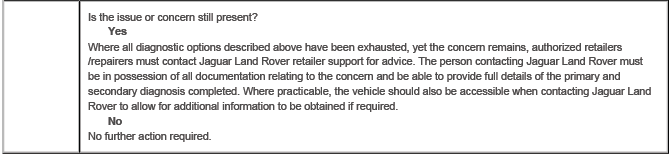

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

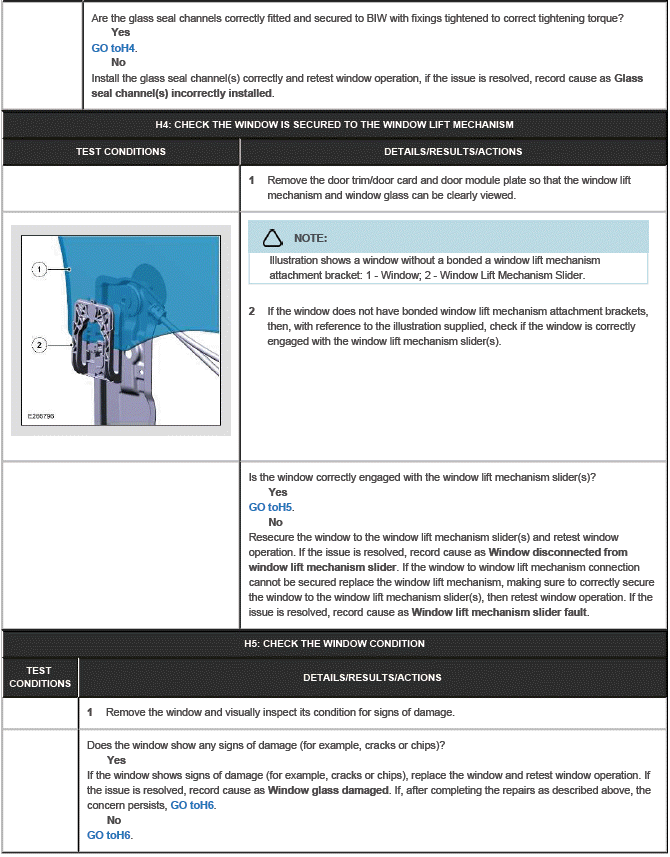

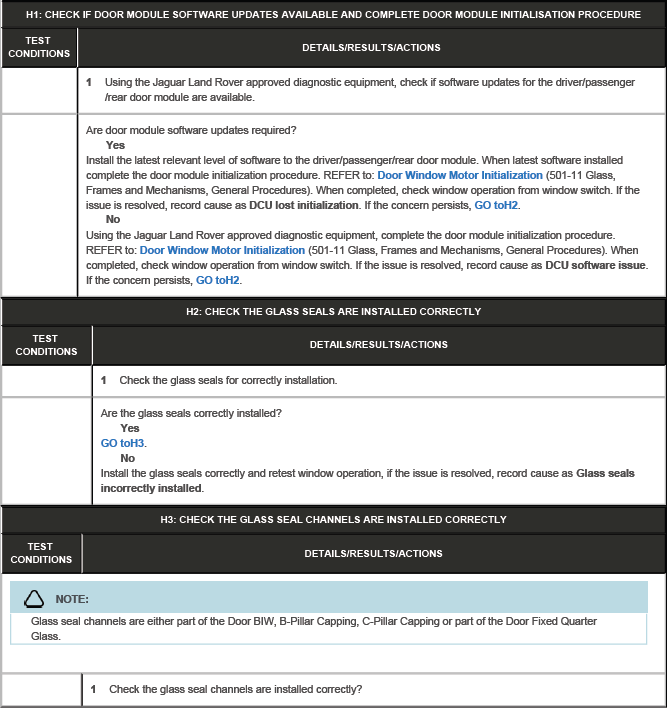

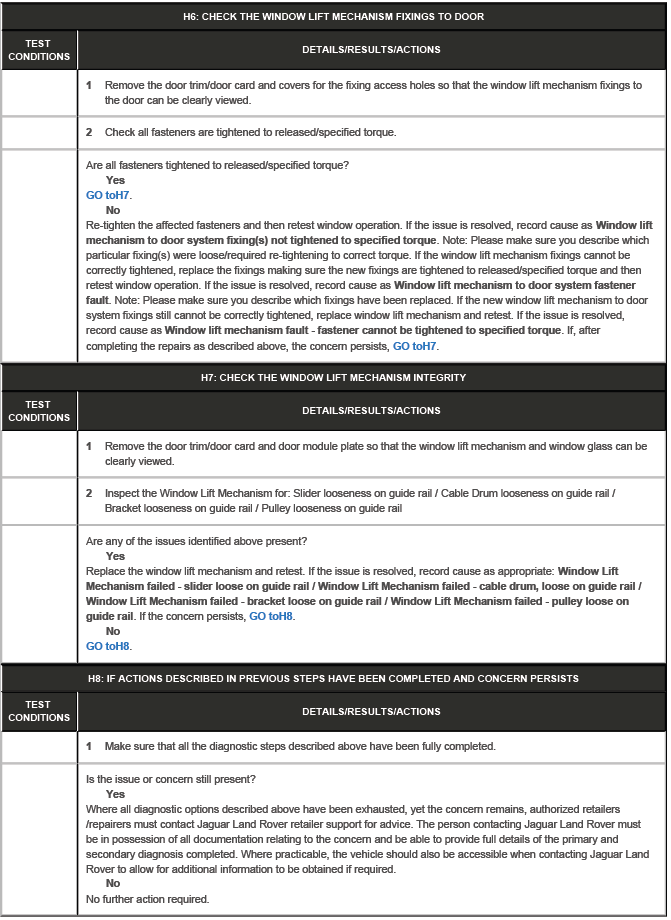

PINPOINT TEST H : MOVING GLASS SYSTEM OVERLY FLEXIBLE (WINDOW STABILITY) WHEN GLASS DOWN (WINDOWS ARE OPEN)

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

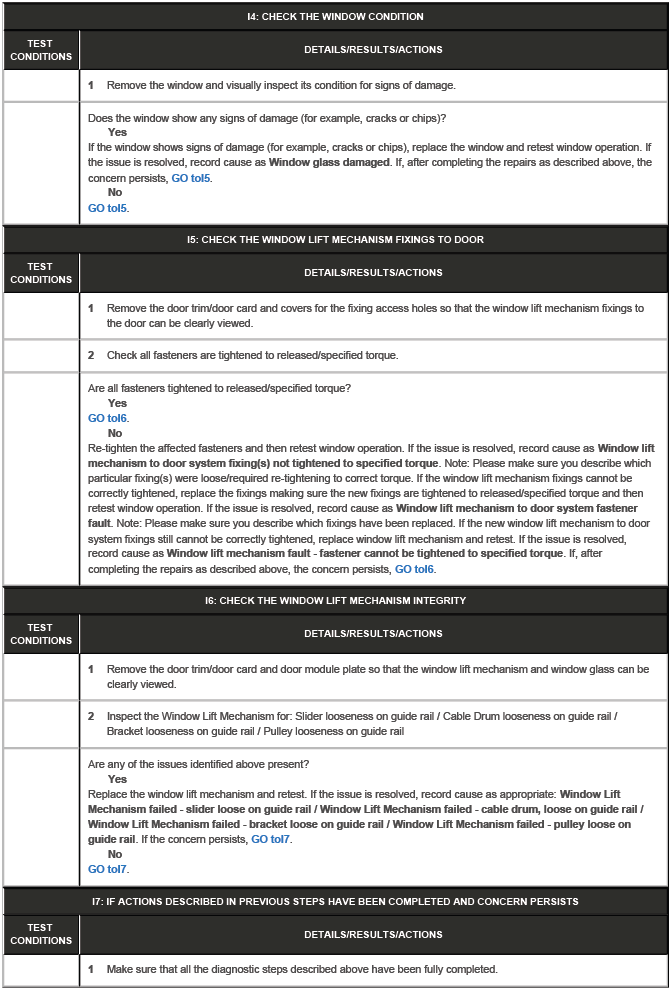

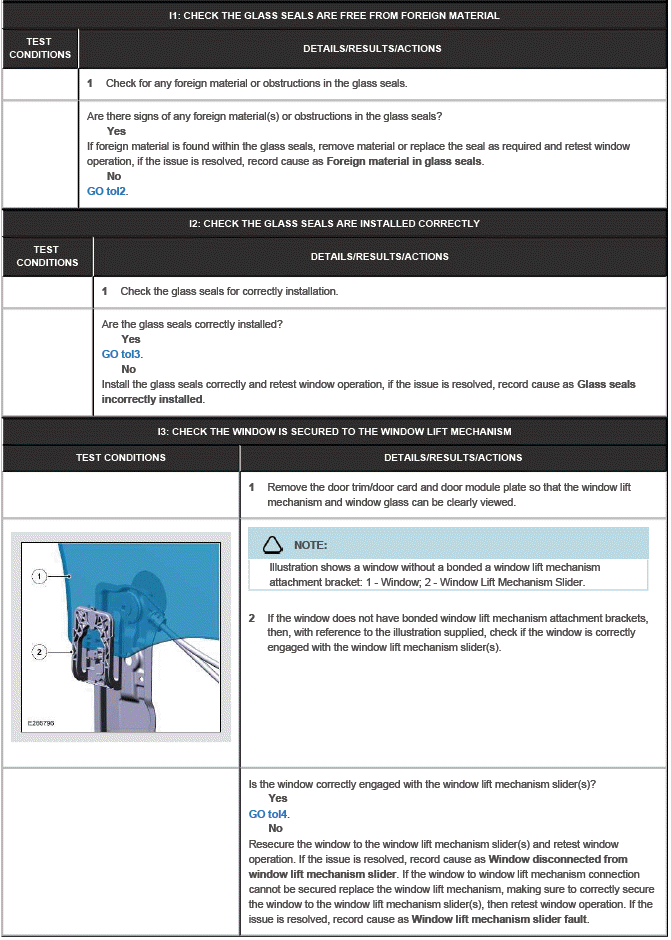

PINPOINT TEST I : WIND NOISE BETWEEN VERTICAL PORTIONS OF GLASS SEALS AND MOVING GLASS (WINDOW)

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

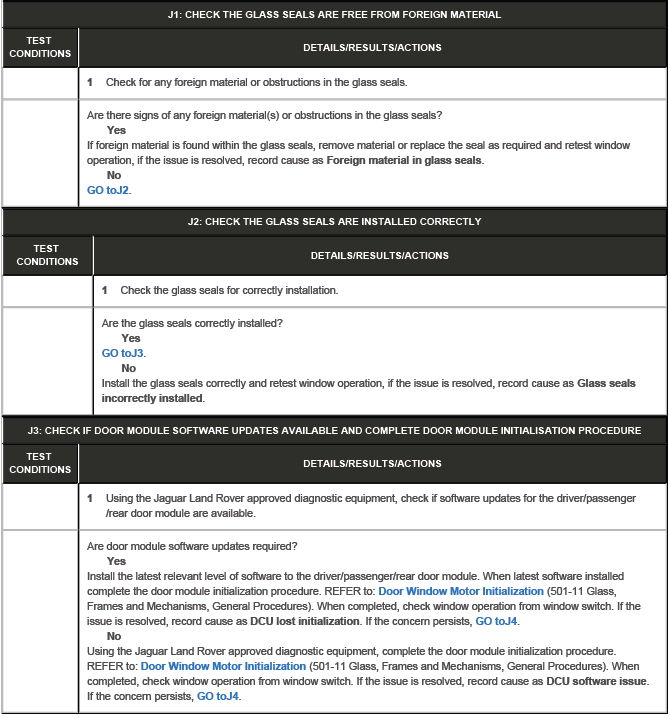

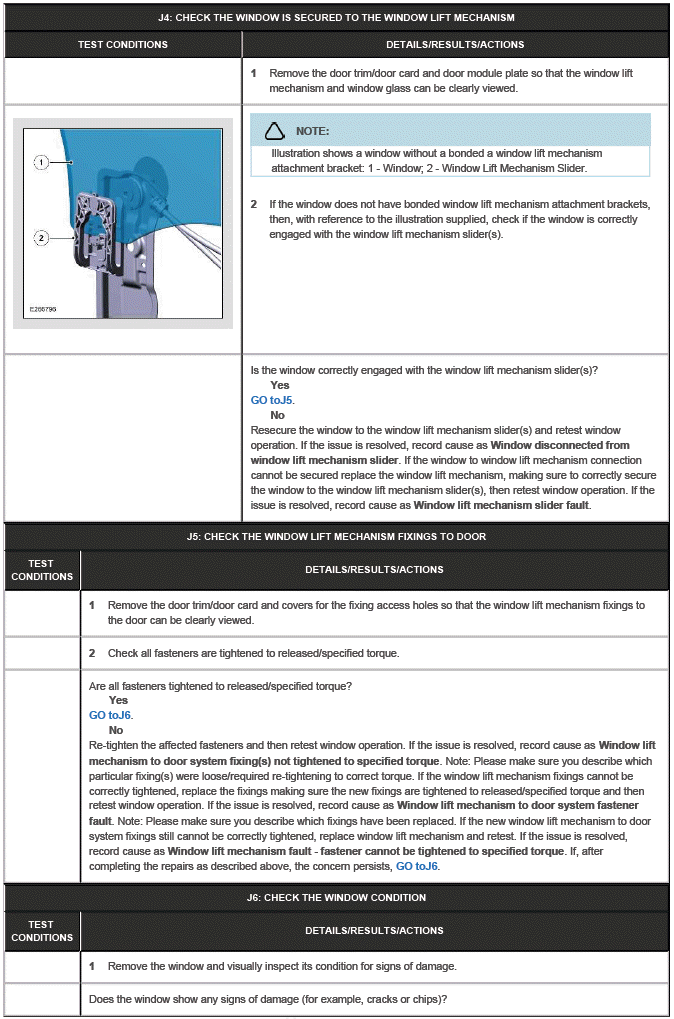

PINPOINT TEST J : WIND NOISE BETWEEN UPPER PORTION OF GLASS SEAL AND MOVING GLASS (WINDOW)

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

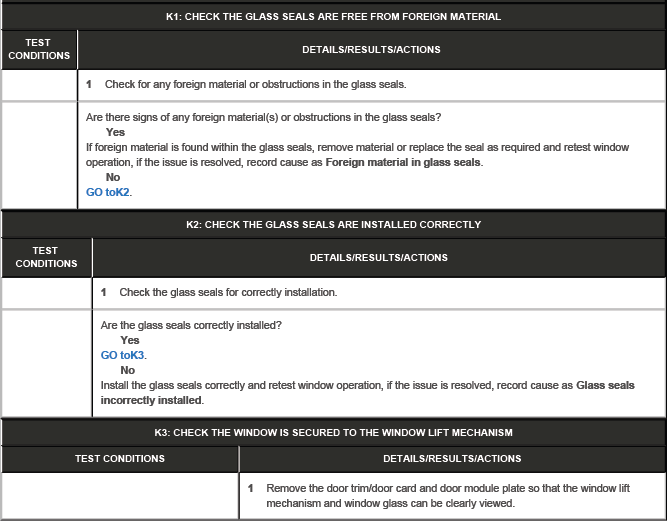

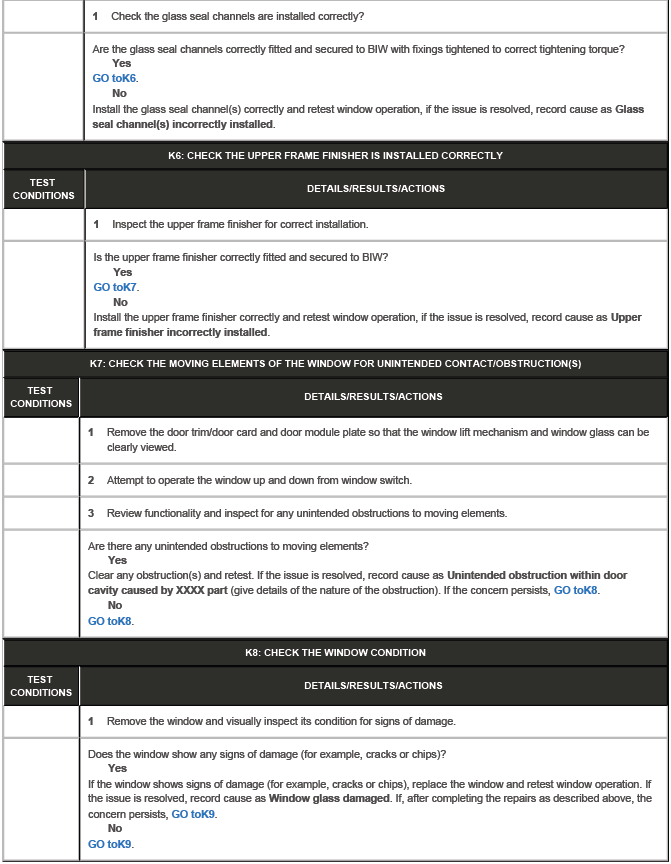

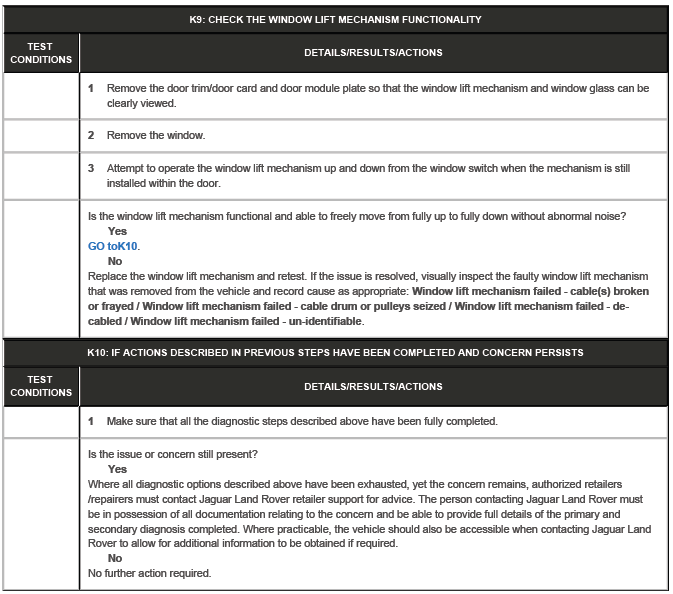

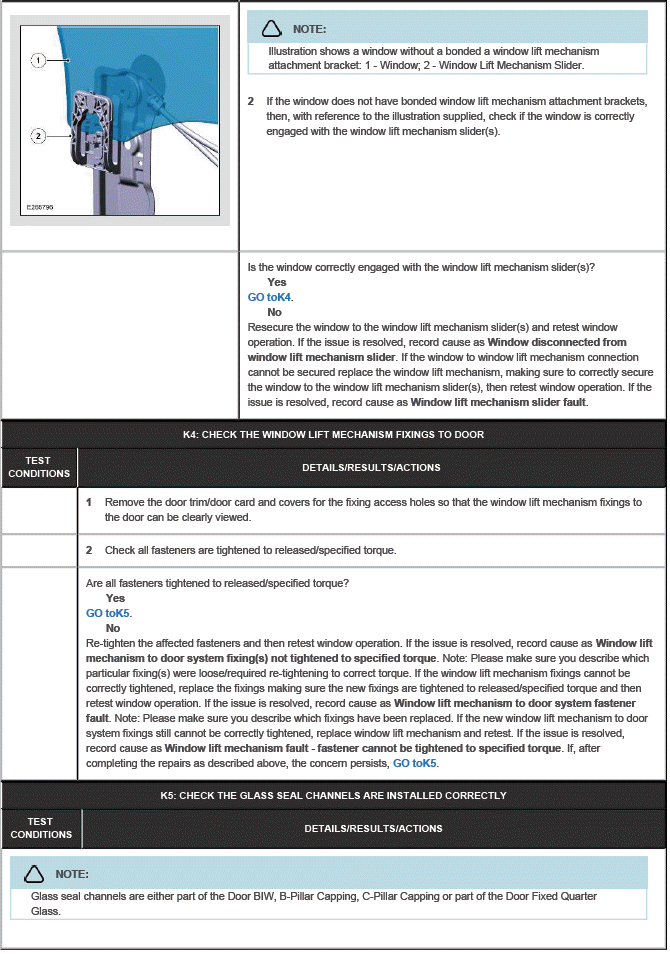

PINPOINT TEST K : MOVING GLASS SYSTEM NOISY DURING OPERATION

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

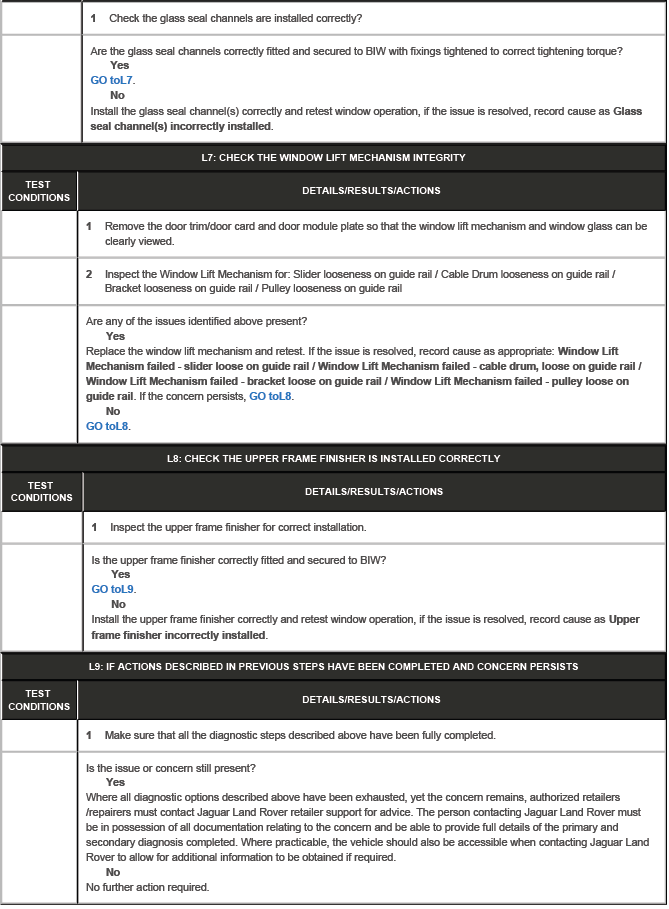

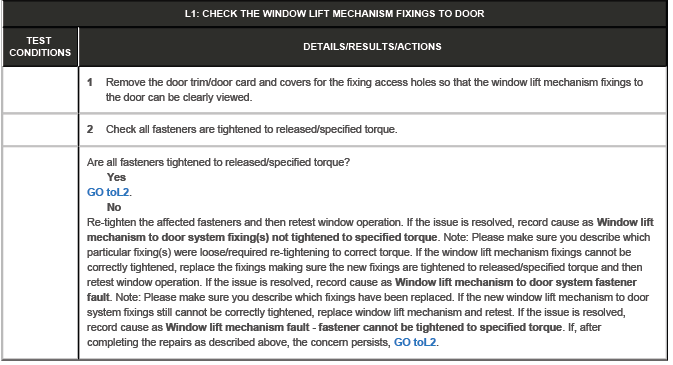

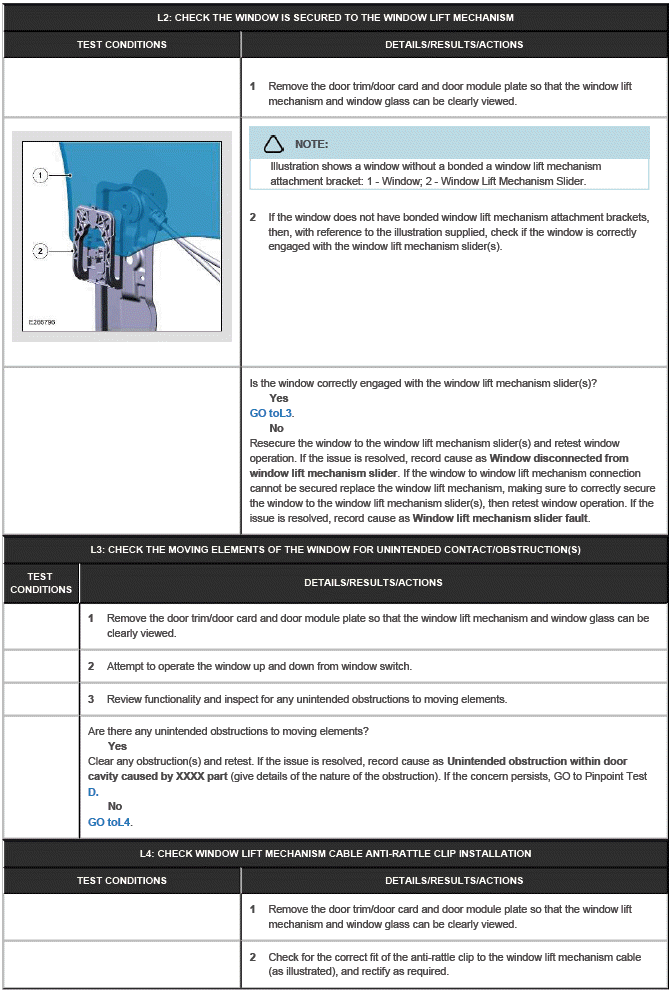

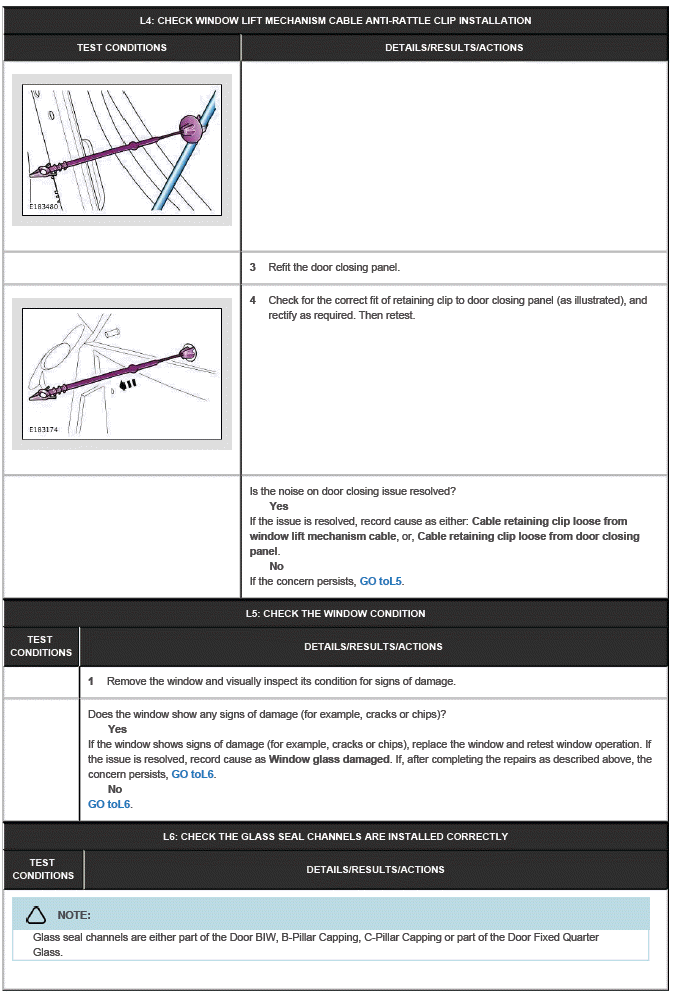

PINPOINT TEST L : MOVING GLASS SYSTEM NOISY DURING DOOR CLOSE

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

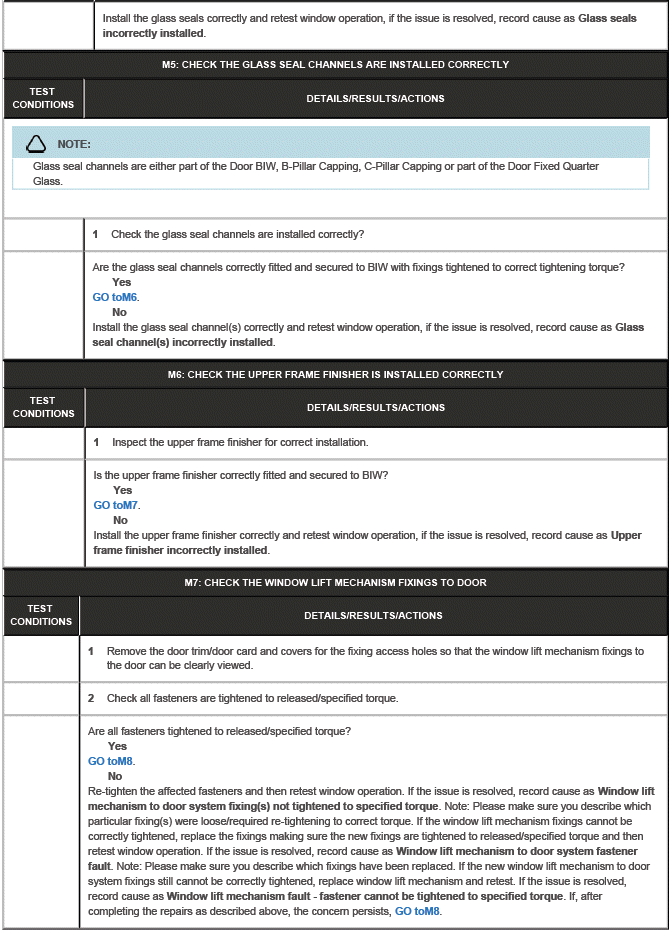

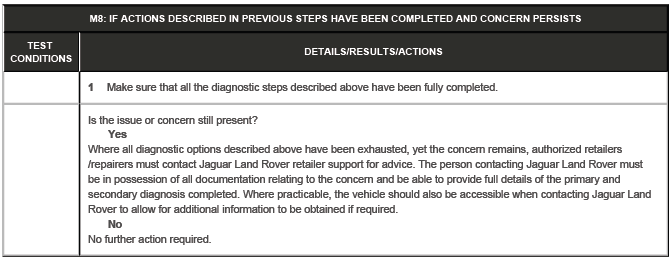

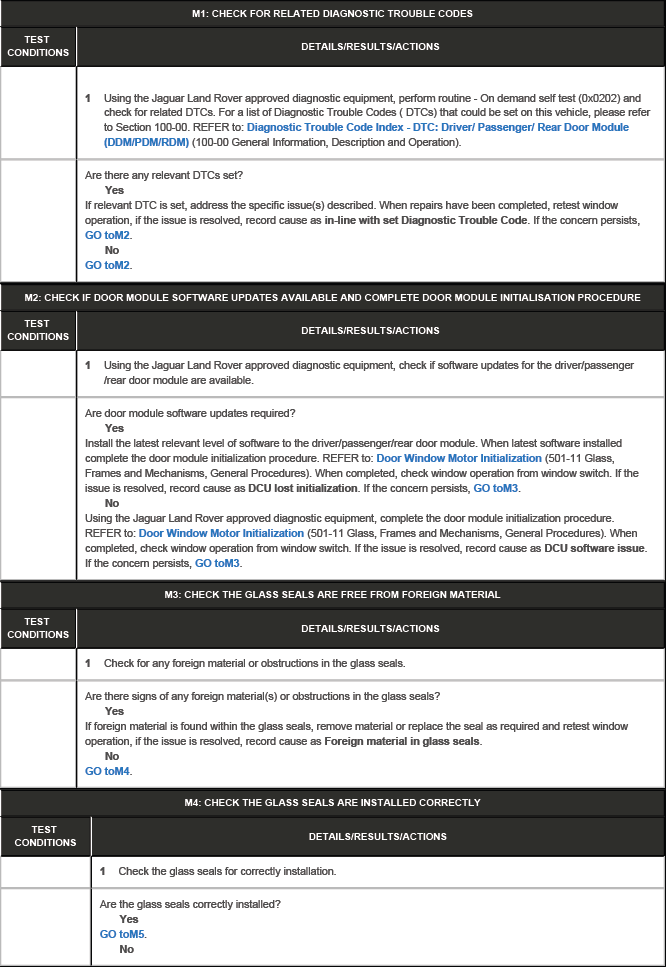

PINPOINT TEST M : MOVING GLASS SYSTEM HAS NUISANCE BOUNCE BACK

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms

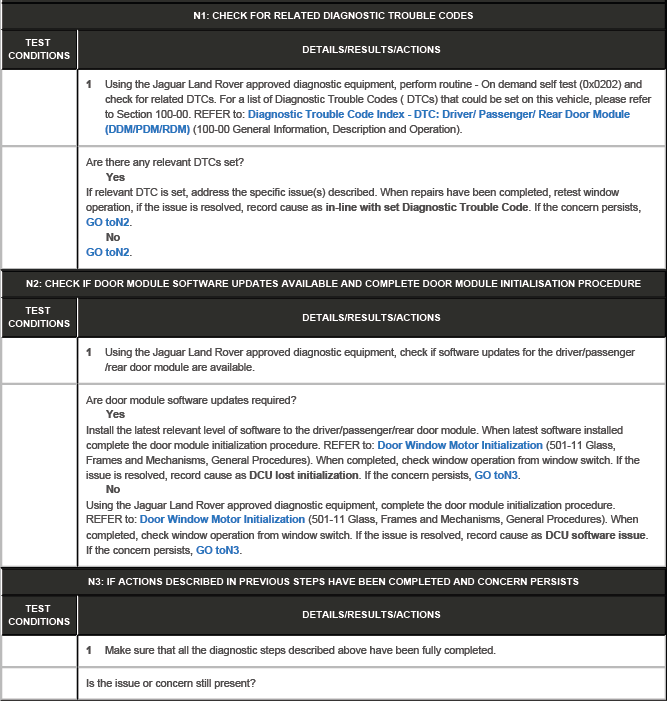

PINPOINT TEST N : MOVING GLASS SYSTEM MOVES IN STEPS DURING OPERATION

Glass, Frames and Mechanisms

Glass, Frames and Mechanisms
