Land Rover Defender: Handles, Locks, Latches and Entry Systems - Control Diagram

Land Rover Defender 2020-2025 Service Manual / Body and Paint / Handles, Locks, Latches and Entry Systems / Handles, Locks, Latches and Entry Systems - Control Diagram

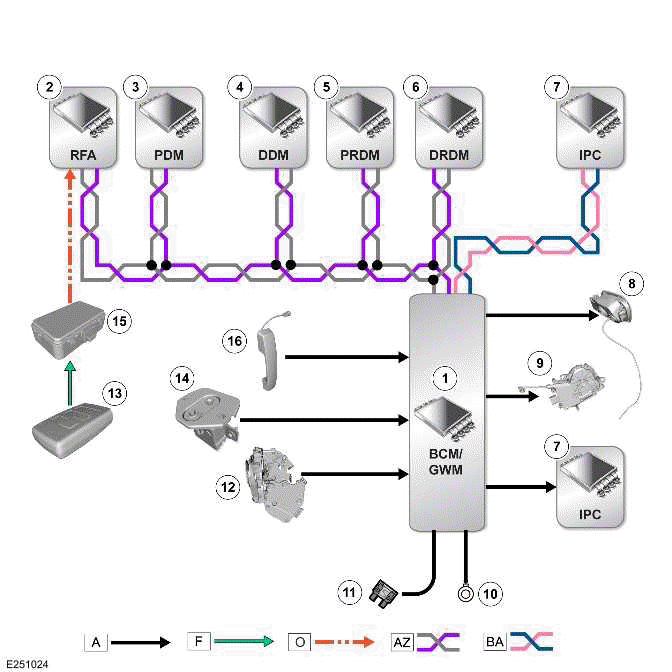

CONTROL DIAGRAM - 1 OF 2 - CENTRAL DOOR LOCKING SYSTEM

NOTE: Vehicle with 5 doors is shown, vehicle with 3 doors is similar.

Handles, Locks, Latches and Entry Systems

A = HARDWIRED: F = RF TRANSMISSION: O = LIN: AZ = HS CAN BODY SYSTEMS BUS: BA = HS CAN HMI SYSTEMS BUS.

  1. BCM/ GWM
  2. RFA
  3. PDM
  4. DDM
  5. PRDM
  6. DRDM
  7. IPC
  8. Fuel flap release motor
  9. CDL motor - Tailgate
  10. Ground
  11. Power supply
  12. Tailgate ajar switch
  13. Smart key
  14. Hood ajar switch
  15. RF receiver
  16. Tailgate open switch

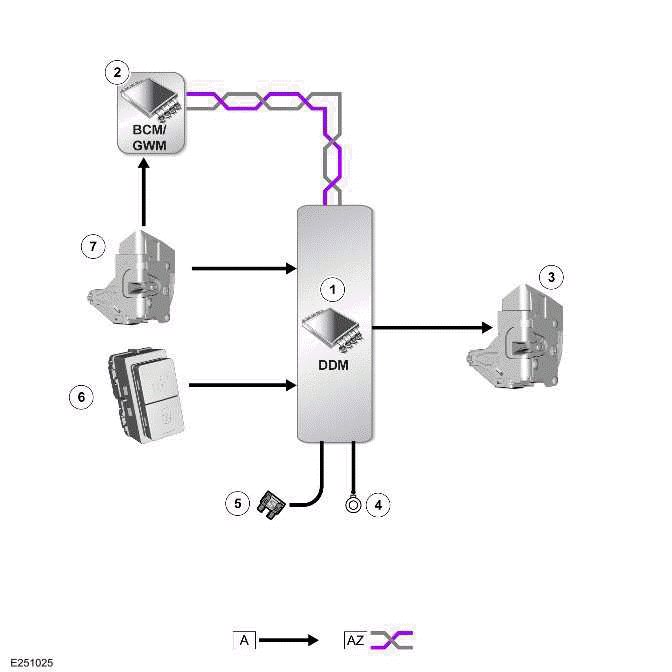

CONTROL DIAGRAM - 2 OF 2 - DOOR LATCHES

NOTE: The driver door is shown, the others are similar.

Handles, Locks, Latches and Entry Systems

A = HARDWIRED: AZ = HS CAN BODY SYSTEMS BUS.

  1. DDM
  2. BCM/ GWM
  3. CDL motor
  4. Ground
  5. Power supply
  6. CDL lock/unlock switch
  7. Ajar switch and status switch - Door latch
