Land Rover Defender: Locks, Latches and Entry Systems
DIAGNOSIS AND TESTING
PRINCIPLES OF OPERATION
For a detailed description of the Locks, Latches and Entry Systems, refer to
the relevant Description and Operation
section in the workshop manual. REFER to: Handles, Locks, Latches and Entry
Systems (Handles, Locks, Latches and Entry Systems, Description and Operation).
INSPECTION AND VERIFICATION
CAUTIONS:
- Diagnosis by substitution from a donor vehicle is NOT acceptable.
Substitution of control modules does
not guarantee confirmation of a fault, and may also cause additional faults
in the vehicle being tested and
/or the donor vehicle.
- The vehicle latches are non-serviceable. Lubrication must not be
sprayed into or around the door, hood,
fuel flap or tailgate latches. Care should be taken when washing the vehicle
to not spray water at or into
the latches
NOTES:
- If a control module or a component may be at fault and the vehicle
remains under manufacturer warranty,
refer to the Warranty Policy and Procedures manual, or determine if any
prior approval program is in
operation, prior to the installation of a new module/component.
- When performing voltage or resistance tests, always use a digital
multimeter accurate to three decimal
places, and with an up-to-date calibration certificate. When testing
resistance always take the resistance
of the digital multimeter leads into account.
- Check and rectify basic faults before beginning diagnostic routines
involving pinpoint tests.
- Verify the customer concern
- Visually inspect for obvious signs of damage and system integrity

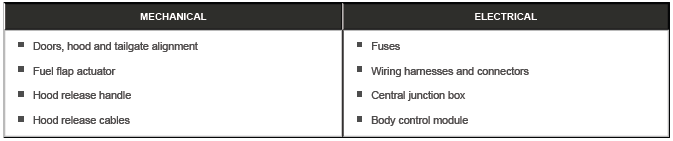

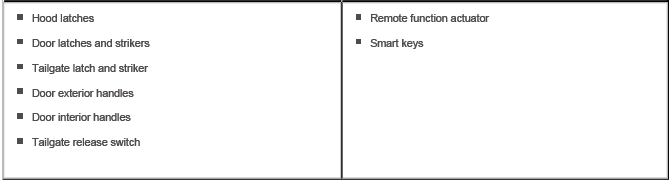

Visual Inspection
- If an obvious cause for an observed or reported concern is found,
correct the cause (if possible) before
proceeding to the next step
- If the cause is not visually evident, verify the symptom and refer to
the Symptom Chart, alternatively check for
Diagnostic Trouble Codes (DTCs) and refer to the DTC Index
- Check JLR claims submission system for open campaigns. Refer to the
corresponding bulletins and SSMs
which may be valid for the specific customer complaint and complete the
recommendations as required

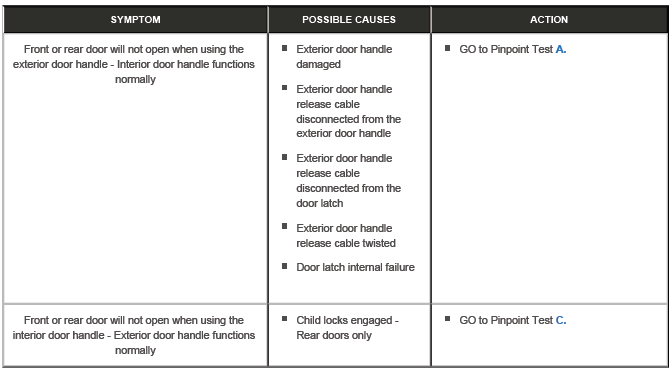

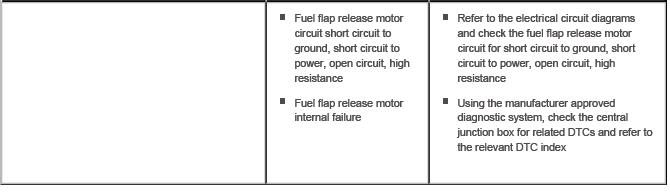

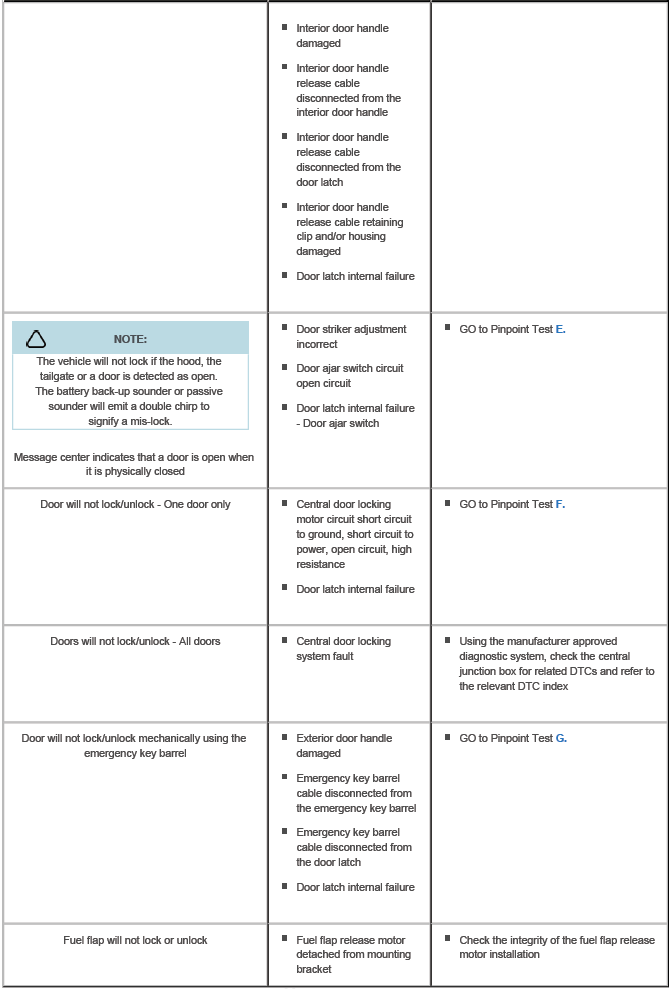

SYMPTOM CHART
NOTE:
Before commencing fault diagnostics, make sure that the vehicles' normal
locking/entry features (for
example, internally locked mode, externally locked mode, single vs double
locking modes, single point entry
vs global entry modes) are not the cause of the locking/latch issues reported by
the customer).
PINPOINT TESTS

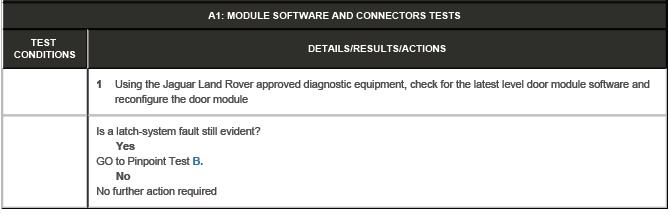

PINPOINT TEST A : INITIAL CHECKS

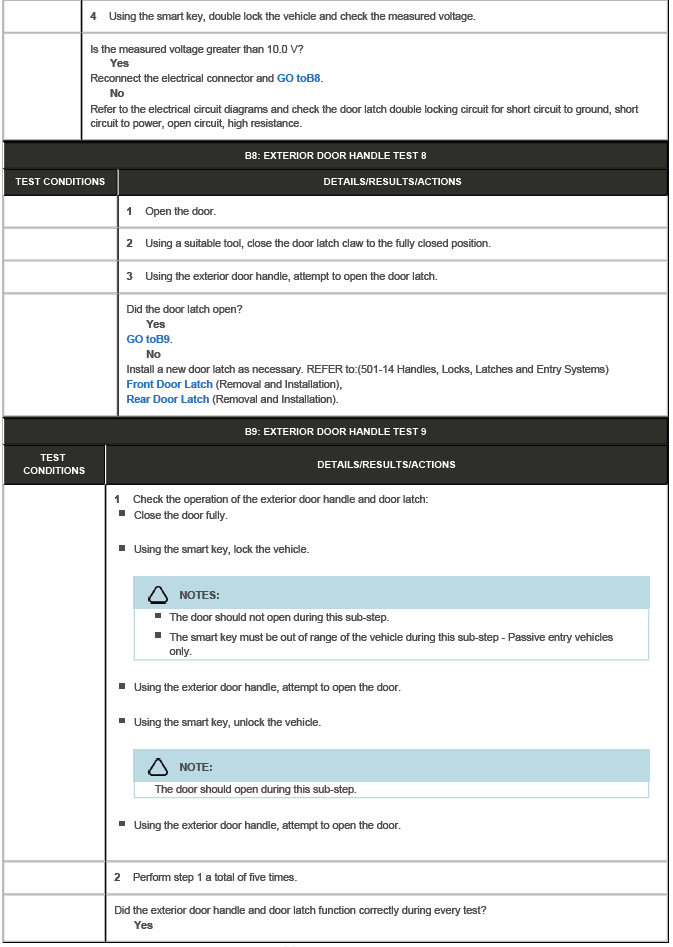

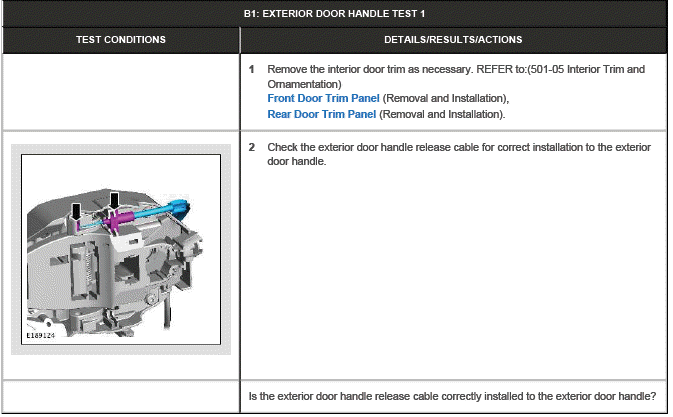

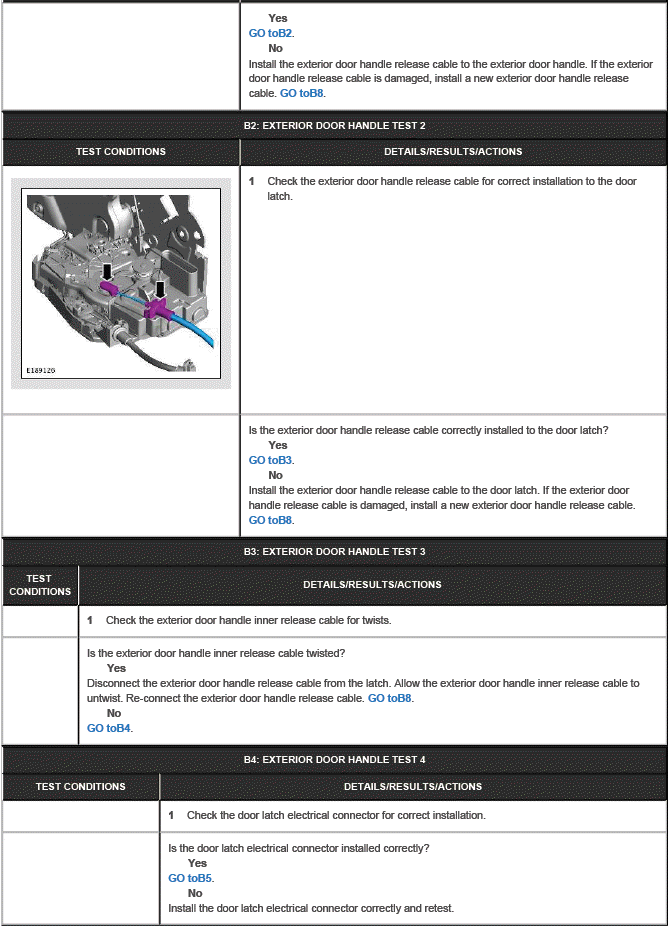

PINPOINT TEST B : EXTERIOR DOOR HANDLE TESTS

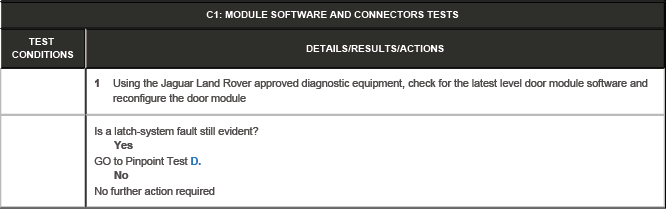

PINPOINT TEST C : INITIAL CHECKS

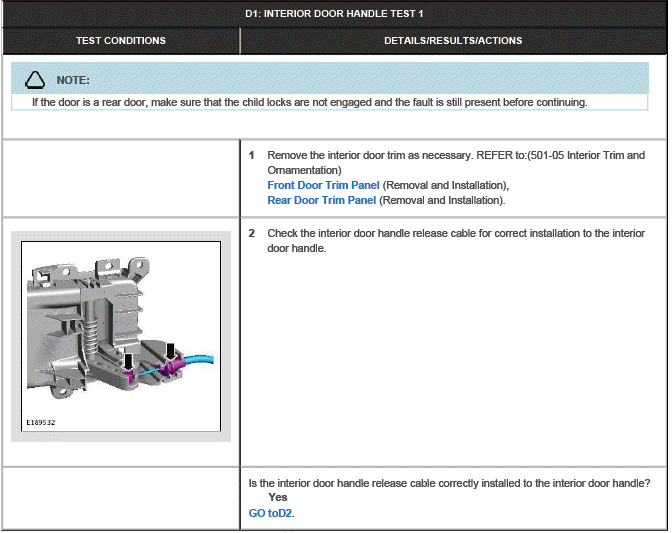

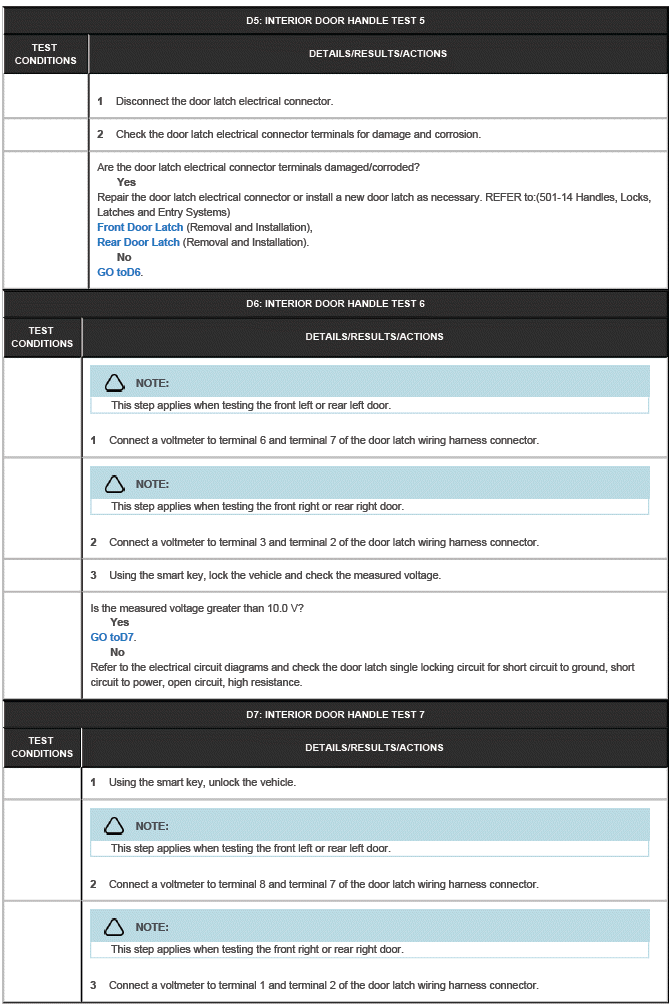

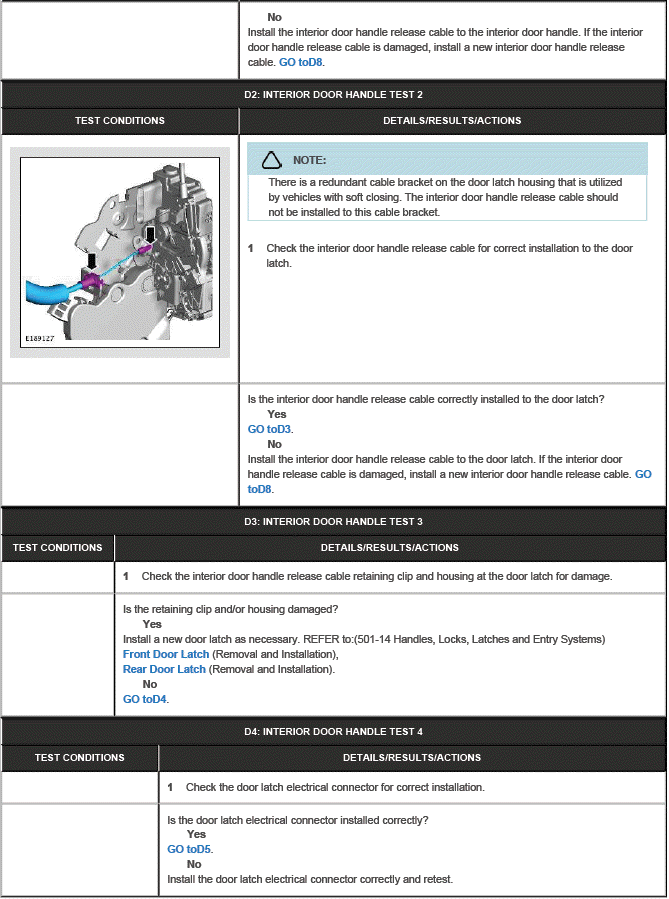

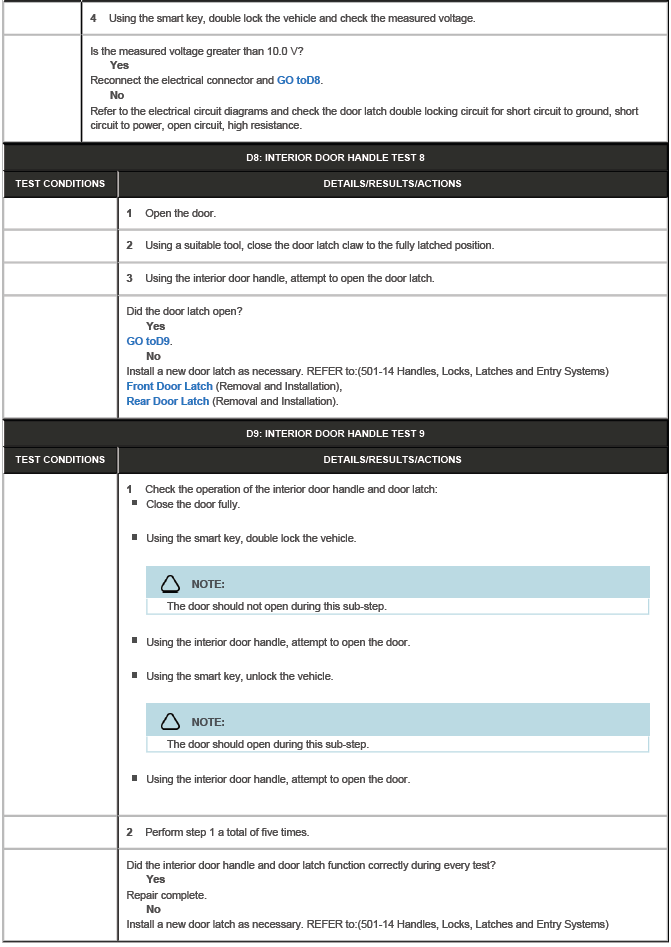

PINPOINT TEST D : INTERIOR DOOR HANDLE TESTS

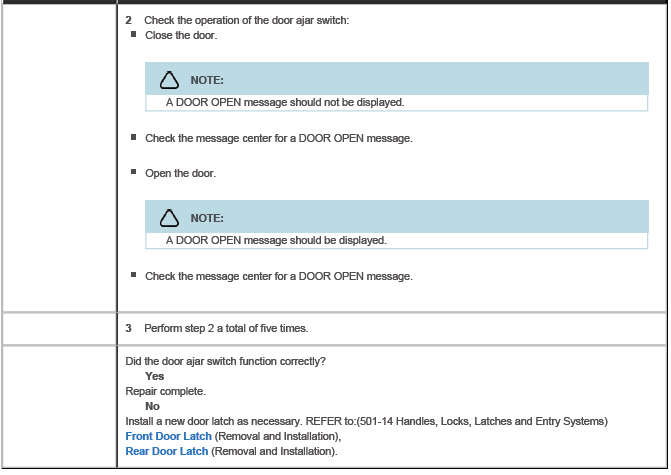

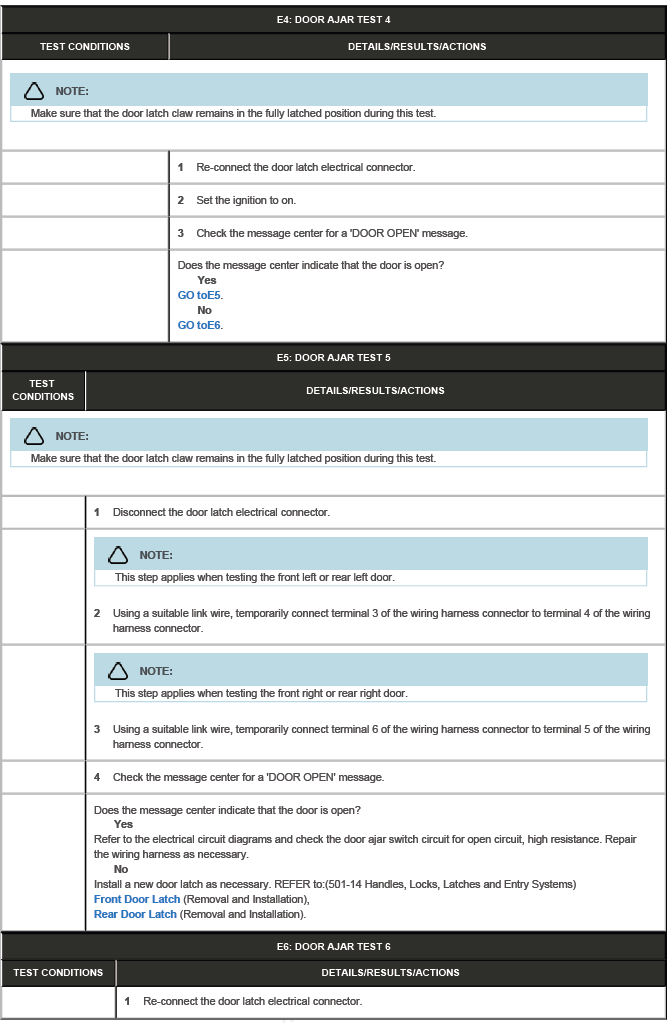

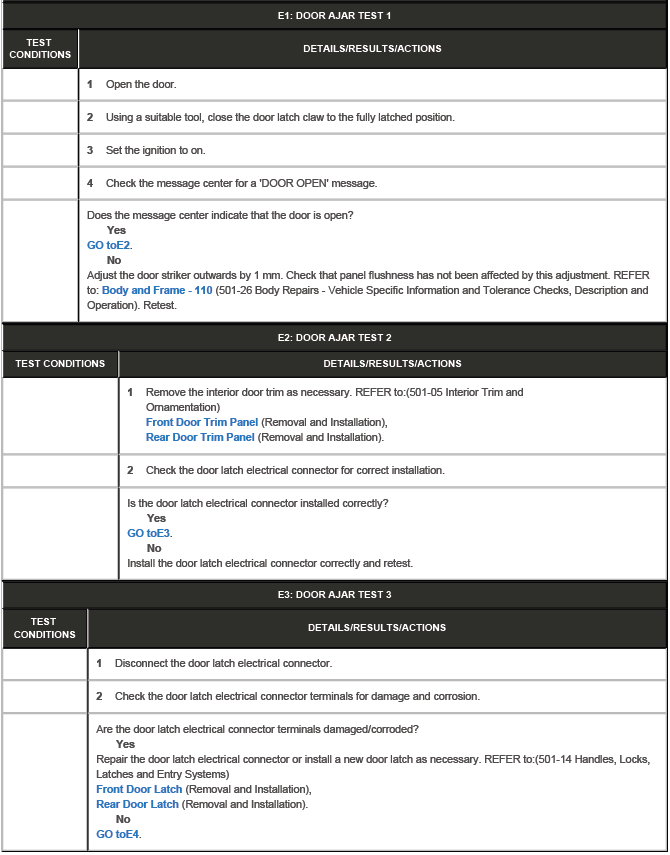

PINPOINT TEST E : DOOR AJAR TESTS

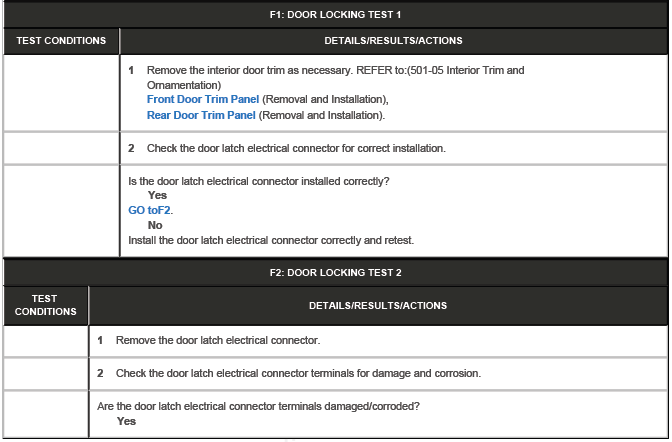

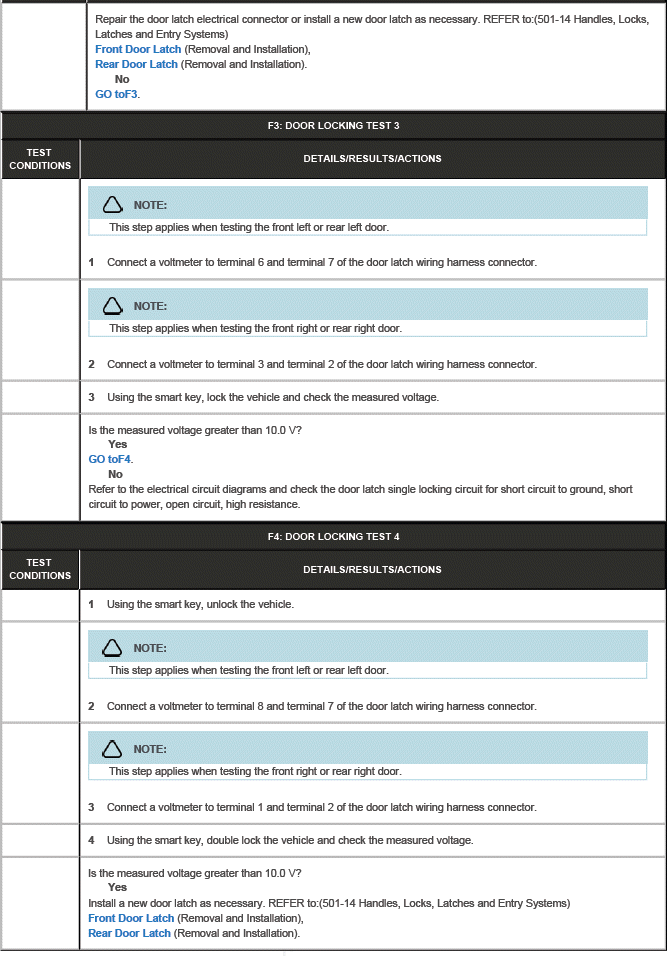

PINPOINT TEST F : DOOR LOCKING TESTS

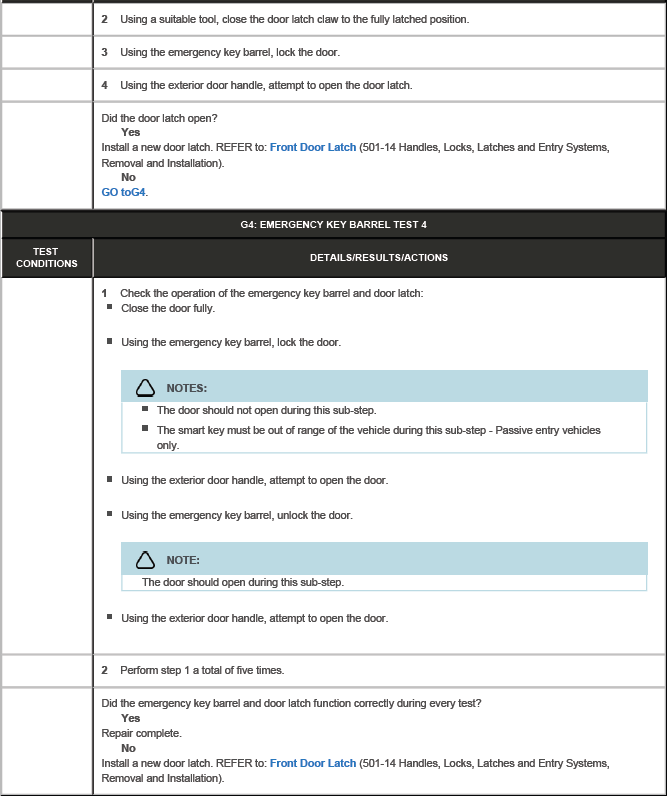

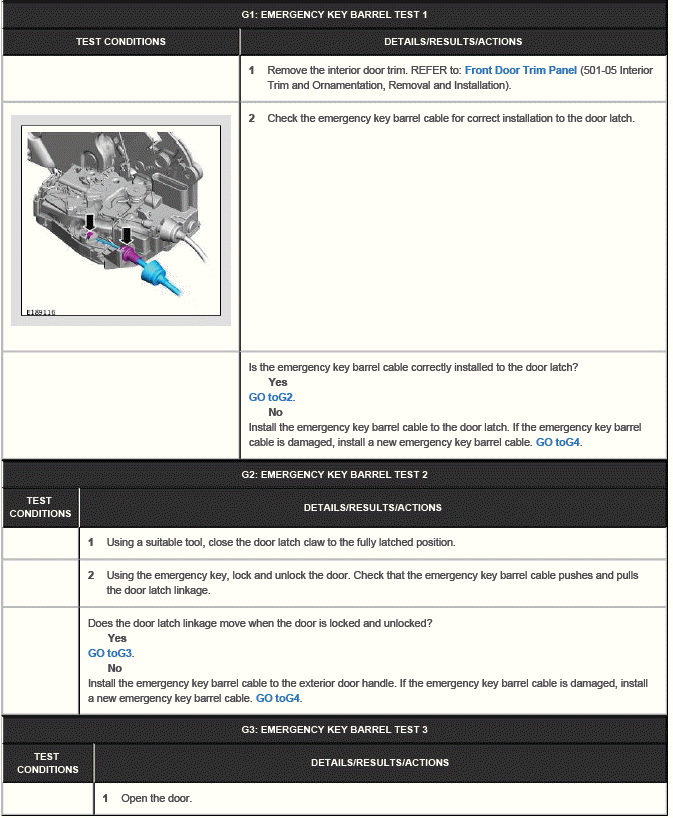

PINPOINT TEST G : EMERGENCY KEY BARREL TESTS
