Land Rover Defender: Headlamp Adjustment
GENERAL PROCEDURES
GENERAL EQUIPMENT
CHECK
NOTES:
- The headlamp setting is 1.2 % below horizontal and parallel.
- This procedure contains illustrations for left side components, right
side components are similar.
- Make sure that the vehicle is standing on a level surface.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
The following step(s) applies to:
Vehicles with air suspension
1. Perform the air suspension manual control procedure.
The following step(s) applies to:
All vehicles
2. Align the headlamp beam setting equipment to one headlamp.
General Equipment: Headlamp beam setter
3. Switch the headlamps on to the low beam.
ADJUSTMENT
The following step(s) applies to:
All vehicles
1.

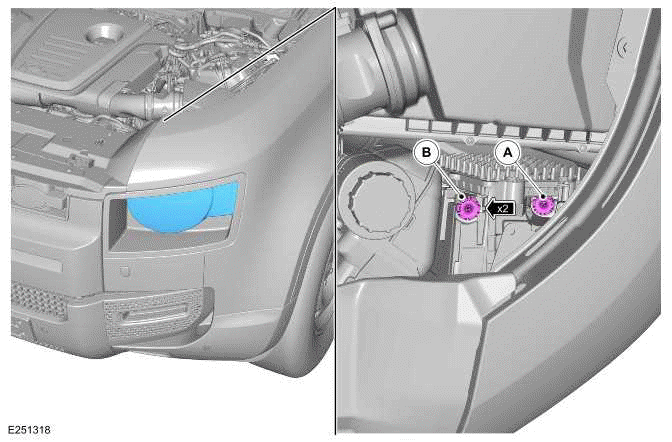

- Use a suitable tool to adjust the headlamps.
- Rotate the adjuster 'A' for vertical alignment.
- Rotate the adjuster 'B' for horizontal alignment.
2. To adjust the second headlamp, repeat the above procedure.
The following step(s) applies to:
Vehicles with air suspension
3. Disable the air suspension manual control mode.
