Land Rover Defender: Heater Mats
DIAGNOSIS AND TESTING
PRINCIPLES OF OPERATION
For a detailed description of the Heater Mats, refer to the relevant
Description and Operation section in the workshop
manual.
INSPECTION AND VERIFICATION
CAUTION:
Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution
of control modules does not
guarantee confirmation of a fault, and may also cause additional faults in the
vehicle being tested and/or the
donor vehicle.
NOTES:
- If a control module or a component is at fault and the vehicle
remains under manufacturer warranty, refer
to the Warranty Policy and Procedures manual, or determine if any prior
approval program is in operation,
prior to the installation of a new module/component.
- When performing voltage or resistance tests, always use a digital
multimeter that has the resolution ability
to view 3 decimal places. For example, on the 2 volts range can measure 1mV
or 2 K Ohm range can
measure 1 Ohm. When testing resistance always take the resistance of the
digital multimeter leads into
account.
- Check and rectify basic faults before beginning diagnostic routines
involving pinpoint tests.
- Verify the customer concern
- Check the operation of other seats in the row (if more than one seat in
the row has failed, this could be a
software related issue)
- Visually inspect for obvious signs of damage and system integrity
(damage to seat trims including cuts,
damage to wiring harnesses).
Visual Inspection
- If an obvious cause for an observed or reported concern is found,
correct the cause (if possible) before
proceeding to the next step
- Check the JLR claims submission system for open campaigns. Refer to the
corresponding bulletins and SSMs
which may be valid for the specific customer complaint and complete the
recommendations as required
- If the cause is not visually evident, verify the symptom and refer to
the Symptom Chart, alternatively check for
Diagnostic Trouble Code(s) (DTC)s and refer to the DTC Index
SEAT HEATER MAT DIAGNOSTICS
Each seat has two heating elements: one in the base (the seat heater module,
comprising the seat cushion heating
element and an integral heat sensor), and one in the back (backrest heating
element). The seat cushion and backrest
seat heater elements connect to the HVAC Control Module, although the elements
are electrically wired in series
(each drawing proportion of battery voltage). As well as power and ground
circuits, there is a Local Interconnect
Network (LIN) circuit between the seat heater module and the HVAC Control
Module. The seat heater module
monitors the performance of both seat cushion and backrest heaters and reports
the status of the seat heating system
through the LIN connection to the HVAC Control Module. Any faults detected in
the seat cushion and/or backrest
heaters should trigger a DTC to be set by the HVAC Control Module. The table
below lists the potential symptoms that
may be exhibited by the seat heater system and the steps that should be taken to
rectify the faults.

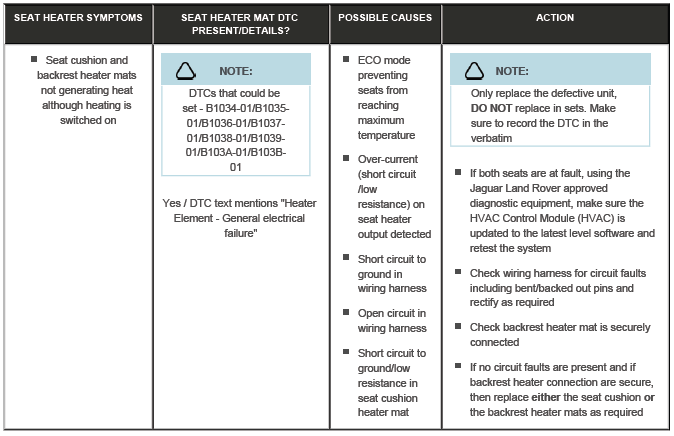

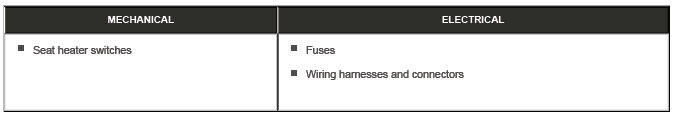

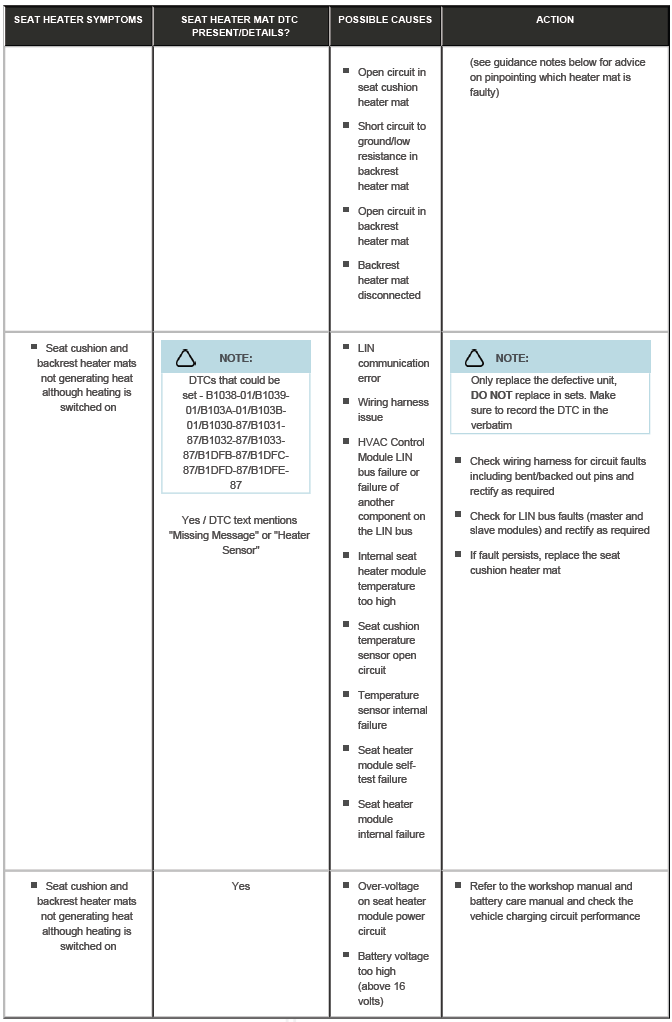

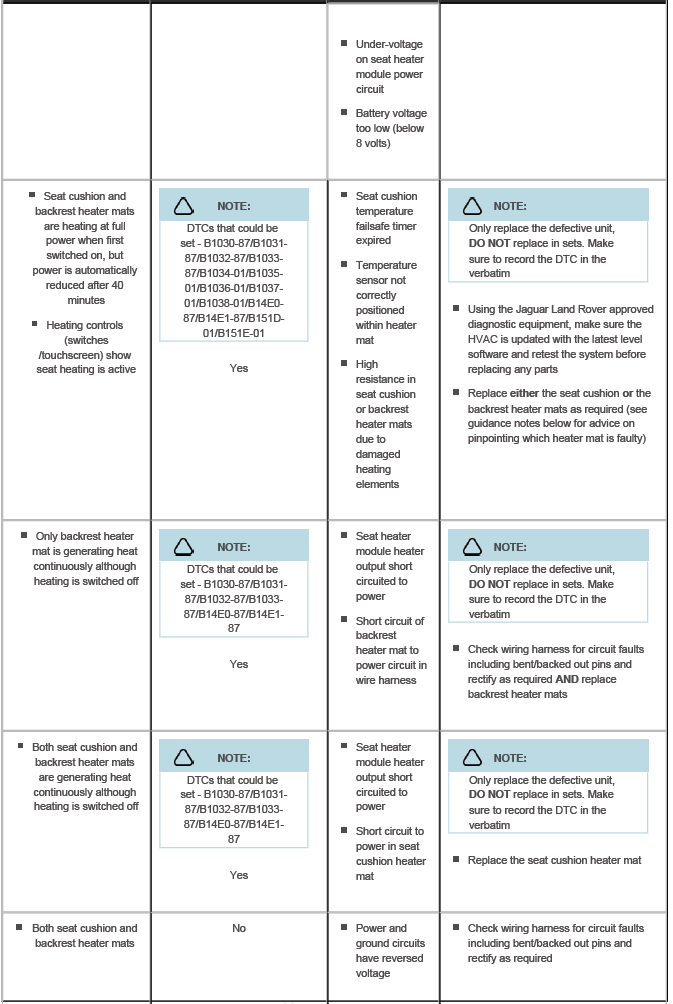

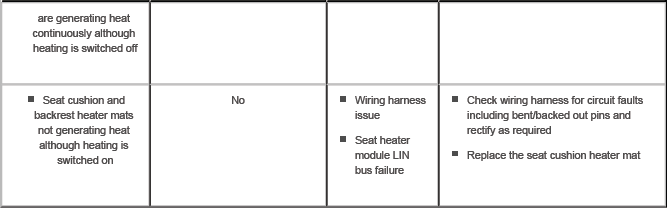

SEAT HEATER MAT DIAGNOSTICS AND ASSOCIATED SYMPTOMS
SEAT HEATER MAT FAULTS - FURTHER DIAGNOSTIC GUIDANCE
- Advice On Pinpointing Which Heater Mat Is Faulty - Diagnosis Of Seat
Heater Elements Using Resistance
Measurements Of Backrest Heater Mat - In the case of suspected seat heater
element failures, the exact
location of the failure (seat cushion or backrest heater element) should
always be confirmed by electrical
resistance tests before replacement. Do not replace components based only on
temperature performance. Heater
mat failures can be located through resistance measurements of the backrest
heater mat (Note: the resistance of
the seat cushion heater mat cannot be measured directly because one pin is
hid by the seat cushion cover over
the unit). Use the following procedure to check the resistance of the
backrest heater mat:
- Disconnect the backrest heater mat.
- Use a digital multimeter to measure the backrest heater mat
resistance @ 20ºC (note: this should not be done
when the seat heaters have been used recently, as a previous heating
cycle can increase the resistance
leading to an inaccurate reading).

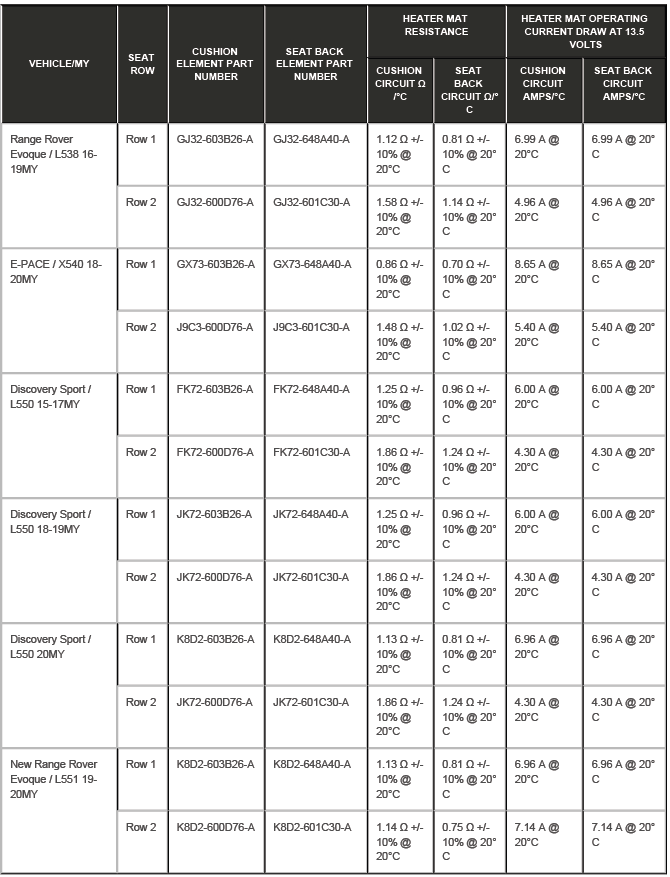

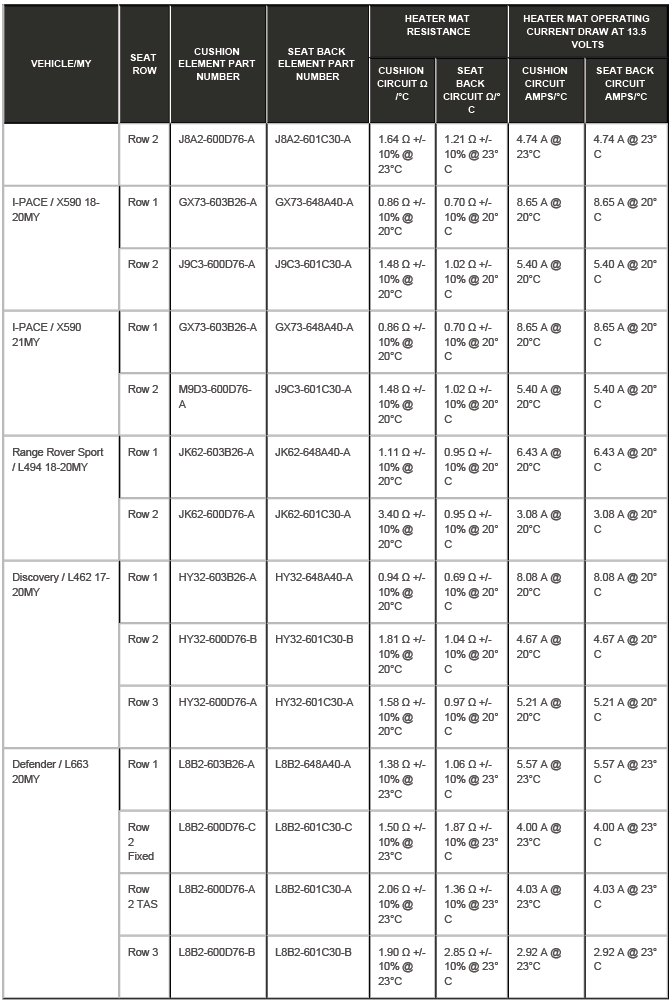

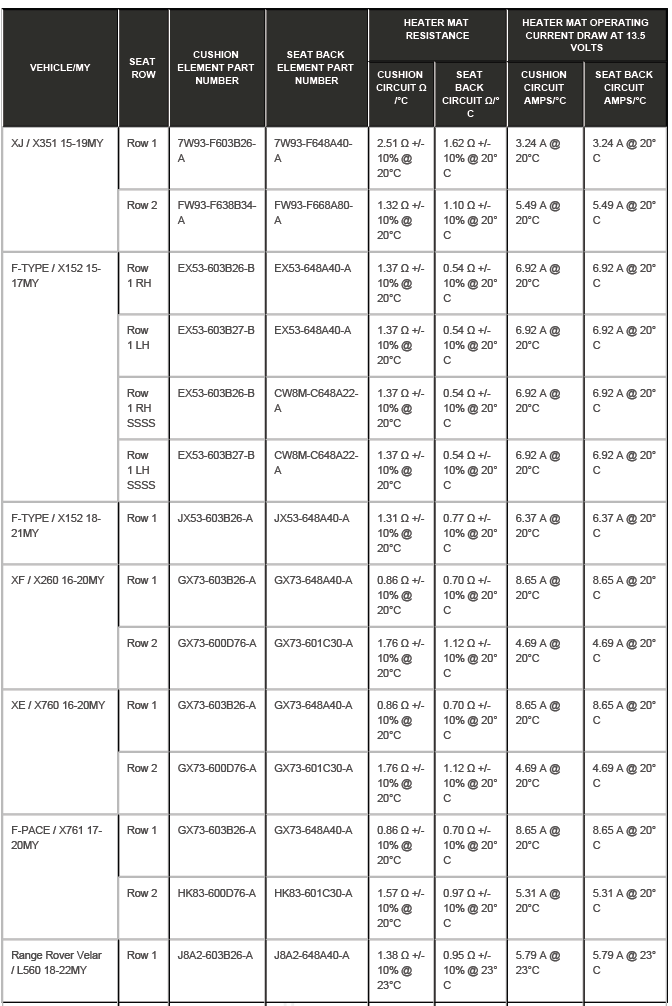

- Refer to the table below for expected resistance values. If the
measured resistance is outside this tolerance,
then replace the backrest seat heater mat. If the resistance is within
the specified tolerance, the seat cushion
heater mat should be replaced.
- Seat Heater Sensor Faults - Each seat has two heating elements: one in
the base (seat cushion), and one in the
back (backrest). There is only one heater sensor in each seat, which is
located in the base. This sensor controls
both heating elements. If there is a fault with the sensor signal, neither
element will operate. If the signal fault is
traced to the sensor itself (in the seat cushion heater mat), there is no
need to replace the backrest heater mat.
- Simultaneous Failure of Both Seat Heater Mats Is Unlikely - The seat
cushion and backrest seat heater
elements connect to the HVAC Control Module, but the control module only
acts as a splice box and the elements
are electrically wired in series (each drawing proportion of battery
voltage). The only way for one element to
operate while the other is faulty is if one is the elements has a
short-circuit fault. Under normal circumstances,
where short-circuit faults are present these will be detected by the HVAC
Control Module which will switch off both
elements. Similarly, if the sensor (in the seat cushion element) is faulty,
the HVAC Control Module will not apply
voltage to the elements and, if one element is open-circuit, then no voltage
can be supplied to the other element.
Given this, while it may often be the case that both elements cease to
operate, it is extremely unlikely that both
heater mats are faulty. Consequently, if a fault is confirmed with one of
the seat heater mats, do not also replace
the other.
