Land Rover Defender: Installation

INSTALLATION

SPECIAL TOOL(S)

Transmission - Ingenium I4 2.0l Petrol

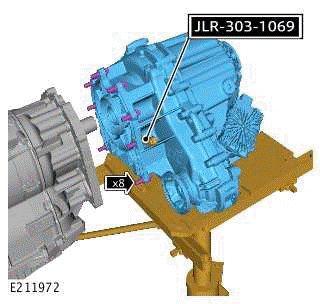

303-1069

Adapter, Wrench

Transmission - Ingenium I4 2.0l Petrol

JLR-303-1569

Lifting Bracket, Engine

Transmission - Ingenium I4 2.0l Petrol

JLR-303-1692

Engine Support

Transmission - Ingenium I4 2.0l Petrol

JLR-303-1692-04

Engine Bridge Adaptor

Transmission - Ingenium I4 2.0l Petrol

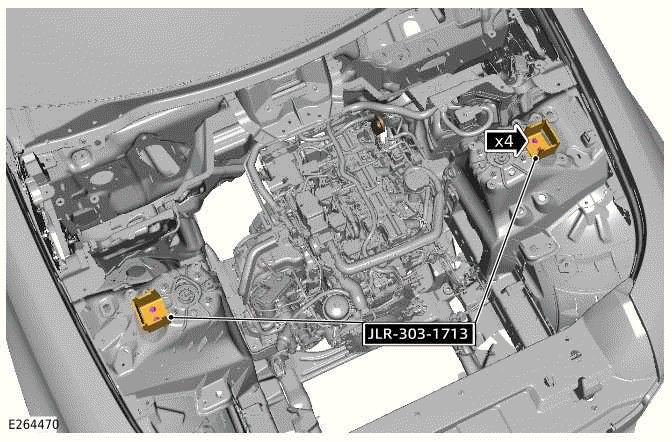

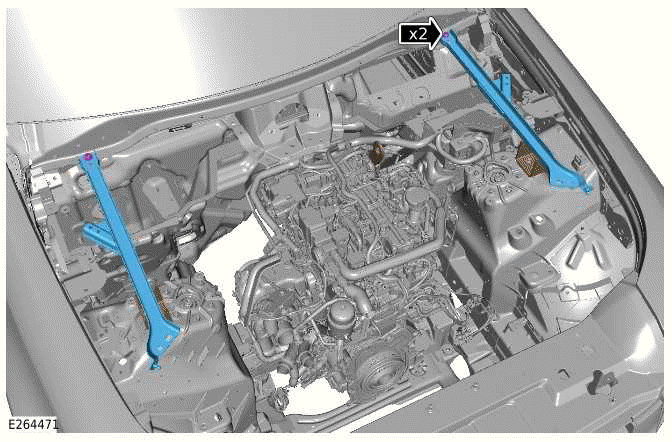

JLR-303-1713

Engine Brace Mountings

GENERAL EQUIPMENT

Transmission - Ingenium I4 2.0l Petrol

PART(S)

Transmission - Ingenium I4 2.0l Petrol

Transmission - Ingenium I4 2.0l Petrol

CAUTION: New transmission assemblies are supplied pre-filled with transmission fluid.

NOTES:

  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

1.

NOTE: This step is only required if a new transmission is to be installed.

Transmission - Ingenium I4 2.0l Petrol

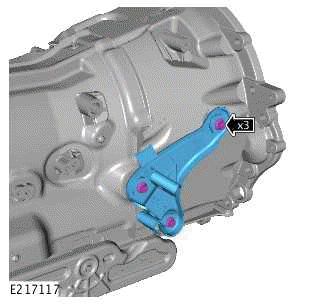

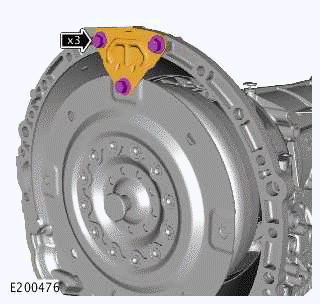

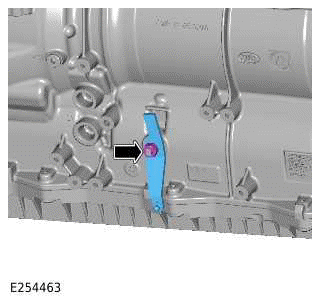

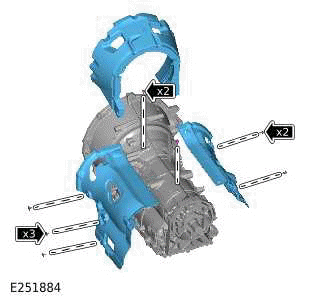

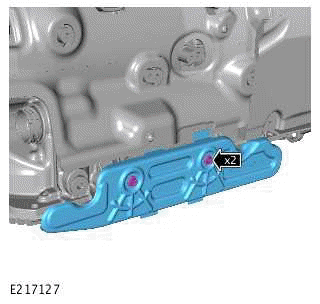

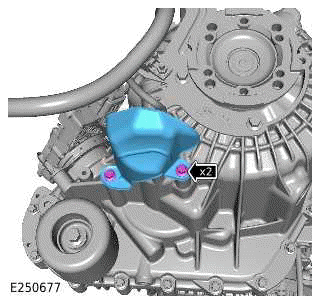

Remove the 3 bolts and the torque converter transportation brace.

2.

Transmission - Ingenium I4 2.0l Petrol

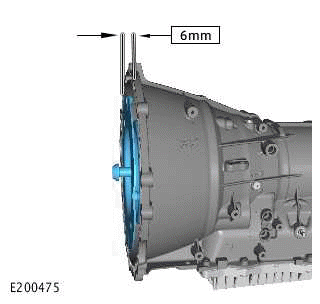

Make sure the torque converter is installed to the measurements show.

3.

Transmission - Ingenium I4 2.0l Petrol

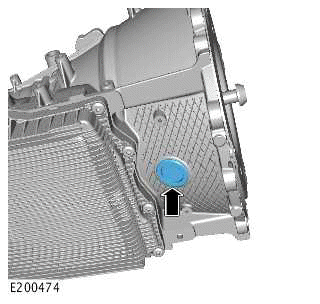

Install the transmission plug.

4.

Transmission - Ingenium I4 2.0l Petrol

5.

Transmission - Ingenium I4 2.0l Petrol

6.

Transmission - Ingenium I4 2.0l Petrol

7.

Transmission - Ingenium I4 2.0l Petrol

8.

WARNING: This step requires the aid of another technician

Transmission - Ingenium I4 2.0l Petrol

9.

Transmission - Ingenium I4 2.0l Petrol

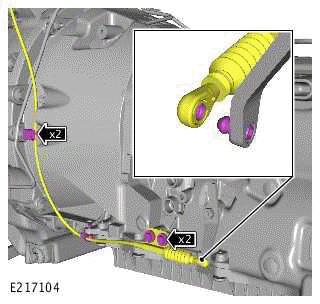

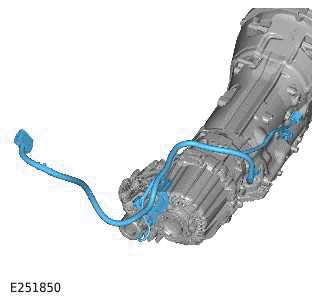

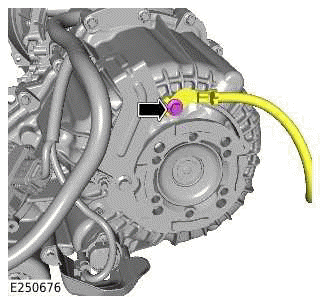

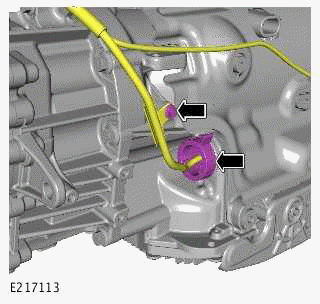

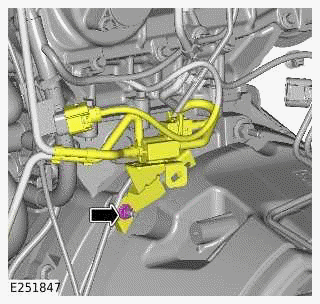

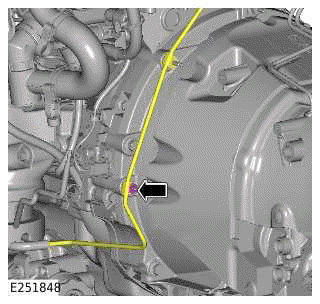

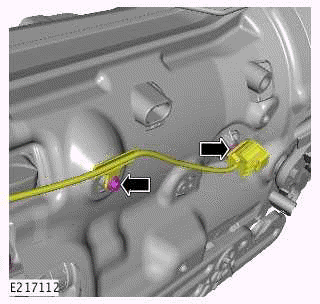

Install the transmission wiring harness.

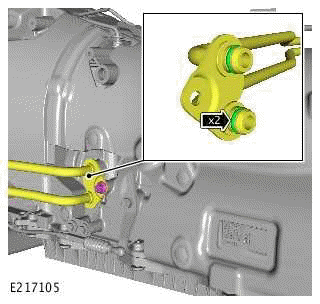

10.

Transmission - Ingenium I4 2.0l Petrol

11.

Transmission - Ingenium I4 2.0l Petrol

12.

Transmission - Ingenium I4 2.0l Petrol

13.

Transmission - Ingenium I4 2.0l Petrol

14.

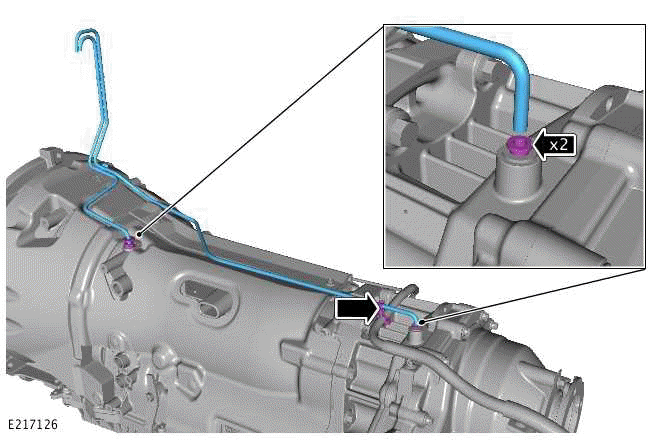

WARNING: To prevent water ingress and subsequent transmission damage, make sure that the breather is fully installed into the transmission casing. The white line around the circumference of the pipe should not be visible when correctly installed.

Transmission - Ingenium I4 2.0l Petrol

15.

WARNING: This step requires the aid of another technician.

CAUTION: Make sure that the torque converter remains in the transmission.

Transmission - Ingenium I4 2.0l Petrol

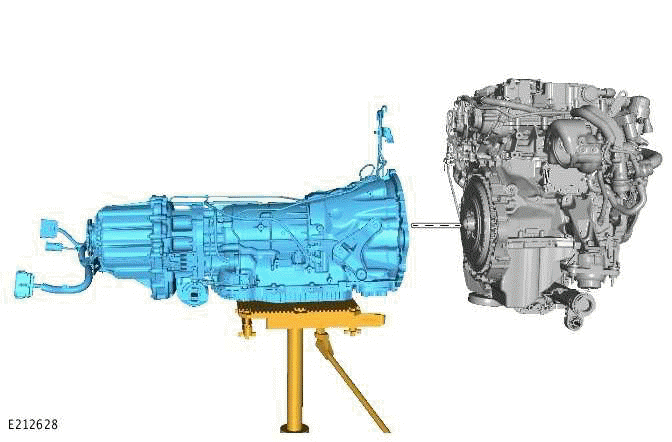

Install the transmission assembly.

16.

Transmission - Ingenium I4 2.0l Petrol

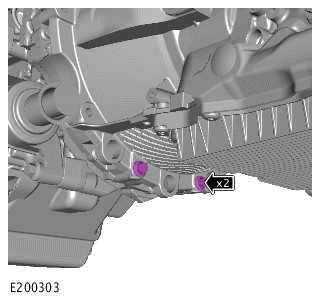

Install and tighten the 2 lower transmission to engine bolts.

Torque: 40Nm

17.

Transmission - Ingenium I4 2.0l Petrol

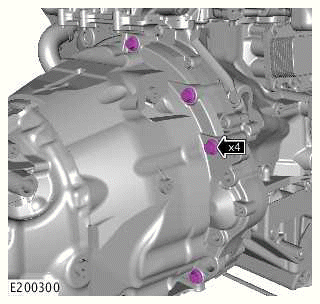

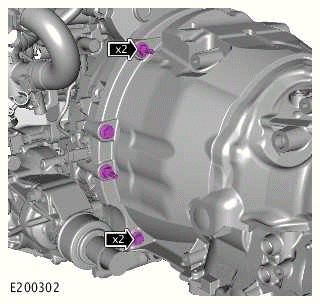

Install and tighten the 4 right side transmission to engine bolts.

Torque: 40Nm

18.

Transmission - Ingenium I4 2.0l Petrol

Install and tighten the 4 left side transmission to engine bolts.

Torque: 40Nm

19.

CAUTION: Only rotate the engine clockwise.

Transmission - Ingenium I4 2.0l Petrol

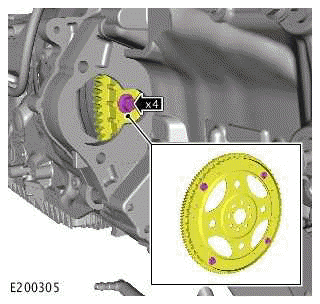

Install and tighten the 4 new torque converter bolts.

Renew Part: Torque converter bolts Quantity: 4.

Torque: 70Nm

20.

Transmission - Ingenium I4 2.0l Petrol

21.

Transmission - Ingenium I4 2.0l Petrol

22.

Transmission - Ingenium I4 2.0l Petrol

23.

Transmission - Ingenium I4 2.0l Petrol

24.

Transmission - Ingenium I4 2.0l Petrol

25.

Transmission - Ingenium I4 2.0l Petrol

26.

Transmission - Ingenium I4 2.0l Petrol

27. Install the front driveshaft.

28.

Transmission - Ingenium I4 2.0l Petrol

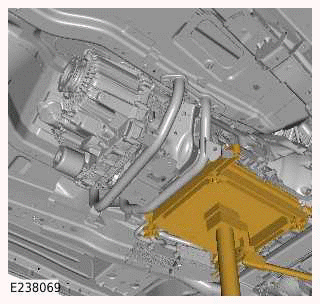

Remove the transmission jack.

General Equipment: Transmission jack

29. Install the starter motor.

30. Connect the rear driveshaft.

31. Install the catalytic converter.

32.

Transmission - Ingenium I4 2.0l Petrol

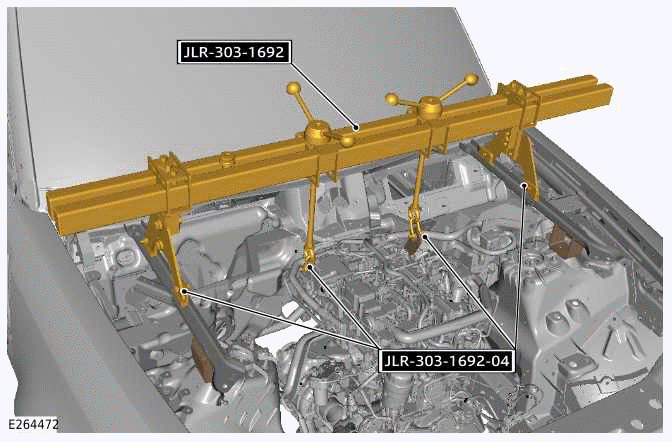

Remove the engine support beam and the engine support adapter.

Remove the Special Tool(s): JLR-303-1692, JLR-303-1692-04

33.

Transmission - Ingenium I4 2.0l Petrol

34.

Transmission - Ingenium I4 2.0l Petrol

35.

Transmission - Ingenium I4 2.0l Petrol

36.

Transmission - Ingenium I4 2.0l Petrol

37.

Transmission - Ingenium I4 2.0l Petrol

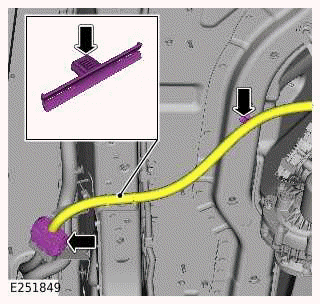

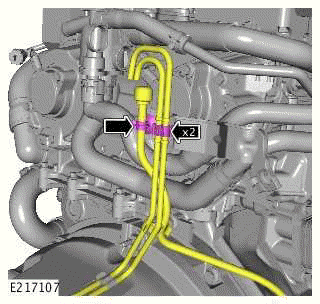

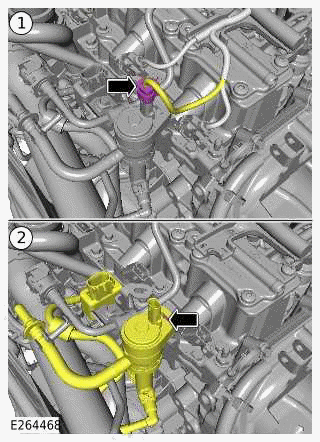

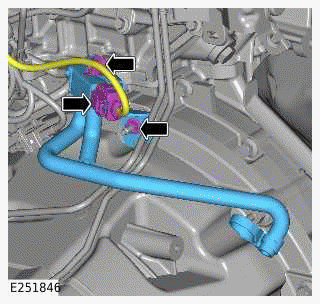

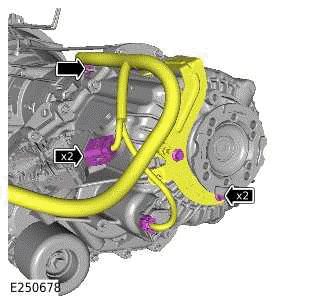

Install the breather pipes to the 3 clips.

38. Install the secondary bulkhead center panel.

39. Connect the startup battery ground cable.

40. Check the transmission fluid level.

41. Use the suitable Jaguar Land Rover (JLR) approved diagnostic equipment to configure the new transmission.

General Equipment: Jaguar Land Rover approved diagnostic equipment
