Land Rover Defender: Component Location, Overview, Description

COMPONENT LOCATION

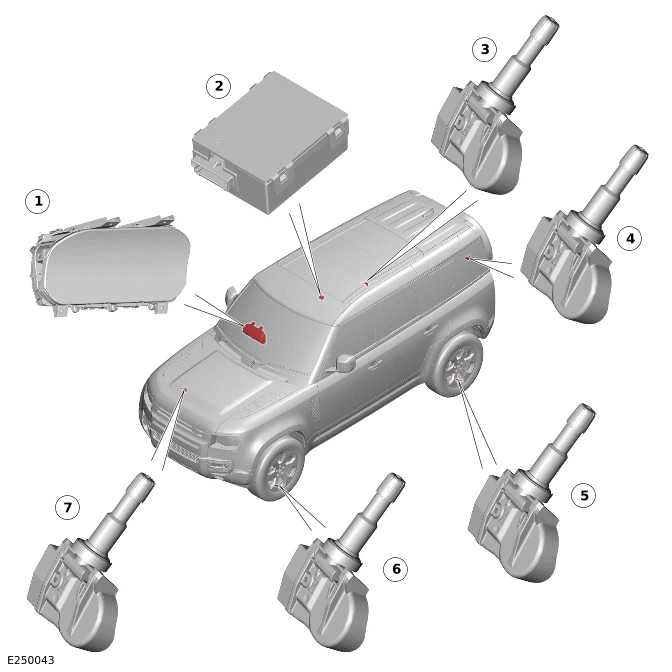

Tire Pressure Monitoring System Locsync

  1. Instrument Cluster (IC)
  2. Tire Pressure Monitoring System Control Module (TPMSCM)
  3. Tire pressure sensor - Rear right wheel
  4. Tire pressure sensor - Spare wheel
  5. Tire pressure sensor - Rear left wheel
  6. Tire pressure sensor - Front left wheel
  7. Tire pressure sensor - Front right wheel

OVERVIEW

The Tire Pressure Monitoring System (TPMS) measures the pressure in each of the tires on the vehicle. The TPMS issues warnings to the driver if any of the pressures deviate from those defined by local legislation.

DESCRIPTION

TIRE PRESSURE MONITORING SYSTEM VALVE DAMAGE

NOTES:

It is recommended that during the Pre-Delivery Inspection (PDI) (or at subsequent service intervals), advice should be given to customers. The damage to the Tire Pressure Monitoring System (TPMS) valve may occur if excessive side loading is applied during tire inflation or checking.

Tire Pressure Monitoring System Locsync

The TPMS valves are snapped/damaged when an excessive side load is applied as shown in the illustration.

Tire Pressure Monitoring System Locsync

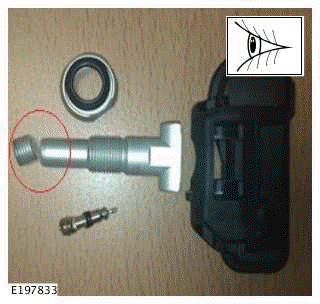

The damage occurs at the edge of the valve, as shown in the illustration. Any valve damage is not covered by the Jaguar Land Rover (JLR) warranty and a claim will not be accepted. This is not a manufacturing defect.

Tire Pressure Monitoring System Locsync

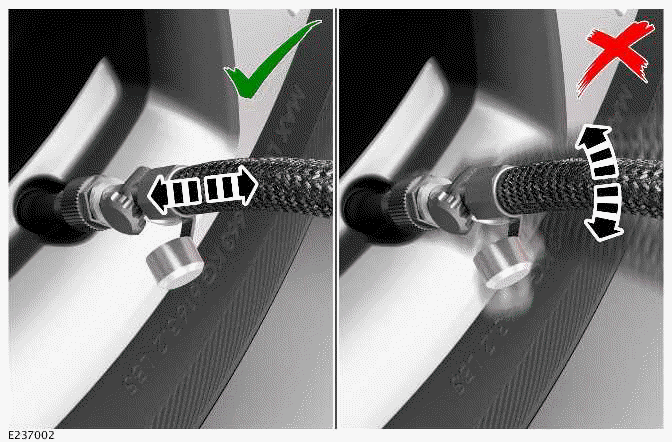

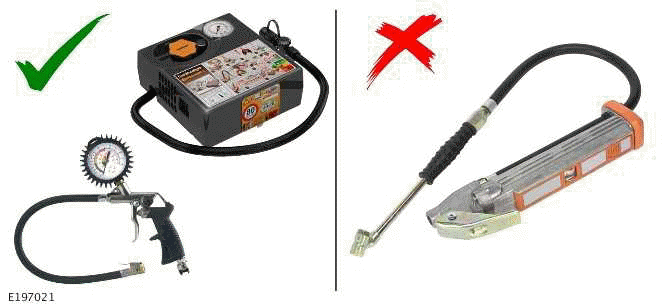

Use a non 'wand' style inflator to maintain the tire pressures. This is equipped with a flexible hose to the single tire valve connector.

INSTRUMENT CLUSTER WARNINGS

NOTE: When the ignition is ON, the Tire Pressure Monitoring System (TPMS) does a self-check.

Turn the ignition ON and check the Instrument Cluster (IC) for:

LOW TIRE PRESSURE WARNING

NOTE: To clear a low tire pressure warning indicator for the spare wheel, inflate the spare wheel to highest recommended cold tire pressure. The recommended cold tire pressures are shown on the tire label at the bottom of the front passenger B-pillar.

The Tire Pressure Monitoring System (TPMS) amber warning indicator is in the Instrument Cluster (IC). If the TPMS warning indicator illuminates during a journey or is ON all the time it indicates low tire pressure. The TPMS has detected that 1 or more tire pressures are less than the low tire pressure warning trigger value The Instrument Cluster (IC) displays a vehicle graphic showing the tire pressure(s) are less than the low tire pressure warning trigger value and 'Tire pressures' screen. The IC displays the actual tire pressures and the required tire pressures in the tire pressure warnings and 'Tire pressures' screen.

NOTE: The required tire pressures shown in the Instrument Cluster (IC) are the temperature compensated recommended cold tire pressures.

Check all the tire pressures even if only 1 tire is amber in the IC message center. Although only 1 tire pressure is less than the warning threshold other tire pressures could be close to the TPMS warning indicator threshold.

Check required tire pressures (the values are displayed in the brackets) in the 'Tire pressures' menu in the IC and inflate tires as required. The tire pressure in the IC updates when the tire is inflated. If the IC does not update, drive the vehicle for 5 minutes at speeds of greater than 25 km/h (16 mph). The TPMS should then update the tire pressures in the IC. The Instrument Cluster (IC) tire pressure displays can be configured to show the tire pressures in kPa, psi or bar.

Single Low Tire Pressure Warning

Tire Pressure Monitoring System Locsync

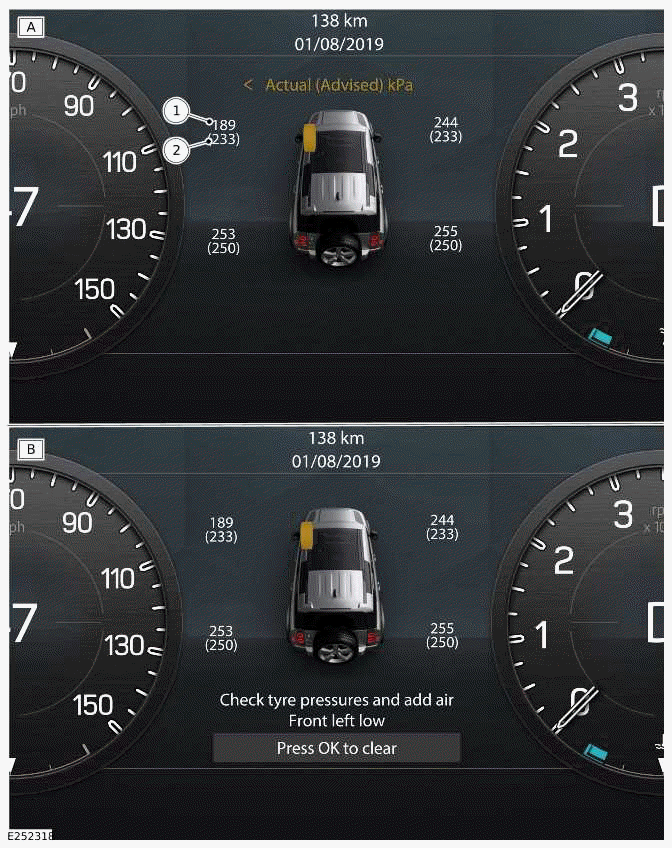

  1. 'Tire pressures' menu screen
  2. Tire pressure warning screen
  1. Actual tire pressure
  2. Advised tire pressure (temperature compensated recommended cold pressures)

NOTE: The Instrument Cluster (IC) will show advised tire pressure (temperature compensated recommended cold pressure) in the 'tire pressures' menu. The advised tire pressure is calculated upon the warming of the tires through use and correspond to the correct inflation pressure when the tire is cold. The advised tire pressure does not align with the tire label due to the warming of the tires through driving.

Only 1 tire is on amber. The actual and the required tire pressures are displayed.

Multiple Low Tire Pressure Warnings

Tire Pressure Monitoring System Locsync

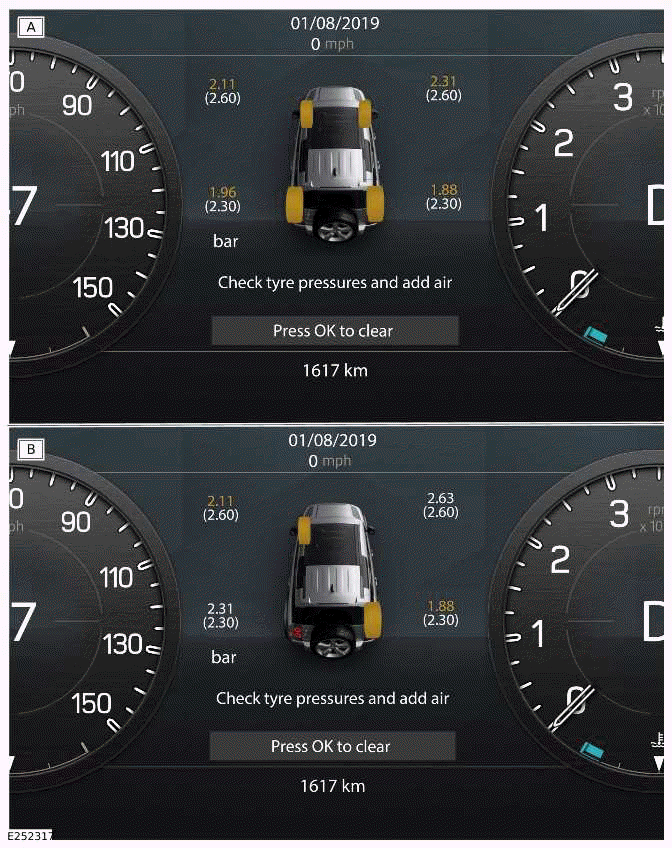

  1. Warning screen (All 4 tires are on amber)
  2. 'Tire pressures' menu screen (The low tire pressures for front left tire and rear right tire are on amber)

All 4 tires are shown in amber in the warning screen, when more than 1 tire has low tire pressure. Only the tires that have low tire pressures are amber in the 'Tire pressures' screen in the Instrument Cluster (IC).

If the low tire pressures for 3 tires are on amber in the 'Tire pressures' screen, all 4 tires are on amber in the warning screen.

The actual and the required tire pressure are displayed.

Tires At 0 pressure In The Instrument Cluster

Tire Pressure Monitoring System Locsync

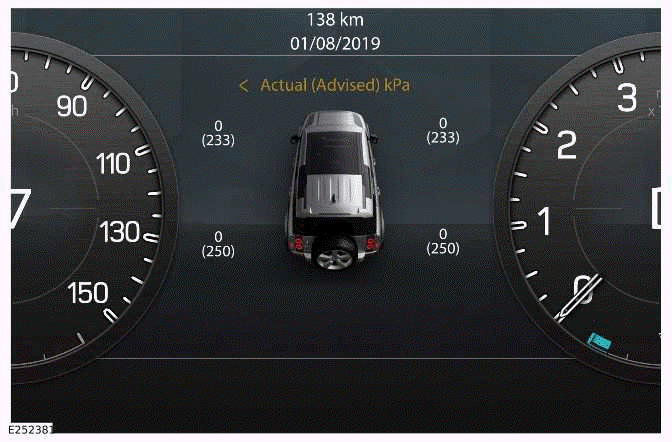

If the Instrument Cluster (IC) is showing tires at 0 pressure in the 'Tire pressures' menu, the tire pressures can be updated with the correct pressures.

The tire pressures can be updated by 1 of following:

TIRE PRESSURE WARNINGS

Non European or Non North American Specification Markets

When rubber valves are installed on all 4 road tires, the Tire Pressure Monitoring System (TPMS) displays a warning message. The 'Tire Pressure Monitoring not available' warning message displayed in the Instrument Cluster (IC) after 10 minutes of driving above 25 km/h (16 mph). The IC message 'Tire Pressure Monitoring not available' comes on every subsequent ignition cycle, until the tire pressure sensors are installed.

LOAD MESSAGES

The load setting of the vehicle may be changed in the 'Tire Pressure Monitoring load setting' menu in the Instrument Cluster (IC).

North American Specification Market

Tire Pressure Monitoring System Locsync

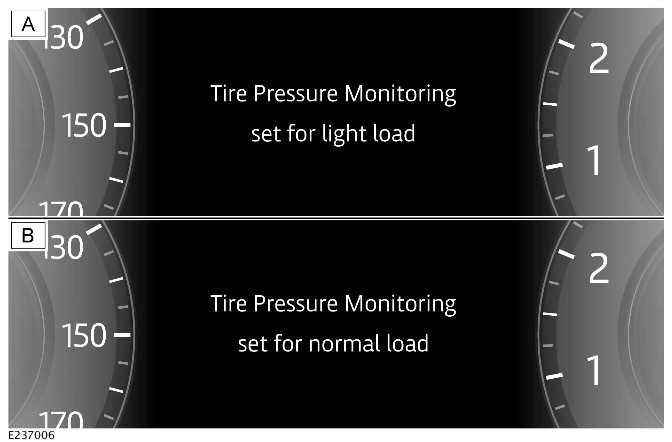

  1. Load message - Light load
  2. Load message - Normal load

European Market

Tire Pressure Monitoring System Locsync

  1. Load message - Light load
  2. Load message - Heavy load

The load mode can be selected from the 'Tire Pressure Monitoring load setting' menu in the IC.

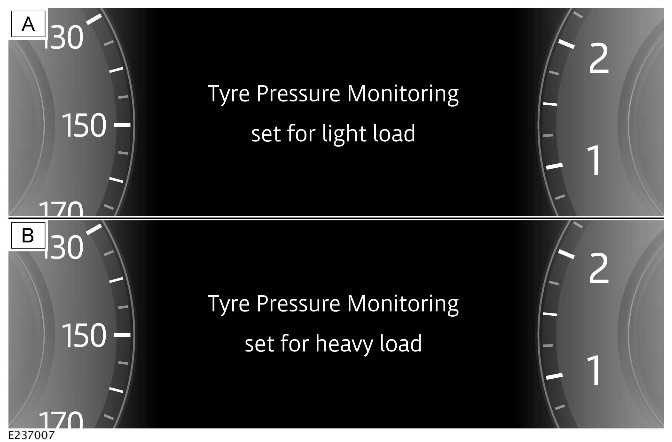

The IC displays 'Tire Pressure Monitoring set for Light Load', which means the light load mode has been set, and lower tire pressure is recommended.

The IC displays the following message:

It is a reminder that the heavy/normal load mode has been set, and the higher tire pressure is recommended.

WHEEL CANNOT BE DETECTED

With the ignition ON (Power Mode 6) and the vehicle stationary, the Instrument Cluster (IC) shows 1 or more wheels with an amber cross highlighted above the wheel.

Possible causes:

These claims are not covered by JLR warranty.
