Land Rover Defender: Integrated Power Brake System Fluid Reservoir
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
PART(S)
REMOVAL
CAUTIONS:
- Before disconnecting any components, make sure the area is clean and
free from foreign material. When
disconnected all openings must be sealed.
- Brake fluid will damage paint finished surfaces. If spilled,
immediately remove the fluid and clean the area
with water.
- Be prepared to collect escaping fluids.
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
The following step(s) applies to:
All vehicles
1. Connect the Jaguar Land Rover (JLR) approved diagnostic equipment and set
the Integrated Power Brake
module to the assembly mode.

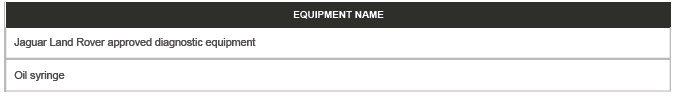

General Equipment: Jaguar Land Rover approved diagnostic equipment

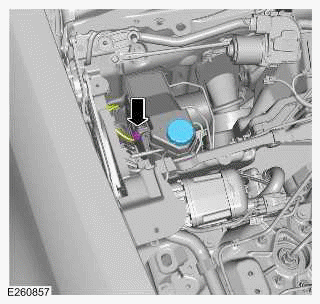

2. Remove the cowl panel.
The following step(s) applies to:
Left hand drive vehicles
3.
The following step(s) applies to:
Right hand drive vehicles
4.
The following step(s) applies to:
All vehicles
5.

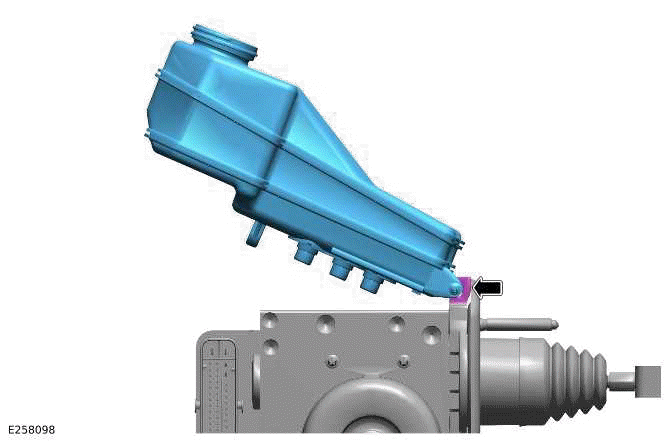

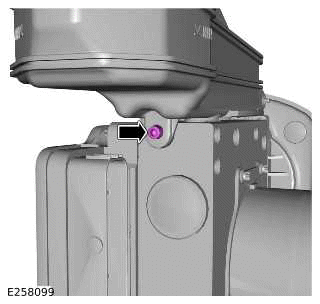

Remove and discard the bolt.
6.
CAUTION:
Be prepared to collect escaping fluids.

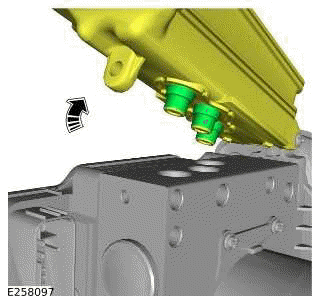

- Release the integrated power brake unit fluid reservoir.
- Remove and discard the 3 seals.
7.
Release and remove the integrated power brake unit fluid reservoir.
INSTALLATION
The following step(s) applies to:
All vehicles
1.
2.
NOTE:
The new bolt is a part of the integrated power brake replacement reservoir kit.
- Install and secure the integrated power brake unit fluid reservoir.
- Install and tighten the new bolt.
Torque: 6Nm
The following step(s) applies to:
Left hand drive vehicles
3.

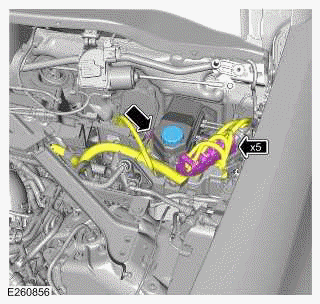

- Position the wiring harness to the original position.
- Connect the 6 electrical connectors.
The following step(s) applies to:
Right hand drive vehicles
4. Connect the electrical connector.
The following step(s) applies to:
All vehicles
5. Install the cowl panel.
6. Top-up the brake fluid reservoir with the correct amount of brake fluid.
7. Connect the JLR approved diagnostic equipment and complete the 'Leakage
And Air Monitoring' procedure.
General Equipment: Jaguar Land Rover approved diagnostic equipment
8.
- If the 'Leakage And Air Monitoring' test was completed successfully
proceed to step 10.
- If the 'Leakage And Air Monitoring' test failed, rectify any reasons of
failure and proceed to step 9.
9.
- Bleed the brake system.
- Use the JLR approved diagnostic equipment to complete 'Leakage and Air
Monitoring' test.
- If the 'Leakage and Air Monitoring' test completed successfully proceed
to step 10.
- If the 'Leakage and Air Monitoring' test completed unsuccessfully
rectify the reasons of failure and
complete the 'Brake System Bleed with Diagnostic Equipment' procedure.
10. Use the JLR approved diagnostic equipment to disable the integrated power
brake module assembly mode.
General Equipment: Jaguar Land Rover approved diagnostic equipment
11.
- Close the hood and all the doors and lock the vehicle.
- Wait for the hazard warning lamp switch back light to extinguish.
- Wait a further 20 seconds.
- Unlock the vehicle.
- Turn the ignition on.
12.
CAUTION:
If the following procedure could not be completed successfully check for
possible reasons of
failure, rectify and retest the system.
Use the JLR approved diagnostic equipment to clear Diagnostic Trouble Code(s)
(DTC) memory and check
that no new DTC are stored.
General Equipment: Jaguar Land Rover approved diagnostic equipment
