Land Rover Defender: Large Pet Access Ramp

LARGE PET ACCESS RAMP - 110, PART NUMBER: VPLRS0517

REMOVAL AND INSTALLATION

WARNINGS:

NOTES:

Large Pet Access Ramp - 110

Large Pet Access Ramp - 110

INSTALLATION

1.

Large Pet Access Ramp - 110

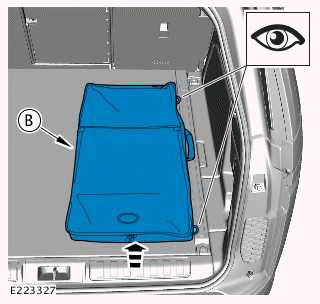

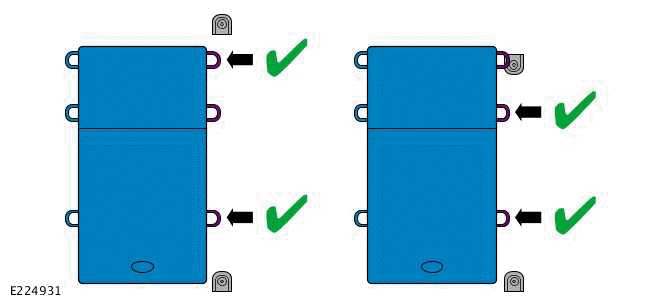

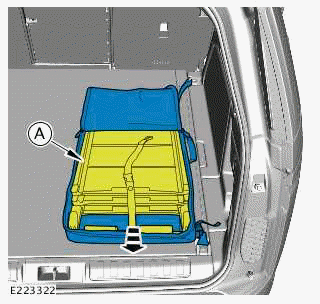

Place the storage bag (B) in the vehicle loadspace with the zip section facing rearwards. Position the storage bag D-loops in proximity of the vehicle loadspace D-loops.

2.

Large Pet Access Ramp - 110

3.

Large Pet Access Ramp - 110

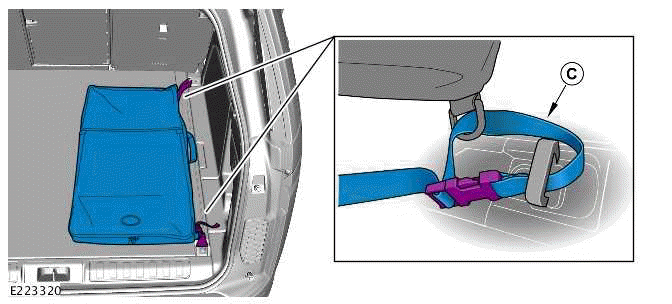

Using the supplied straps (C) attach the ramp bag to the loadspace D-loops using 2 of the D-loops on the storage bag.

  1. Make sure the straps are tight.

4.

Large Pet Access Ramp - 110

Unzip the storage bag and remove the pet access ramp (A).

5.

Large Pet Access Ramp - 110

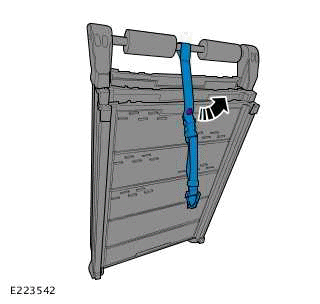

Unattach the strap on the pet access ramp.

6.

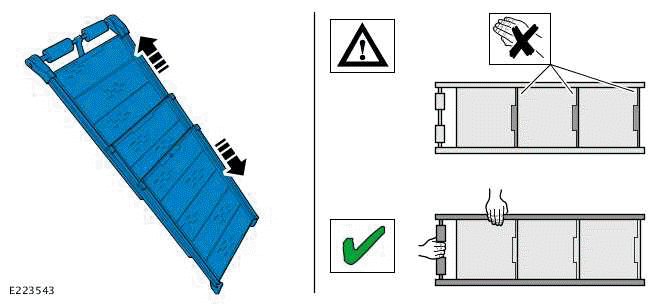

CAUTION: Only hold the pet access ramp by the aluminium rails and end bar.

Large Pet Access Ramp - 110

Extend the pet access ramp to its full length.

7.

Large Pet Access Ramp - 110

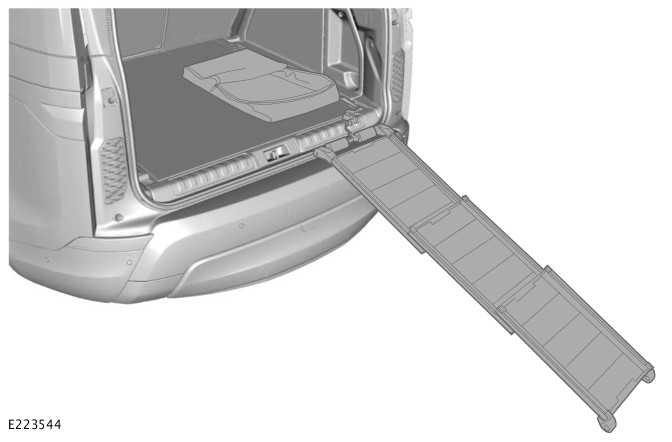

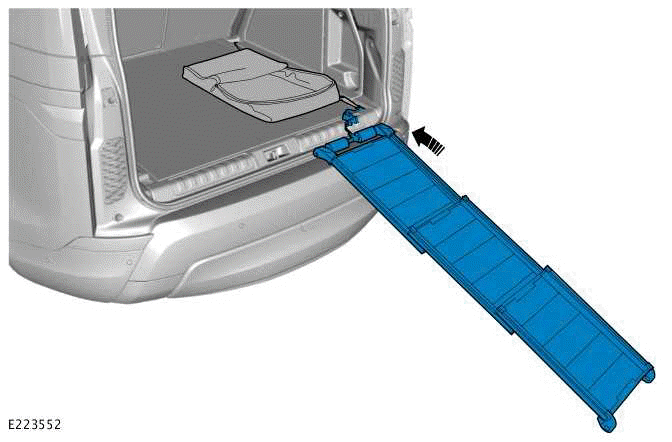

Place the pet access ramp securely on the rear bumper in line with the storage bag.

8.

Large Pet Access Ramp - 110

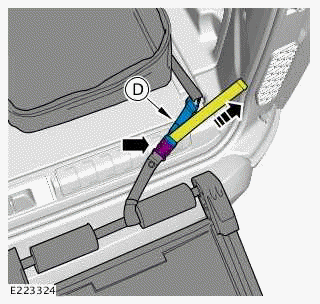

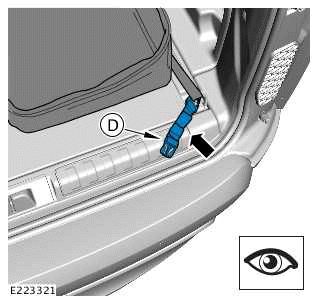

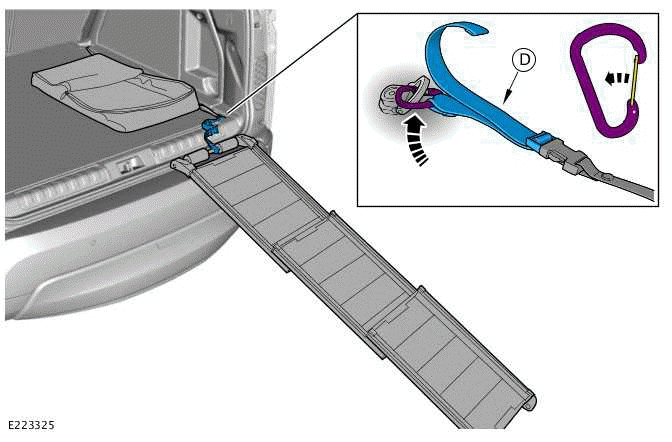

Attach the safety strap (D) to the rearward vehicle loadspace D-loop.

9.

CAUTION: Make sure the strap is adjusted so the pet access ramp cannot accidentally fall from the rear bumper.

Large Pet Access Ramp - 110

Tighten the safety strap as required.

10.

Large Pet Access Ramp - 110

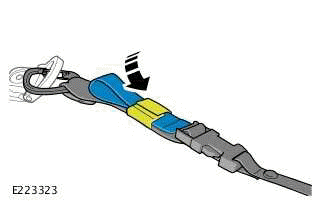

When the desired strap length is acquired gather the excess strap using the buckle.

11.

Large Pet Access Ramp - 110

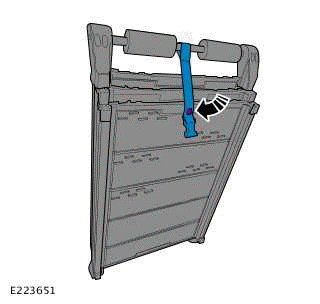

When packing away make sure the strap is reattached to the pet access ramp.

12.

CAUTION: Make sure the strap is clear from the treadplate when closing the tailgate.

Large Pet Access Ramp - 110

The safety strap can be left in place ready for future use.
