Land Rover Defender: Portable Rinse System

PORTABLE RINSE SYSTEM - PART NUMBER: VPLCS0598, VPLCS0519

REMOVAL AND INSTALLATION

WARNING: Accessories which are not properly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

Portable Rinse System

WARNING: Do not pressurise above 60 PSI.

CAUTIONS:

NOTE: It is recommended to fill the Portable rinse system using an external tap with a quick connect outlet.

Portable Rinse System

Portable Rinse System

INSTALLATION

1.

Portable Rinse System

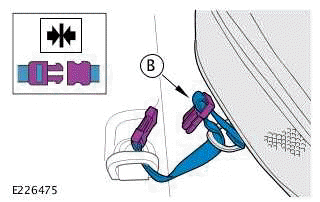

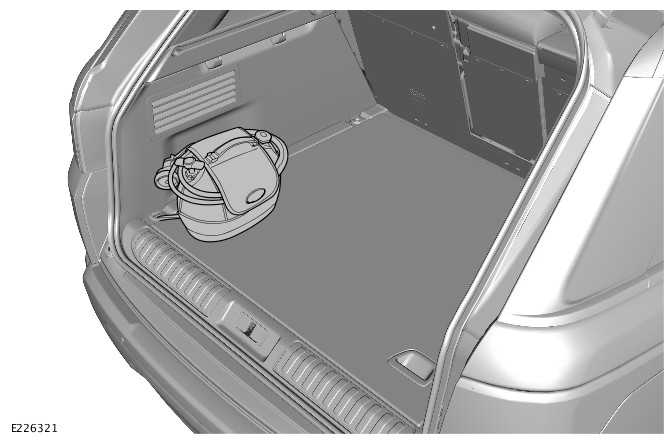

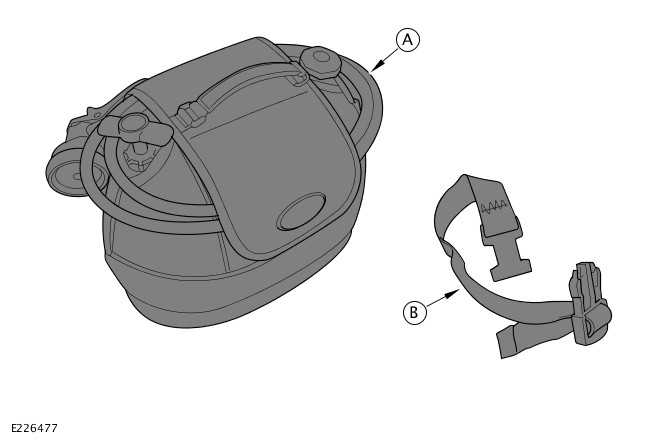

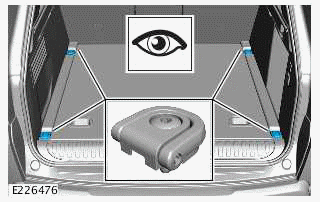

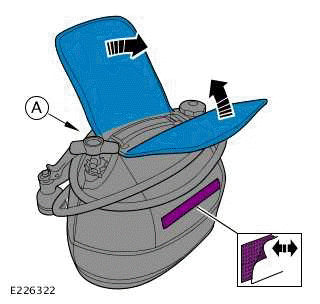

To store the portable rinse system attach it to the vehicle using a loadspace D-loop anchor point.

2.

Portable Rinse System

3.

Portable Rinse System

4.

Portable Rinse System

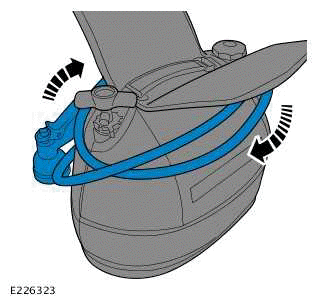

Uncoil the hose.

5.

Portable Rinse System

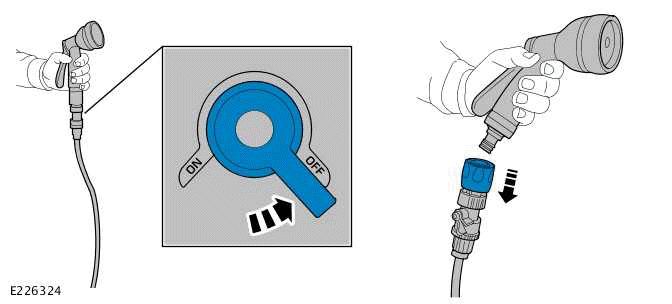

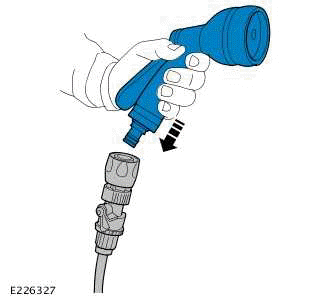

Turn off the flow valve when removing the hose from the nozzle.

6.

Portable Rinse System

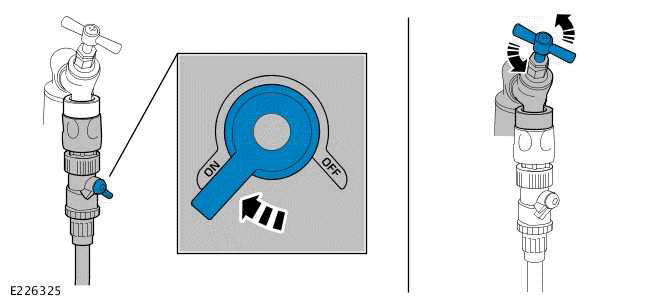

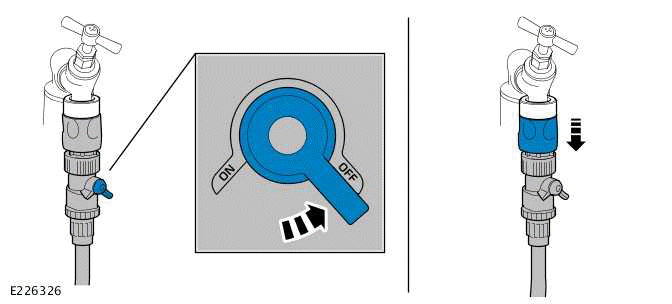

When filling the portable rinse system with the hose, turn the flow valve on after connecting to the external tap.

7.

Portable Rinse System

8.

Portable Rinse System

Reconnect the nozzle.

9.

Portable Rinse System

Alternatively to top up the portable rinse system from an external tap remove the fill cap.

10.

Portable Rinse System

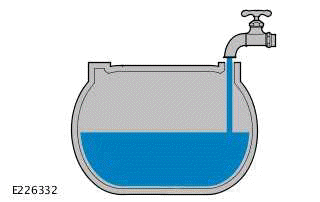

Fill with an external tap.

11.

Portable Rinse System

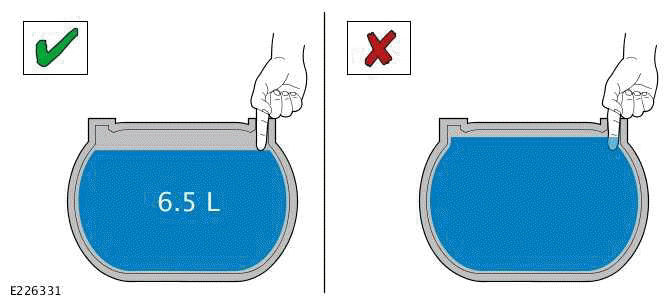

Check the water level with your finger.

12.

Portable Rinse System

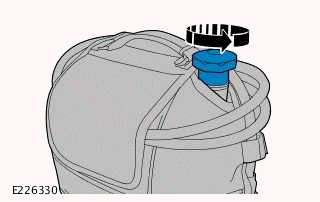

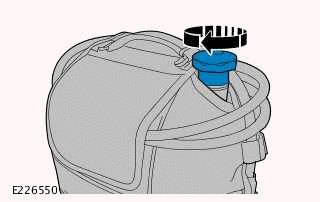

Replace the cap. Tighten fully.

13.

Portable Rinse System

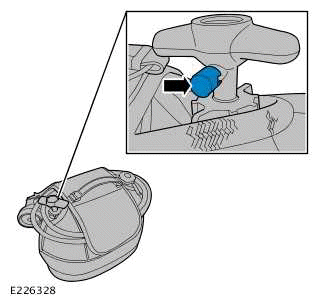

If the pressure gauge shows any pressure, reset the portable rinse system tank pressure by depressing the button on the hand pump.

14.

NOTE: Approximately 150 full pumps.

Portable Rinse System

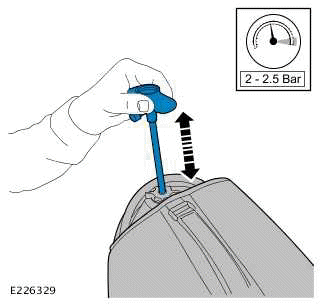

Using the hand pump increase pressure to at least 2 bar.

15. The portable rinse system is now ready to use.

16.

NOTES:

Portable Rinse System

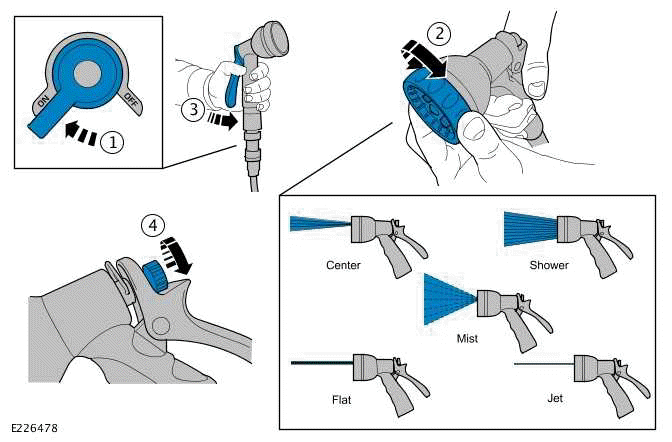

To use the rinse system:

  1. Turn on the hose flow valve.
  2. Rotate the nozzle ring to change to the desired spray setting.
  3. Depress the hose head handle.
  4. Rotate the screw on the rear of the hose head to adjust the flow rate.

17.

Portable Rinse System

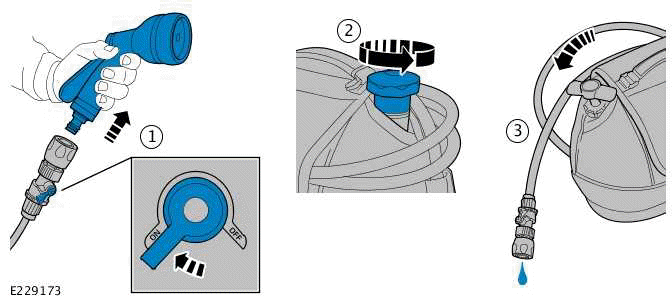

To empty the portable rinse system:

  1. Remove the nozzle and turn on the flow valve.
  2. Remove the fill cap.
  3. Uncoil the hose and tilt the rinse system.

18.

Portable Rinse System

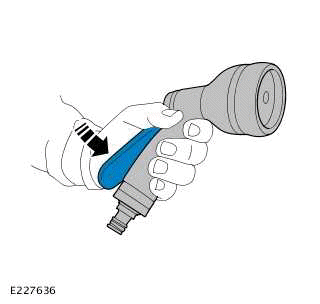

When finished using the portable rinse system, remove the nozzle from the hose and depress the handle several times to clear any residual water in the nozzle.
